Model / SKU: LP-IN2931[-X]
The LP-IN2931[-X] is an 8-in-1 version of the leading Megalodon range featuring 6x 4G/5G antennas covering 617-960/1427-6000MHz and 2x WiFi elements covering 2.4-7.2GHz for WiFi 6e/7 within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 3x 2×2 4G/5G modems and is ideal for mobility applications.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.
The LP-IN2931[-X] kits are fitted with 5m (16.4ft) ultra low loss cables with SMA connectors for 4G/5G and reverse polarity SMA connectors for WiFi.

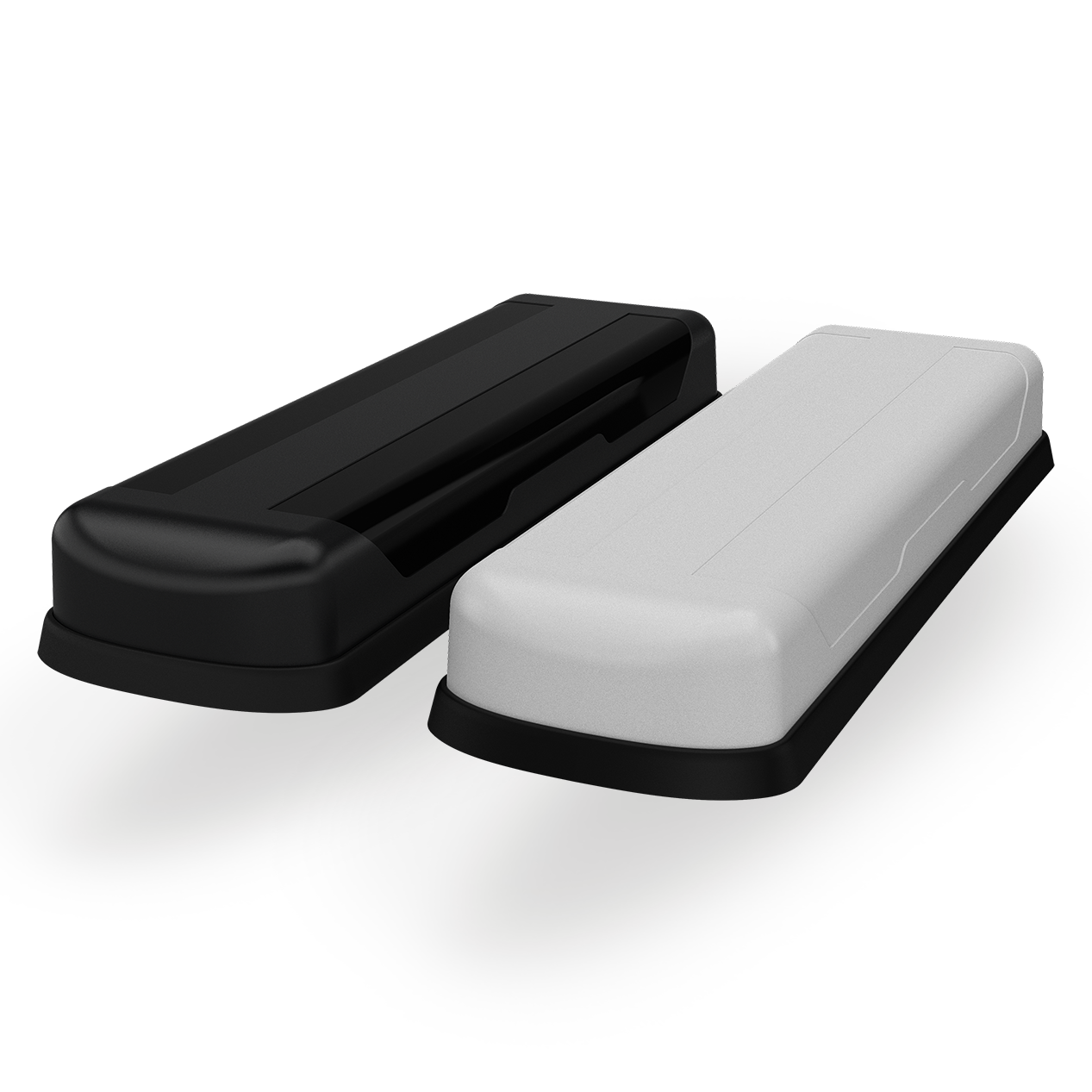

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
The LP-IN2931[-X] is an 8-in-1 version of the leading Megalodon range featuring 6x 4G/5G antennas covering 617-960/1427-6000MHz and 2x WiFi elements covering 2.4-7.2GHz for WiFi 6e/7 within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 3x 2×2 4G/5G modems and is ideal for mobility applications.
The LP-IN2931[-X] is an 8-in-1 version of the leading Megalodon range featuring 6x 4G/5G antennas covering 617-960/1427-6000MHz and 2x WiFi elements covering 2.4-7.2GHz for WiFi 6e/7 within a robust low profile package. Covering global cellular bands for future-proof performance, the antenna provides effective functionality for 3x 2×2 4G/5G modems and is ideal for mobility applications.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low-loss CS30 cables (Compliant to UN ECE R118) and a halogen free, flame retardant radome, the antenna is suitable for many environments and applications, including public safety and transportation.
The LP-IN2931[-X] kits are fitted with 5m (16.4ft) ultra low loss cables with SMA connectors for 4G/5G and reverse polarity SMA connectors for WiFi.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for Ingress protection.
| Colour | Black, White |
|---|---|
| 4G/5G | 6×6 – 3x 2×2 MiMo |
| WIFI MIMO | 2 x 2 MIMO |
| Cable Length | Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | SMA Rev Pol |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | 617 – 960MHz; 1427 – 6000MHz |
| Cellular LTE Elements | 6×6 – 3x 2×2 MiMo |
| WIFI Elements | 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black; White |
| Length | 437 (mm) | 17.20 (in) |
| Width | 133 (mm) | 5.24 (in) |
| Height | 55 (mm) | 2.17 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 5 (m) | 16.40 (ft) |
| Cable Length – WIFI | 5 (m) | 16.40 (ft) |
| Cable Type (LTE) | FR CS32 |
| Cable Type (WIFI) | FR CS32 |
| Quantity of Cell Cable | 6 |
| Quantity of WIFI Extension | 2 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA Rev Pol |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IK10; IP69K |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; ESN; FirstNet; WIFI 6E |
