Model / SKU: B4BE-460-6-60[-X]
The B4BE-460-6-60-[X] antenna is a cost effective omni-directional broadband antenna range for 4G/5G devices operating at UHF and higher frequencies . It covers 410-520/617-960/1427-6000MHz and is suitable for external or internal installation.

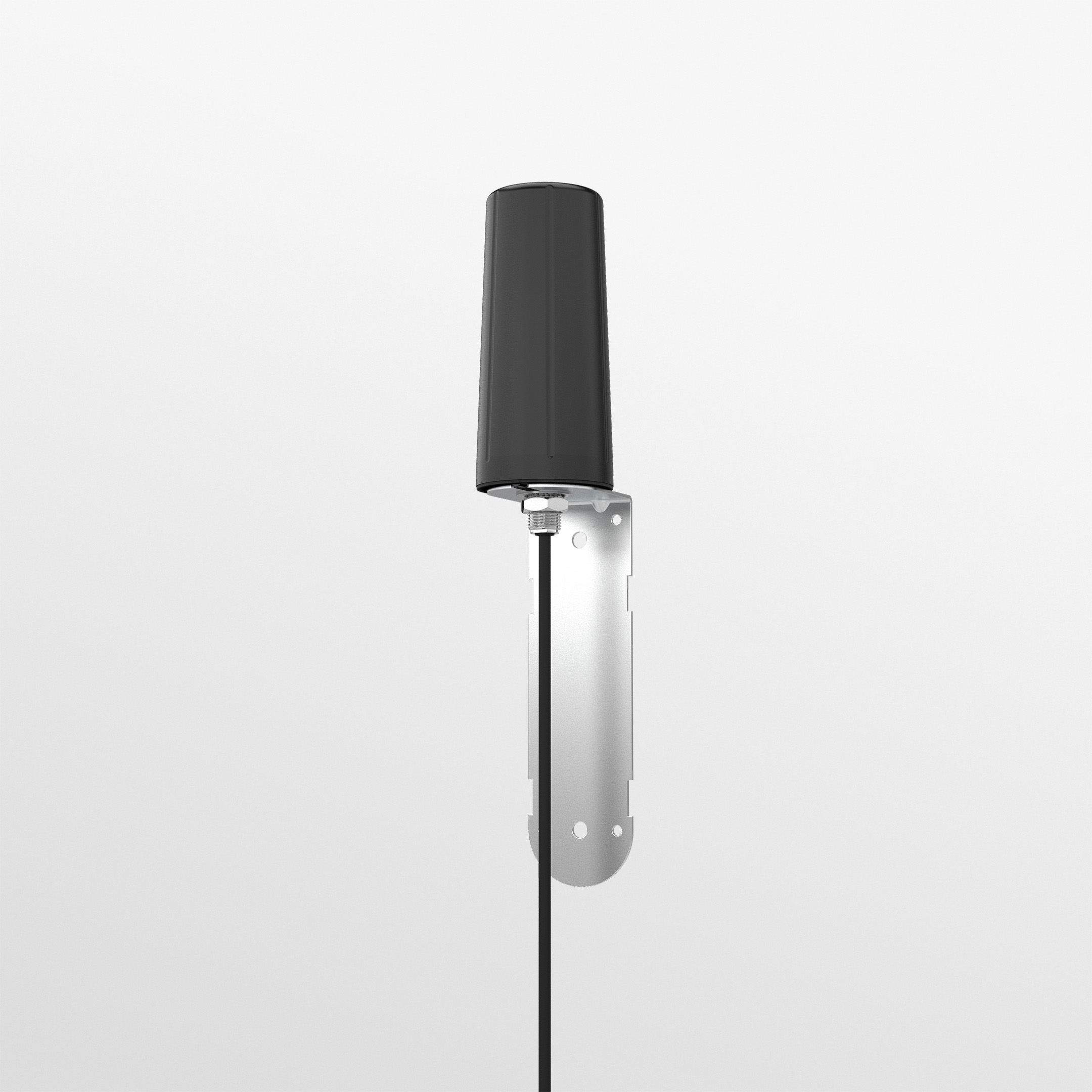

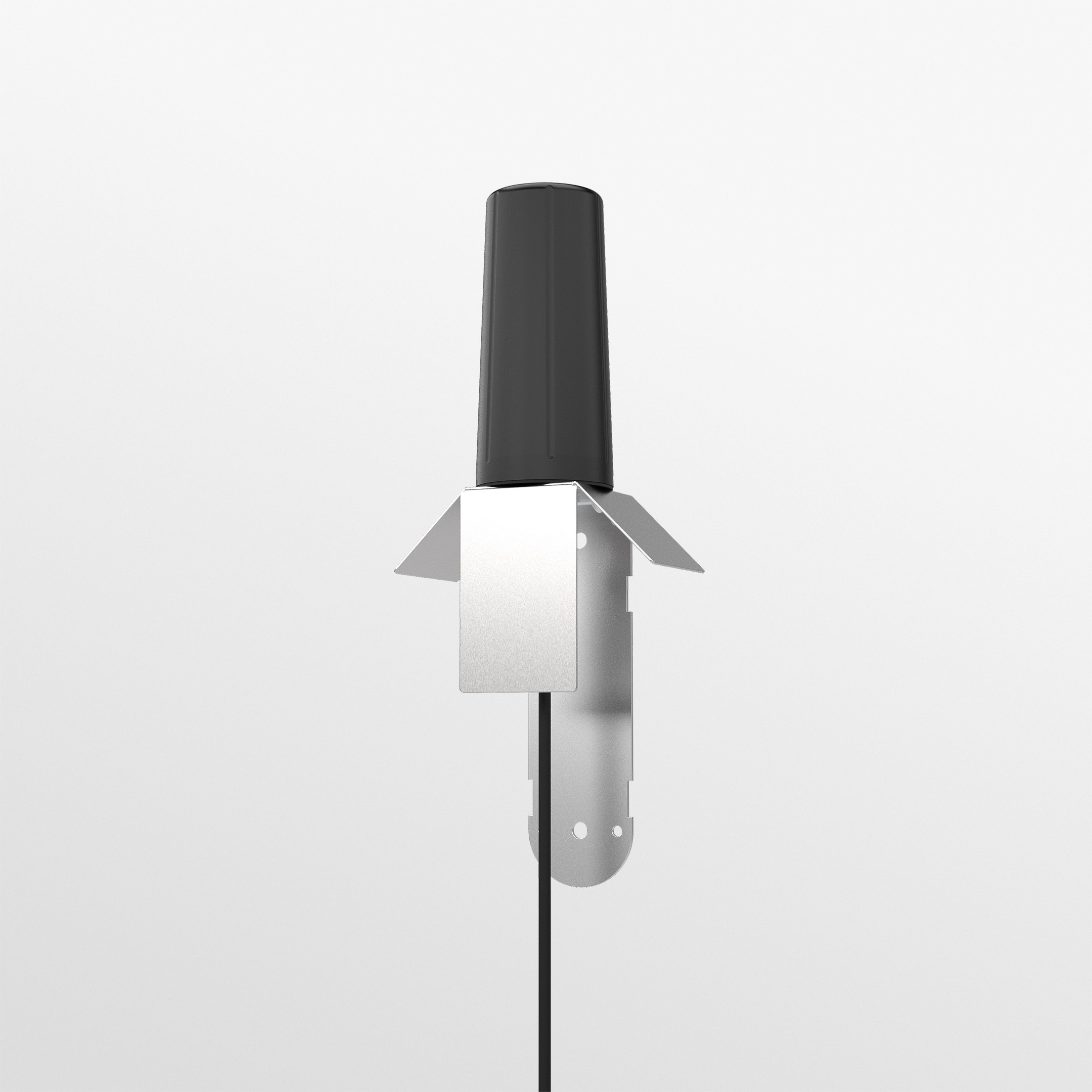

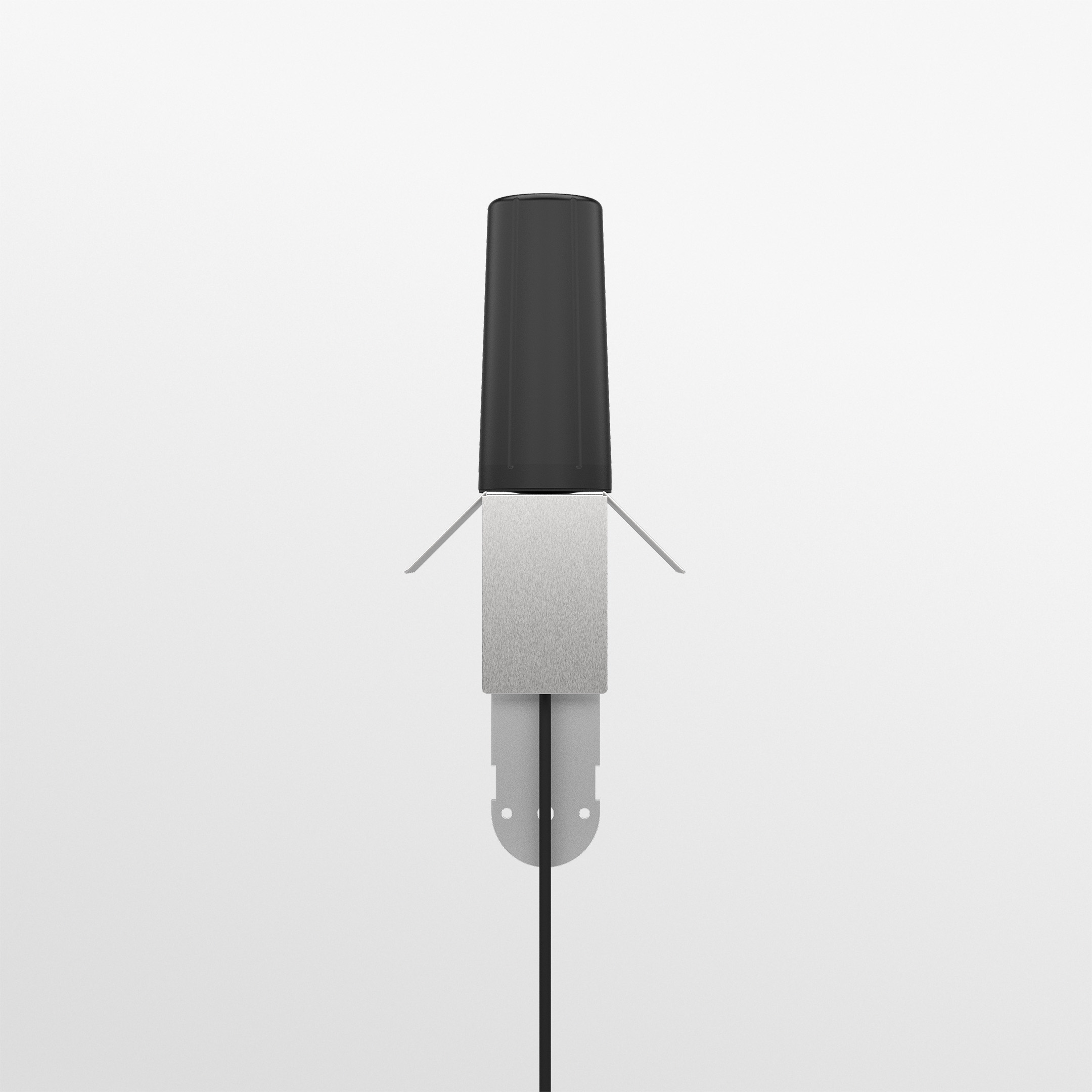

It can also be used as a UHF antenna or dualband UHF / 7/800MHz for PMR applications. The mounting bracket enables simple wall/panel mounting using the supplied screws & wall plugs or mast mounting using a pipe clip or cable ties (not supplied).
The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
The B4BE-460-6-60 antenna is supplied with ultra-low loss CS32 coaxial cable, of various lengths. A variety of coaxial connectors are available.
The B4BE-460-6-60-[X] antenna is a cost effective omni-directional broadband antenna range for 4G/5G devices operating at UHF and higher frequencies . It covers 410-520/617-960/1427-6000MHz and is suitable for external or internal installation.
The B4BE-460-6-60-[X] antenna is a cost effective omni-directional broadband antenna range for 4G/5G devices operating at UHF and higher frequencies . It covers 410-520/617-960/1427-6000MHz and is suitable for external or internal installation.
It can also be used as a UHF antenna or dualband UHF / 7/800MHz for PMR applications. The mounting bracket enables simple wall/panel mounting using the supplied screws & wall plugs or mast mounting using a pipe clip or cable ties (not supplied).
The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
The B4BE-460-6-60 antenna is supplied with ultra-low loss CS32 coaxial cable, of various lengths. A variety of coaxial connectors are available.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 60 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 410 – 520MHz; 617 – 960MHz; 1427 – 6000MHz |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 125 (mm) | 4.92 (in) |
| Diameter | 57 (mm) | 2.24 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 5 (m) | 16.40 (ft) |
| Cable Type (LTE) | FR CS32 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Wall |
| Mounting Methods | Mast; Panel; Wall; Pole |
| APPROVALS DATA | |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | UHF; 4G/5G; 5G; 2G/3G/4G; 433MHz; Band 71 600MHz ready; CBRS; FirstNet |
