Description
The B4BEE-868-2SP is a cost effective omni-directional antenna for 868 and 915MHz devices covering 863 – 928MHz and is suitable for external or internal installation.
Product

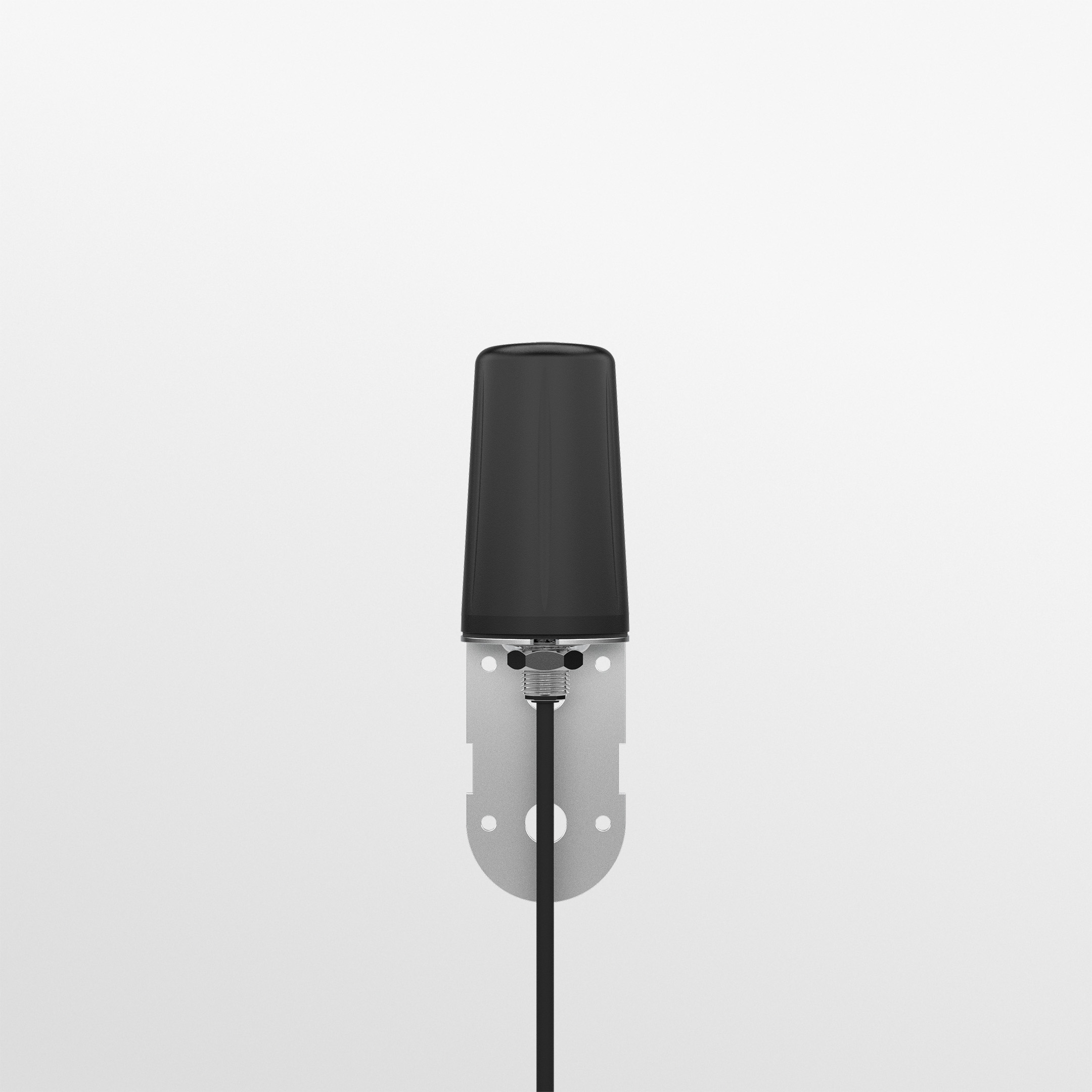

B4BEE-868 | Bracket Mount 868MHz Antenna
Model / SKU: B4BEE-868-[X]
B4BEE-868 | Bracket Mount 868MHz Antenna
The B4BEE-868-2SP is a cost effective omni-directional antenna for 868 and 915MHz devices covering 863 – 928MHz and is suitable for external or internal installation.

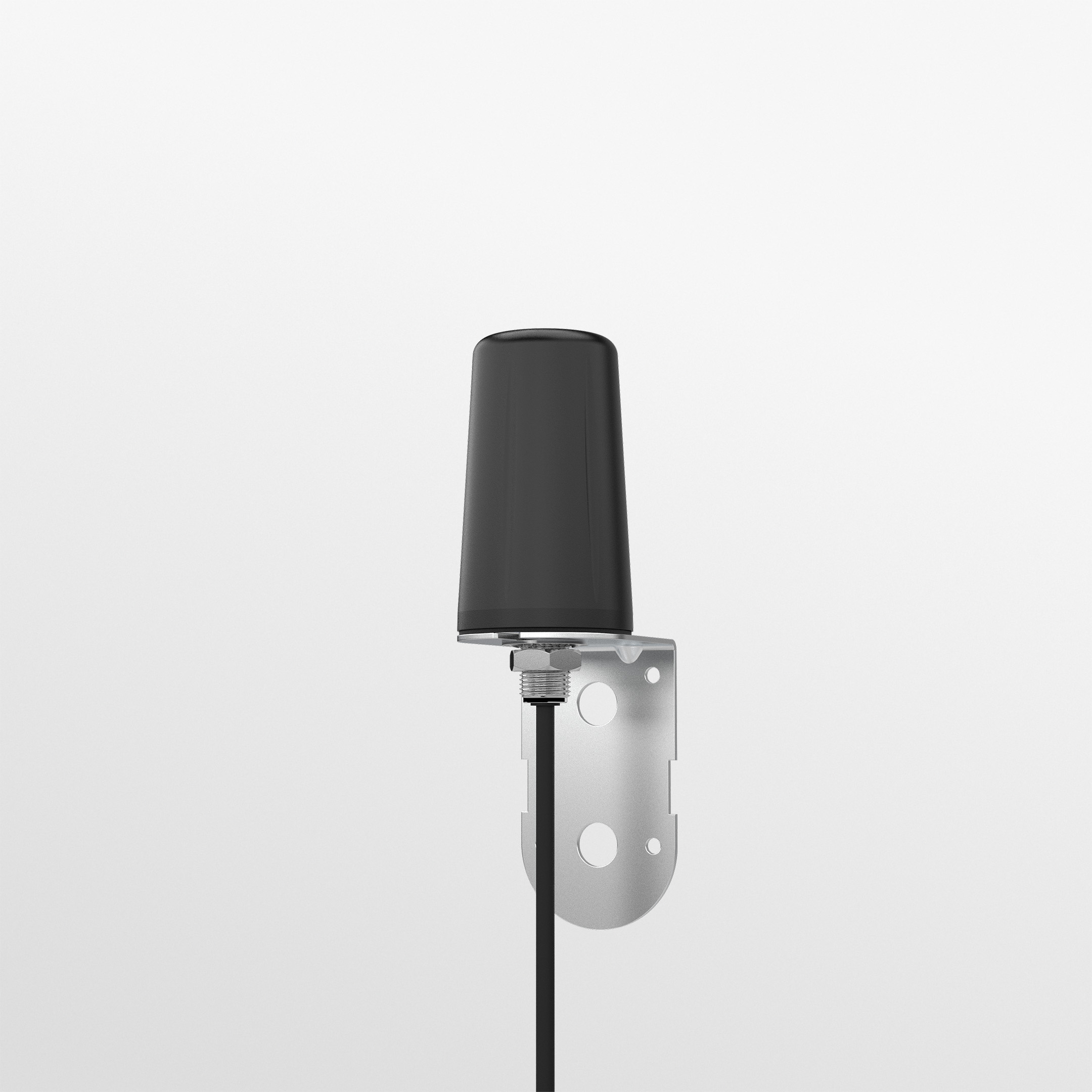

The design of the mounting bracket enables simple wall mounting using screws and wall plugs (not supplied), adhesive pad mounting or mast mounting using a pipe clip or cable ties (not supplied).
The omni-directional radiation pattern allows easy placement of the antenna in an elevated positon.
This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers for IoT and Machine to Machine (M2M) wireless connectivity applications.
Product overview
The B4BEE-868-2SP is a cost effective omni-directional antenna for 868 and 915MHz devices covering 863 – 928MHz and is suitable for external or internal installation.
The design of the mounting bracket enables simple wall mounting using screws and wall plugs (not supplied), adhesive pad mounting or mast mounting using a pipe clip or cable ties (not supplied). The omni-directional radiation pattern allows easy placement of the antenna in an elevated positon.
This antenna is an ideal solution for use in industrial and domestic environments with cellular modems/routers for IoT and Machine to Machine (M2M) wireless connectivity applications.
Product Features
- Low profile with bracket mount Covers 868 and 915MHz Bracket or panel mount
Benefits
- Multiple mounting options Low profile design Covers 868 and 915MHz
Application
- Smart metering M2M and IOT applications LoRa and Sigfox
Additional information
| Colour | Black |
|---|---|
| Connector (VHF/UHF) | SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 25 |
| Typical VSWR | <2:1 |
| Frequency Range | Gain | 863 – 928MHz | 2.5dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 164 (mm) | 6.46 (in) |
| Diameter | 48 (mm) | 1.89 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Wall |
| Mounting Methods | Mast; Wall; Pole |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | 868-923MHz; LoRa |
