Model / SKU: BATGM

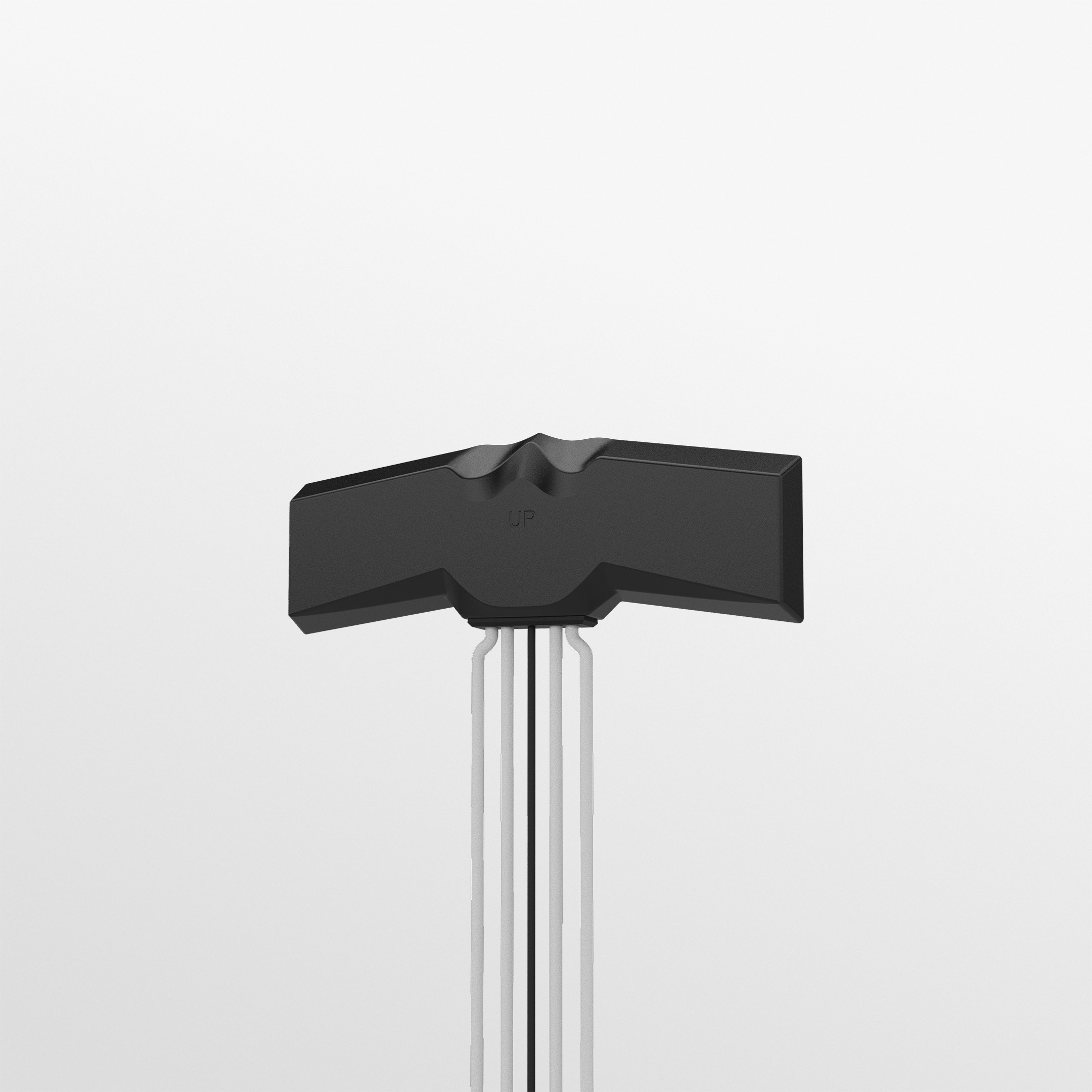

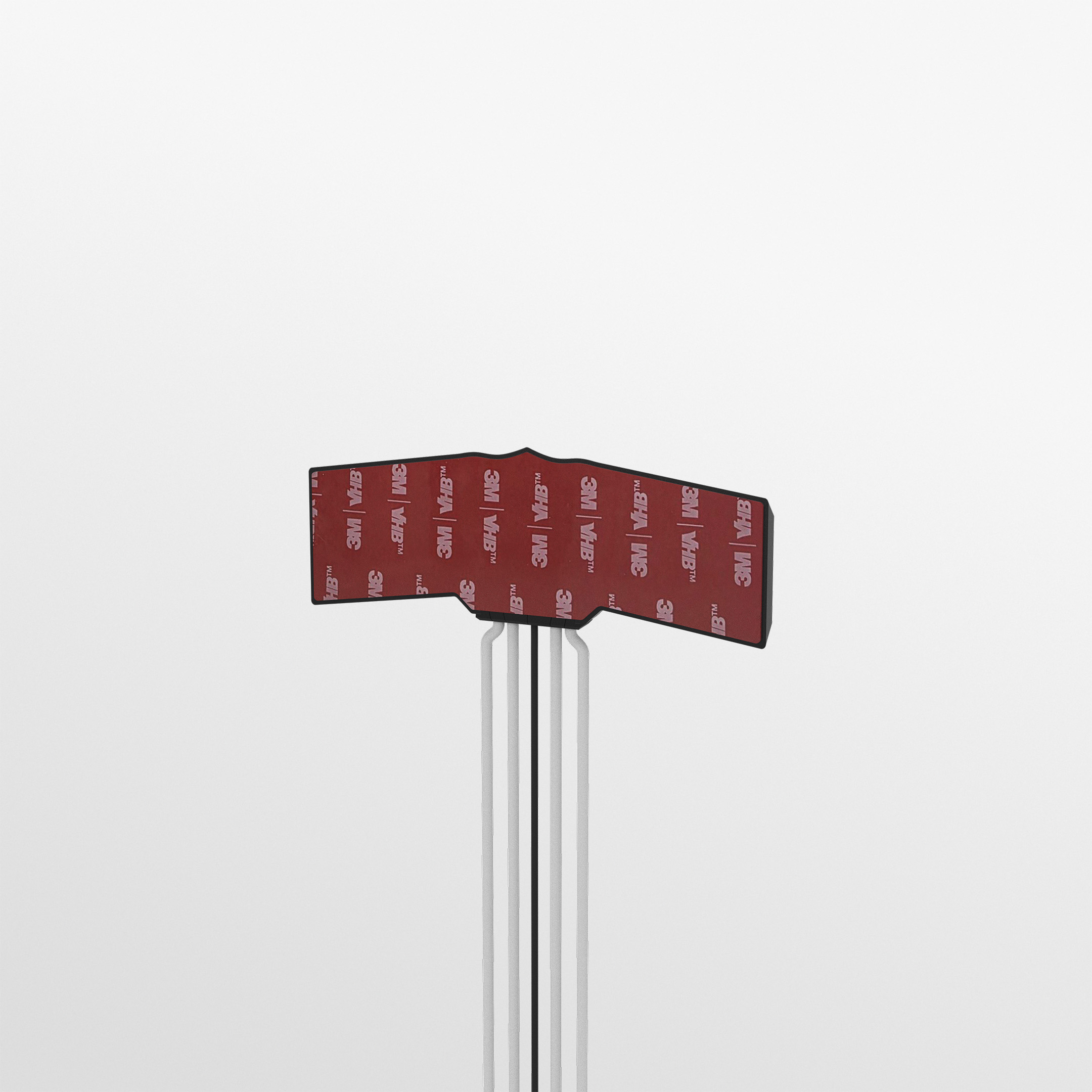

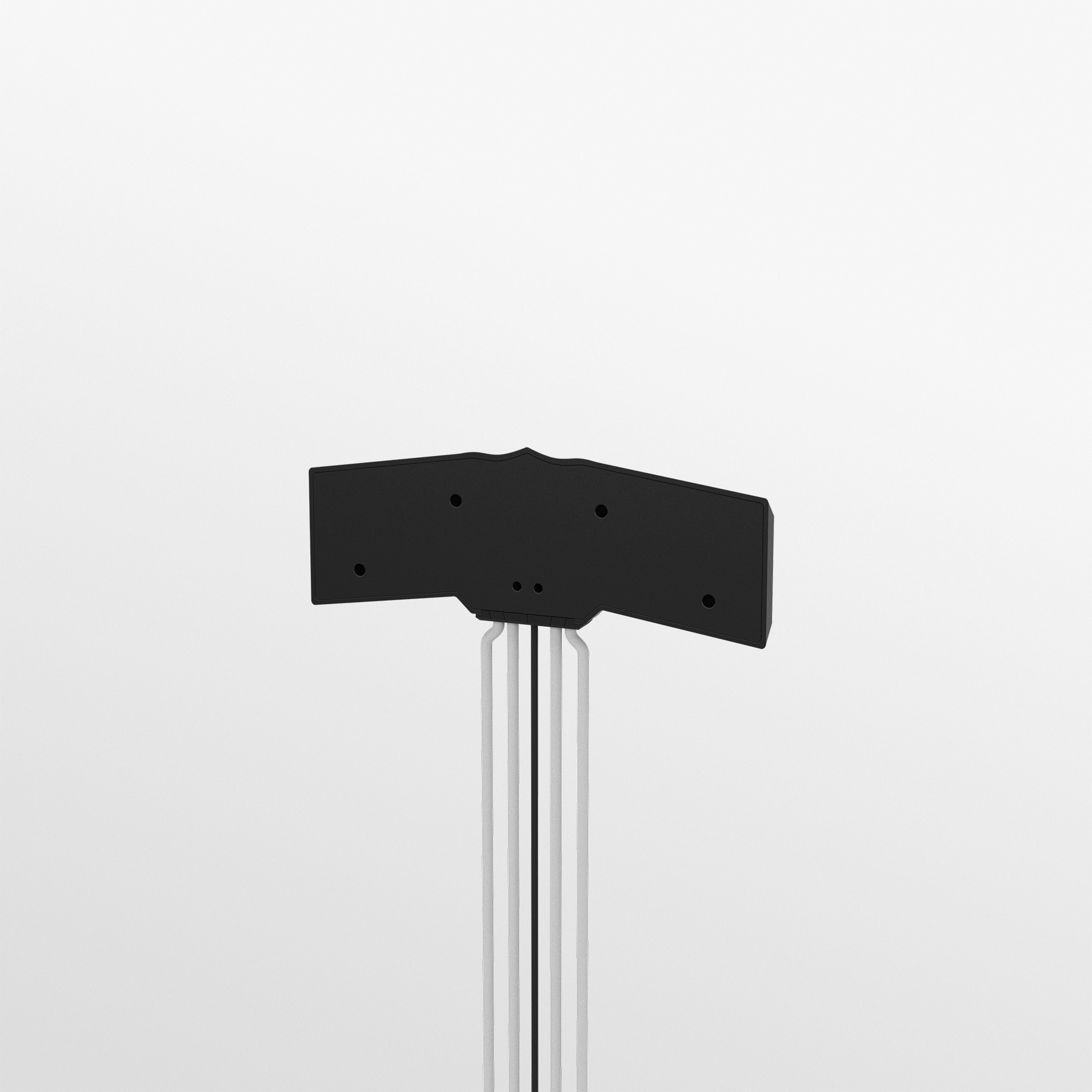

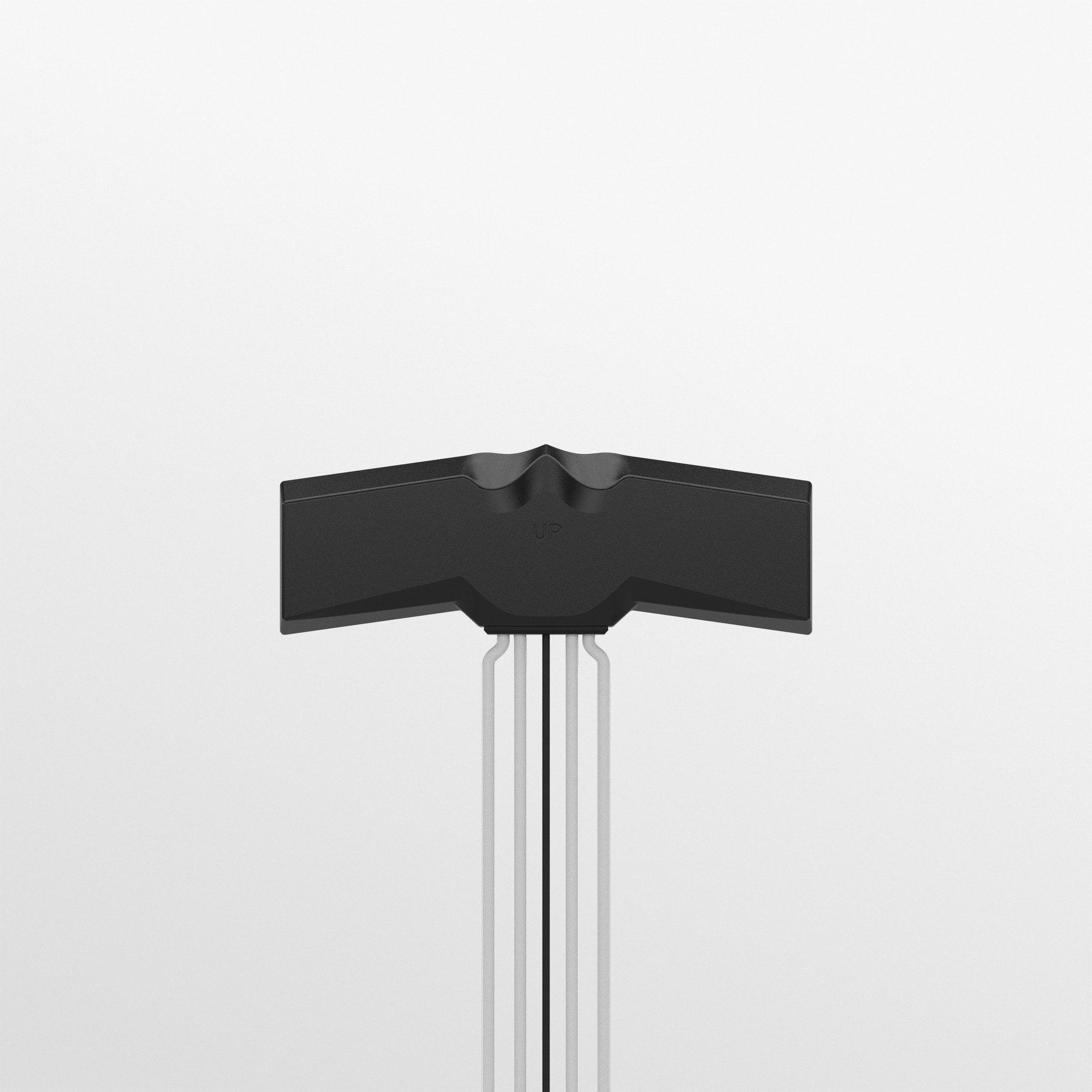

The Panorama BAT is range of internal discrete/covert ‘all in one’ antennas with 2×2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
The Panorama BAT is range of internal discrete/covert ‘all in one’ antennas with 2×2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e. The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The Panorama BAT is range of internal discrete/covert ‘all in one’ antennas with 2×2 MiMo 4G / 5G (including Band 71), with option of GPS/GNSS, and dual band SiSo or 2×2 MiMo WiFi 2.4/5.0-7.2GHz, including WiFi 6e.
The 4G/5G antennas cover 617-960/1427-6000MHz and provide isolation and low correlation coefficient values for effective MiMo function. The optional GPS/GNSS antenna features a 26dB gain LNA with advance filtering.
The antenna is designed to be mounted on or under a vehicle dashboard but can be mounted on any non-conductive surface. The BAT range is supplied with low loss cables which are flame retardant and meet the requirements of UN ECE 118 and EN45545-2.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, No |
| Cable Length | Between 3m & 5m |
| Connector (LTE) | FAKRA D, SMA (m) |
| Connector (WIFI) | FAKRA I, No Connector, Reverse Polarity SMA |
| Connector (GPS) | FAKRA C, No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 617 – 960MHz | 3dBi; 1710 – 2170MHz | 7dBi; 2500 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No; 2 x 2 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 214 (mm) | 8.43 (in) |
| Width | 77 (mm) | 3.03 (in) |
| Height | 16.5 (mm) | 0.65 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 3 (m) | 9.84 (ft) |
| Cable length – GPS | 3 (m) | 9.84 (ft) |
| Cable Length – WIFI | 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | FR CS32 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR CS32 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA; FAKRA I |
| Connector (GPS) | SMA (m); FAKRA C |
| Connector (LTE) | SMA (m); FAKRA D |
| MOUNTING DATA | |
| Mounting Type Temp | Dash; Glass Mount |
| Mounting Methods | Dash; Glass Mount |
| APPROVALS DATA | |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI; WIFI SISO |
