Description
The Panorama BAT[X]M4 range is a discrete or covert 4×4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2×2, 3×3 or 4×4 dual band 2.4/5.0-7.2GHz WiFi 6e.
Technical Datasheet (official Panorama source)
Product
BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna
Model / SKU: BAT[X]M4-6-60-[X]

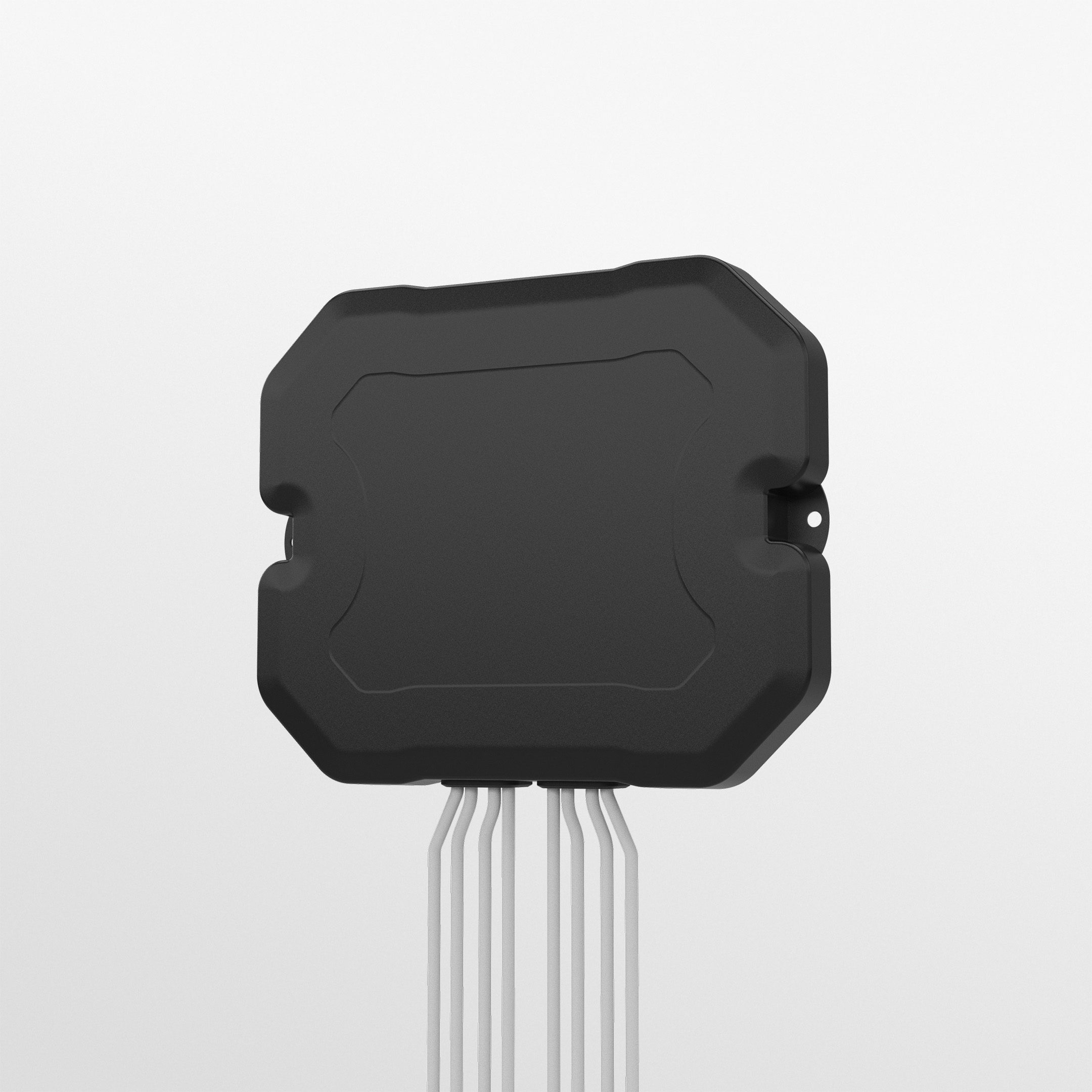

![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-1-Main-View.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")

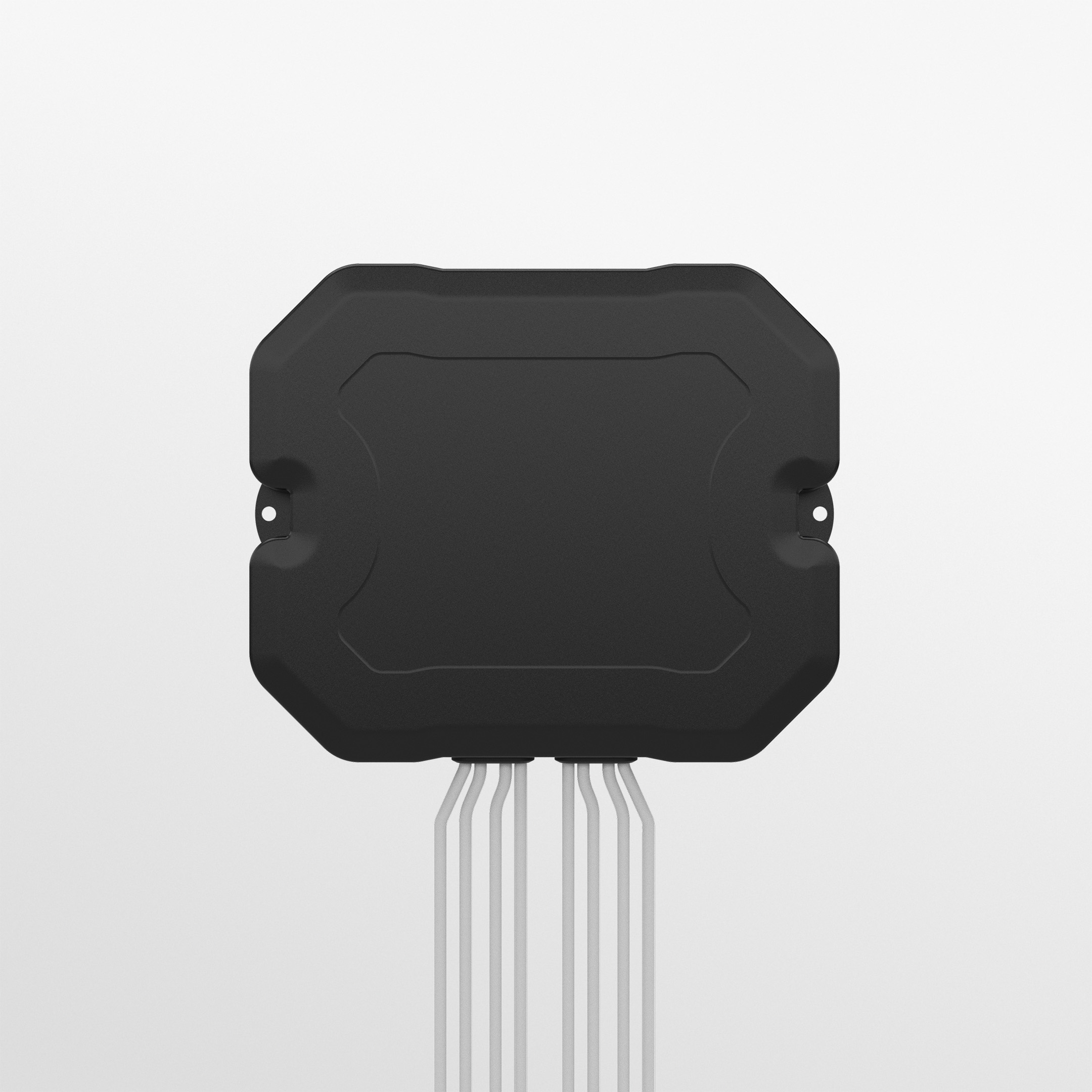

![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-2-Front-View.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")
![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-3-Back-View.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")
![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-4-Back-View-Pad.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")

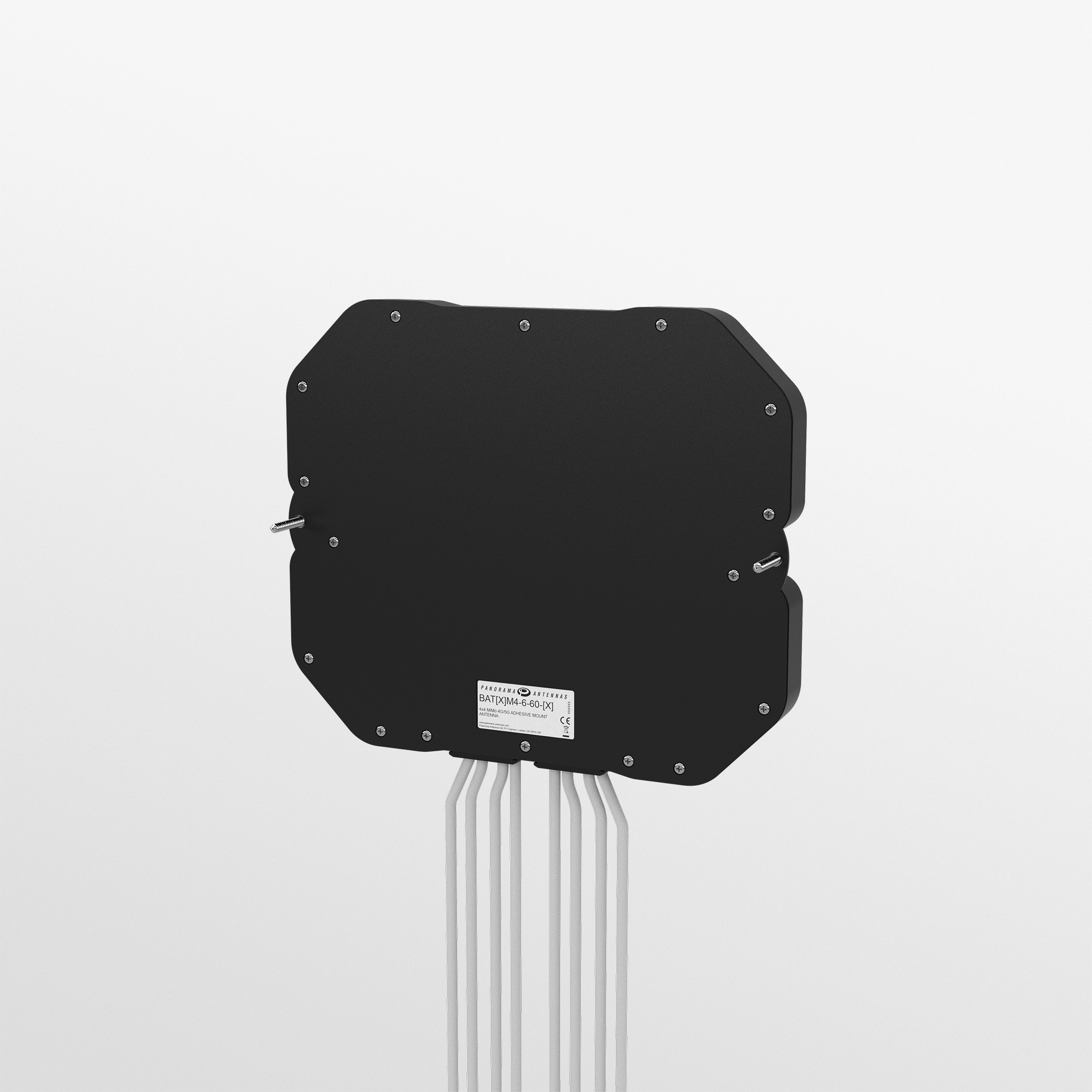

![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-4-Back-View-Screws.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")

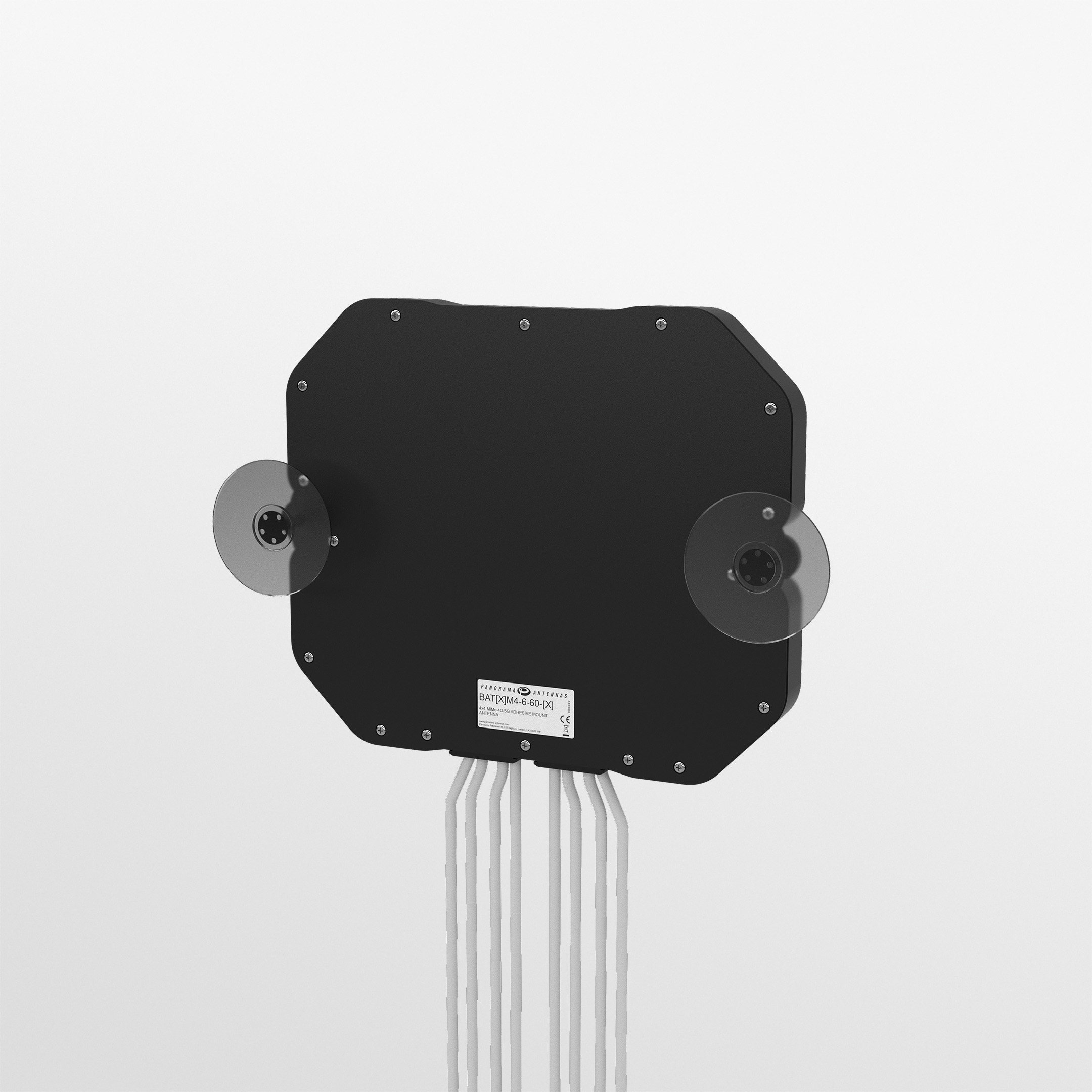

![BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BATXM4-6-60-X-4-Back-View-Suction-cup.jpg "BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna")
BAT[X]M4-6-60-[X] | 4×4 MiMo 4G/5G Adhesive Mount Antenna
The Panorama BAT[X]M4 range is a discrete or covert 4×4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2×2, 3×3 or 4×4 dual band 2.4/5.0-7.2GHz WiFi 6e.
The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas.
The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a. The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any non-conductive surface. Versions without GPS can be mounted vertically to a wall or panel.
The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2.
Product overview
The Panorama BAT[X]M4 range is a discrete or covert 4×4 MiMo antenna solution for 4G / 5G with the option of GPS/GNSS, and 2×2, 3×3 or 4×4 dual band 2.4/5.0-7.2GHz WiFi 6e.
The 4G/5G antenna elements cover 617-960/1427-6000MHz to provide a robust communications link to ensure high data rates even in challenging network coverage areas.
The antenna can include a GPS/GNSS module with advanced filtering for either L1/E1/G1/B1 only or dual band L1/E1/G1/B1 with L5/E5a. The antenna is IP55 rated and designed to be mounted on or under a vehicle dashboard or parcel shelf but can be mounted on any non-conductive surface. Versions without GPS can be mounted vertically to a wall or panel.
The BAT range is supplied with integrated low loss flame retardant cables which meet the requirements of UN ECE R118 and EN45545-2.
Product Features
- Discrete or covert 4×4 MiMo antenna solution for 4G / 5G Optional L1 or L1/L5 GNSS and optional MiMo WiFi 6e Highly efficient elements Easy adhesive, suction or screw mounting Integrated low loss UN ECE R118 approved cables
Benefits
- Highly efficient flat 4×4 MiMo antenna Multiple installation options IP55 rated Flame retardant cables meeting UN ECE R118
Application
- Adhesive fitment for no-drill installation Buses, coaches and mobility Discreet and covert Temporary fitment Network in a box cases and other devices Window or dashboard mounting
Additional information
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 4 x 4 MIMO, No |
| Cable Length | Between 3m & 5m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, SMA Rev Pol |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | No; 2 x 2 MIMO; 4 x 4 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1164-1189MHz/1559-1612MHZ; 1559-1612MHz |
| LNA GAIN (dB) | 30dB/26dB; 26dB |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 196 (mm) | 7.72 (in) |
| Width | 232 (mm) | 9.13 (in) |
| Height | 25 (mm) | 0.98 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 3 (m) | 9.84 (ft) |
| Cable length – GPS | 3 (m) | 9.84 (ft) |
| Cable Length – WIFI | 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | FR CS32; CS32 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR CS32 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA Rev Pol |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Wall |
| Mounting Type Temp | Dash; Glass Mount; Hook/Loop or Adhesive |
| Mounting Methods | Dash; Glass Mount; Hook/Loop or Adhesive; Wall |
| APPROVALS DATA | |
| IP Rating | IP55 |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; GNSS; WIFI MIMO; WIFI; WIFI 6E |
