Model / SKU: BMP2-[X]-DPD-[X]

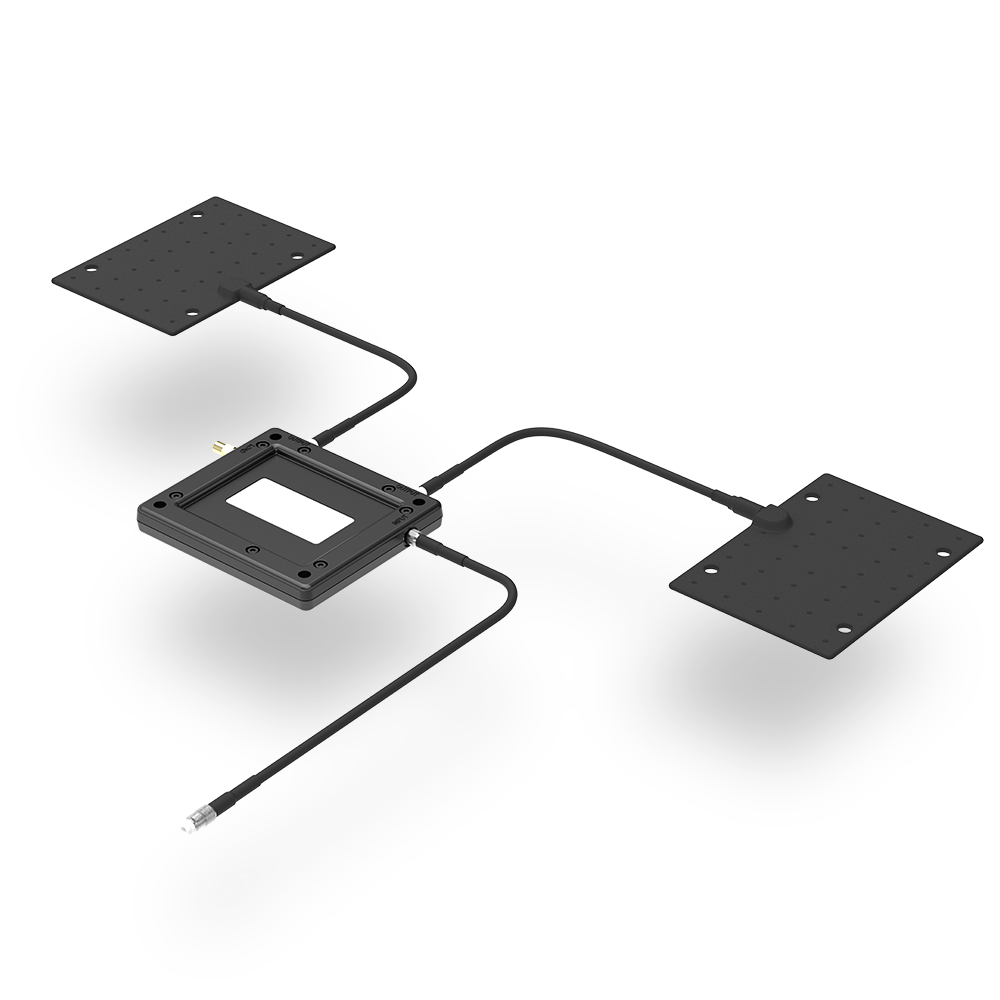

![BMP2-[X]-DPD-[X] | Dual Bumper Mount Antenna System](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BMP2-X-DPD-X-1.png "BMP2-[X]-DPD-[X] | Dual Bumper Mount Antenna System")
Panorama BMP bumper antennas are a fully covert solution for vehicle installation. For optimum performance two bumper antennas can be installed, one at the front of the vehicle and one at the rear, helping to create an omni-directional pattern around the vehicle and enabling better network coverage.
The BMP1 antennas included in the kit can be tuned to a variety of UHF frequencies and supplied with various cable lengths and connectors.The high performance HPDPD power divider supplied as part of the kit has low loss characteristics and a low profile for easy installation.
Panorama BMP bumper antennas are a fully covert solution for vehicle installation. For optimum performance two bumper antennas can be installed, one at the front of the vehicle and one at the rear, helping to create an omni-directional pattern around the vehicle and enabling better network coverage.
Panorama BMP bumper antennas are a fully covert solution for vehicle installation. For optimum performance two bumper antennas can be installed, one at the front of the vehicle and one at the rear, helping to create an omni-directional pattern around the vehicle and enabling better network coverage.
The BMP1 antennas included in the kit can be tuned to a variety of UHF frequencies and supplied with various cable lengths and connectors.The high performance HPDPD power divider supplied as part of the kit has low loss characteristics and a low profile for easy installation.
| Colour | Black |
|---|---|
| Cable Length | Between 5m & 10m |
| Connector (VHF/UHF) | BNC (m), FME (f) |
| Frequency Range | 380-400MHz, 380-420MHz, 410-430MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 15 |
| Typical VSWR | <3:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 10 (m) | 32.81 (ft) |
| Cable Type (Whip) | CS23 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | BNC (m); FME (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Bumper |
| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Bumper; Hook/Loop or Adhesive |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
