BS[G]M-450-6-60 | MiMo 4G/5G Omni Antenna

Model / SKU: BS[G]M-450-6-60

BS[G]M-450-6-60 | MiMo 4G/5G Omni Antenna - Image 2

BS[G]M-450-6-60 | MiMo 4G/5G Omni Antenna - Image 3

BS[G]M-450-6-60 | MiMo 4G/5G Omni Antenna

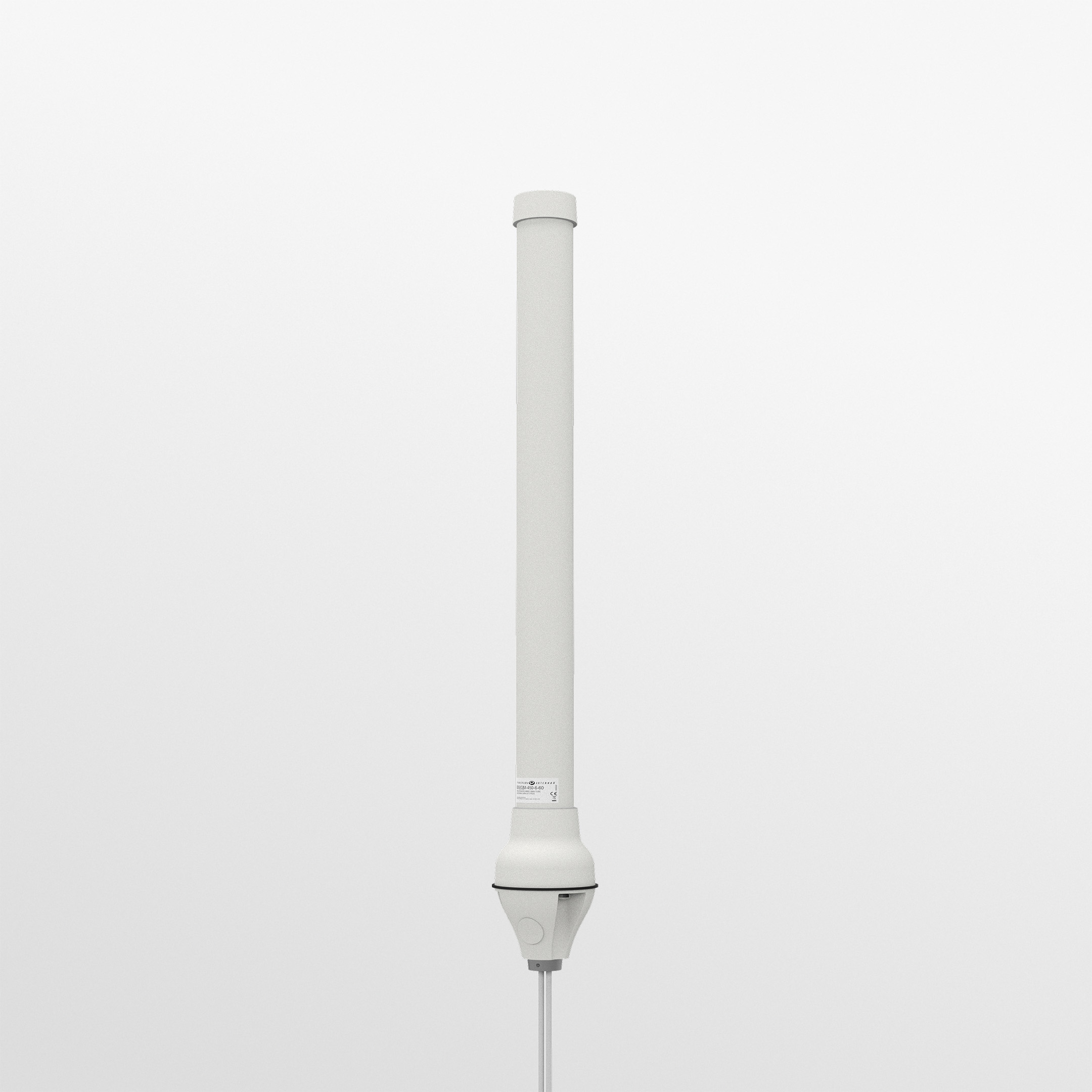

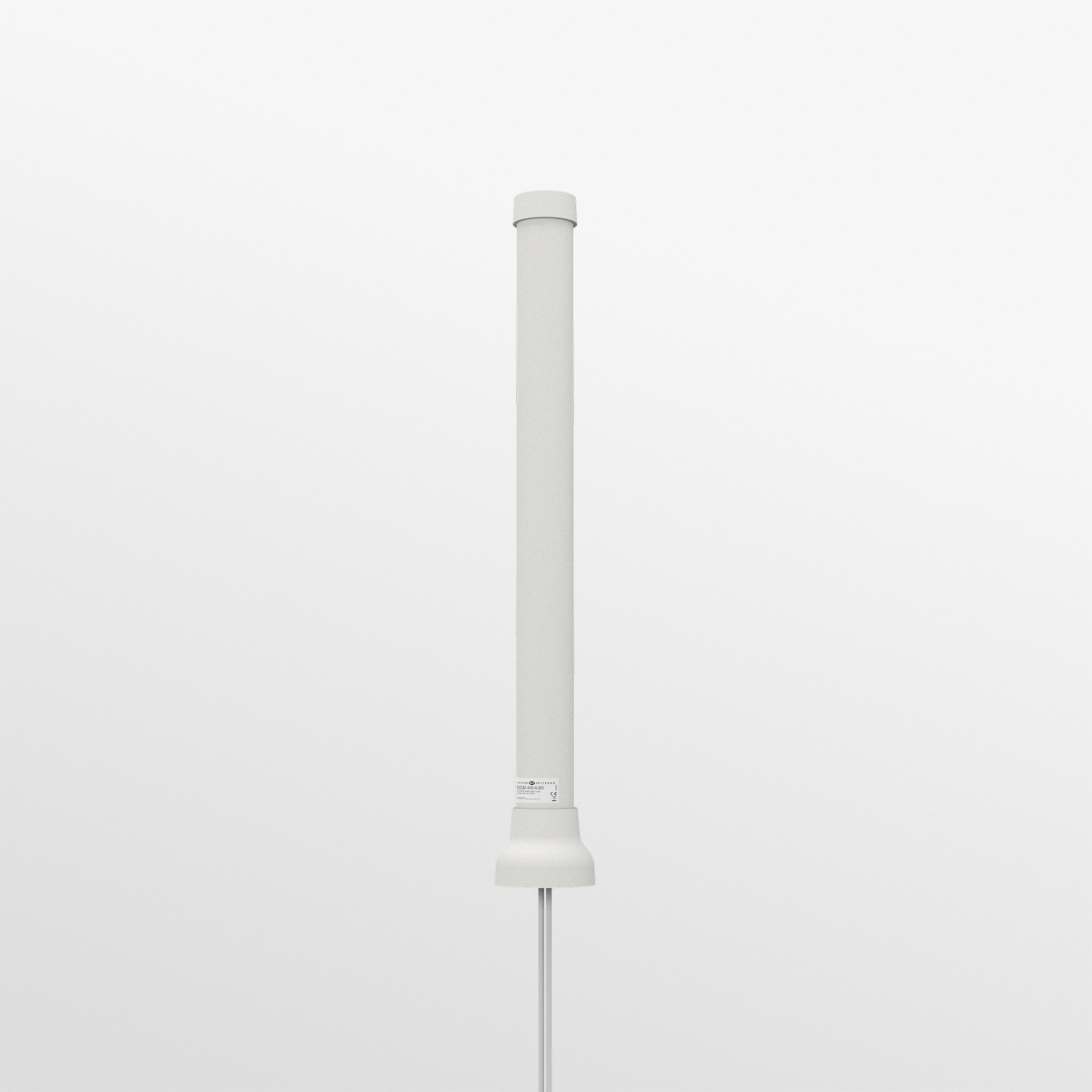

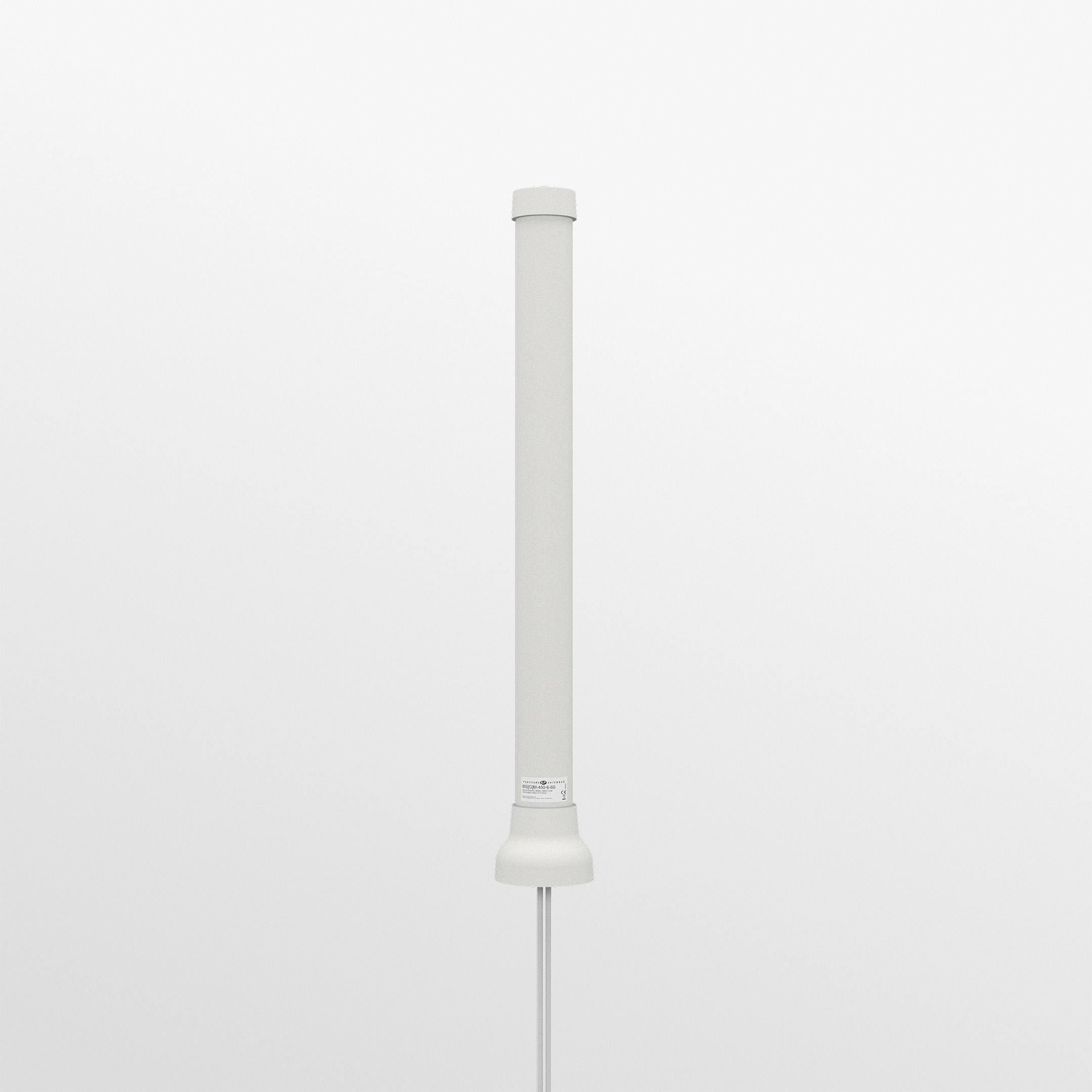

The BS[G]M-450-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices.

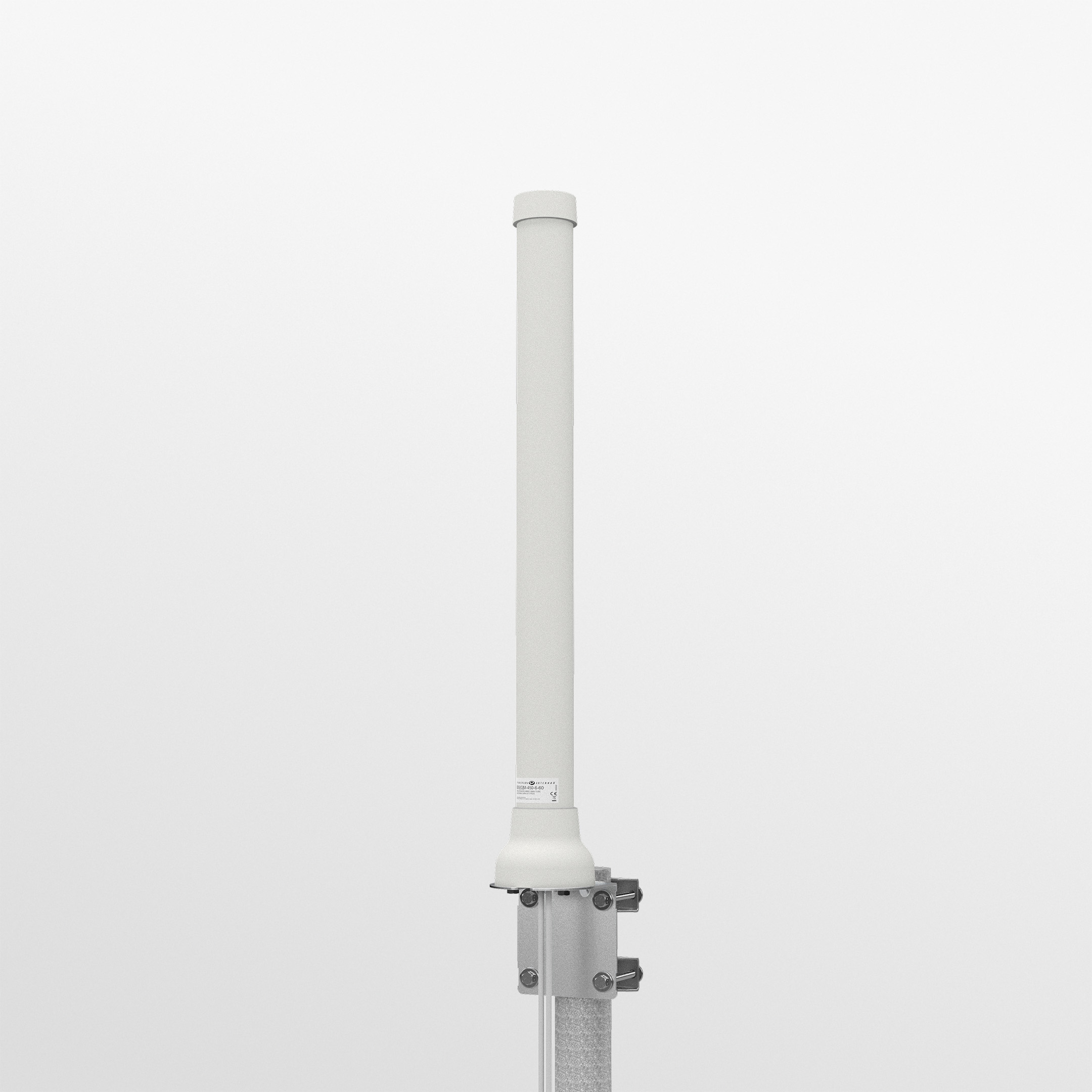

It covers 450-470/617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.

The Omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BSGM type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications.

The weather and corrosion-resistant design also make the antenna suitable for certain marine and coastal applications and a 1”-14TPI adapter (P/N: SAB-315) is available for fitment to standard marine bases.

Description

The BS[G]M-450-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices. It covers 450-470/617-960/1427-6000MHz and is suitable for external or internal installation. The mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.

Product overview

The BS[G]M-450-6-60 antenna is a MiMo Omni-directional broadband antenna range for 4G/5G devices.

Product Features

2×2 MiMo 450-470/617-960/1427-6000MHz 4G/5G Wall, rail or mast mount Optional GPS/GNSS – 26dB LNA Integrated coaxial cables

Additional information

Colour	White
4G/5G	2 x 2 MIMO
GPS	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector (LTE)	N (f), SMA (m)
Connector (GPS)	N (f), No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	10
Frequency Range \| Gain	450 – 470MHz \| 2dBi; 617 – 960MHz \| 3dBi; 1427 – 2700MHz \| 6dBi; 3400 – 4200MHz \| 6dBi; 4900 – 6000MHz \| 6dBi
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	White
Height	601 (mm) \| 23.66 (in)
Diameter	86 (mm) \| 3.39 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – LTE	min: 0.5 (m) \| 1.64 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.5 (m) \| 1.64 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (Whip)	FR CS32
Cable Type (LTE)	FR CS32
Cable Type (GPS)	FR CS29
TERMINATION DATA
Connector (GPS)	N (f); SMA (m)
Connector (LTE)	N (f); SMA (m)
MOUNTING DATA
Mounting Type Fixed	Mast; Panel; Wall
Mounting Methods	Mast; Panel; Wall
APPROVALS DATA
IP Rating	IP67
Cable Flammability	UN ECE R118; EN6722; EN455450-2; EN45545-2 HL3
TECHNOLOGY DATA
Technology	UHF; GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS

Available selections

Colour	White
4G/5G	2 x 2 MIMO
GPS	1 Module No
Cable Length	Below 1m Between 5m & 10m
Connector (LTE)	N (f) SMA (m)
Connector (GPS)	N (f) No Connector SMA (m)

Models and configurations

SKU; Colour | UHF | Cellular | GPS

BSGM-450-6-60-05NJ	White \| Yes \| 2 x 2 MIMO \| 1 Module
No Cable	0.5m \| 0.5m
No Connector	N (f) \| N (f)
BSGM-450-6-60-5SP	White \| Yes \| 2 x 2 MIMO \| 1 Module
No Cable	5m \| 5m
No Connector	SMA (m) \| SMA (m)
BSM-450-6-60-05NJ	White \| Yes \| 2 x 2 MIMO \| No
No Cable	0.5m
No Connector	N (f)
BSM-450-6-60-5SP	White \| Yes \| 2 x 2 MIMO \| No
No Cable	5m
No Connector	SMA (m)

Configuration options

Option	Available values
Colour	White
4G 5G Mimo	2 x 2 MIMO
Gps	1 Module, No
Cable Length	Below 1m, Between 5m & 10m
Connector Lte	N (f), SMA (m)
Connector Gps	N (f), No Connector, SMA (m)

Data material

Datasheet - BS[G]M-450-6-60.pdf (PDF)
