Model / SKU: BS[X]S-6-60

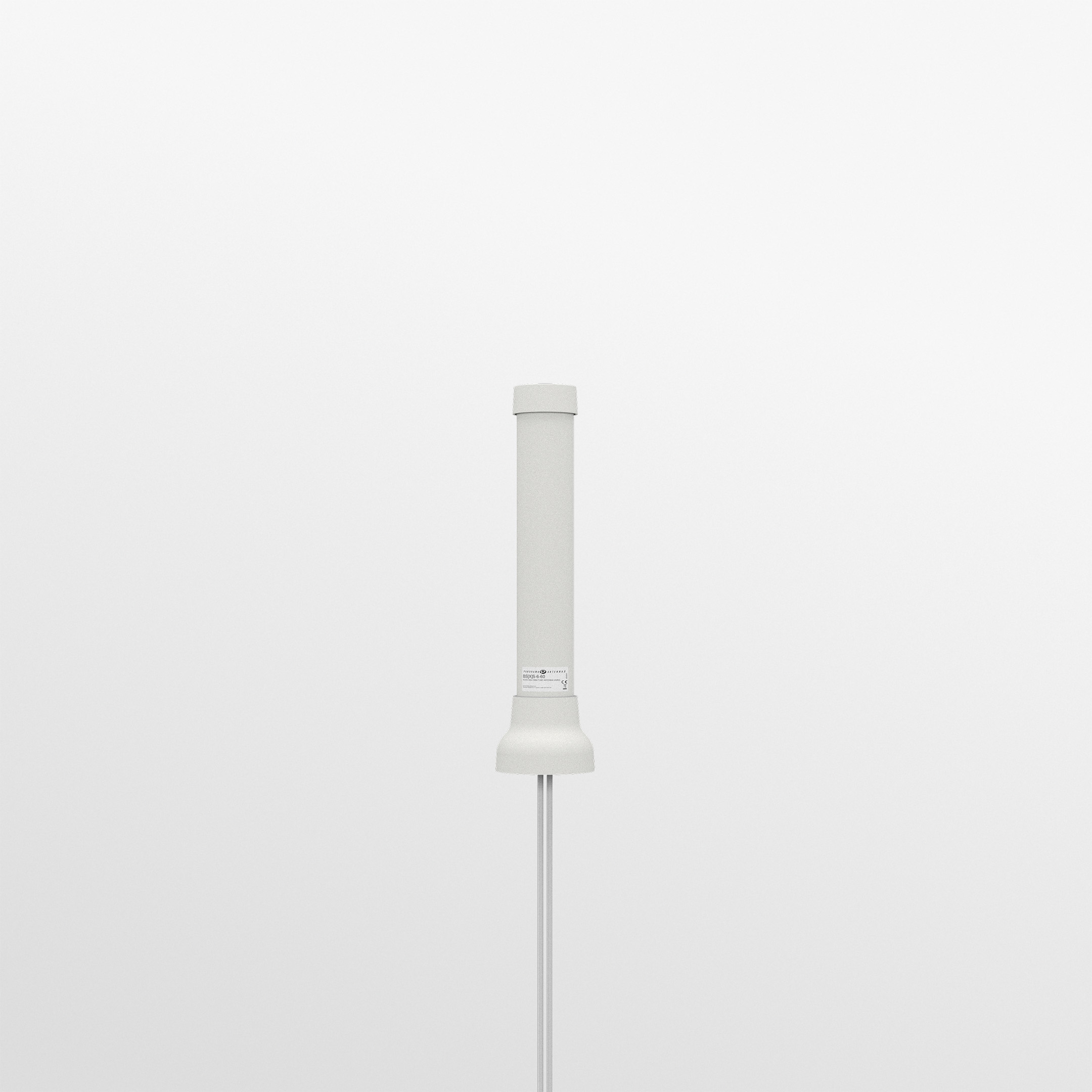

![BS[X]S-6-60 | SiSo 4G/5G Omni Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BSXS-6-60-4-Front-View.jpg "BS[X]S-6-60 | SiSo 4G/5G Omni Antenna")

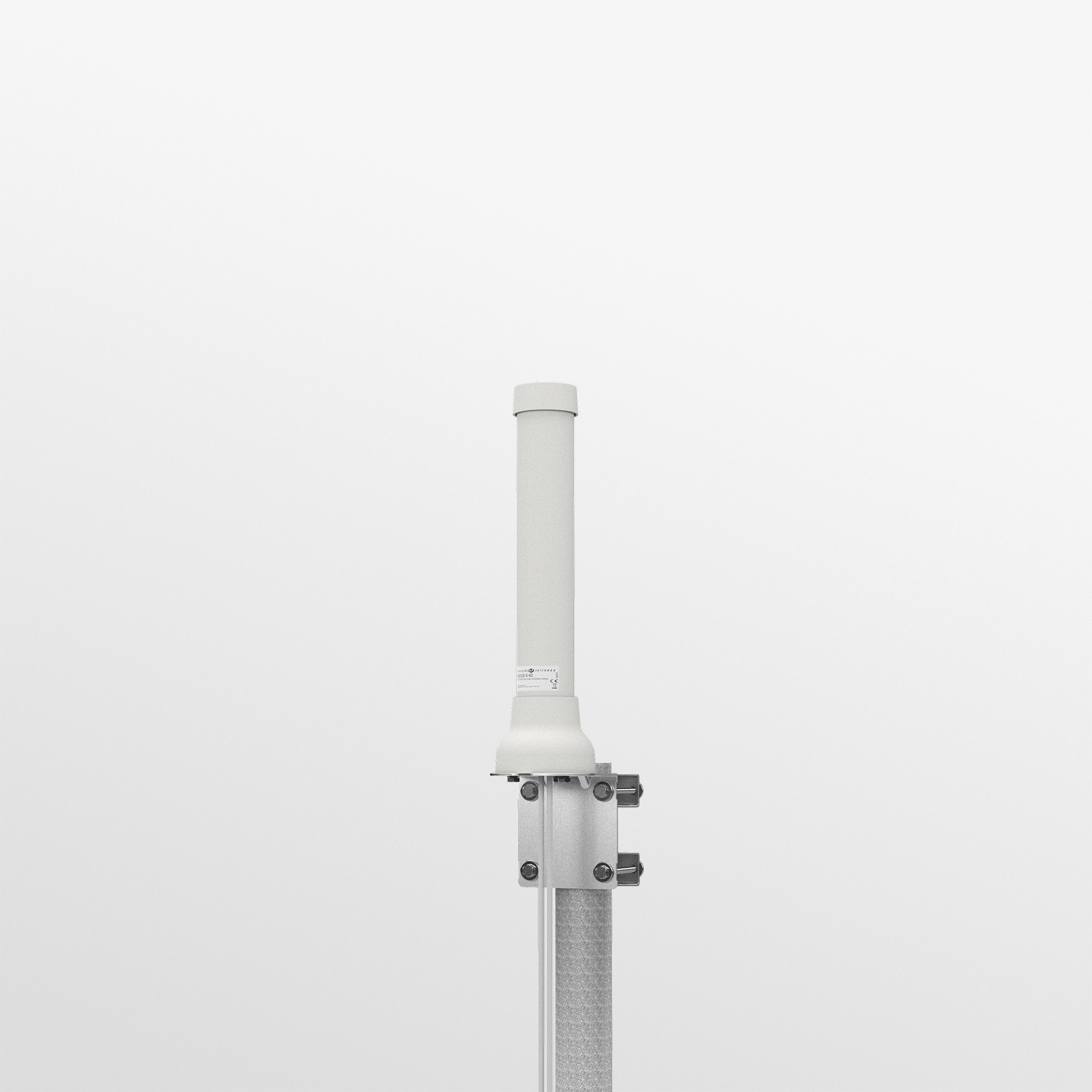

![BS[X]S-6-60 | SiSo 4G/5G Omni Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BSXS-6-60-1-Main-View-with-pole.jpg "BS[X]S-6-60 | SiSo 4G/5G Omni Antenna")
![BS[X]S-6-60 | SiSo 4G/5G Omni Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BSM-Range-BSXSN-SX.jpg "BS[X]SN-S[X] | UHF omni-directional marine antenna")

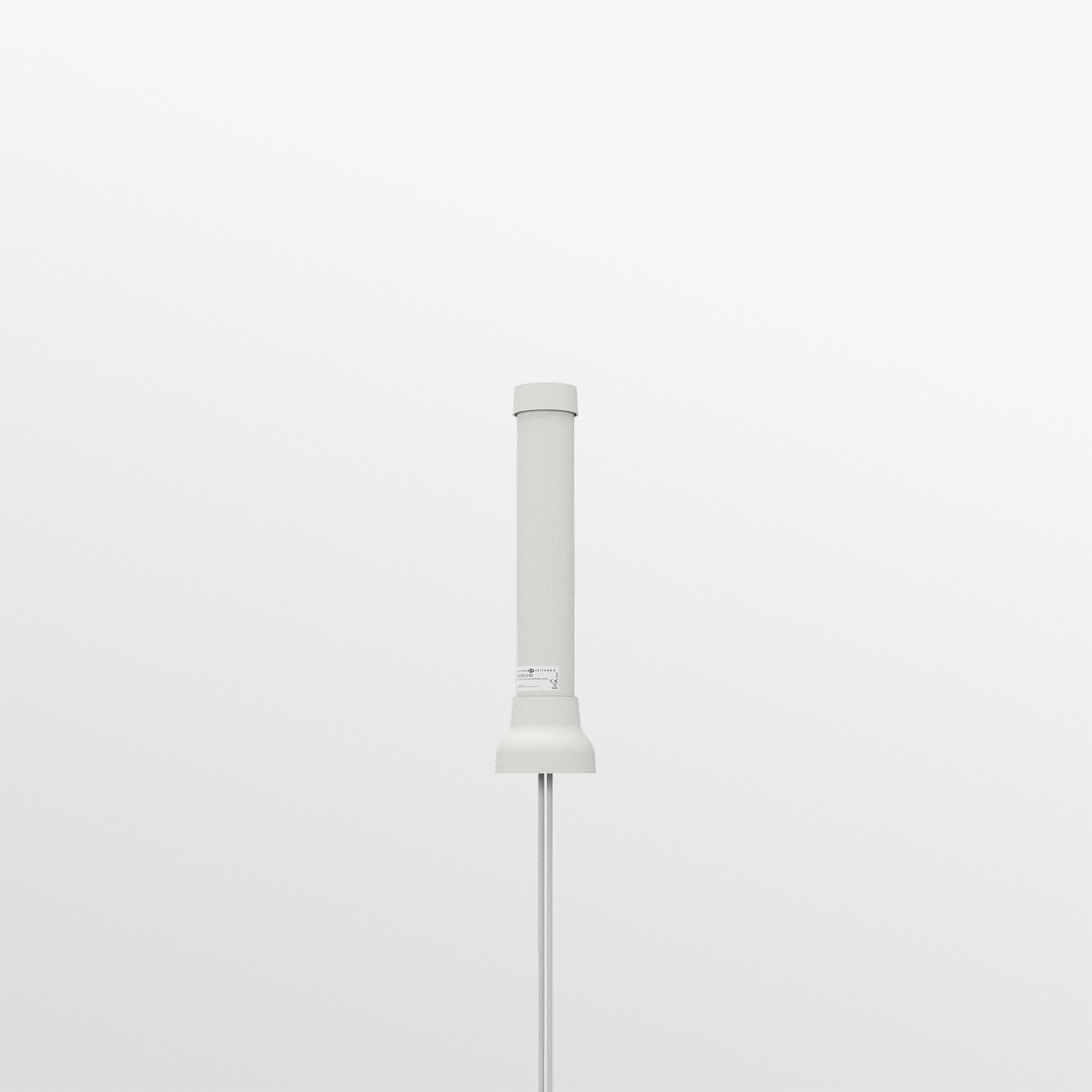

![BS[X]S-6-60 | SiSo 4G/5G Omni Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BSXS-6-60-2-Main-View.jpg "BS[X]S-6-60 | SiSo 4G/5G Omni Antenna")

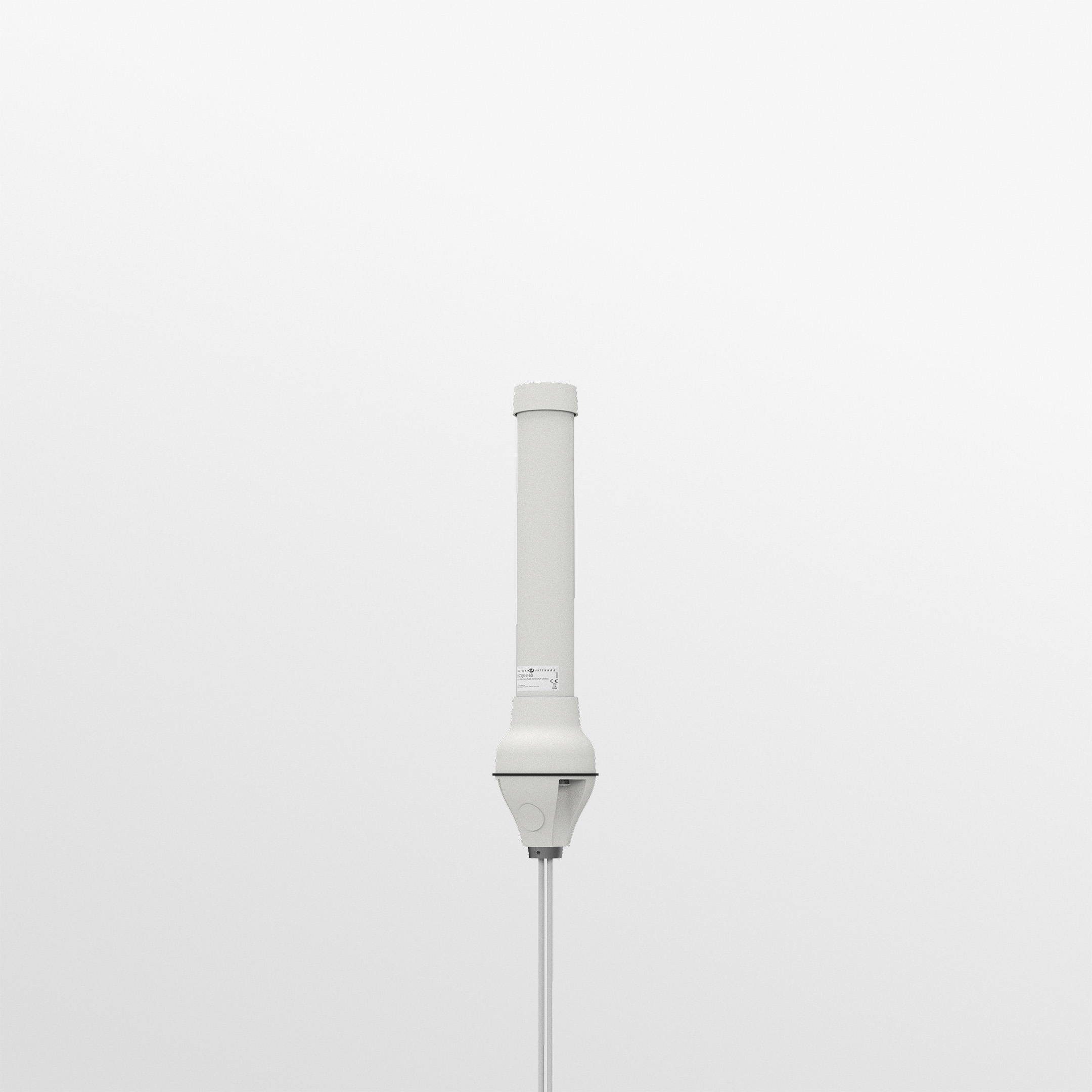

![BS[X]S-6-60 | SiSo 4G/5G Omni Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/BSXS-6-60-3-With-SAB.jpg "BS[X]S-6-60 | SiSo 4G/5G Omni Antenna")
The BS[G]S-6-60-[X] antenna is a SiSo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.
The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
The BSGS-6-60-[X] is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.
The BS[G]S-6-60-[X] antenna is a SiSo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.
The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
The BS[G]S-6-60-[X] antenna is a SiSo omni-directional broad band antenna range for 4G/5G devices. It covers 617-960/1427-6000MHz and is suitable for external or internal installation.
The mounting bracket enables simple walll mounting using the supplied screws and wall plugs and mast/rail mounting using the supplied clamps.
The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.
The BSGS-6-60-[X] is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise.
This antenna is an ideal solution for IoT use in industrial and domestic environments for cellular modems/routers and Machine to Machine (M2M) wireless connectivity applications. The weather and corrosion resistant design also makes the antenna suitable for certain marine and costal applications.
| Colour | White |
|---|---|
| 4G/5G | SiSo |
| GPS | 1 Module, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | N (f), SMA (m) |
| Connector (GPS) | N (f), No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | White |
| Height | 336 (mm) | 13.23 (in) |
| Diameter | 86 (mm) | 3.39 (in) |
| Operating Temperature | -40°/ +85°C (-40.0°/ +185.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR CS32 |
| Cable Type (GPS) | FR CS29 |
| TERMINATION DATA | |
| Connector (GPS) | N (f); SMA (m) |
| Connector (LTE) | N (f); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Mast; Panel; Rail; Wall |
| Mounting Methods | Mast; Panel; Rail; Wall; Pole |
| APPROVALS DATA | |
| IP Rating | IP67 |
| Cable Flammability | EN455450-2 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G/4G; 868-923MHz; Band 71 600MHz ready; CBRS; FirstNet; GNSS; LoRa |
