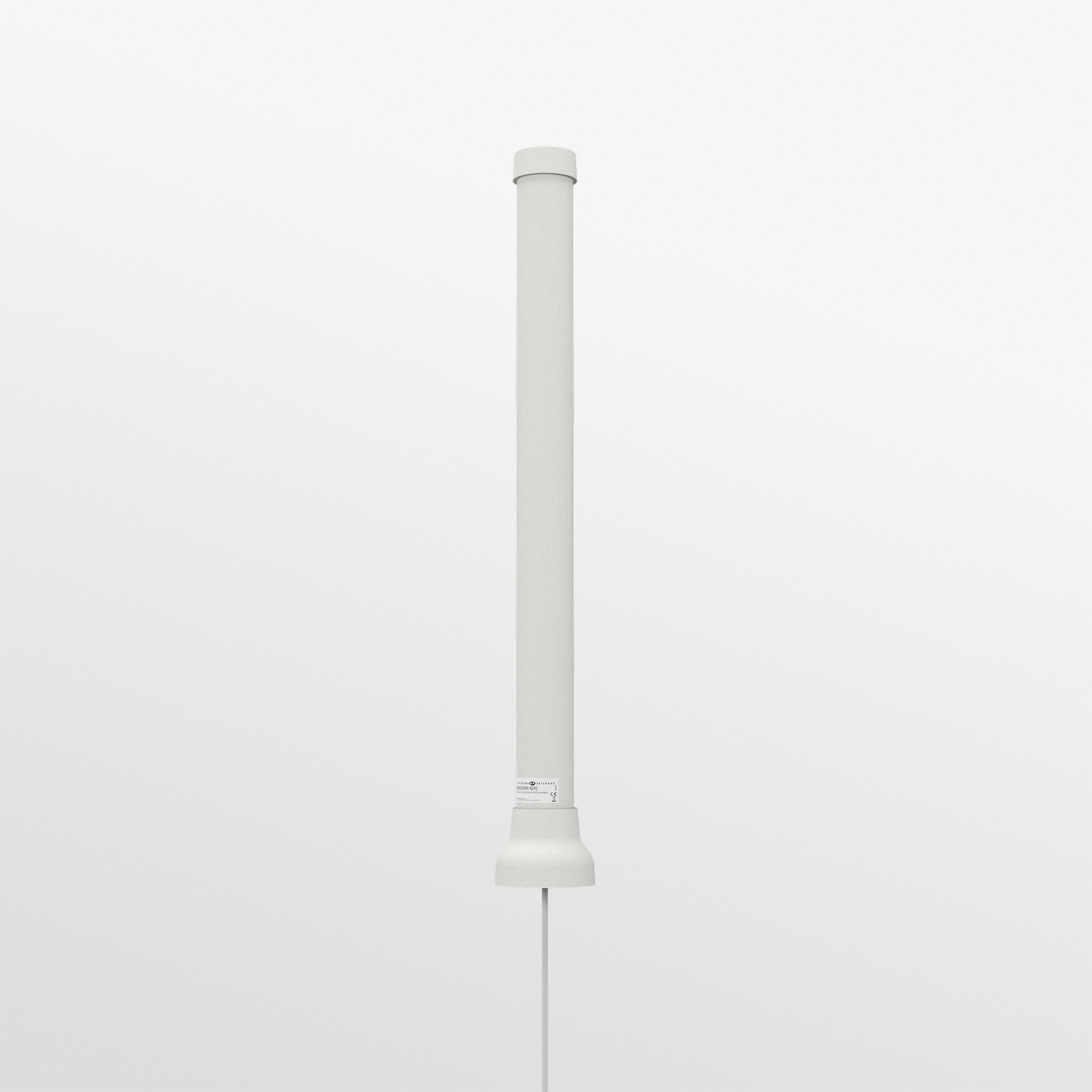

BS[X]SN-S[X] | UHF omni-directional marine antenna

Model / SKU: BS[X]SN-S[X]

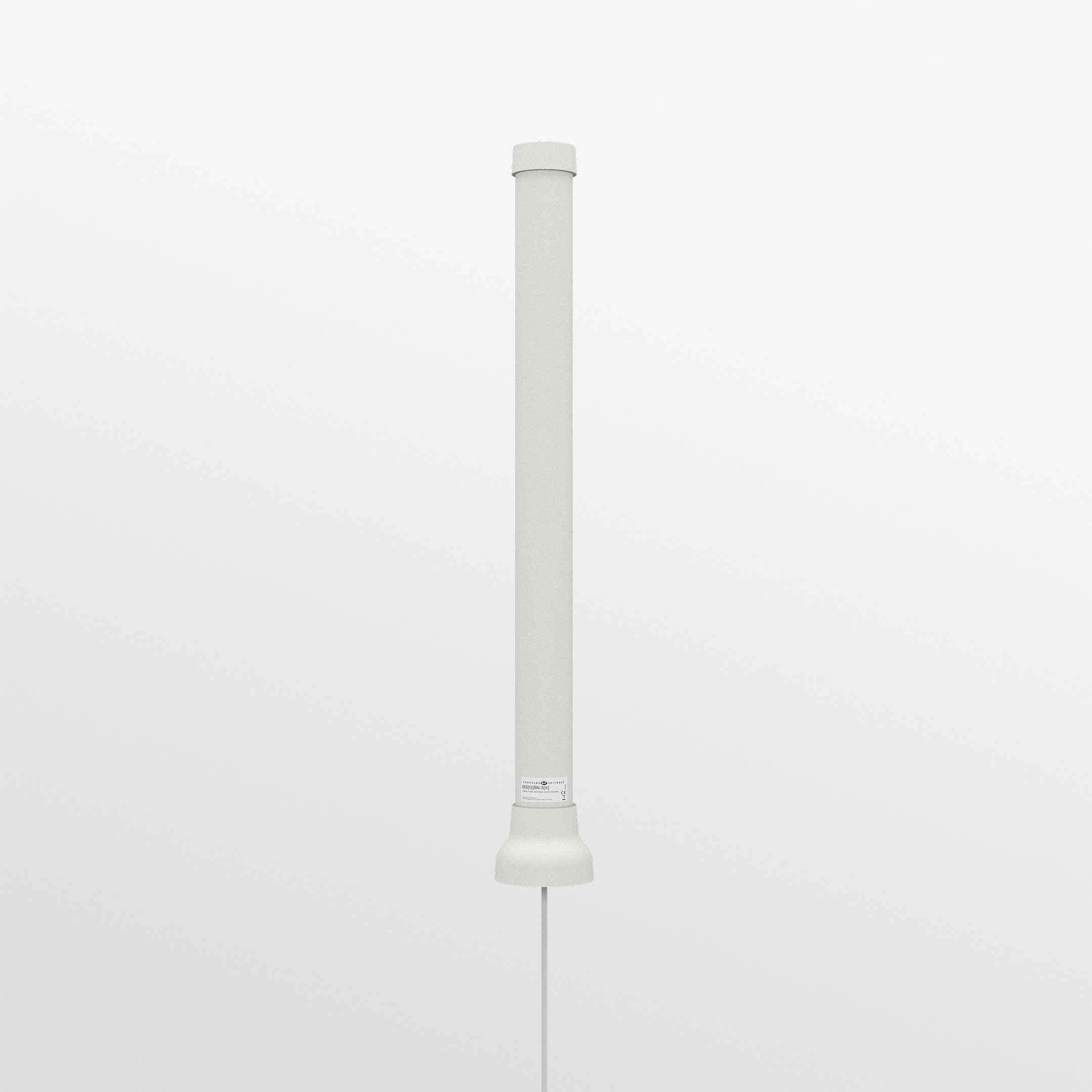

BS[X]SN-S[X] | UHF omni-directional marine antenna - Image 2

BS[X]SN-S[X] | UHF omni-directional marine antenna

The BS[G]S-S[X] range antenna is an omni-directional marine antenna range for UHF radios. It is available in versions covering 380-400MHz, 410-430MHz or 450-470MHz and can be supplied with optional GPS/GNSS with 26dB LNA gain and advanced filtering to combat noise.

The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment.

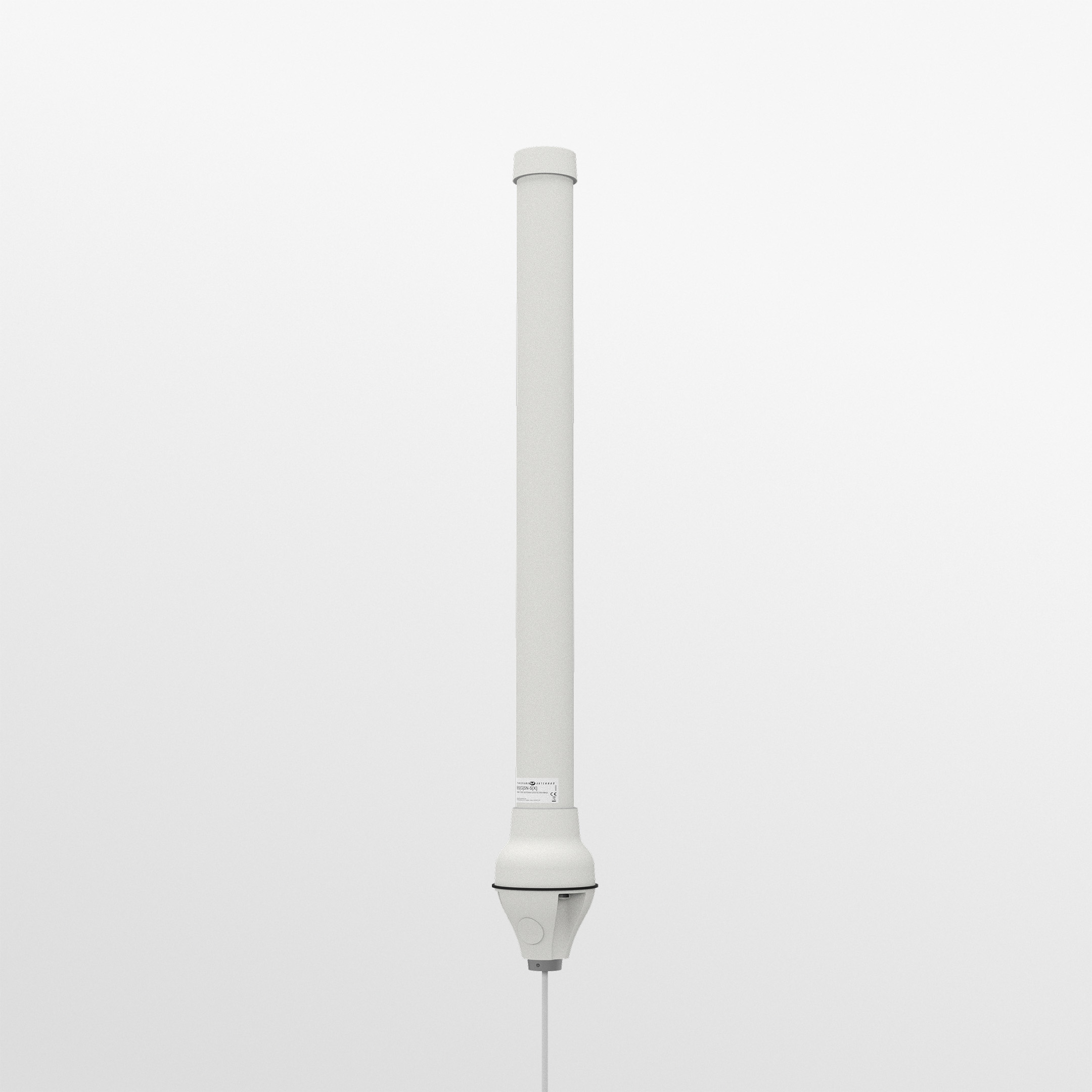

The BS[G]SN variants are intended for marine applications and are supplied with SAB-315 1” 14 TPI marine adapter suitable for mounting to marine bases like the Panorama NDRS-SL ratchet base (supplied separately). The antenna range can also be mounted directly to a panel or deck.

With their weather and corrosion resistant design, along with an IP67 rating, the BS[G]SN variants are highly suitable for marine and coastal applications.

Description

The BS[G]SN-S[X] range antenna is an omni-directional marine antenna range for UHF radios. It is avalible in versions covering 380-400MHz, 410-430MHz or 450-470MHz and can be supplied with optional GPS/GNSS with 26dB LNA gain and advanced filtering to combat noise.

Product overview

The omni-directional radiation pattern allows easy placement of the antenna in an elevated position, without requiring directional alignment. The BS[G]SN variants are intended for marine applications and are supplied with SAB-315 1” 14 TPI marine adapter suitable for mounting to marine bases like the Panorama NDRS-SL ratchet base (supplied separately). The antenna range can also be mounted directly to a panel or deck. With their weather and corrosion resistant design, along with an IP67 rating, the BS[G]SN variants are highly suitable for marine and coastal applications.

Product Features

Omni-directional UHF sntenna Deck or marine 1″ 14TPI mount Optional GPS/GNSS – 26dB LNA Integrated coaxial cables

Benefits

High performance UHF antenna Multiple mounting options Weatherproof and ingress protected (IP67 rating) BS[G]SN-S[X] version mounts to standard 1″ 14TPI marine bases

Application

Marine and coastal

Additional information

Colour	White
GPS	1 Module, No
Cable Length	Between 5m & 10m
Connector (VHF/UHF)	SMA (m)
Technology	GNSS, GPS, TETRA, UHF
Connector (GPS)	No Connector, SMA (m)
Frequency Range	380-400MHz, 410-430MHz, 450-470MHz

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	25
Typical VSWR	2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	No
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26dB
Number of GPS Elements	1 Module; No
MECHANICAL DATA
Colour	White
Height	640 (mm) \| 25.20 (in)
Diameter	87 (mm) \| 3.43 (in)
Operating Temperature	-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – Whip	5 (m) \| 16.40 (ft)
Cable length – GPS	5 (m) \| 16.40 (ft)
Cable Type (Whip)	CS23
Cable Type (GPS)	CS29
TERMINATION DATA
Connector (GPS)	SMA (m)
Connector (VHF/UHF) Whip	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Mast; Panel; Rail; Wall
Mounting Methods	Mast; Panel; Rail; Wall; Pole
APPROVALS DATA
IP Rating	IP67
TECHNOLOGY DATA
Technology	UHF; GPS; GNSS; TETRA

Available selections

Colour	White
GPS	1 Module No
Cable Length	Between 5m & 10m
Connector (VHF/UHF)	SMA (m)
Technology	GNSS GPS TETRA UHF
Connector (GPS)	No Connector SMA (m)
Frequency Range	380-400MHz 410-430MHz 450-470MHz

Models and configurations

SKU; Colour | Frequency Range | Gain | UHF | GPS

BSGSN-S1-5SP	Colour: White Frequency Range \| Gain: 380 – 400MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: 1 Module 5m SMA (m)
BSGSN-S2-5SP	Colour: White Frequency Range \| Gain: 410 – 430MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: 1 Module 5m SMA (m)
BSGSN-S4-5SP	Colour: White Frequency Range \| Gain: 450 – 470MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: 1 Module 5m SMA (m)
BSSN-S1-5SP	Colour: White Frequency Range \| Gain: 380 – 400MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: No
BSSN-S2-5SP	Colour: White Frequency Range \| Gain: 410 – 430MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: No
BSSN-S4-5SP	Colour: White Frequency Range \| Gain: 450 – 470MHz \| 4.5dBi UHF: Yes 5m SMA (m) GPS: No

Accessories

NDRS-SL \| Deck Ratchet Mnt S/S 1″14TPI-Slotted SEE MORE SAB-315 \| BS[G]M to 1″ 14TPI Adaptor Assembly SEE MORE

Configuration options

Option	Available values
Colour	White
Gps	1 Module, No
Cable Length	Between 5m & 10m
Connector Vhf Uhf	SMA (m)
Technology	GNSS, GPS, TETRA, UHF
Connector Gps	No Connector, SMA (m)
Frequency Range	380-400MHz, 410-430MHz, 450-470MHz
