Description
The Body Worn Dipole Antenna is specifically designed to be worn on a user’s body during undercover operations. It can also supply an alternative where conventional portable antennas cannot be used.
Product

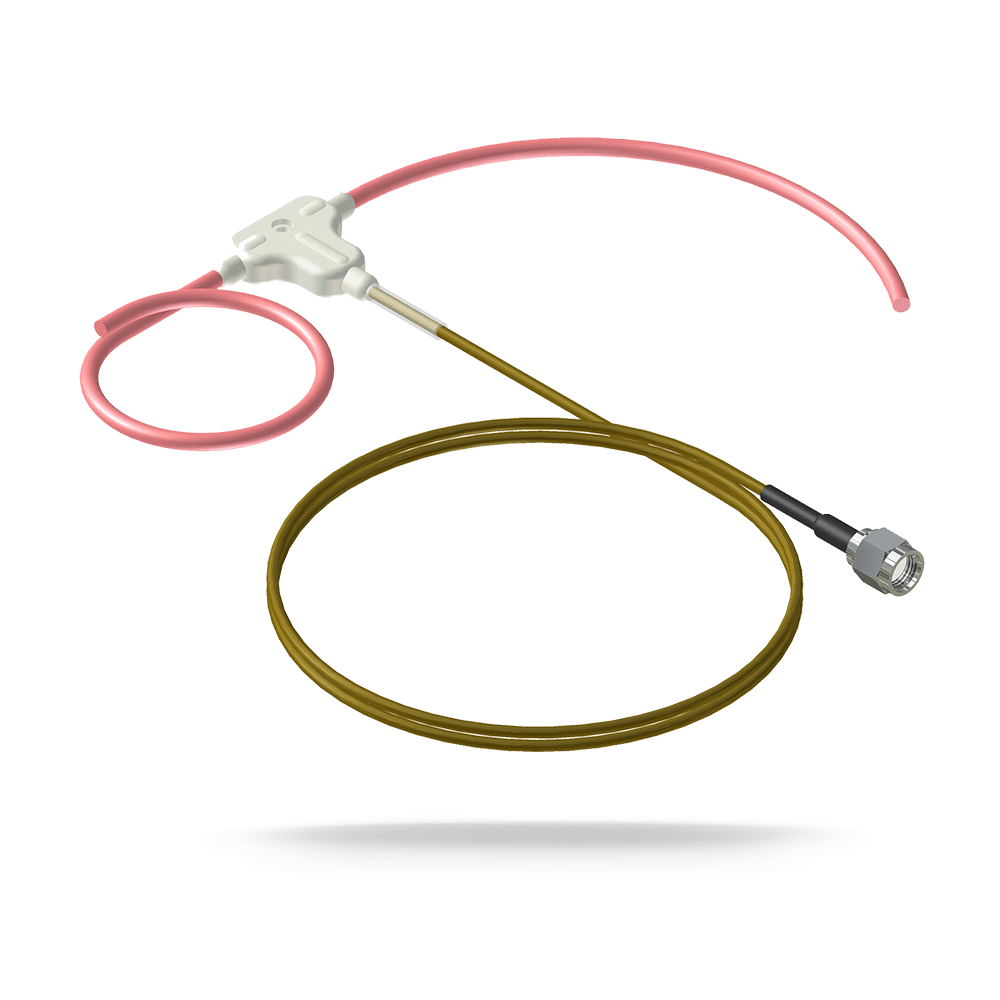

BWDT | Covert Bodyworn Dipole Antenna
Model / SKU: BWDT
BWDT | Covert Bodyworn Dipole Antenna
The Body Worn Dipole Antenna is specifically designed to be worn on a user’s body during undercover operations.
It can also supply an alternative where conventional portable antennas cannot be used.
The wires are taped to a person’s body so that their appearance is
as discreet as possible. The antenna is worn across the shoulders and
down the back. Once in position, the antenna is tuned to the required
frequency so that optimal performance can be achieved.
Product overview
The Body Worn Dipole Antenna is specifically designed to be worn on a user’s body during undercover operations. It can also supply an alternative where conventional portable antennas cannot be used.
The wires are taped to a person’s body so that their appearance is as discreet as possible. The antenna is worn across the shoulders and down the back. Once in position, the antenna is tuned to the required frequency so that optimal performance can be achieved.
Product Features
- Designed Specifically for Undercover Operations Provides Optimal Performance in Replacement for the Standard Portable Antenna Available in a Range of UHF Frequencies Can be Used with any Portable Radio Using SMA Female Type Connector
Benefits
- Ideal Undercover Body-worn Antenna 100% Hidden
Application
- Public safety
Additional information
| Colour | Grey |
|---|---|
| Cable Length | Below 1m |
| Connector (VHF/UHF) | SMA (m) |
| Frequency Range | 380-400MHz, 380-430MHz, 410-430MHz, 470-520MHz |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 10 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Grey |
| Length | 23.8 (mm) | 0.94 (in) |
| Width | 27.4 (mm) | 1.08 (in) |
| Height | 6 (mm) | 0.24 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 0.6 (m) | 1.97 (ft) |
| Cable Type (Whip) | RG316 coaxial cable |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Body Worn |
| Mounting Methods | Body Worn |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
