Description
The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.
Product
CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna
Model / SKU: CASEANT[X]4-6-60-[X]
![CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/CASEANTX4-6-60-X-3-Back-View.jpg "CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna")
![CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/CASEANTX4-6-60-X-4-Back-View-Pad.jpg)
![CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/CASEANTX4-6-60-X-1-Main-View.jpg "CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna")
![CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/CASEANTX4-6-60-X-2-Front-View.jpg "CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna")

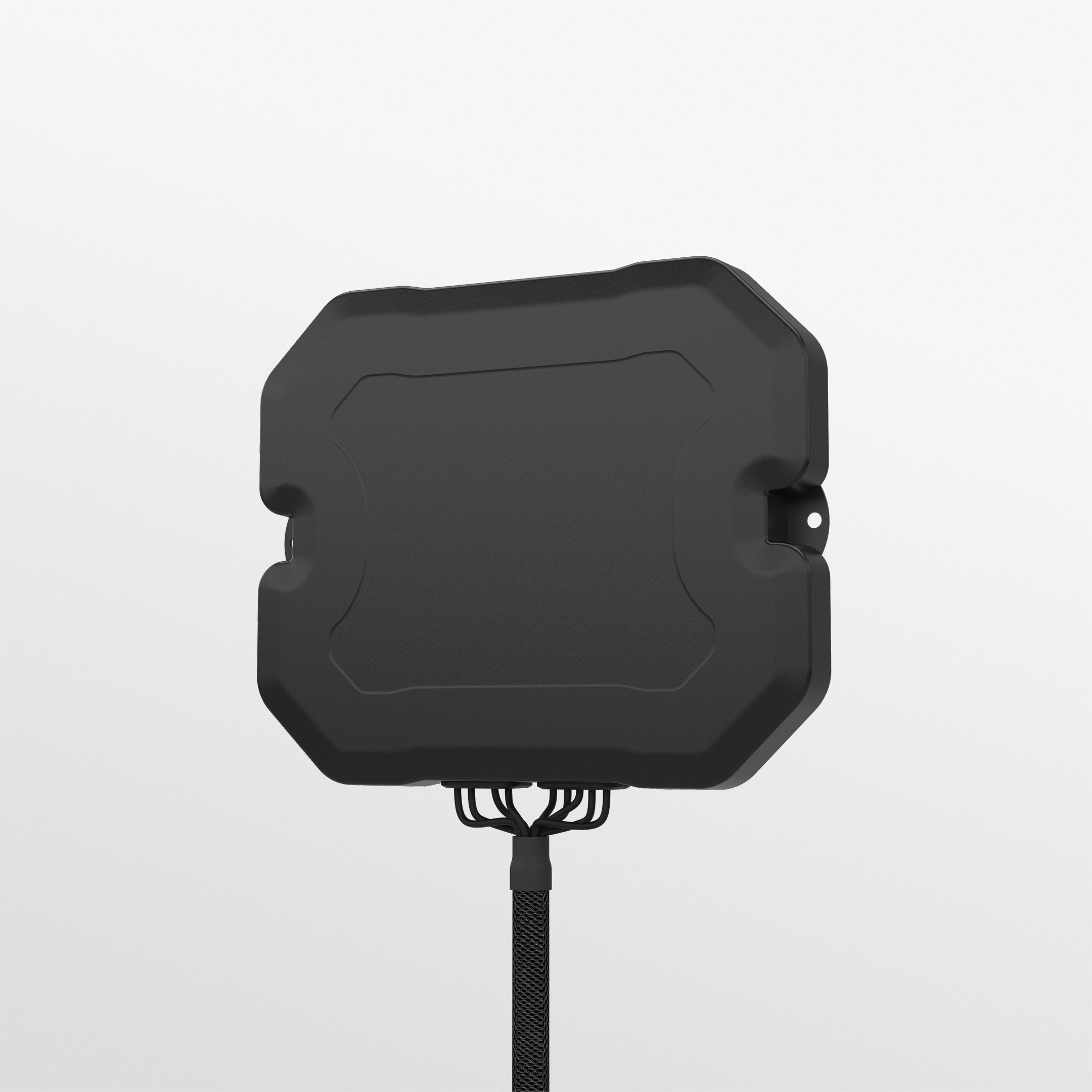

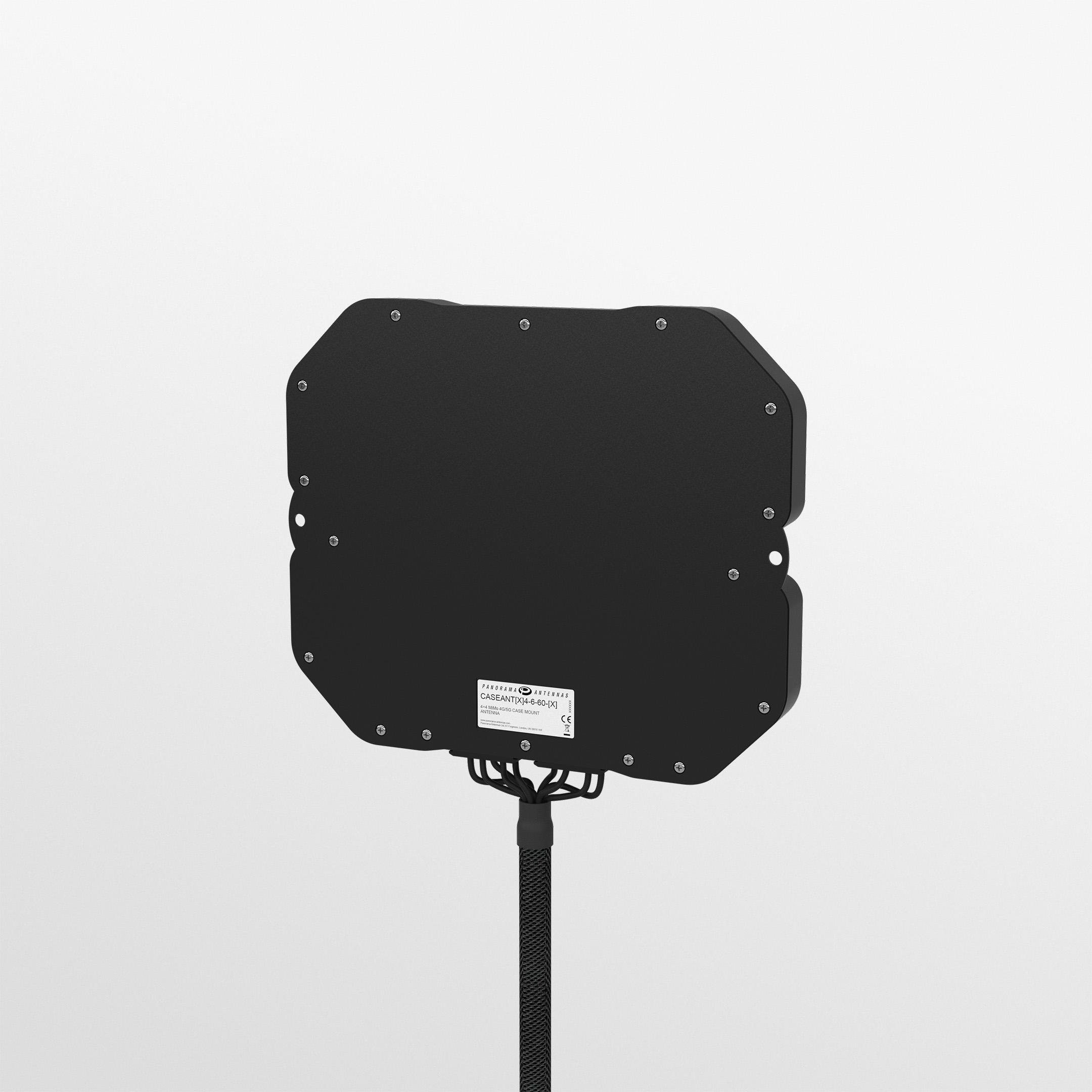

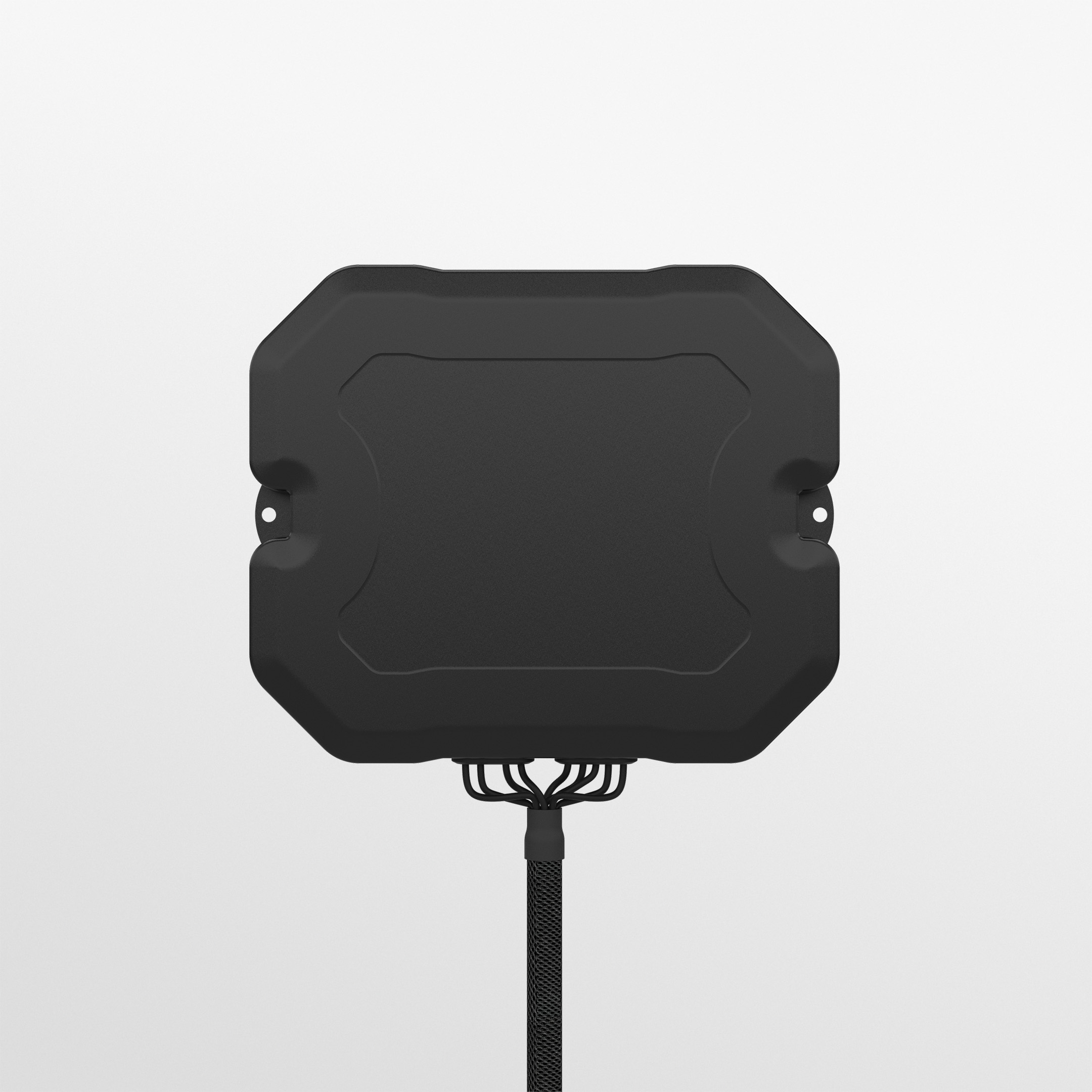

CASEANT[X]4-6-60-[X] | 4×4 MiMo 4G/5G Case Mount Antenna
The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases.
The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed.
CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e.
The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation.
Panorama can provide RF measurement services for case products and design of foam inserts, ducting and other installation collateral upon request. These services are sold separately.
Product overview
The Panorama CASEANT[[X]4-6-60-[X] range is a 4×4 MiMo antenna solution for 4G / 5G specifically designed for deployable cases. The 4G/5G antenna elements cover 617-960/1427-6000MHz providing a robust communications link to ensure high data rates even in challenging network coverage areas. The efficient element design allows the antennas to work when the case is open or closed.
CASEANTG[5]4 variants include a GPS/GNSS module with advanced filtering covering either L1/E1/G1/B1 or L1/E1/G1/B1 & L5. Additional variants also contain 2,3 or 4 WiFi elements which cover 2.4-7.2GHz for WiFi 6e.
The antenna is supplied with integrated low loss flame retardant cables fitted with protective sleeving to assist with routing within the case and right angled connectors for easy installation.
Panorama can provide RF measurement services for case products and design of foam inserts, ducting and other installation collateral upon request. These services are sold separately.
Product Features
- 4×4 MiMo 4G / 5G antenna solution for mounting in hard cases Optional L1 or L1/L5 GNSS and optional MiMo WiFi 6e Highly efficient elements Easy adhesive mounting Integrated flexible low loss cables loomed for easy routing
Additional information
| Colour | Black |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No |
| Cable Length | Below 1m |
| Connector (LTE) | Right Angle SMA (m) |
| Connector (WIFI) | No Connector, Right Angle reverse polarity SMA |
| Connector (GPS) | No Connector, Right Angle SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | 4 x 4 MIMO; 2 x 2 MIMO; No; 3 x 3 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz; 1164-1189MHz/1559-1612MHZ |
| LNA GAIN (dB) | 26dB; 30dB / 26dB |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 196 (mm) | 7.72 (in) |
| Width | 232 (mm) | 9.13 (in) |
| Height | 25 (mm) | 0.98 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.75 (m) | 2.46 (ft) |
| Cable length – GPS | 0.75 (m) | 2.46 (ft) |
| Cable Length – WIFI | 0.75 (m) | 2.46 (ft) |
| Cable Type (LTE) | CS30 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | CS30 |
| TERMINATION DATA | |
| Connector (WIFI) | Right Angle reverse polarity SMA |
| Connector (GPS) | Right Angle SMA (m) |
| Connector (LTE) | Right Angle SMA (m) |
| MOUNTING DATA | |

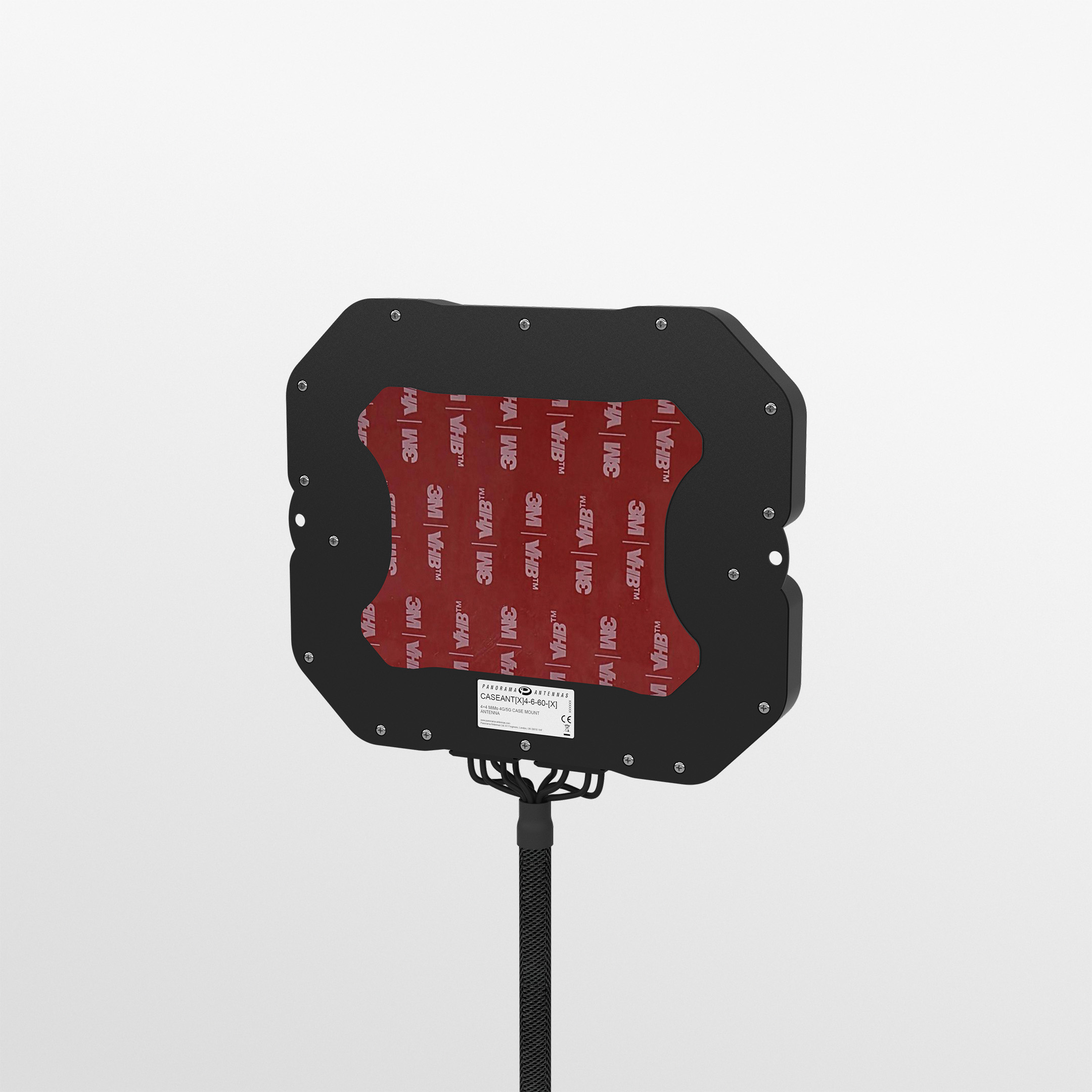

| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Hook/Loop or Adhesive |
| APPROVALS DATA | |
| IP Rating | IP55 |
| Cable Flammability | UN ECE R118 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G/4G; Band 71 600MHz ready; CBRS; ESN; FirstNet; WIFI MIMO; WIFI; WIFI 6E; GPS; GNSS |
