Description
The CDU range is a temporary fit solution for UHF radio terminals – ideal for temporary network infill or range extension. The robust plastic clip provides a secure but easily moveable base with over-moulded low loss cable assembly.
Product

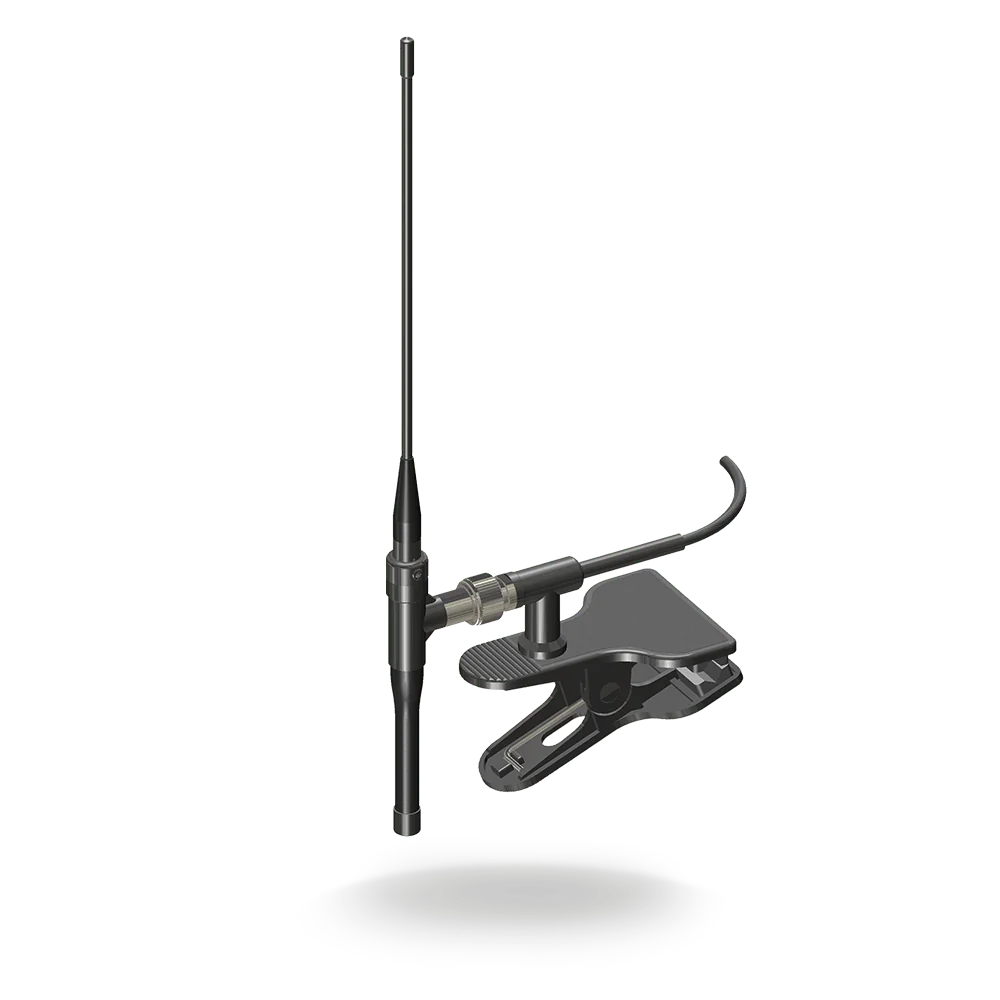

CDU | UHF Clip Dipole
Model / SKU: CDU
CDU | UHF Clip Dipole
The CDU range is a temporary fit solution for UHF radio terminals – ideal for temporary network infill or range extension.
The robust plastic clip provides a secure but easily moveable base with over-moulded low loss cable assembly.
Product overview
The CDU range is a temporary fit solution for UHF radio terminals – ideal for temporary network infill or range extension.
The robust plastic clip provides a secure but easily moveable base with over-moulded low loss cable assembly.
Product Features
- Rugged construction Fast installation Moulded in coaxial cable
Additional information
| Colour | Black |
|---|---|
| Cable Length | Between 5m & 10m |
| Connector (VHF/UHF) | No Connector |
| Frequency Range | 380-400MHz, 380-430MHz, 406-472MHz, 410-430MHz, 410-470MHz, 430-472MHz, 450-512MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 50 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | max: 233 (mm) | 9.17 (in) |
| Diameter | 15 (mm) | 0.59 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 5 (m) | 16.40 (ft) |
| Cable Type (Whip) | CS23 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | No Connector |
| MOUNTING DATA | |
| Mounting Type Temp | Clip |
| Mounting Methods | Clip |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
Data material
- Datasheet - CDU-VAR.pdf (PDF)
