Model / SKU: CM-S[VAR]

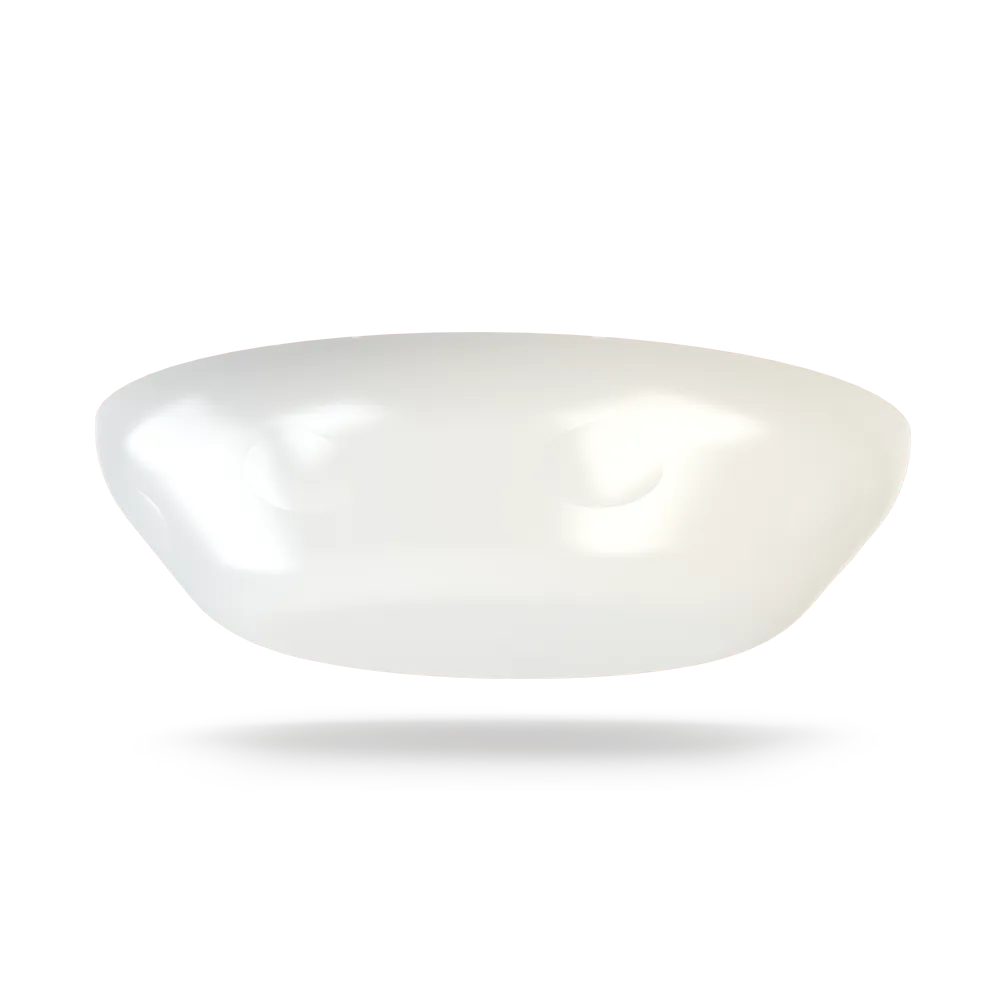

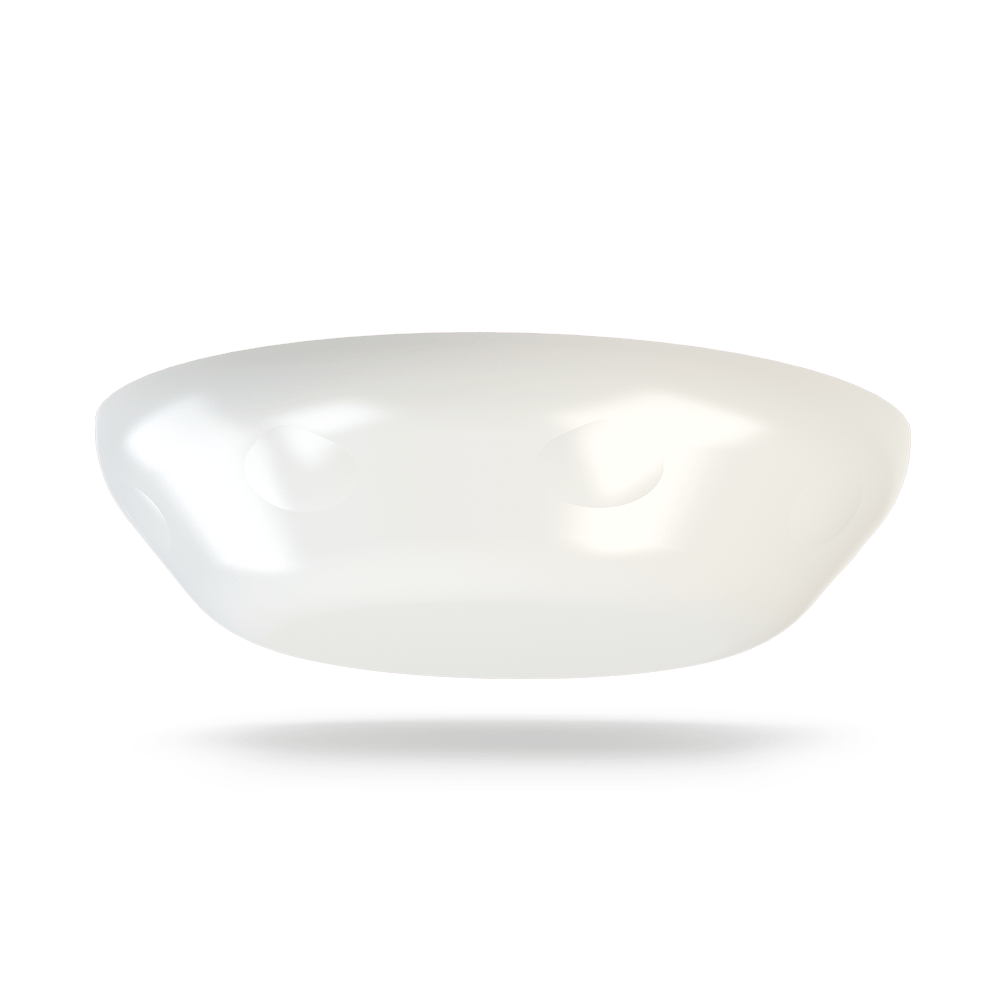

The Panorama UHF ceiling antenna can be installed on a metallic or fiber ceiling panel* and is designed to provide network coverage in large buildings as part of a distributed antenna system.
Suitable for use in airports, large campus sites, and shopping centres, the antenna ensures there are no black holes in coverage or a reduction in signal strength.
The discrete and low profile appearance of the antenna minimises awareness of its’ presence by building users.
*Performance will vary based on the mounting surface.
The Panorama UHF ceiling antenna can be installed on a metallic or fiber ceiling panel and is designed to provide network coverage in large buildings as part of a distributed antenna system. Suitable for use in airports, large campus sites, and shopping centres, the antenna ensures there are no black holes in coverage or a reduction in signal strength.
The Panorama UHF ceiling antenna can be installed on a metallic or fiber ceiling panel* and is designed to provide network coverage in large buildings as part of a distributed antenna system. Suitable for use in airports, large campus sites, and shopping centres, the antenna ensures there are no black holes in coverage or a reduction in signal strength.
The discrete and low profile appearance of the antenna minimises awareness of its’ presence by building users.
*Performance will vary based on the mounting surface.
| Colour | White |
|---|---|
| Cable Length | Below 1m |
| Connector (VHF/UHF) | N (f) |
| Frequency Range | 380-400MHz, 410-430MHz, 450-470MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 25 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Height | 42 (mm) | 1.65 (in) |
| Diameter | 160 (mm) | 6.30 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 0.8 (m) | 2.62 (ft) |
| Cable Type (Whip) | CS23 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Ceiling |
| Mounting Methods | Ceiling |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
