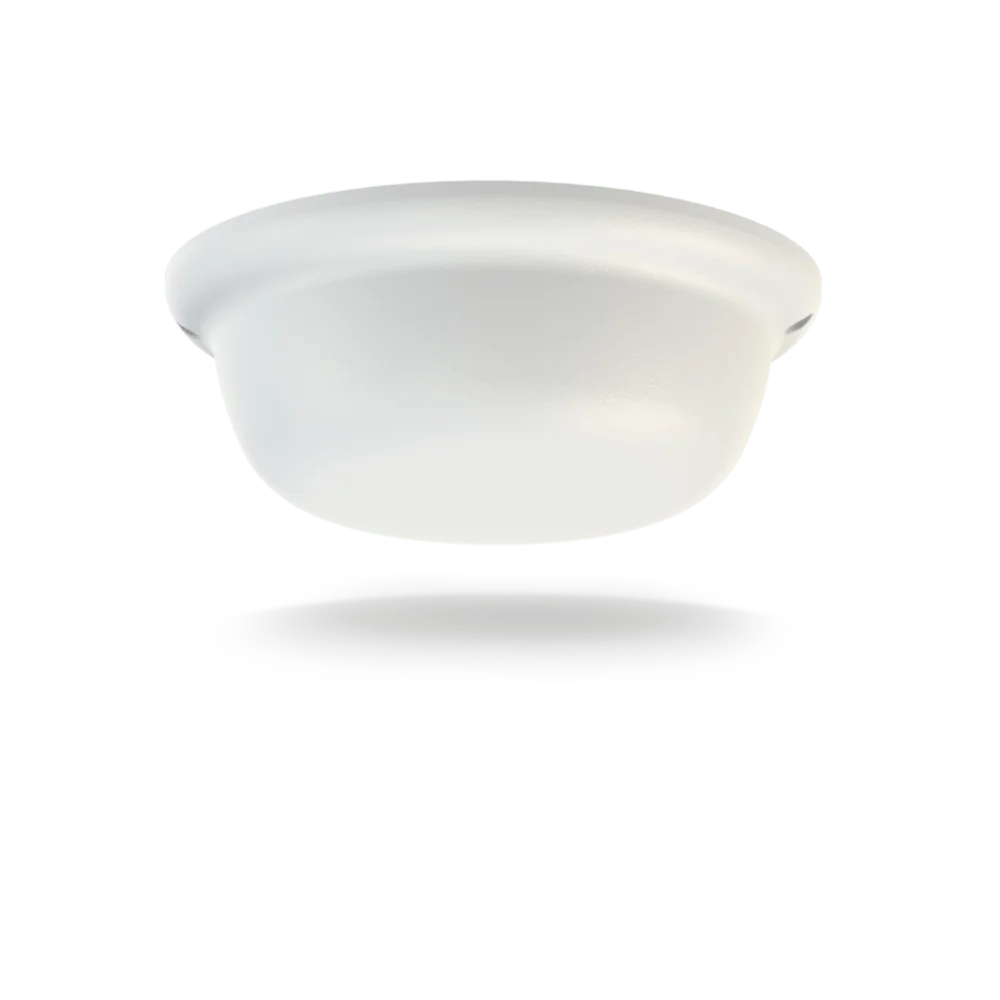

Model / SKU: CMM-6-60
The CMM-6-60 range has been designed to provide 2×2 MiMo coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains two antenna elements with effective isolation and low correlation covering 617-960/1710-6000MHz.
The antenna is designed to be ceiling mounted and can be fitted
on a conductive or non-conductive panel. Supplied with integrated flame
retardant low PIM RG402 cables and a halogen-free flame retardant radome
the antenna is suitable for many environments.
This product features Panorama Antennas’ PIM Guard Technology and will
meet or exceed a third order intermodulation level of < -150dBc (2 x
20Watt carrier).
The CMM-6-60 range has been designed to provide 2×2 MiMo coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains two antenna elements with effective isolation and low correlation covering 617-960/1710-6000MHz.
The CMM-6-60 range has been designed to provide 2×2 MiMo coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains two antenna elements with effective isolation and low correlation covering 617-960/1710-6000MHz.
The antenna is designed to be ceiling mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low PIM RG402 cables and a halogen-free flame retardant radome the antenna is suitable for many environments. This product features Panorama Antennas’ PIM Guard Technology and will meet or exceed a third order intermodulation level of < -150dBc (2 x 20Watt carrier).
| Colour | White |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| Cable Length | Below 1m |
| Connector (LTE) | 4.3-10 (f), N (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 617 – 960MHz | 3dBi; 1710 – 3800MHz | 6dBi; 4900 – 6000MHz | 7dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Height | 76 (mm) | 2.99 (in) |
| Diameter | 214 (mm) | 8.43 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.5 (m) | 1.64 (ft) |
| TERMINATION DATA | |
| Connector (LTE) | 4.3-10 (f); N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Ceiling; Panel |
| Mounting Methods | Ceiling; Panel |
| APPROVALS DATA | |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
