CMS-380-520-[VAR] | Ultra Low Profile SiSo UHF Ceiling Antenna

Model / SKU: CMS-380-520-[VAR]

CMS-380-520-[VAR] | Ultra Low Profile SiSo UHF Ceiling Antenna

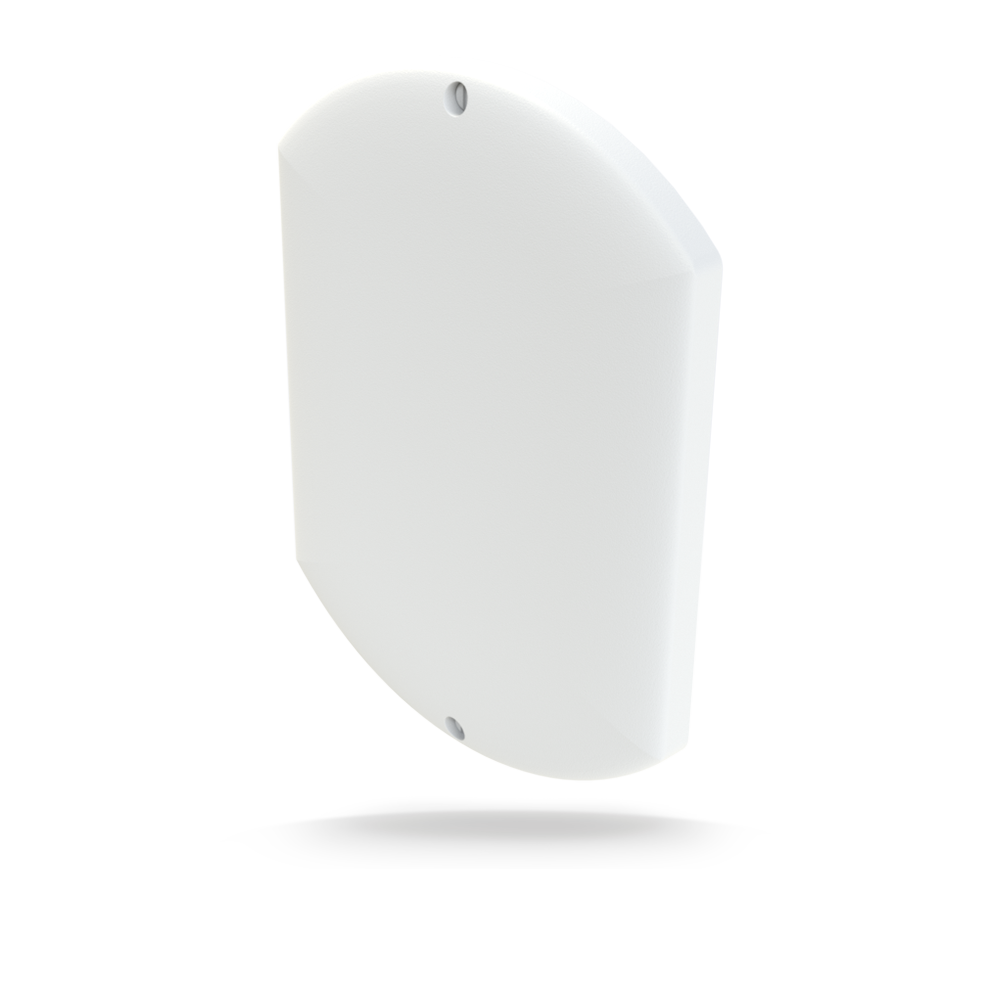

The CMS-380-520-03NJ range has been designed to provide SiSo UHF
coverage for DAS networks in an ultra low profile package. The compact,
robust low-profile housing contains a highly efficient antenna element

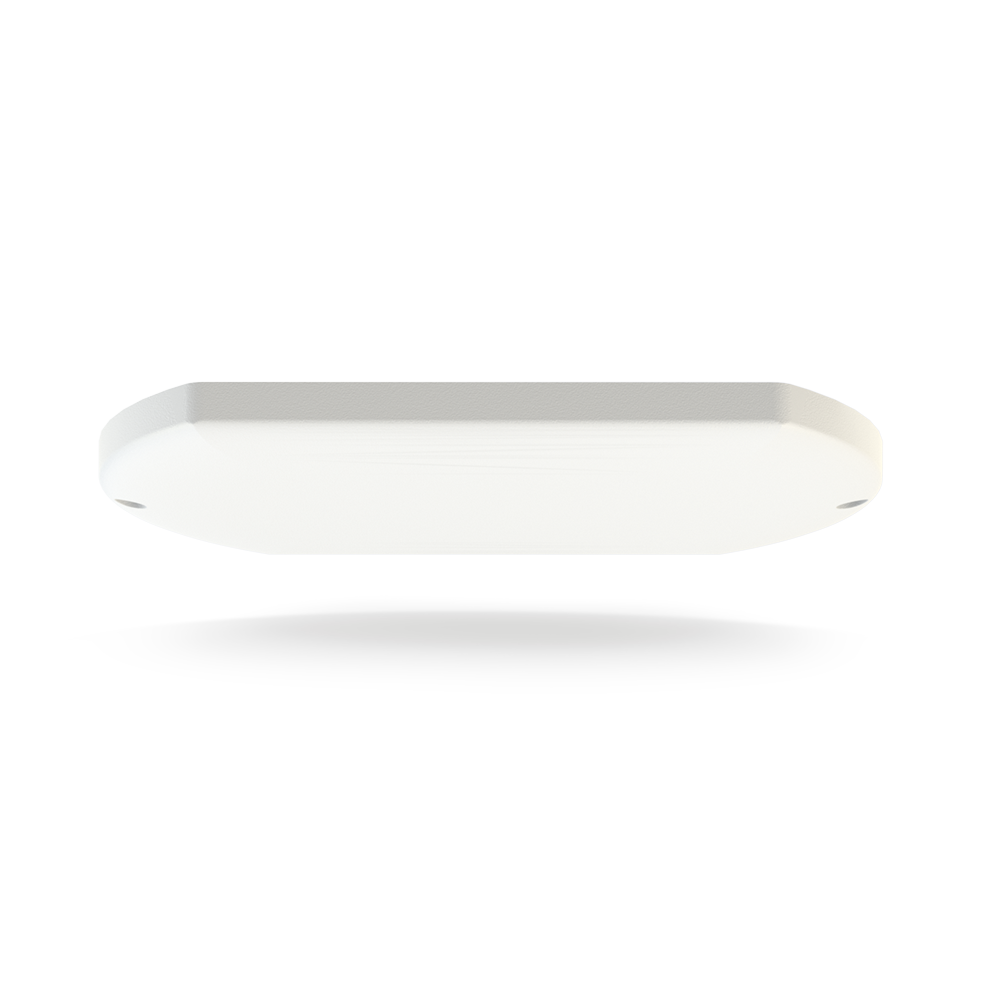

covering 380-520MHz. At < 22mm (0.85”) high the antenna is extremely
discreet and ideal for low clearance deployment locations. The antenna
is designed to be ceiling mounted and can be fitted on any nonconductive
panel. Supplied with integrated flame retardant CS29 cable and a flame
retardant radome the antenna is suitable for many environments.

Description

The CMS-380-520-03NJ range has been designed to provide SiSo UHF coverage for DAS networks in an ultra low profile package. The compact, robust low-profile housing contains a highly efficient antenna element covering 380-520MHz. At < 22mm (0.85”) high the antenna is extremely discreet and ideal for low clearance deployment locations. The antenna is designed to be ceiling mounted and can be fitted on any nonconductive panel.

Product overview

The CMS-380-520-03NJ range has been designed to provide SiSo UHF coverage for DAS networks in an ultra low profile package. The compact, robust low-profile housing contains a highly efficient antenna element covering 380-520MHz. At < 22mm (0.85”) high the antenna is extremely discreet and ideal for low clearance deployment locations. The antenna is designed to be ceiling mounted and can be fitted on any nonconductive panel. Supplied with integrated flame retardant CS29 cable and a flame retardant radome the antenna is suitable for many environments.

Product Features

Ultra Low Profile Omni-Directional Ceiling Antenna Minimal Visual Impact Housing and Footprint Covers a Range of UHF Frequencies for TETRA, P25, and DMR Technologies Covers 380-520MHz Without Tuning Not for use on Metal Surfaces Flame Retardant Housing Design

Benefits

Low Profile Unobtrusive Antenna Ideal to Enhance Coverage in Airports, Stadiums, Shopping Centres and Campus Sites

Application

DAS Applications Network In-Fill In-Building Coverage

Additional information

Colour	White
Cable Length	Below 1m
Connector (VHF/UHF)	N (f)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	50
Typical VSWR	<1.8:1
Frequency Range \| Gain	380 – 520MHz \| 2dBi
Cellular LTE Elements	No
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	White
Length	309 (mm) \| 12.17 (in)
Width	229 (mm) \| 9.02 (in)
Height	21.5 (mm) \| 0.85 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – Whip	0.5 (m) \| 1.64 (ft)
Cable Type (Whip)	FR CS29
TERMINATION DATA
Connector (VHF/UHF) Whip	N (f)
MOUNTING DATA
Mounting Type Fixed	Ceiling; Panel
Mounting Methods	Ceiling; Panel
TECHNOLOGY DATA
Technology	UHF; 433MHz; TETRA

Available selections

Colour	White
Cable Length	Below 1m
Connector (VHF/UHF)	N (f)

Models and configurations

SKU; Colour | UHF

CMS-380-520-05NJ	White \| Yes 0.5m N (f)

Configuration options

Option	Available values
Colour	White
Cable Length	Below 1m
Connector Vhf Uhf	N (f)
