Model / SKU: CMSLP-038-4-[VAR]

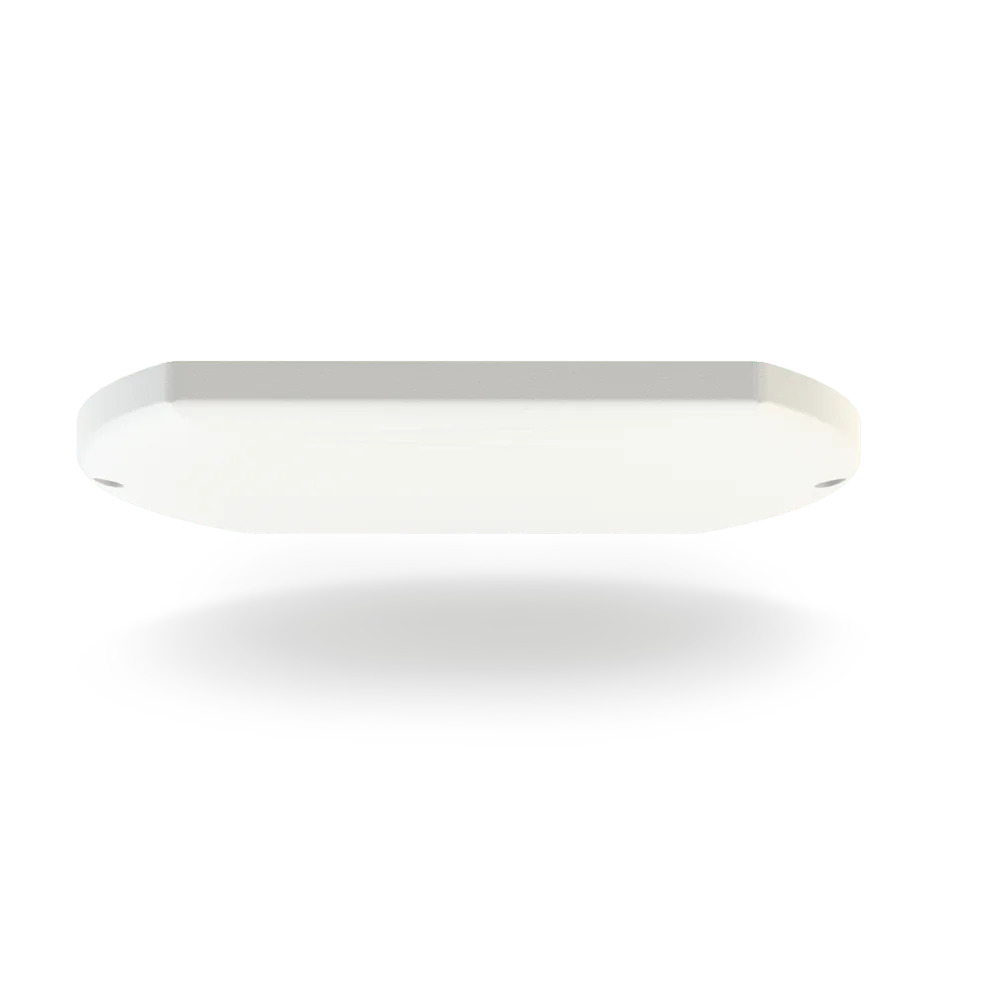

The CMSLP-038-4 range has been designed to provide SiSo UHF/3G/4G & 3.8GHz 5G coverage for DAS networks in an ultra low profile package. The compact, robust low-profile housing contains a highly efficient antenna element covering 380-520/617-960/1710-3800MHz. At < 22mm
(0.85”) high the antenna is extremely discreet and ideal for low
clearance deployment locations.
The antenna is designed to be ceiling mounted and can be fitted
on any nonconductive panel. Supplied with integrated flame retardant low
PIM RG402 cable and a flame retardant radome the antenna is suitable
for many environments.
This product features Panorama Antennas’ PIM Guard Technology and will
meet or exceed a third order intermodulation level of < -150dBc (2 x
20Watt carrier).
The CMSLP-038-4 range has been designed to provide SiSo UHF/3G/4G & 3.8GHz 5G coverage for DAS networks in an ultra low profile package. The compact, robust low-profile housing contains a highly efficient antenna element covering 380-520/617-960/1710-3800MHz.
The CMSLP-038-4 range has been designed to provide SiSo UHF/3G/4G & 3.8GHz 5G coverage for DAS networks in an ultra low profile package. The compact, robust low-profile housing contains a highly efficient antenna element covering 380-520/617-960/1710-3800MHz. At < 22mm (0.85”) high the antenna is extremely discreet and ideal for low clearance deployment locations.
The antenna is designed to be ceiling mounted and can be fitted on any nonconductive panel. Supplied with integrated flame retardant low PIM RG402 cable and a flame retardant radome the antenna is suitable for many environments. This product features Panorama Antennas’ PIM Guard Technology and will meet or exceed a third order intermodulation level of < -150dBc (2 x 20Watt carrier).
| Colour | White |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Below 1m |
| Connector (LTE) | 4.3-10 (f), N (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 50 |
| Frequency Range | Gain | 380 – 520MHz | 2dBi; 617 – 960MHz | 4dBi; 1710 – 3800MHz | 4dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Length | 309 (mm) | 12.17 (in) |
| Width | 229 (mm) | 9.02 (in) |
| Height | 22 (mm) | 0.87 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.5 (m) | 1.64 (ft) |
| TERMINATION DATA | |
| Connector (LTE) | 4.3-10 (f); N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Ceiling; Panel |
| Mounting Methods | Ceiling; Panel |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G |
