Description
The CMSLP-6-60 range has been designed to provide omni-directional coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains an efficient low PIM element covering 617-960/1710-6000MHz.
Product

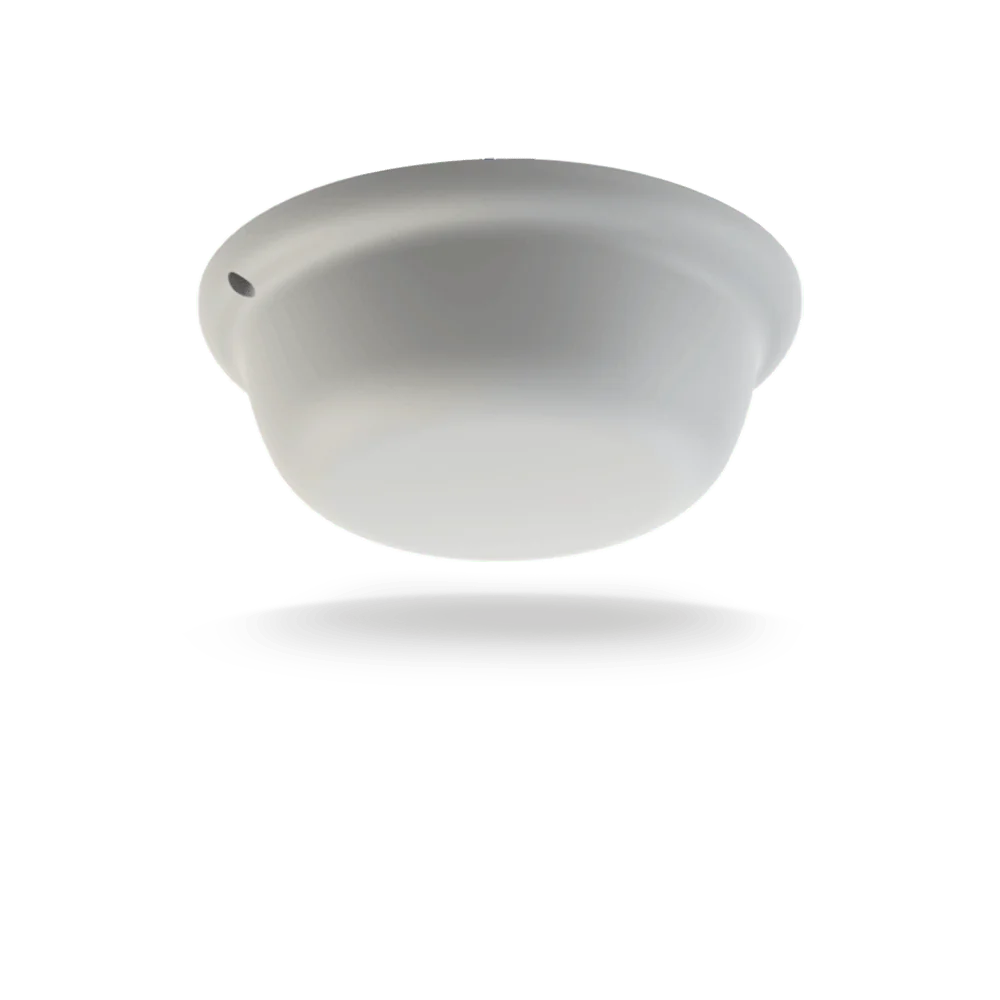

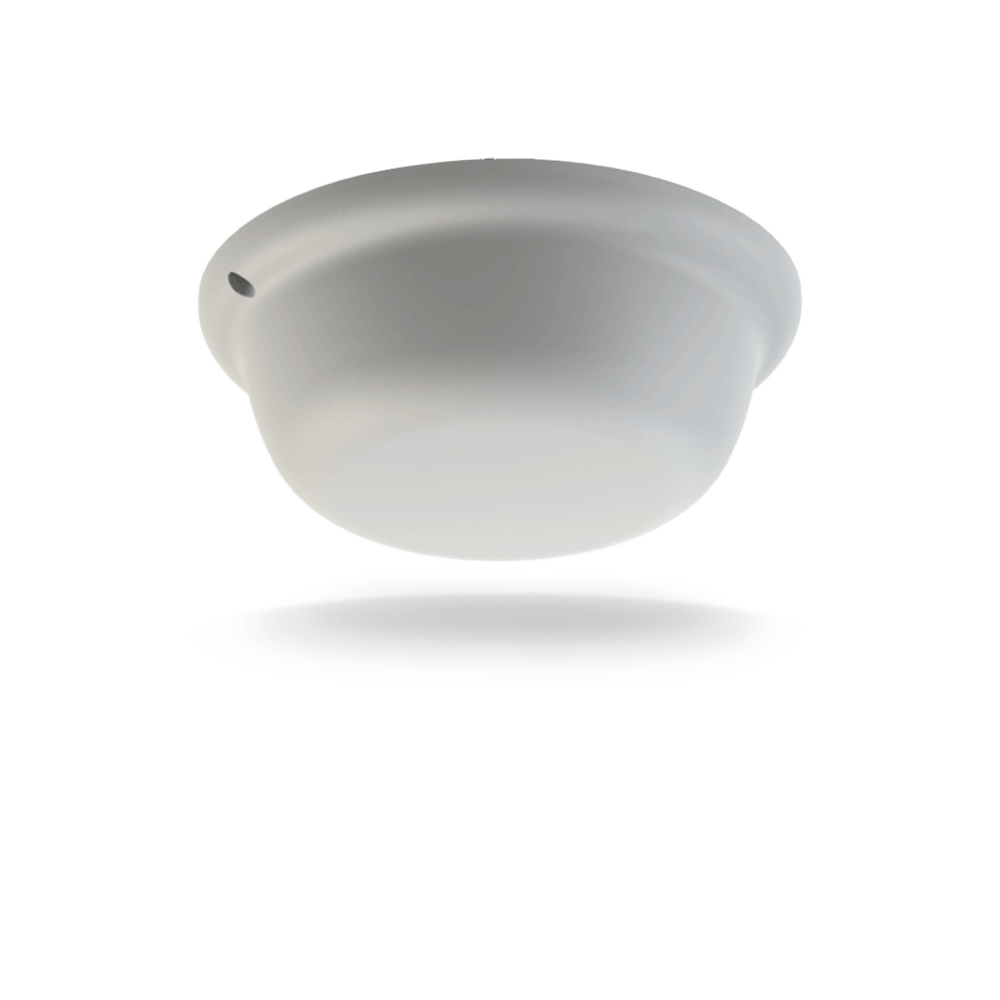

CMSLP-6-60 | SiSo Low PIM Ceiling Antenna
Model / SKU: CMSLP-6-60
CMSLP-6-60 | SiSo Low PIM Ceiling Antenna
The CMSLP-6-60 range has been designed to provide omni-directional coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains an efficient low PIM element covering 617-960/1710-6000MHz.
The antenna is designed to be ceiling mounted and can be fitted on a
conductive or non-conductive panel. Supplied with integrated flame
retardant low PIM RG402 cable and a halogen free flame retardant radome
the antenna is suitable for many environments.
This product features Panorama Antennas’ PIM Guard Technology and will
meet or exceed a third order intermodulation level of < -140dBc (2 x
20Watt carrier).
Product overview
The CMSLP-6-60 range has been designed to provide omni-directional coverage for 4G & 5G networks in a low profile package. The compact, robust low-profile housing contains an efficient low PIM element covering 617-960/1710-6000MHz.
The antenna is designed to be ceiling mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant low PIM RG402 cable and a halogen free flame retardant radome the antenna is suitable for many environments.
This product features Panorama Antennas’ PIM Guard Technology and will meet or exceed a third order intermodulation level of < -140dBc (2 x 20Watt carrier).
Product Features
- Ultra Low Profile Omni-Directional Ceiling Antenna Minimal Visual Impact Housing and Footprint Covers a Wide Frequency Range for all 4G/5G LTE Cellular and WiFi Bands Covers 600-6000MHz Without Tuning Omnidirectional Ceiling Mount Flame Retardant Housing Design Low PIM
Benefits
- Low Profile Unobtrusive Antenna Able to Work With or Without an Additional Groundplane Ideal to Enhance Coverage in Airports, Stadiums, Shopping Centres and Campus Sites
Application
- DAS Applications Network In-Fill In-Building Coverage
Additional information
| Colour | White |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Below 1m |
| Connector (LTE) | 4.3-10 (f), N (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 617 – 960MHz | 2dBi; 1710 – 2700MHz | 5dBi; 3400 – 6000MHz | 8dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | White |
| Height | 76 (mm) | 2.99 (in) |
| Diameter | 214 (mm) | 8.43 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 0.4 (m) | 1.31 (ft) |
| TERMINATION DATA | |
| Connector (LTE) | 4.3-10 (f); N (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Ceiling; Panel |
| Mounting Methods | Ceiling; Panel |
| APPROVALS DATA | |
| Material Flammability | UL746C-F1, UL94-V0 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
