Description
When you can only fit one antenna on a vehicle, then this combiner is the solution providing > 26dB isolation over 380-430MHz with an antenna match at 1.2:1 with low insertion loss.
Product

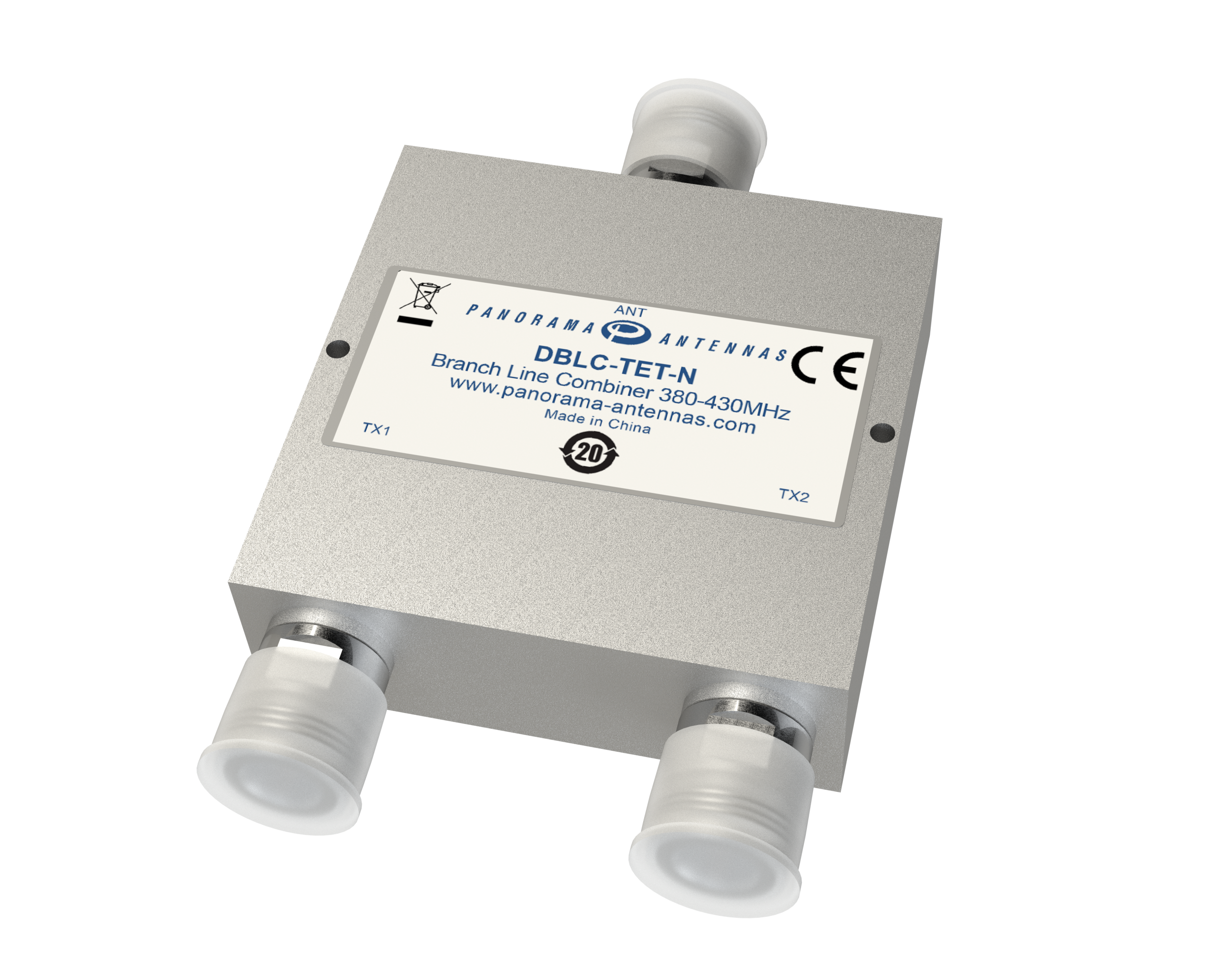

DBLC-TET-N | TETRA Branch Line Combiner
Model / SKU: DBLC-TET-N-[X]
DBLC-TET-N | TETRA Branch Line Combiner
When you can only fit one antenna on a vehicle, then this combiner is the solution providing > 26dB isolation over 380-430MHz with an antenna match at 1.2:1 with low insertion loss.
Product overview
When you can only fit one antenna on a vehicle, then this combiner is the solution providing > 26dB isolation over 380-430MHz with an antenna match at 1.2:1 with low insertion loss.
Product Features
- Combines two TETRA radios on the same antenna Combines two antennas on the same radio
Benefits
- Low insertion loss Greater than 20dB isolation with 1.5:1 antenna VSWR
Application
- Public safety mobility Public safety fixed-site Utilities TETRA
Additional information
| Connector (VHF/UHF) | N (f) |
|---|---|
| Frequency Range | 380-430MHz |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 20 |
| Typical VSWR | <1.5:1 |
| Frequency Range | Gain | 380 – 430MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Length | 72 (mm) | 2.83 (in) |
| Width | 72 (mm) | 2.83 (in) |
| Height | 23 (mm) | 0.91 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | N (f) |
| TECHNOLOGY DATA | |
| Technology | UHF; TETRA |
