Model / SKU: DMM-6-60

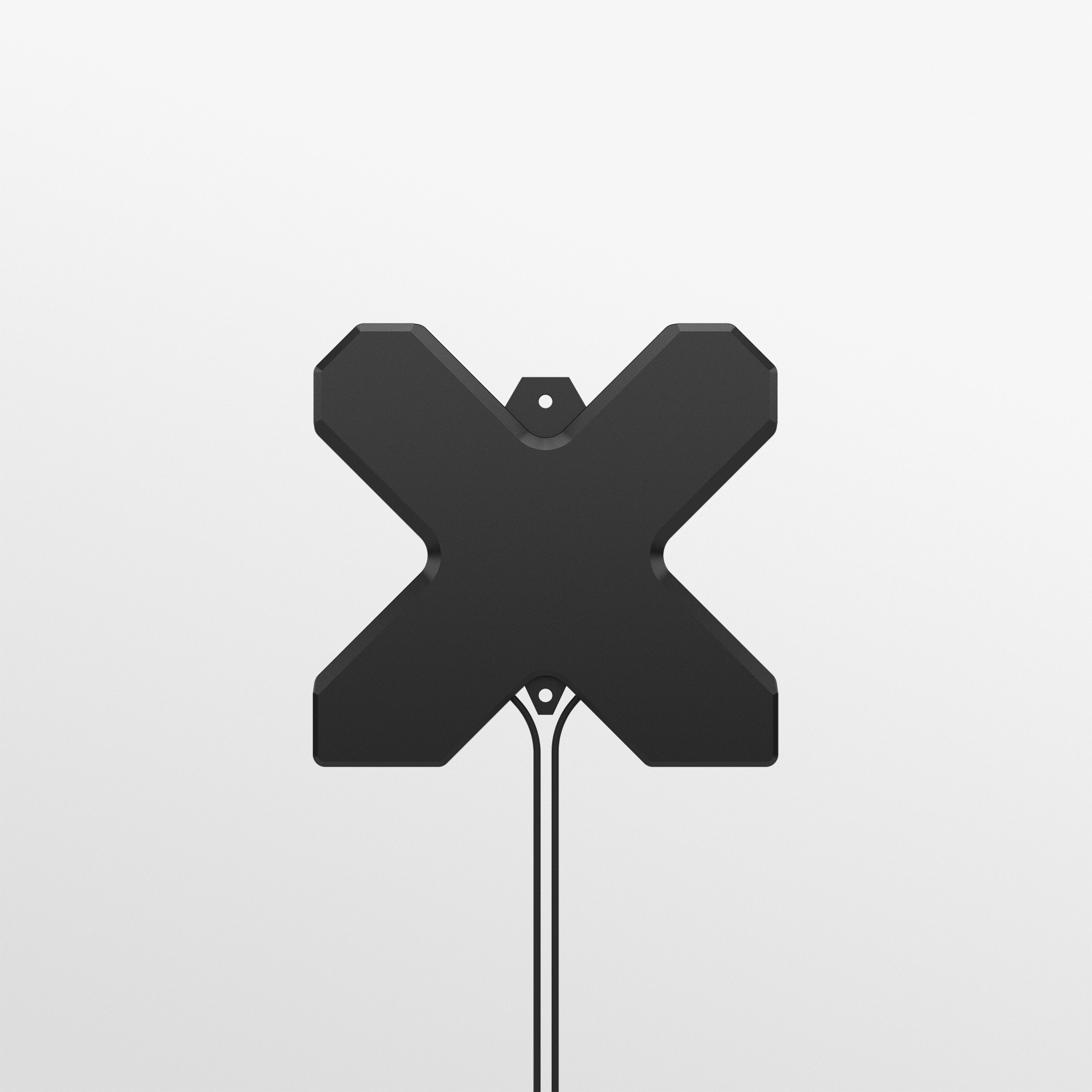

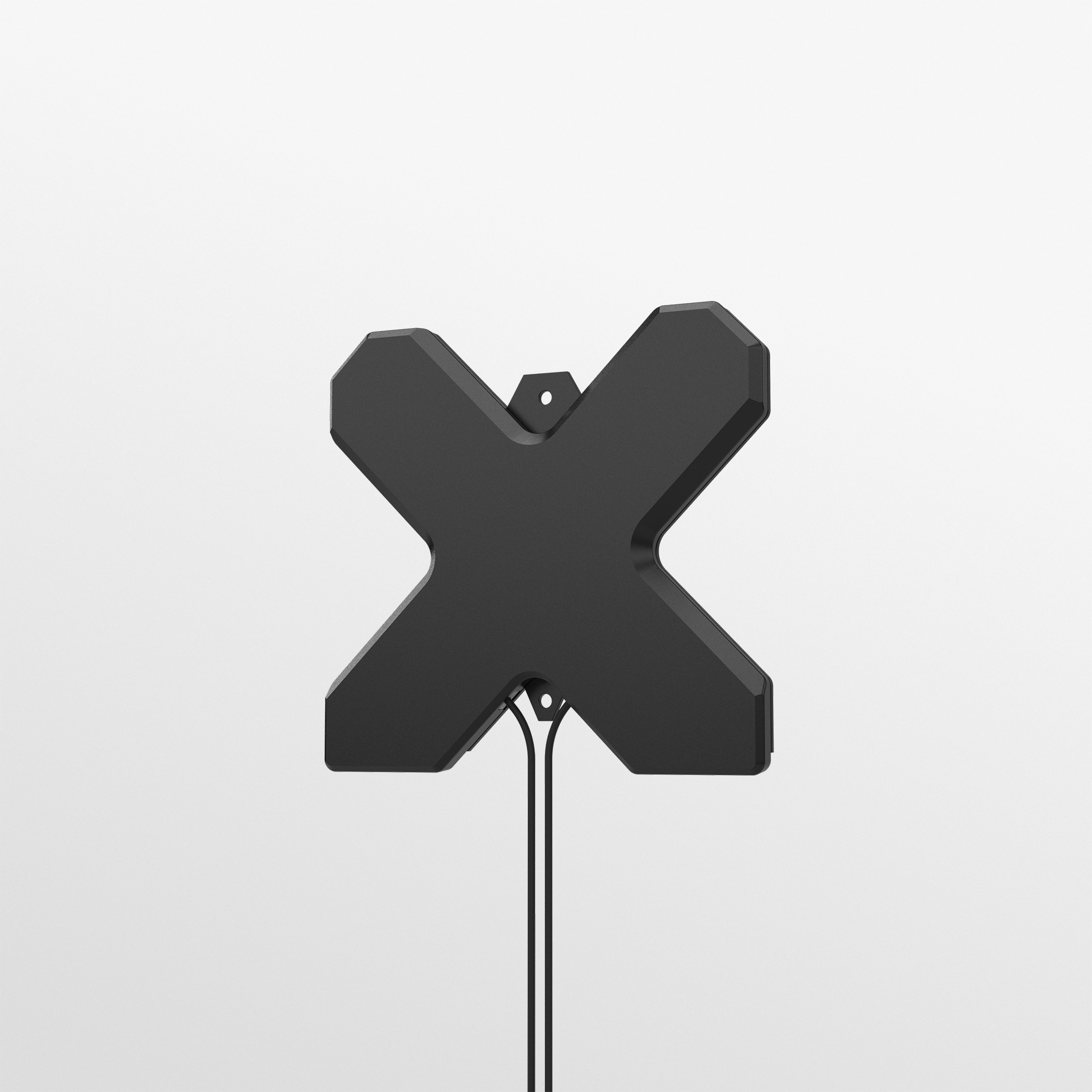

The DMM portable antenna is an innovative antenna design which provides 2×2 MiMo function for 4G/5G with fallback to 3G/2G. Incorporating two separately fed, ultra wideband elements in a single housing, the DMM is equipped to provide portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mmWave bands.

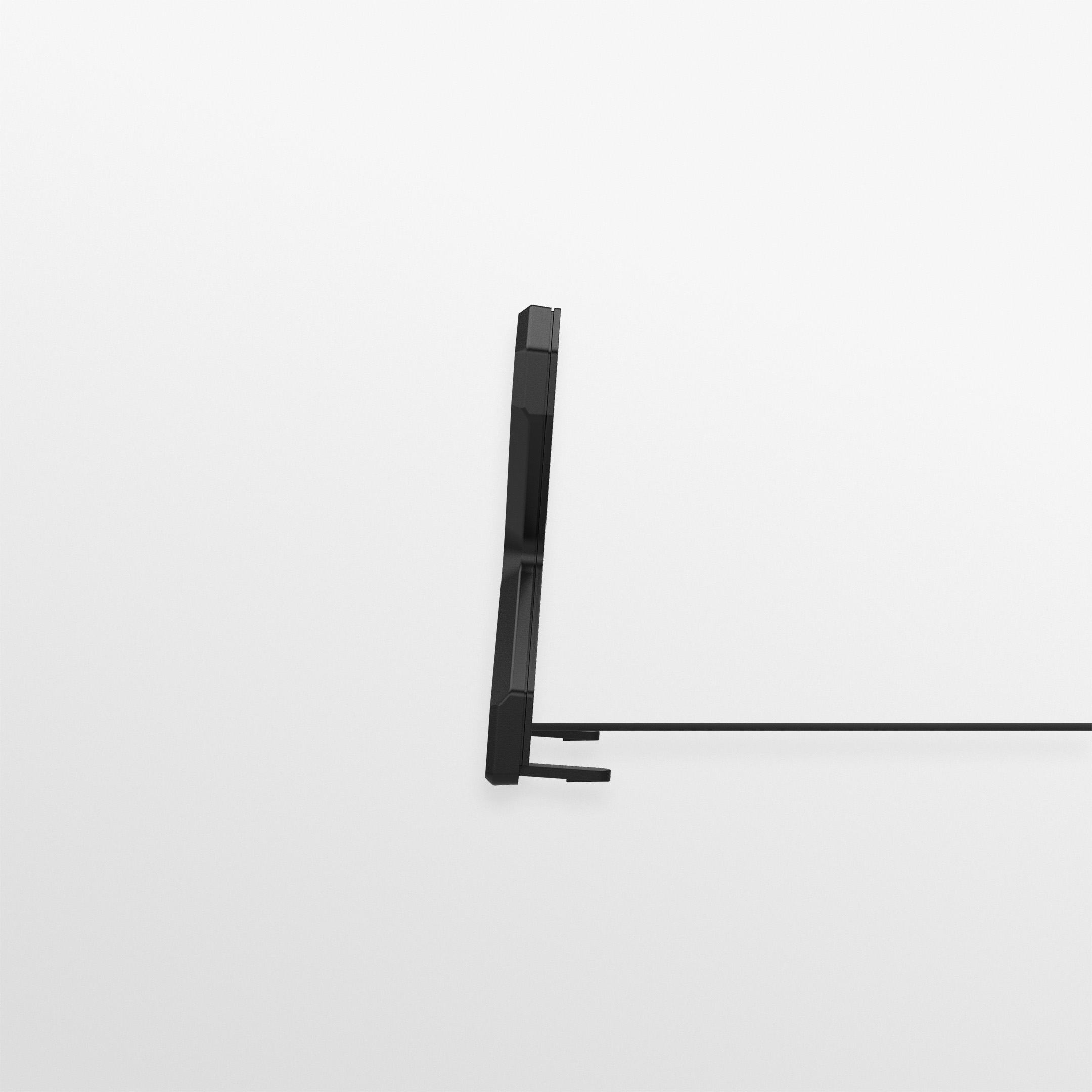

The DMM is highly portable and features an integral desk stand which

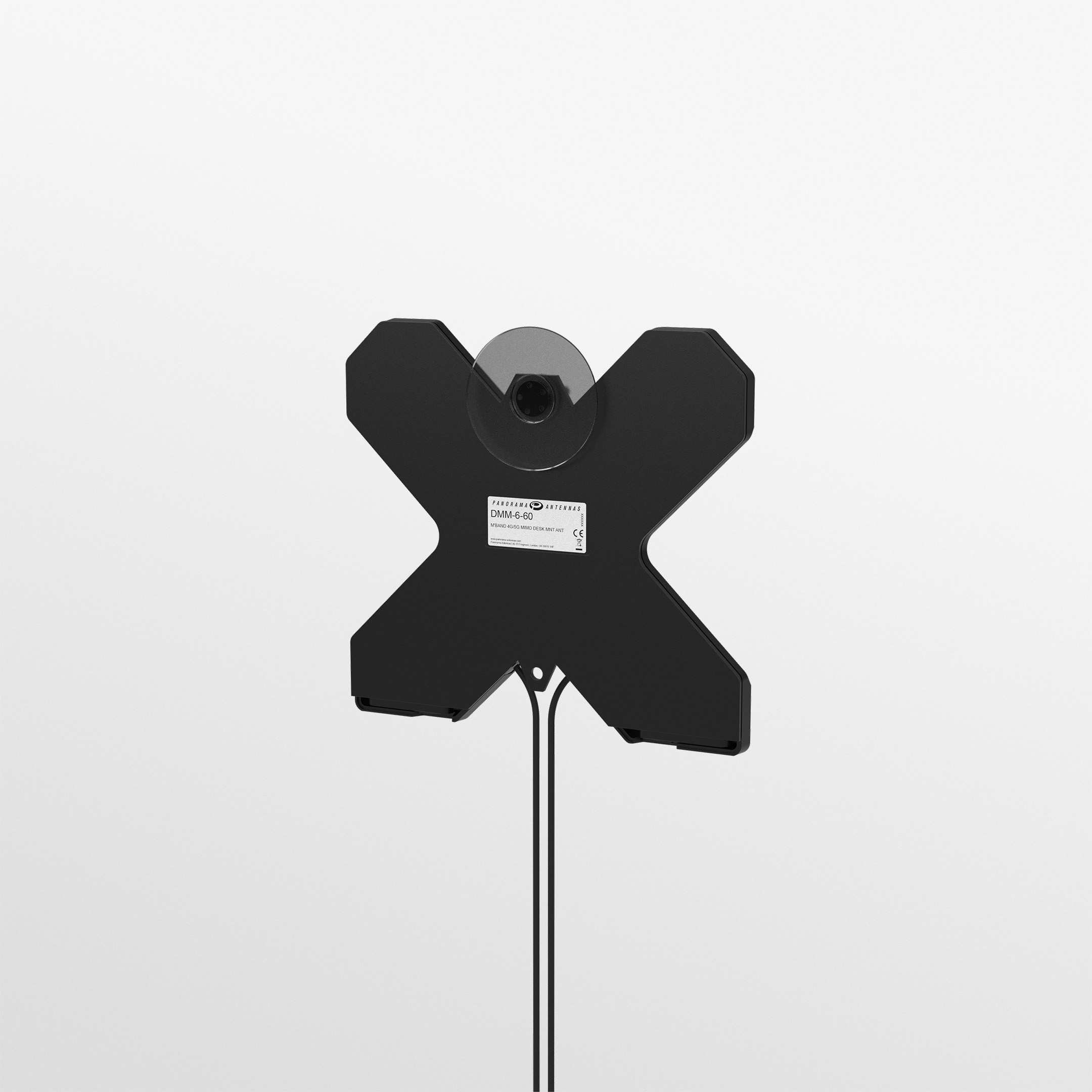

folds flat for transport. A handy suction window mount enables users to
optimise their signal by antenna position, with instant installation and

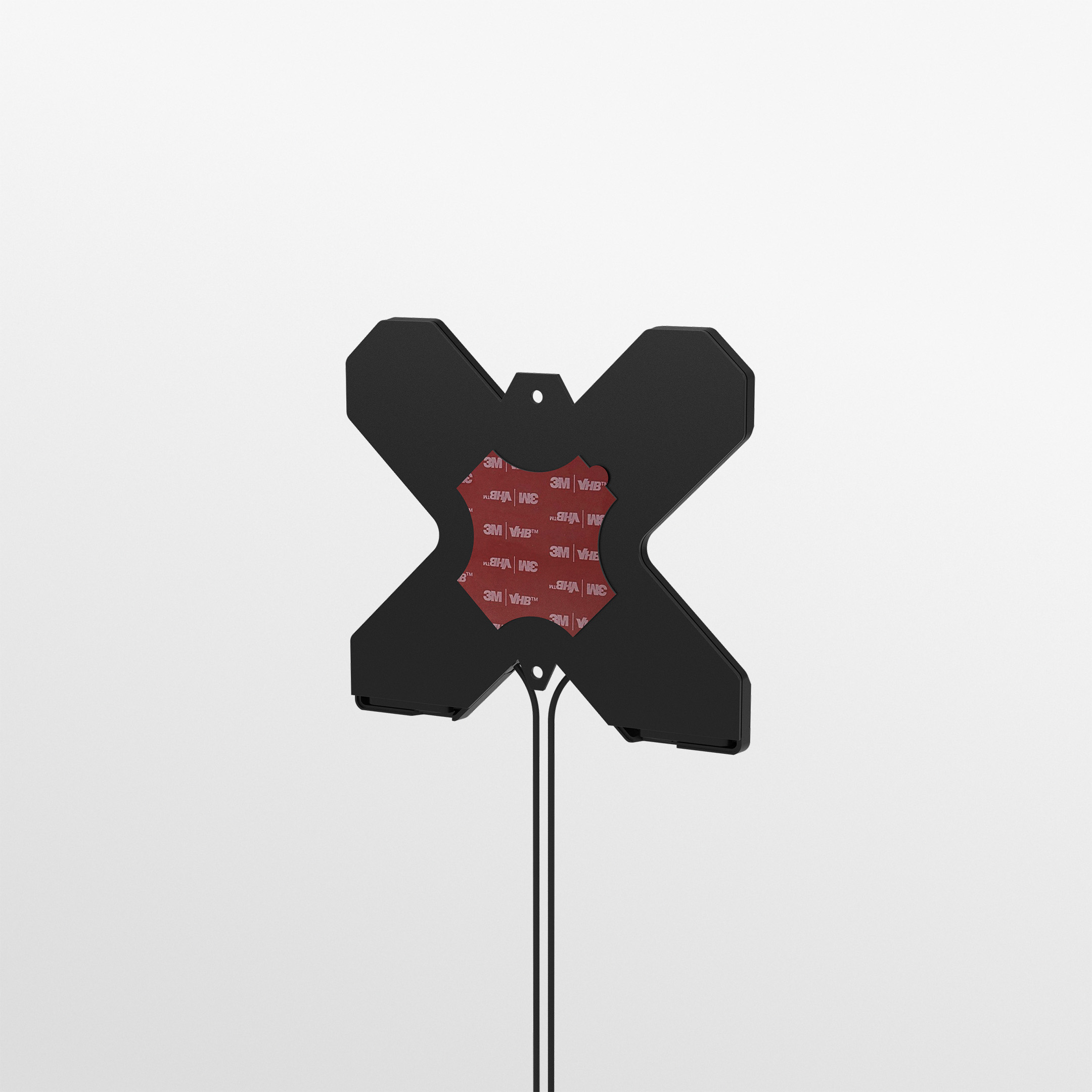

easy removal. For more permanent use, screw and adhesive pad mounting
options are also provided. The antenna is supplied with 2 metres (6’)
of twinned coaxial cable with the option of SMA or TS9 plug connectors.
The DMM is a cost effective, value added product for network
operators and service providers, helping to provide a stable connection
with improved data rates for subscribers, thereby improving satisfaction
and retention.
The DMM portable antenna is an innovative antenna design which provides 2×2 MiMo function for 4G/5G with fallback to 3G/2G. Incorporating two separately fed, ultra wideband elements in a single housing, the DMM is equipped to provide portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mm Wave bands.
The DMM portable antenna is an innovative antenna design which provides 2×2 MiMo function for 4G/5G with fallback to 3G/2G. Incorporating two separately fed, ultra wideband elements in a single housing, the DMM is equipped to provide portable MiMo and diversity function for frequencies from 617-960/1710-6000MHz to cover global LTE and 5G sub mmWave bands.
The DMM is highly portable and features an integral desk stand which folds flat for transport. A handy suction window mount enables users to optimise their signal by antenna position, with instant installation and easy removal. For more permanent use, screw and adhesive pad mounting options are also provided. The antenna is supplied with 2 metres (6’) of twinned coaxial cable with the option of SMA or TS9 plug connectors.
The DMM is a cost effective, value added product for network operators and service providers, helping to provide a stable connection with improved data rates for subscribers, thereby improving satisfaction and retention.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| Cable Length | Below 1m, Between 1m & 3m |
| Connector (LTE) | SMA (m), TS9 (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 617 – 960MHz | 3dBi; 1427 – 2700MHz | 5dBi; 3400 – 6000MHz | 6dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 16 (mm) | 0.63 (in) |
| Width | 184.6 (mm) | 7.27 (in) |
| Height | 176.3 (mm) | 6.94 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 2 (m) | 6.56 (ft) |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m); TS9 (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Desk |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Desk; Glass Mount |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready |
