DMM-7-38 | 4G/5G MiMo Desk Mount Antenna

Model / SKU: DMM-7-38

DMM-7-38 | 4G/5G MiMo Desk Mount Antenna - Image 2

DMM-7-38 | 4G/5G MiMo Desk Mount Antenna - Image 3

DMM-7-38 | 4G/5G MiMo Desk Mount Antenna - Image 4

DMM-7-38 | 4G/5G MiMo Desk Mount Antenna

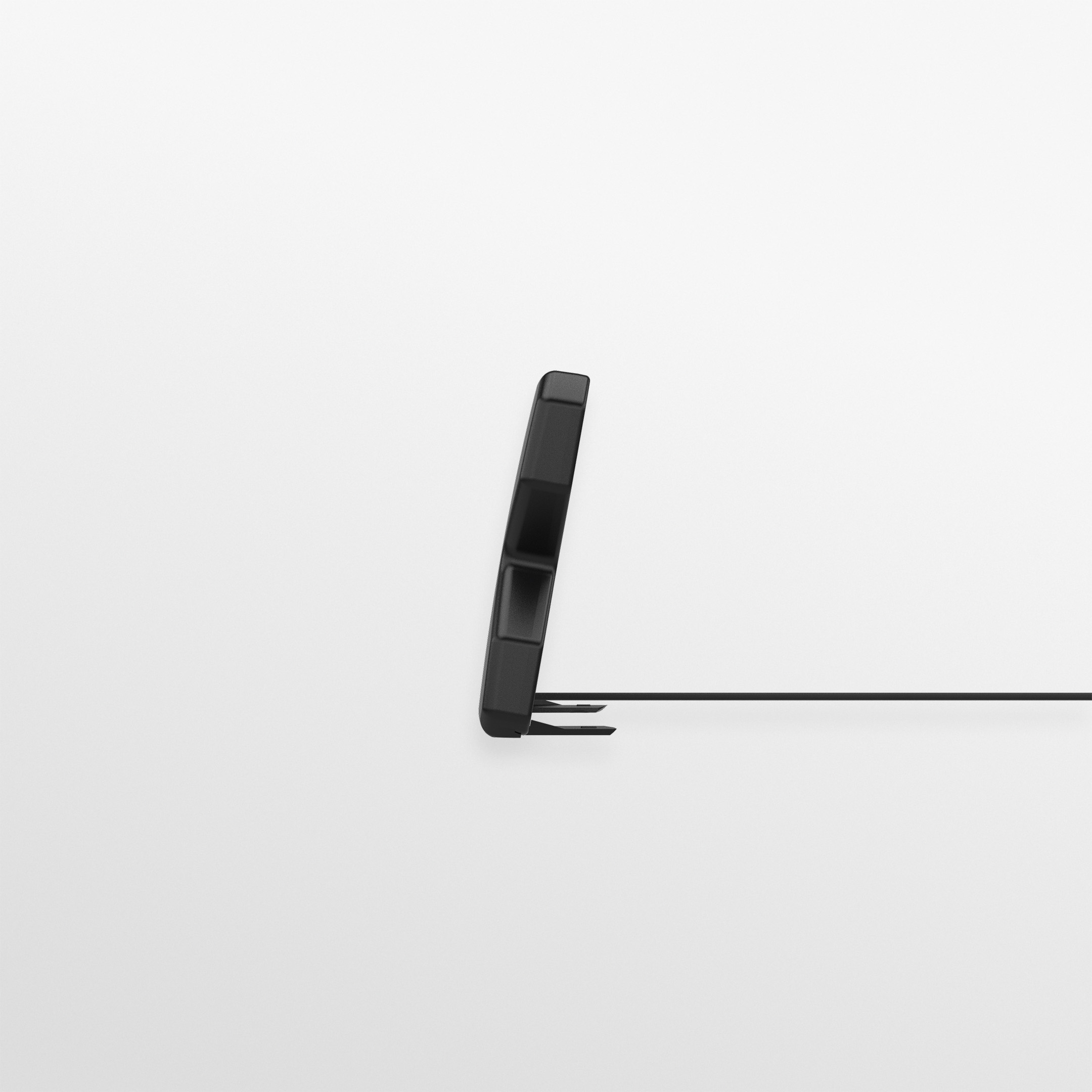

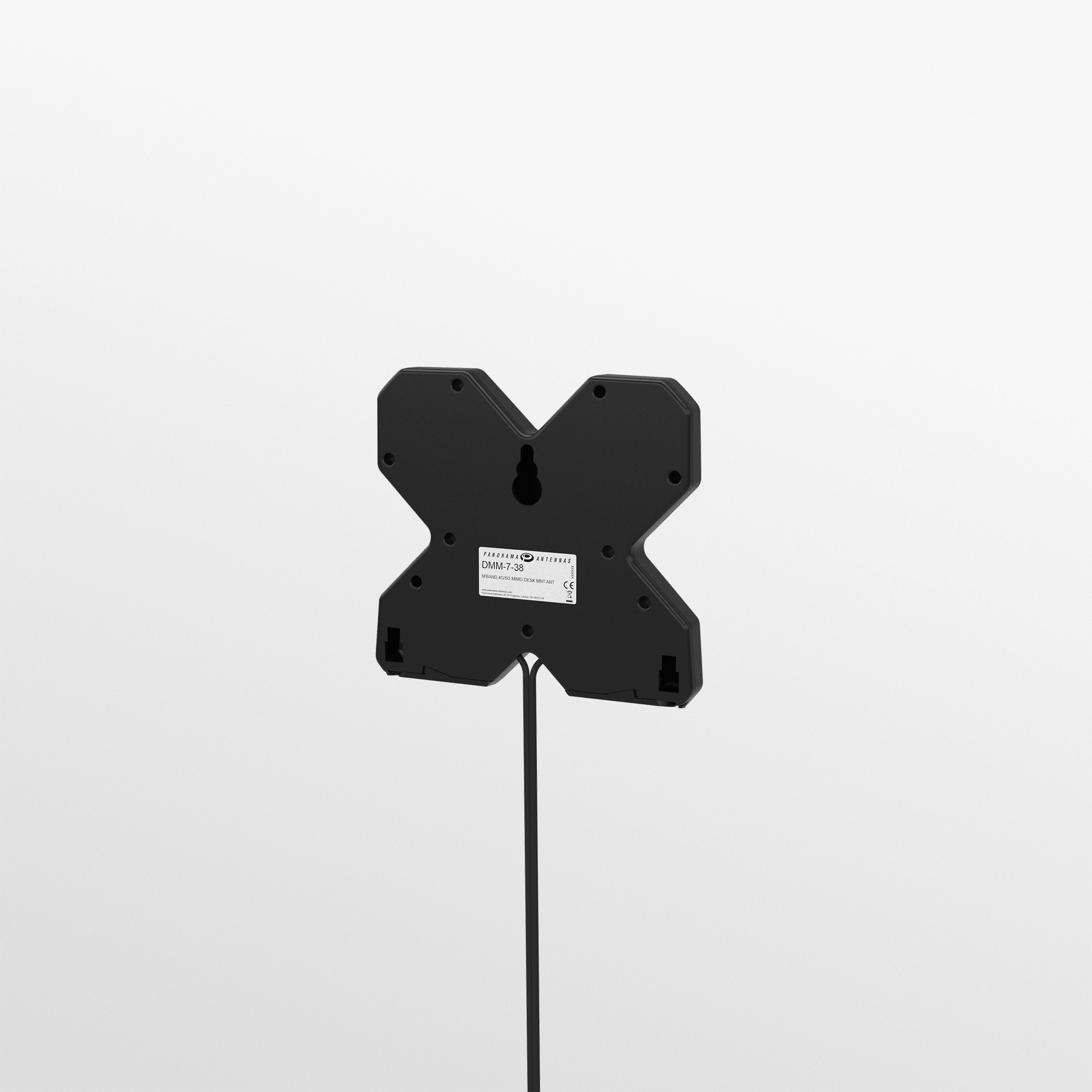

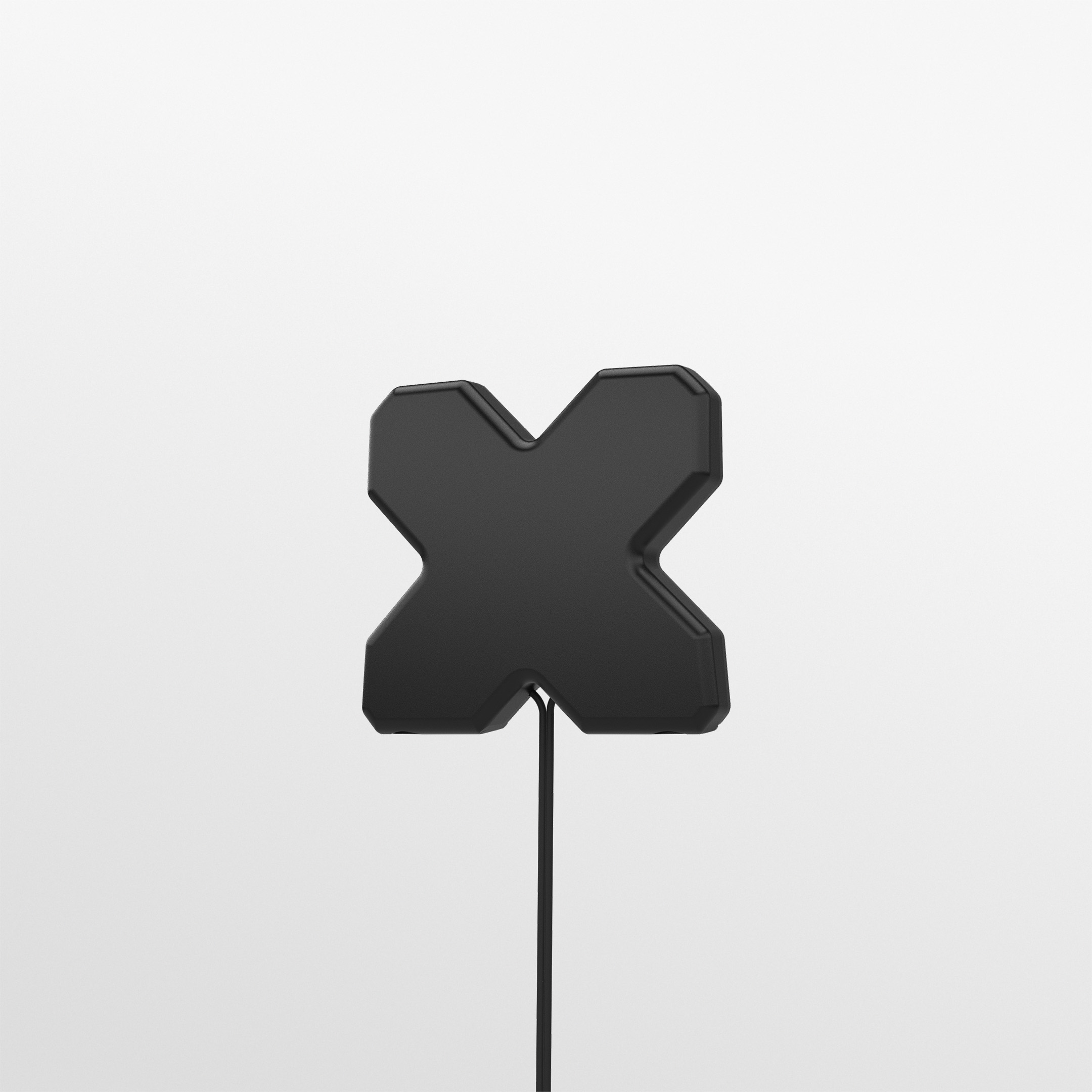

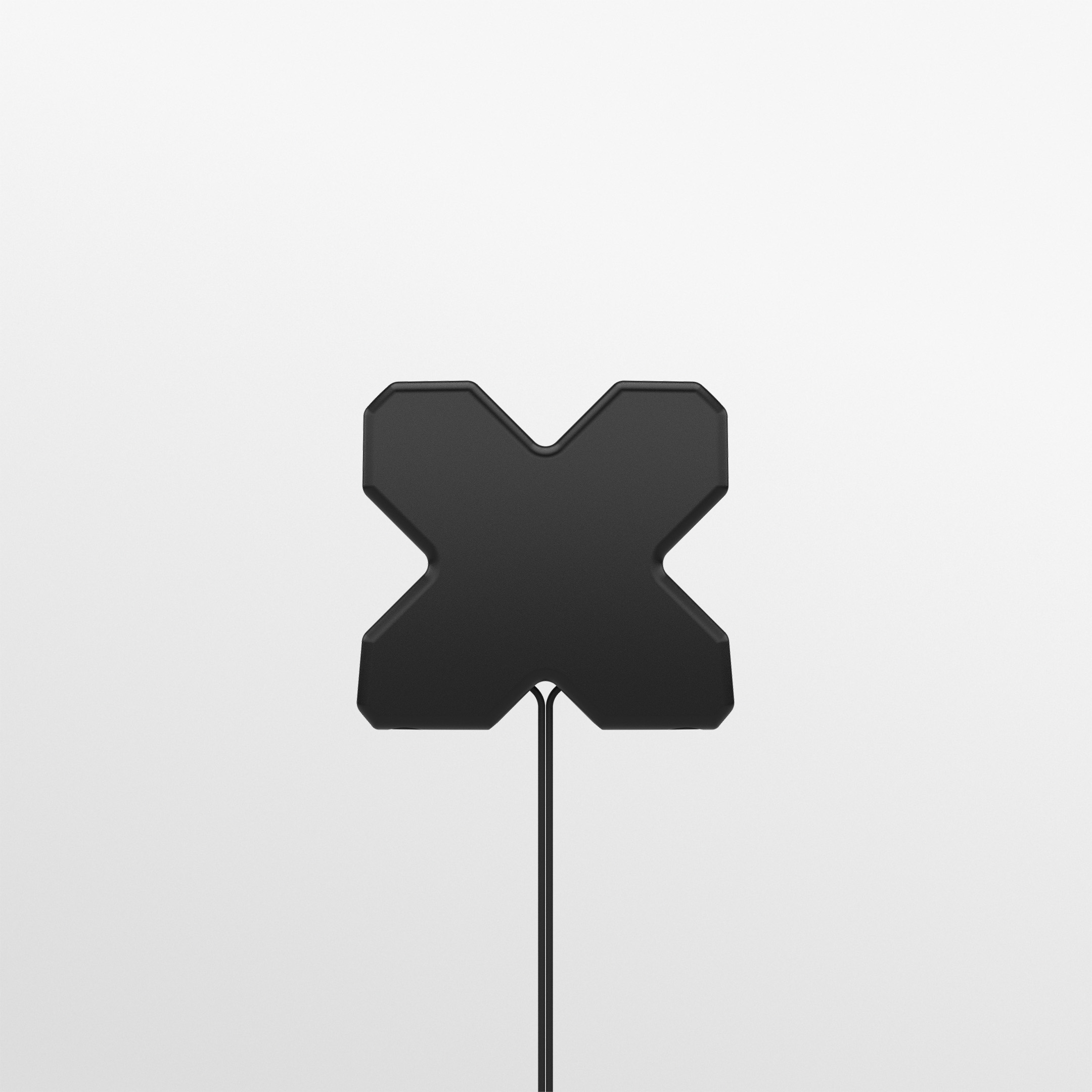

Use the DMM-7-38 to ensure a strong 4G or 3.6GHz 5G connection and fast transfer speeds for your modem or router. Multiband Portable Antenna. Its unique ‘X’ design enables MiMo connectivity across a huge frequency range and with the options of desk or window mounting the antenna is ideal for use on the move.

This multi-band portable antenna is designed to be compact and easy

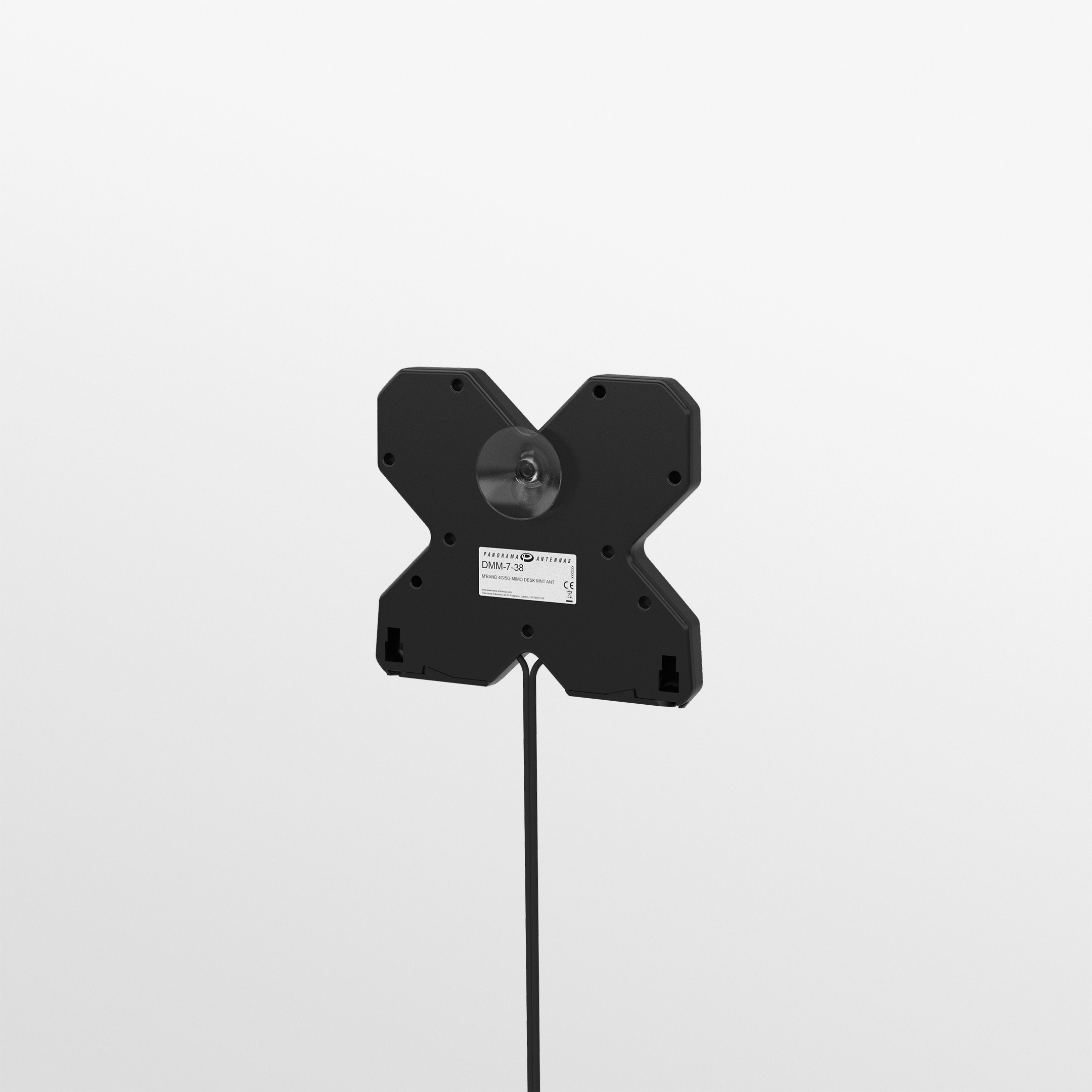

to use. It has feet that allow it to be used freestanding, a suction

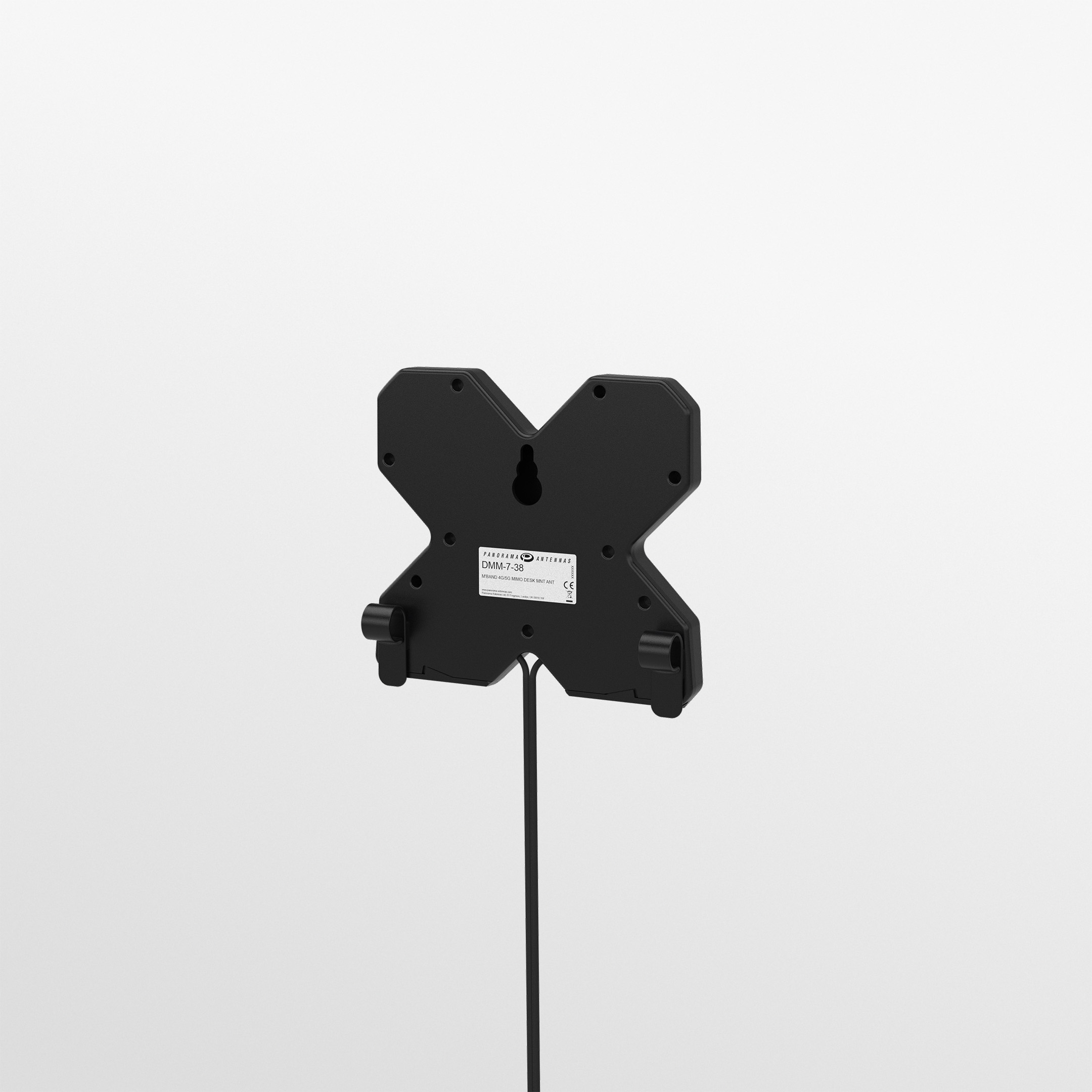

cup for window mounting, and clips for attachment to a laptop. The is a
versatile and compact travel companion to ensure you have excellent
signals in all situations.

Description

Technical Specifications

ELECTRICAL: Omnidirectional; 20 W maximum input; gain 5 dBi (1710–2170 MHz), 4 dBi (2200–3800 MHz); cellular elements 2×2 MiMo; no WiFi/UHF/GPS elements. MECHANICAL: black; 151 mm wide × 137 mm high; −40 to +80 °C. CABLE: LTE cable 2 m, RG174. TERMINATION: reverse-polarity SMA, SMA male or TS9 male. MOUNTING: fixed desk or temporary glass mount. TECH: 4G/5G, 5G, 2G/3G, 2G/3G/4G.

Features, Benefits and Applications

Features: 4G/5G LTE with 2G/3G fallback; desk, window and wall-mountable; lightweight portable plug-and-play; up to 5 dBi peak gain; integrated coax. Benefits: portable, X design for MiMo, multiple mounting options. Applications: failover; retail and commerce; travel.

Product overview

This multi-band portable antenna is designed to be compact and easy to use. It has feet that allow it to be used freestanding, a suction cup for window mounting, and clips for attachment to a laptop. The is a versatile and compact travel companion to ensure you have excellent signals in all situations.

Product Features

4G/5G LTE ready with fallback to 2G/3G Desk, window, and wall-mountable design Lightweight portable plug-and-play solution 4G/5G LTE Ready Up to 5dBi peak gain Multiple mounting options Integrated coax with connector terminations

Benefits

Lightweight and easy to use Unique X design for efficient MiMo performance Cost-effective 4G/5G LTE antenna

Application

Failover Retail & commerce Travel

Additional information

Colour	Black
4G/5G	2 x 2 MIMO
Cable Length	Between 1m & 3m
Connector (LTE)	Reverse Polarity SMA, SMA (m), TS9 (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	20
Frequency Range \| Gain	698 – 960MHz; 1710 – 2170MHz \| 5dBi; 2200 – 3800MHz \| 4dBi
Cellular LTE Elements	2 x 2 MIMO
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	Black
Width	151 (mm) \| 5.94 (in)
Height	137 (mm) \| 5.39 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE	2 (m) \| 6.56 (ft)
Cable Type (LTE)	RG174
TERMINATION DATA
Connector (LTE)	Reverse Polarity SMA; SMA (m); TS9 (m)
MOUNTING DATA
Mounting Type Fixed	Desk
Mounting Type Temp	Glass Mount
Mounting Methods	Desk; Glass Mount
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G; 2G/3G/4G

Available selections

Colour	Black
4G/5G	2 x 2 MIMO
Cable Length	Between 1m & 3m
Connector (LTE)	Reverse Polarity SMA SMA (m) TS9 (m)

Models and configurations

SKU; Colour | Cellular

DMM-7-38-2RPSP	Black \| 2 x 2 MIMO 2m Reverse Polarity SMA
DMM-7-38-2SP	Black \| 2 x 2 MIMO 2m SMA (m)
DMM-7-38-2TS9	Black \| 2 x 2 MIMO 2m TS9 (m)

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	2 x 2 MIMO
Cable Length	Between 1m & 3m
Connector Lte	Reverse Polarity SMA, SMA (m), TS9 (m)
