Model / SKU: DPX-500-700-[X]
The DPX-500-700 provides the possibility to use a single dual or
multiband antenna with two radios. This conserves valuable vehicle real
estate and saves on antenna installation costs.
Alternatively, it allows the connection of a dual band radio,
fitted with a single connector, to two separate single band antennas.
The diplexer has low insertion loss and excellent port to port isolation
to maintain good radio performance on each band.

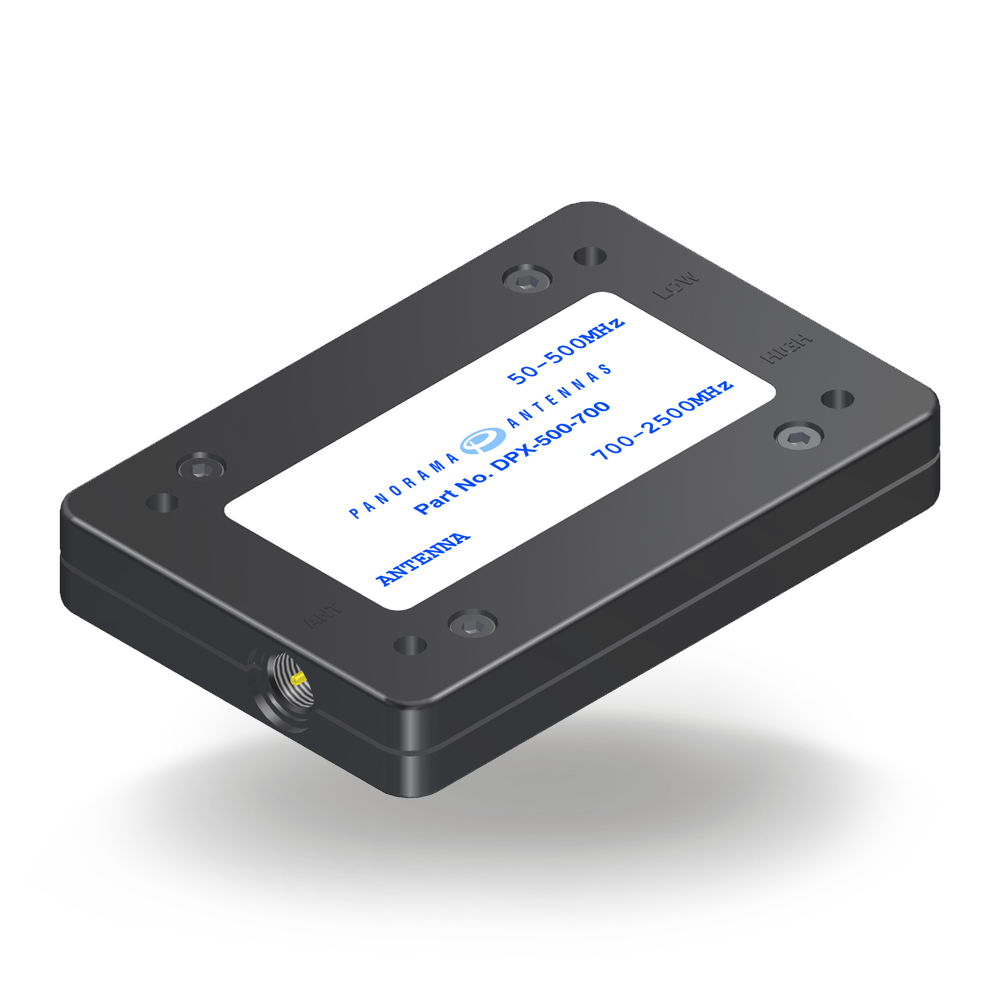

The DPX-500-700 diplexer has a compact, durable housing, with
integrated fme plug connectors, making it possible to locate in a
vehicle headliner, adjacent to the antenna, if required.
The DPX-500-700 provides the possibility to use a single dual or multiband antenna with two radios. This conserves valuable vehicle real estate and saves on antenna installation costs. Alternatively, it allows the connection of a dual band radio, fitted with a single connector, to two separate single band antennas. The diplexer has low insertion loss and excellent port to port isolation to maintain good radio performance on each band.
The DPX-500-700 provides the possibility to use a single dual or multiband antenna with two radios. This conserves valuable vehicle real estate and saves on antenna installation costs.
Alternatively, it allows the connection of a dual band radio, fitted with a single connector, to two separate single band antennas. The diplexer has low insertion loss and excellent port to port isolation to maintain good radio performance on each band.
The DPX-500-700 diplexer has a compact, durable housing, with integrated fme plug connectors, making it possible to locate in a vehicle headliner, adjacent to the antenna, if required.
| Colour | Black |
|---|---|
| Frequency Range | 50-500MHz |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 50 |
| Typical VSWR | <2:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 91 (mm) | 3.58 (in) |
| Width | 61 (mm) | 2.40 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TECHNOLOGY DATA | |
| Technology | VHF; UHF |
