Description

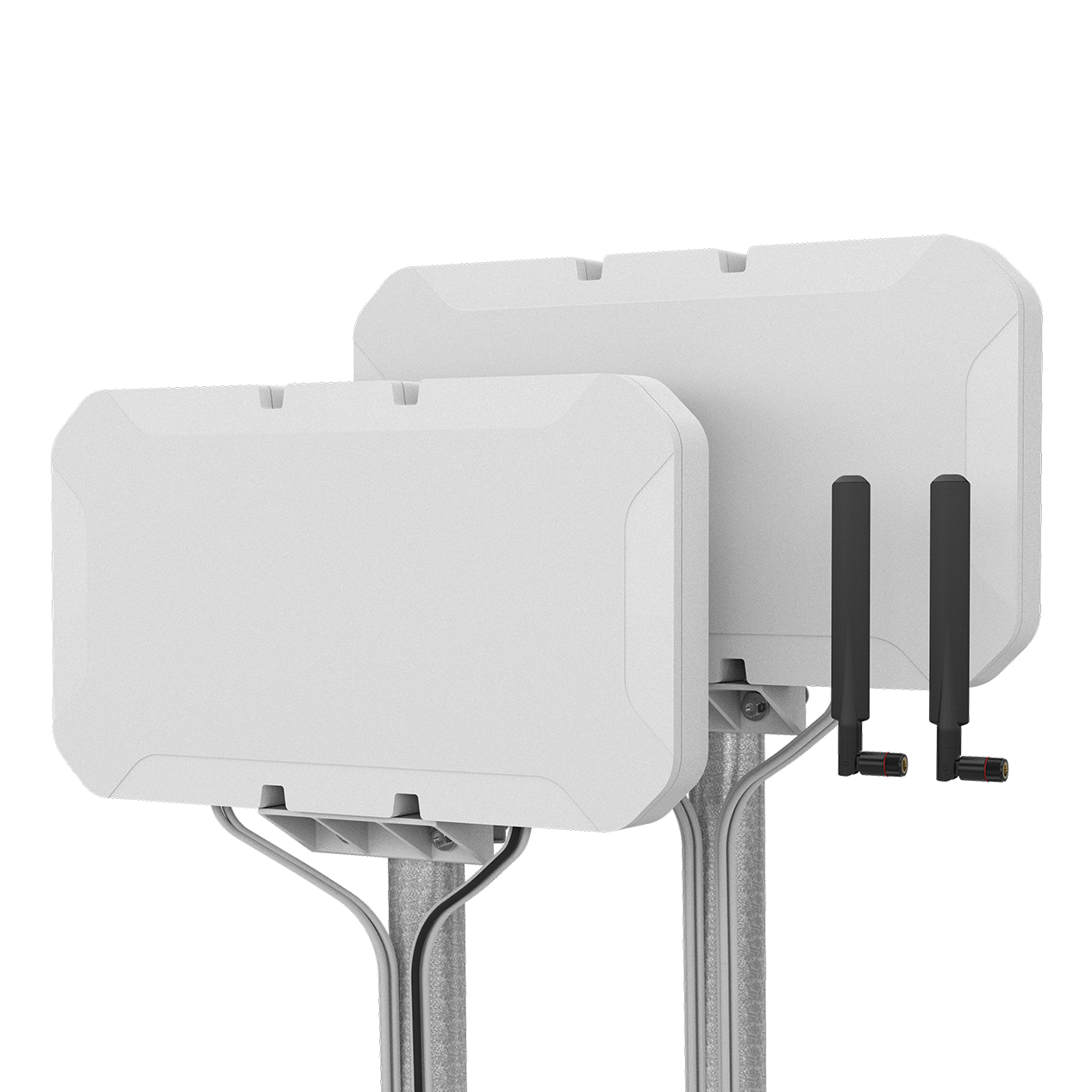

The DW-IN2934 is a complete 15-in1 antenna kit for fixed site applications and is compatible with the Dejero Gateway M6E6. The kit includes 2x wall / mast mount antennas with 6x 4G/5G elements one of which also has 1x GPS/GNSS element. The cellular elements cover 617-960/1427-6000MHz for 6x 2×2 MiMo operation providing a reliable high performance cellular connection and the kit is also supplied with 2x WiFi paddle antennas which can be fitted directly to the Gateway for WiFi distribution.
Product overview
The DW-IN2934 is a complete 15-in1 antenna kit for fixed site applications and is compatible with the Dejero Gateway M6E6. The kit includes 2x wall / mast mount antennas with 6x 4G/5G elements one of which also has 1x GPS/GNSS element. The cellular elements cover 617-960/1427-6000MHz for 6x 2×2 MiMo operation providing a reliable high performance cellular connection and the kit is also supplied with 2x WiFi paddle antennas which can be fitted directly to the Gateway for WiFi distribution.
The wall / mast mount antennnas feature multiple mounting options including fitment to interior walls using screws, wall mounting using the supplied offset brackets and mast mounting using the offset brackets and clamps The antennas can also be stood on a desk using supplied mounting feet.
The omnidirectional radiation pattern of the antennas allow easy placement without requiring directional alignment. The wall / mast mount antennas are fitted with integrated 5m (16.4′) flame retardant CS32 cables (FR CS29 for GPS/GNSS) and SMA (m) plugs which minimises exposed connector joints and simplifies cable management for easy installation. The WiFi paddles offer reverse polarity SMA connectors and an articulated hinge joint allowing optimal orientation.
Product Features
- Two 3x 2×2 MiMo 4G/5G omnidirectional antennas one fitted with 1x GPS/GNSS for wall / mast mounting 2x WiFi paddle antennas Wall / mast antennas cover wideband 600-6000MHz Suitable for Dejero Gateway M6E6
Available selections
| Colour | White |
|---|
| 4G/5G | 12x12 – 6x 2x2 MiMo |
|---|
| GPS | 1 Module |
|---|
| WIFI MIMO | 2 x 2 MIMO |
|---|
| Cable Length | Between 5m & 10m |
|---|
| Connector (LTE) | SMA (m) |
|---|
| Connector (WIFI) | Articulated Reverse Polarity SMA plug |
|---|
| Connector (GPS) | SMA (m) |
|---|
Models and configurations
SKU; Colour | Cellular | GPS | WIFI
| DW-IN2934 | - Colour: White
- Cellular: 12×12 – 6x 2×2 MiMo
5m
SMA (m) - GPS: 1 Module
5m
SMA (m) - WIFI: 2 x 2 MIMO
No Cable
Articulated Reverse Polarity SMA plug
|
|---|
Configuration options
| Option | Available values |
|---|
| Colour | White |
|---|
| 4G 5G Mimo | 12x12 – 6x 2x2 MiMo |
|---|
| Gps | 1 Module |
|---|
| Mimo Wifi | 2 x 2 MIMO |
|---|
| Cable Length | Between 5m & 10m |
|---|
| Connector Lte | SMA (m) |
|---|
| Connector Wifi | Articulated Reverse Polarity SMA plug |
|---|
| Connector Gps | SMA (m) |
|---|
