Model / SKU: DWMM4[G]-6-60

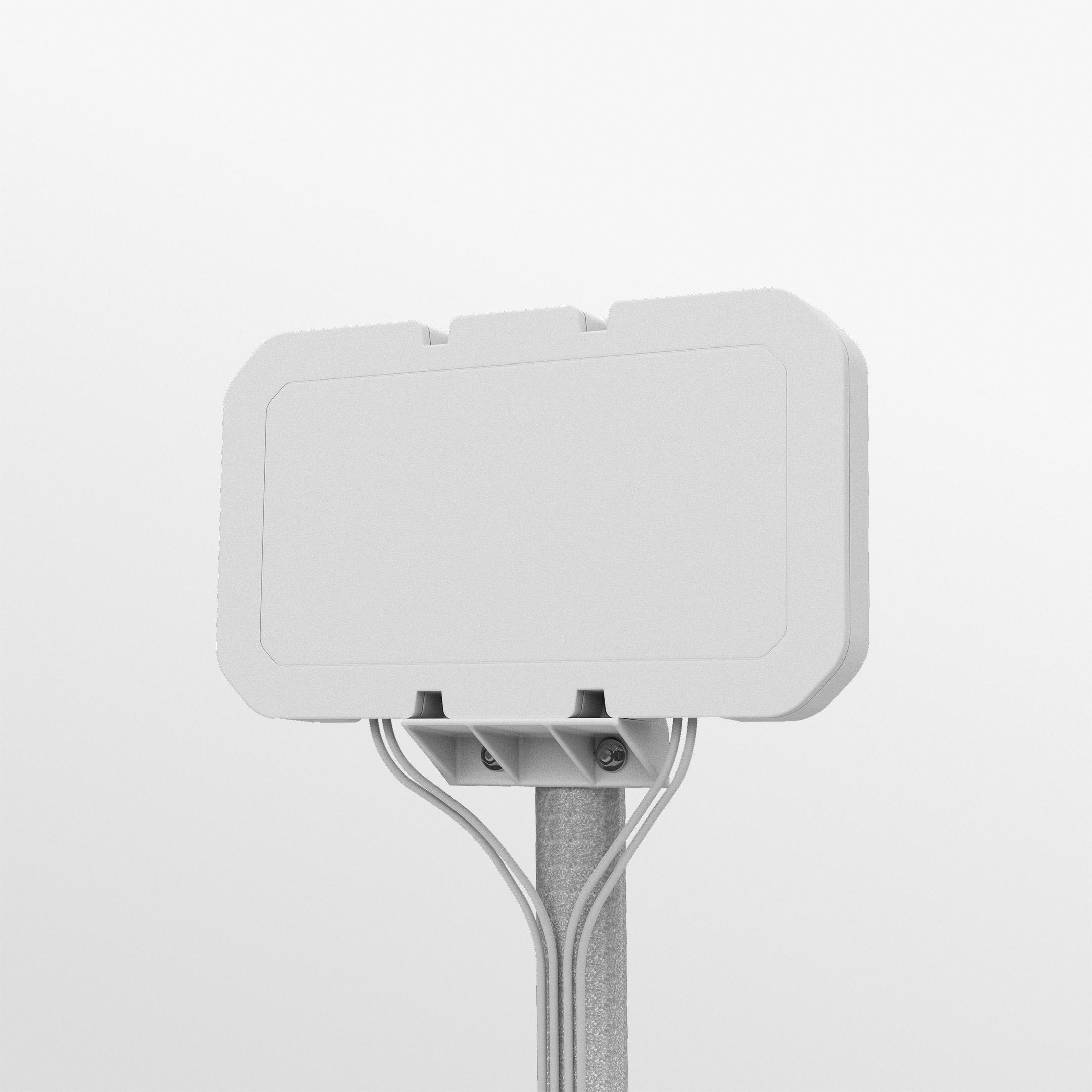

![DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/DWMMG4-6-60-1-Main-View.jpg "DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna")

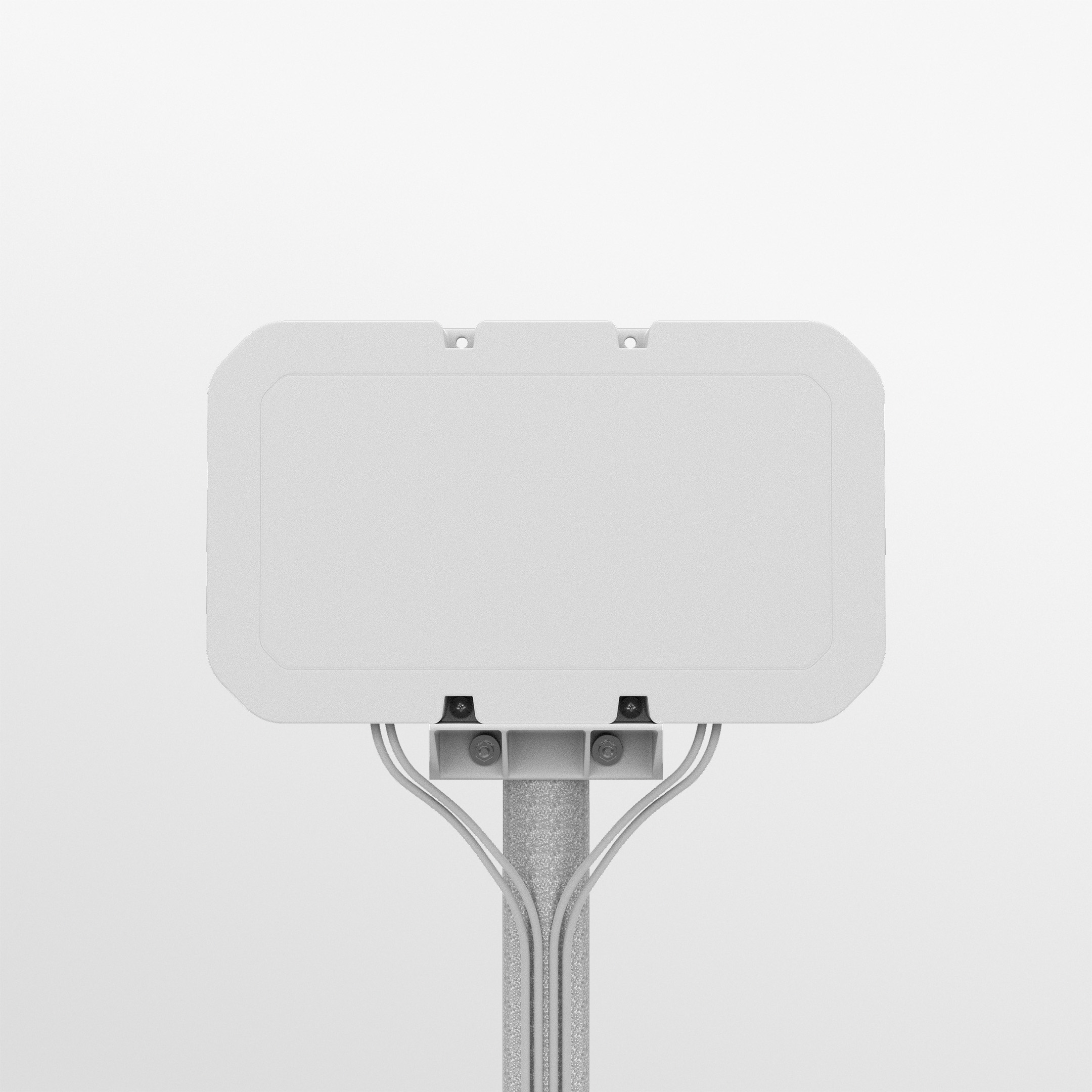

![DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/DWMMG4-6-60-2-Front-View.jpg "DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna")

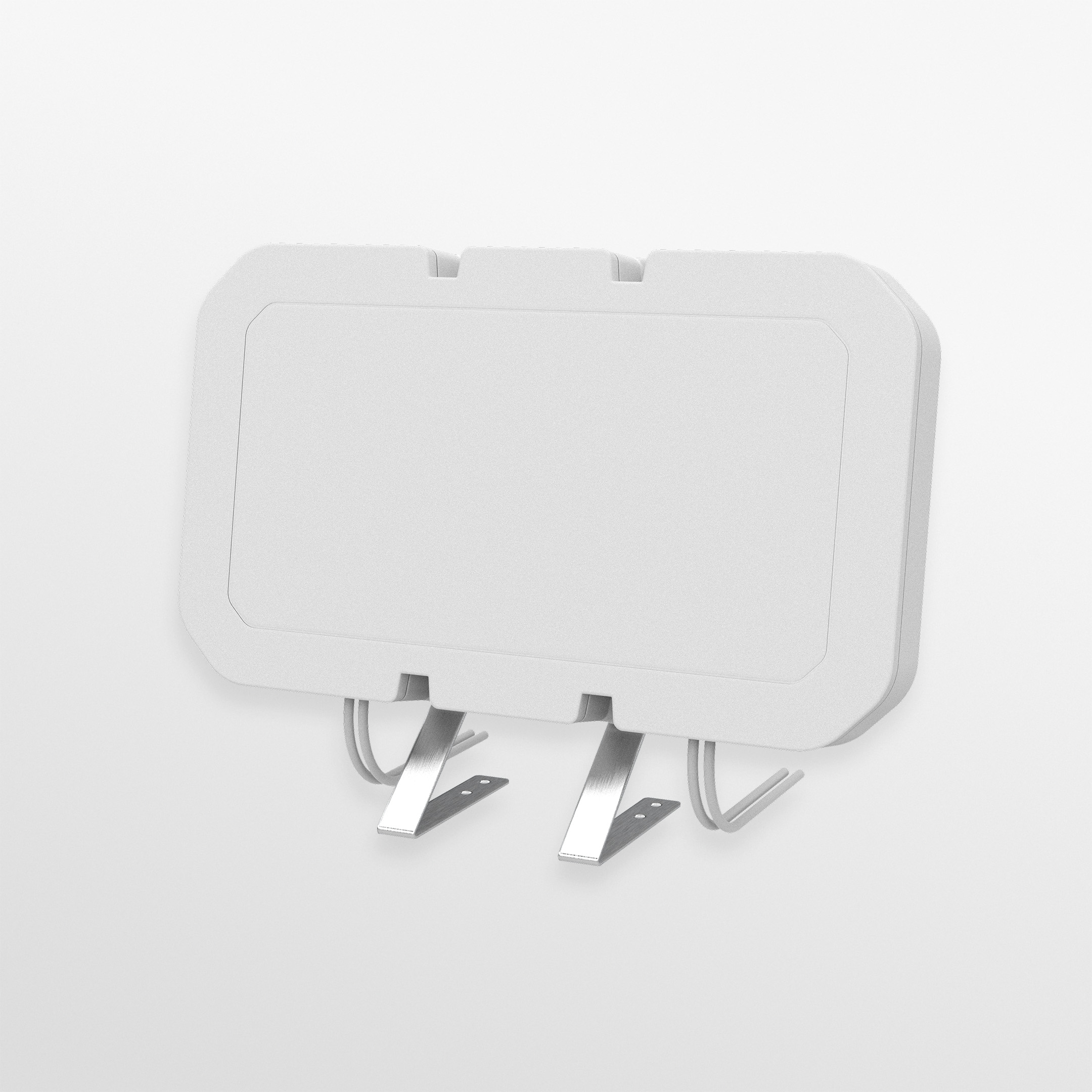

![DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/DWMMG4-6-60-3-Desk-Stand.jpg "DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna")

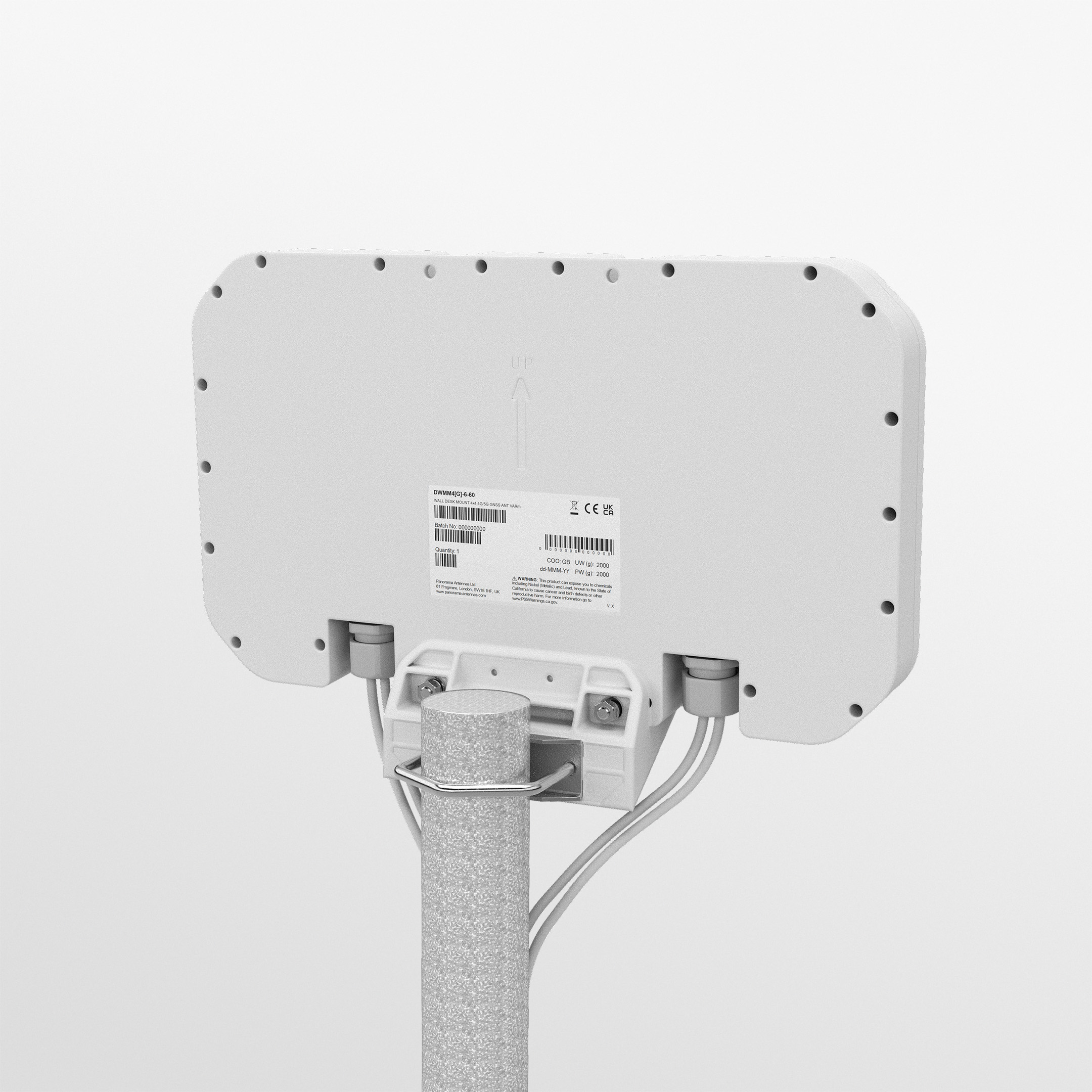

![DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/DWMMG4-6-60-4-SAB-165.jpg "DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna")

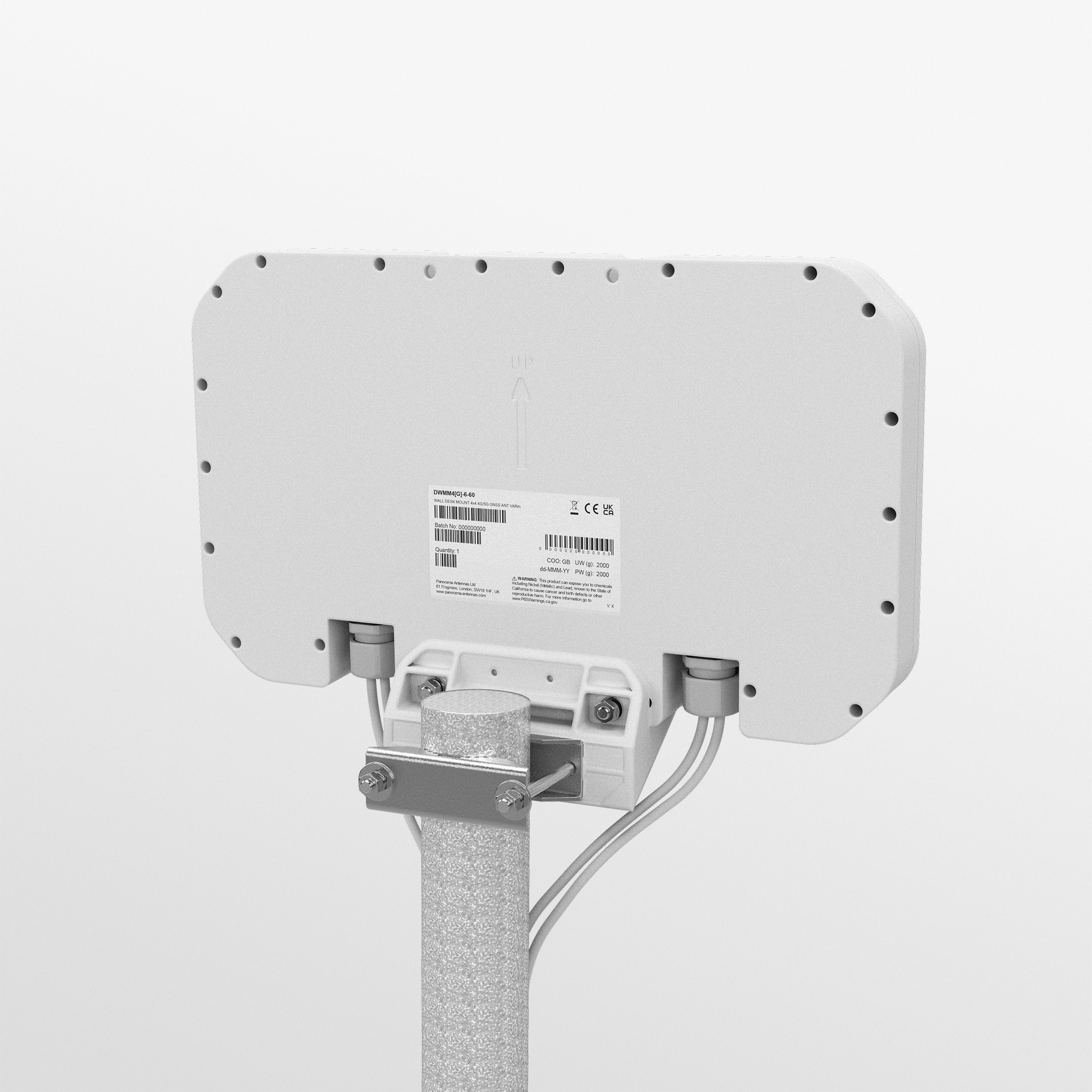

![DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/DWMMG4-6-60-5-SAB-233-1.jpg "DWMM4[G]-6-60 | Hammerhead™ 4×4 MiMo 4G/5G Antenna")
The DWMM4[G]-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz.
Incorporating four separately fed ultra wideband elements in a single
housing the DWMM4[G] is suitable for a huge range of fixed site and
failover applications. The supplied mounting bracket enables simple wall
mounting using the supplied screws and wall plugs and mast mounting
using the supplied clamps.
The antenna can also be mounted with screws directly to
non-conductive panels or internal walls or stood on a desk
using supplied mounting feet. The omnidirectional radiation pattern
allows easy placement of the antenna without requiring directional
alignment. The DWMM4G type is supplied with an integrated GPS/GNSS
module with 26dB LNA gain and advanced filtering to combat noise.
The antenna is fitted with an integrated flame retardant CS32 cable
(FR CS29 for GPS/GNSS) which minimises exposed connector joints and
simplifies cable management for easy installation.
The DWMM4[G]-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps.
The DWMM4[G]-6-60 Antenna Provides a 4×4 MiMo Solution for Global 4G/5G Networks from 617-6000MHz. Incorporating four separately fed ultra wideband elements in a single housing the DWMM4[G] is suitable for a huge range of fixed site and failover applications. The supplied mounting bracket enables simple wall mounting using the supplied screws and wall plugs and mast mounting using the supplied clamps. The antenna can also be mounted with screws directly to non-conductive panels or internal walls or stood on a desk using supplied mounting feet. The omnidirectional radiation pattern allows easy placement of the antenna without requiring directional alignment. The DWMM4G type is supplied with an integrated GPS/GNSS module with 26dB LNA gain and advanced filtering to combat noise. The antenna is fitted with an integrated flame retardant CS32 cable (FR CS29 for GPS/GNSS) which minimises exposed connector joints and simplifies cable management for easy installation.
| Colour | White |
|---|---|
| 4G/5G | 4 x 4 MIMO |
| GPS | 1 Module, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | FAKRA D, N (f), N (m), SMA (m) |
| Connector (GPS) | FAKRA C, N (f), N (m), No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 10 |
| Cellular LTE Elements | 4 x 4 MIMO |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | White |
| Length | 371 (mm) | 14.61 (in) |
| Width | 40 (mm) | 1.57 (in) |
| Height | 221 (mm) | 8.70 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.5 (m) | 1.64 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR CS32 |
| Cable Type (GPS) | FR CS32 |
| TERMINATION DATA | |
| Connector (GPS) | N (f); FAKRA C; N (m); SMA (m) |
| Connector (LTE) | N (f); FAKRA D; N (m); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Desk; Mast; Wall |
| Mounting Methods | Desk; Mast; Wall; Pole |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; GPS; GNSS |
