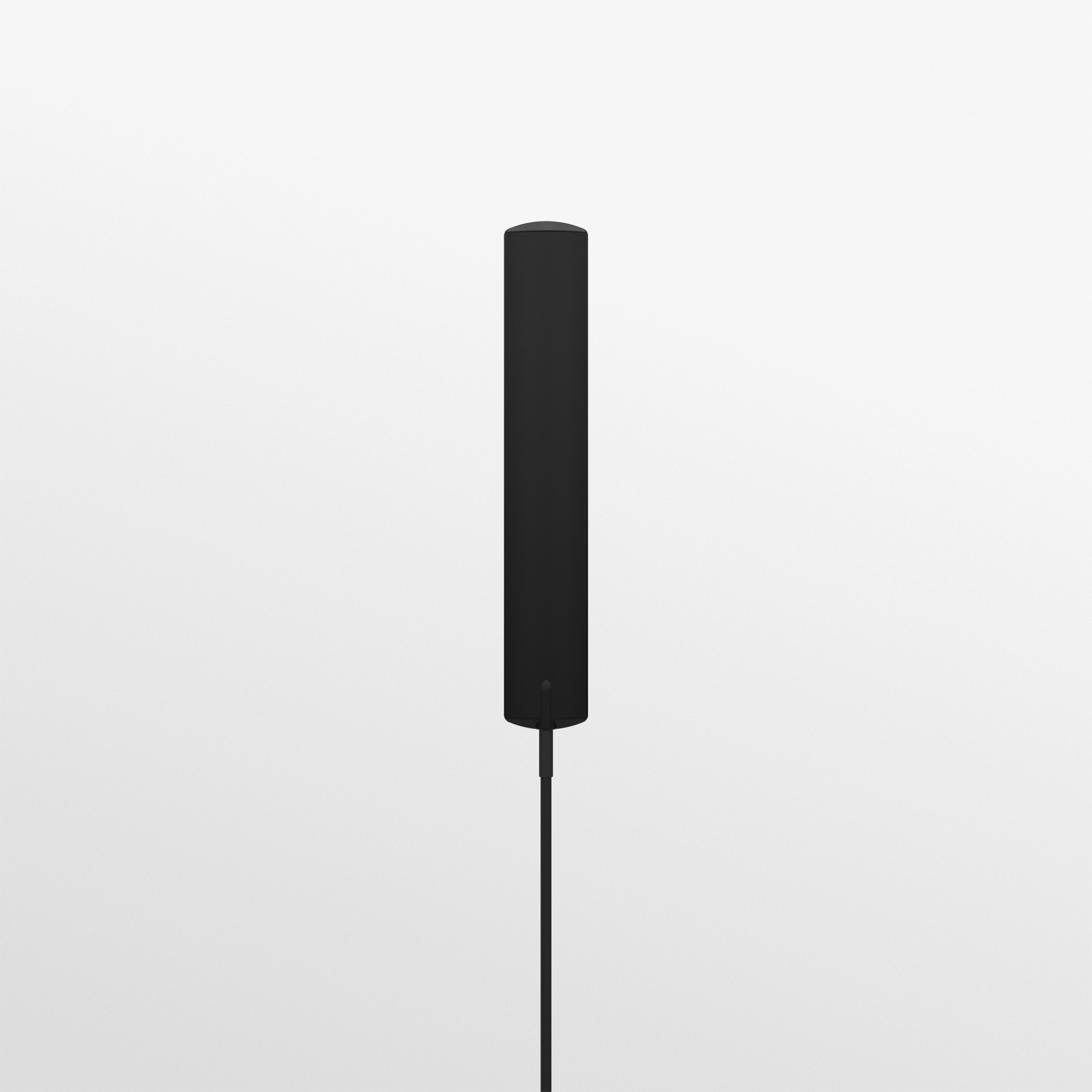

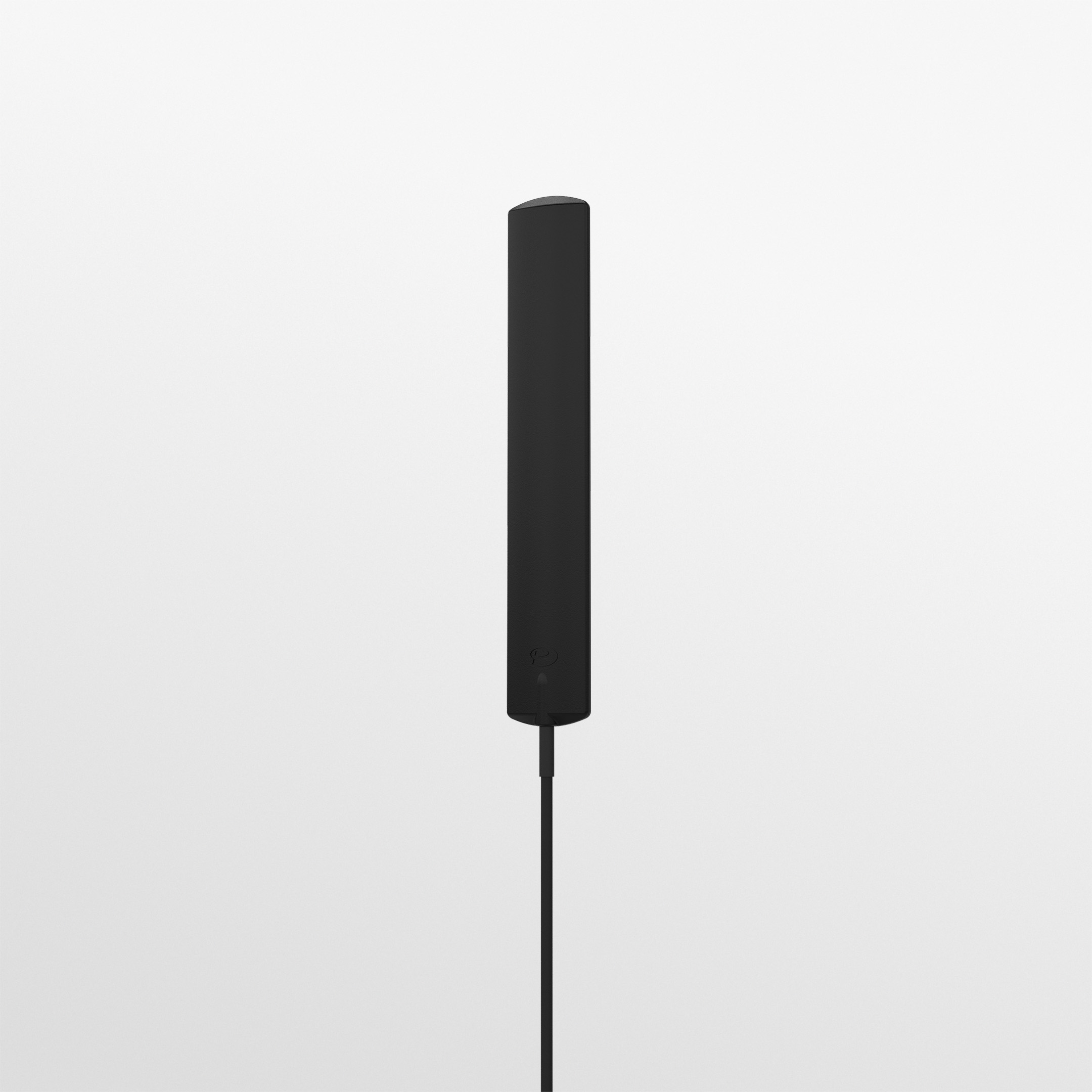

Model / SKU: EF-BC3G-26
2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 range of antennas are designed to decrease
the lifetime cost of M2M and smart metering installations by offering a
robust, effective antenna that is easy to install and lasts the lifetime
of the installation without the need for maintenance.
The antenna offers ground-plane independent Omni-directional
performance across global cellular and LTE bands making it a versatile
solution for any number of applications. The efficient element design
ensures a high first time connection rate and an ongoing, robust
communications link even in problematic coverage areas.

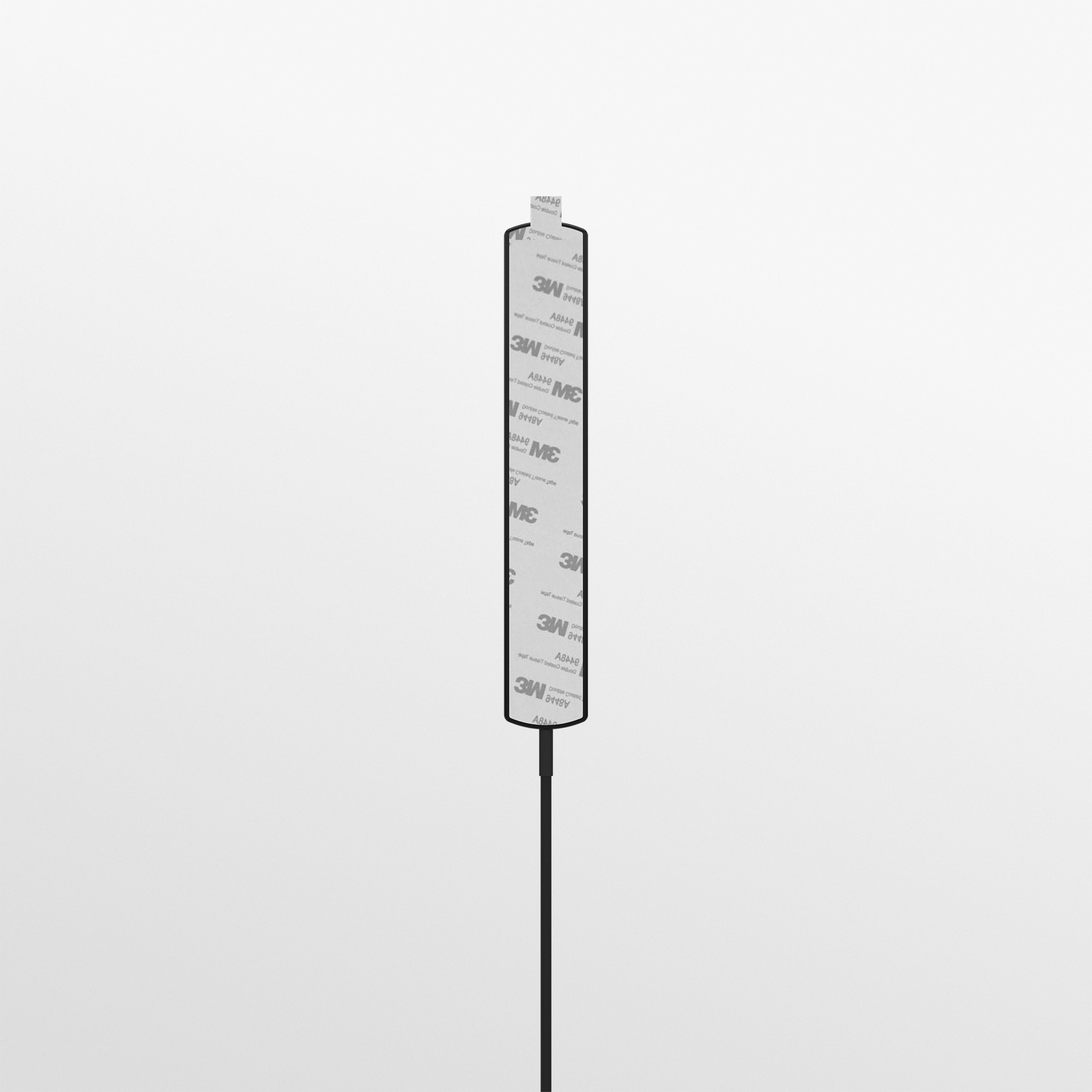

The antenna can be installed using the supplied automotive grade
adhesive pad and is ideal for mounting on windshields (non heated or
metalised), on or under plastic panels, or within plastic enclosures.
2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 range of antennas are designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
2G/3G/4G Easy-Fit Antenna. The Panorama EF-BC3G-26 range of antennas are designed to decrease the lifetime cost of M2M and smart metering installations by offering a robust, effective antenna that is easy to install and lasts the lifetime of the installation without the need for maintenance.
The antenna offers ground-plane independent Omni-directional performance across global cellular and LTE bands making it a versatile solution for any number of applications. The efficient element design ensures a high first time connection rate and an ongoing, robust communications link even in problematic coverage areas.
The antenna can be installed using the supplied automotive grade adhesive pad and is ideal for mounting on windshields (non heated or metalised), on or under plastic panels, or within plastic enclosures.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| Cable Length | Below 1m, Between 3m & 5m |
| Connector (LTE) | FAKRA D, SMA (m), TS9 (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 2170MHz | 3dBi; 2400 – 2700MHz | 6dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 131 (mm) | 5.16 (in) |
| Width | 21.7 (mm) | 0.85 (in) |
| Diameter | 2.5 (mm) | 0.10 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.5 (m) | 1.64 (ft); max: 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | RG174 |
| TERMINATION DATA | |
| Connector (LTE) | SMA (m); FAKRA D; TS9 (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Glass Mount |
| TECHNOLOGY DATA | |
| Technology | 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet |
