Description
The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole.
Product

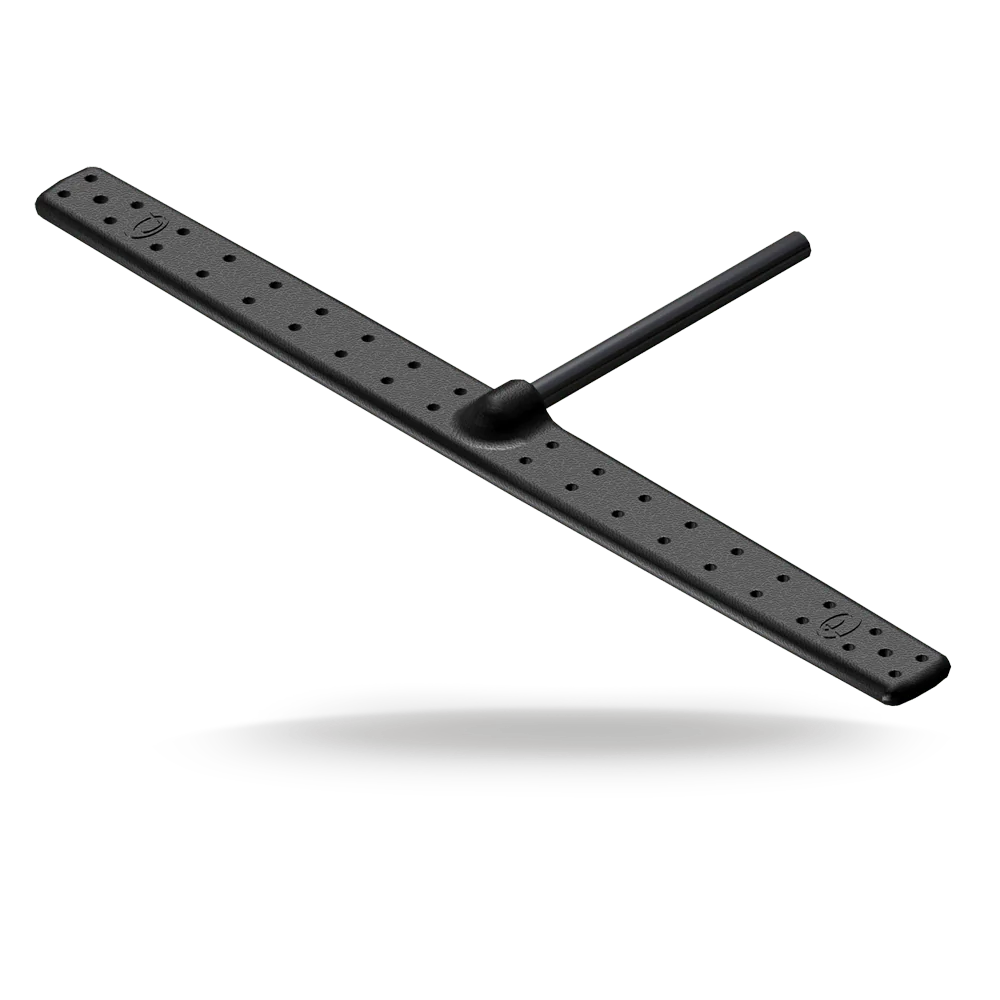

EF-W24 | Easyfit WiFi Adhesive Antenna
Model / SKU: EF-W24
EF-W24 | Easyfit WiFi Adhesive Antenna
The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole.
The antenna is held securely in place using a pressure sensitive acrylic adhesive pad and is available with a variety of cable lengths and connectors.
Product overview
The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole.
The antenna is held securely in place using a pressure sensitive acrylic adhesive pad and is available with a variety of cable lengths and connectors.
Product Features
- Discreet undercover style antenna for mounting on non-conductive surfaces No hole easy-to-install antenna Flexible construction A single model covering WiFi 2.4GHz Centre-fed dipole type antenna Fully overmoulded with integrated cable
Benefits
- Excellent performance across 2.4GHz frequencies for WiFi and Bluetooth use Ideal covert antenna Easy to install
Application
- Public safety Mass transit Utilities
Additional information
| Colour | Black |
|---|---|
| Cable Length | Between 3m & 5m |
| Connector (WIFI) | Reverse Polarity SMA |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | 2400 – 2485MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 113 (mm) | 4.45 (in) |
| Width | 19 (mm) | 0.75 (in) |
| Diameter | 2.5 (mm) | 0.10 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – WIFI | 3 (m) | 9.84 (ft) |
| Cable Type (WIFI) | RG174 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA |
| MOUNTING DATA | |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Glass Mount |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO |
