Description
The EFBAD ‘easy fit’ antenna is efficient & compact. The EFBAD antenna comes complete with a secure industry grade adhesive pad providing a huge range of possibilities for the installer.
Product

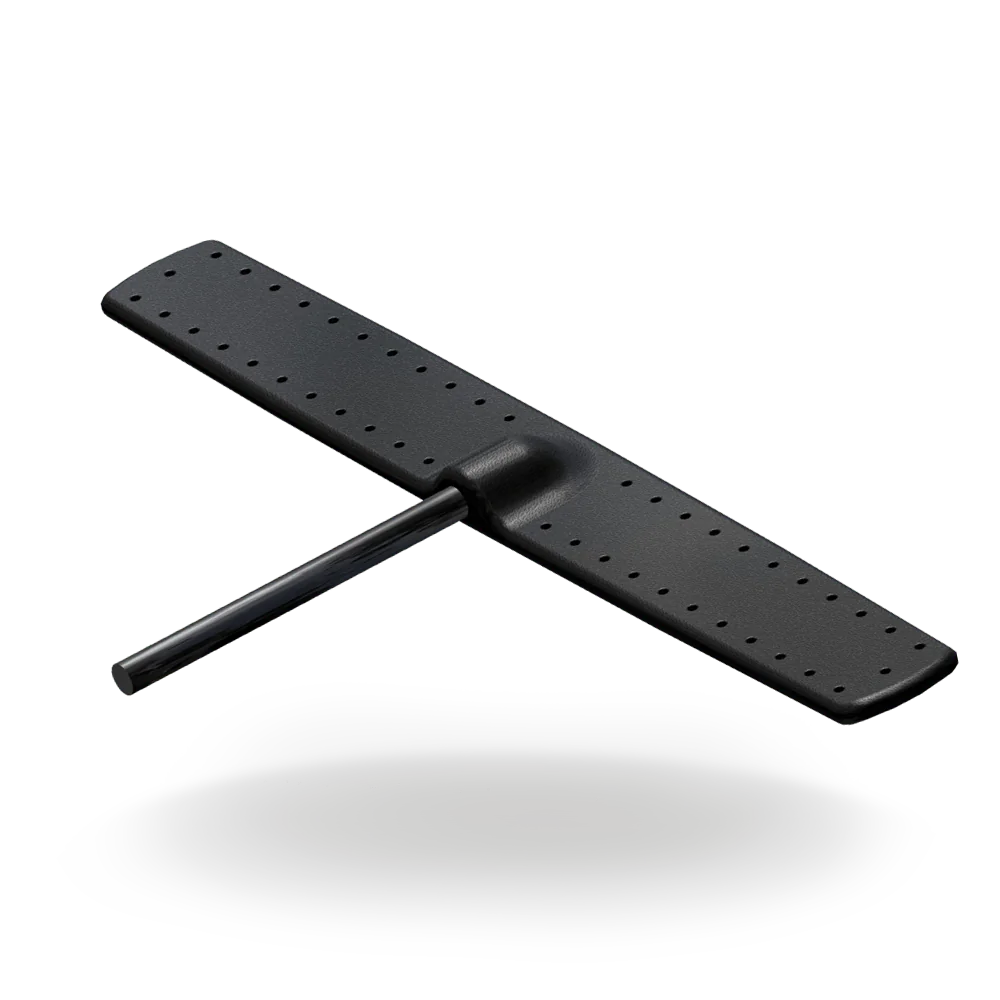

EFBAD | UHF 700/800MHz EasyFit Antenna
Model / SKU: EFBAD
EFBAD | UHF 700/800MHz EasyFit Antenna
The EFBAD ‘easy fit’ antenna is efficient & compact. The EFBAD
antenna comes complete with a secure industry grade adhesive pad
providing a huge range of possibilities for the installer. The antenna
is extremely low profile, with a flexible body which allows it to even
be installed on uneven surfaces, installation is quick and simple, the
antenna can also be removed
without any damage to the installation site.
Covering 700 / 800 MHz, the EFBAD antenna is versatile and is suitable for public
safety, mobile broadband, and M2M applications.
Product overview
The EFBAD ‘easy fit’ antenna is efficient & compact. The EFBAD antenna comes complete with a secure industry grade adhesive pad providing a huge range of possibilities for the installer. The antenna is extremely low profile, with a flexible body which allows it to even be installed on uneven surfaces, installation is quick and simple, the antenna can also be removed without any damage to the installation site.
Covering 700 / 800 MHz, the EFBAD antenna is versatile and is suitable for public safety, mobile broadband, and M2M applications.
Product Features
- Discreet undercover style antenna for mounting on non-conductive surfaces No hole easy-to-install antenna Flexible Construction A single model covering 760-960MHz Centre-fed dipole type antenna Fully over moulded with integrated cable
Benefits
- Excellent performance across 7/800MHz frequencies Ideal covert antenna Easy to install
Application
- Public Safety Mass Transit Utilities
Additional information
| Colour | Black |
|---|---|
| Cable Length | Between 3m & 5m, Between 5m & 10m |
| Connector (VHF/UHF) | FME (f), Mini-UHF (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 30 |
| Frequency Range | Gain | 760 – 960MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 130 (mm) | 5.12 (in) |
| Width | 17 (mm) | 0.67 (in) |
| Diameter | 2.5 (mm) | 0.10 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | min: 3 (m) | 9.84 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (Whip) | RG174 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (f); Mini-UHF (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Glass Mount |
| Mounting Methods | Glass Mount |
| TECHNOLOGY DATA | |
| Technology | UHF |
