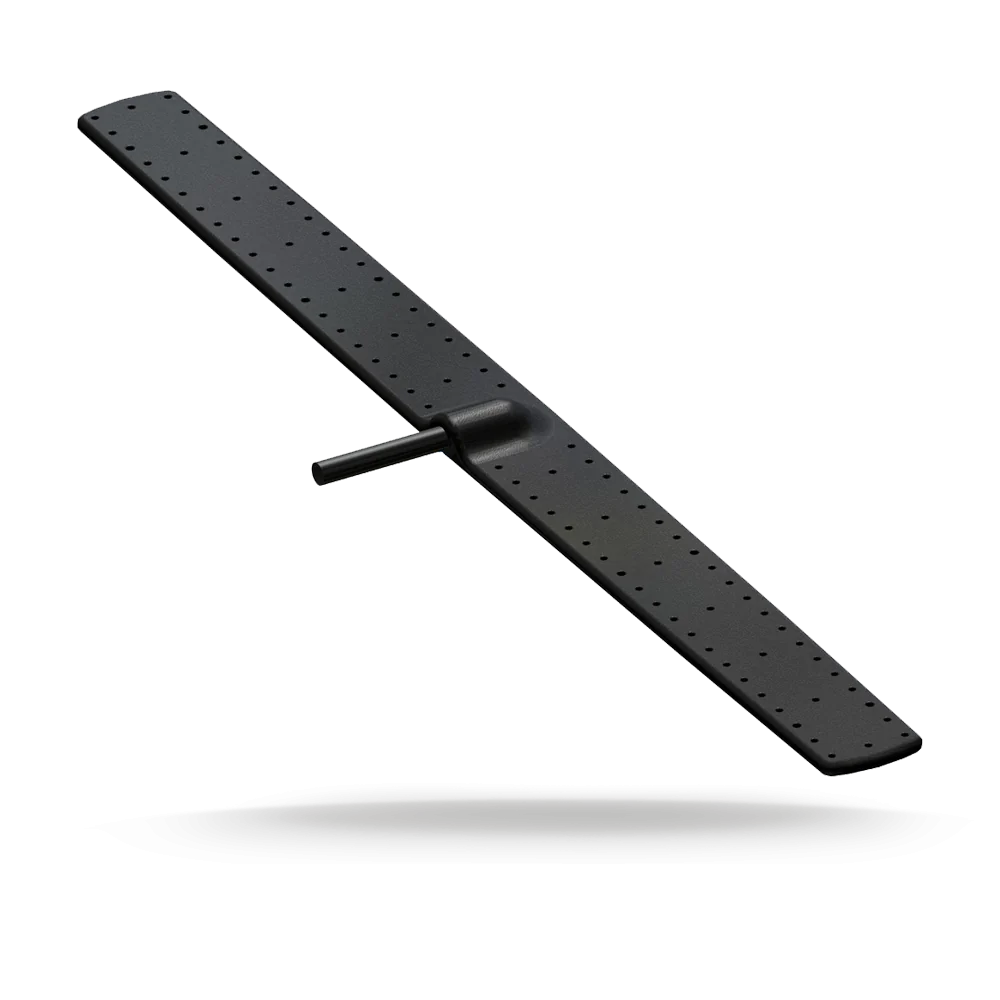

EF[UHF] | Easyfit UHF Adhesive Antenna

Model / SKU: EF-[UHF]

EF[UHF] | Easyfit UHF Adhesive Antenna

The antenna is held securely in place using a pressure sensitive
acrylic adhesive pad and is available in a range of UHF frequencies.

Description

The Panorama On Glass antenna Easy Fit can be quickly and easily installed on a windscreen or any plastic surface and is ideal for discrete / semi covert applications or situations when it is not possible to drill a hole. The antenna is held securely in place using a pressure sensitive acrylic adhesive pad and is available in a range of UHF frequencies.

Product overview

The antenna is held securely in place using a pressure sensitive acrylic adhesive pad and is available in a range of UHF frequencies.

Product Features

Discreet undercover style antenna for mounting on non-conductive surfaces No hole easy-to-install antenna Available in a wide range of UHF frequencies Models available cover from 380MHz to 515MHz Centre-fed dipole type antenna Fully over moulded with integrated cable

Benefits

Excellent performance across a range of UHF frequencies Ideal UHF covert antenna Easy to Install

Application

Public Safety Mass Transit Utilities

Additional information

Colour	Black
Cable Length	Between 3m & 5m, Between 5m & 10m
Connector (VHF/UHF)	BNC (m), FME (f), TNC (m)
Frequency Range	380-400MHz, 380-430MHz, 410-430MHz, 420-465MHz, 450-470MHz, 458-515MHz

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	20
Typical VSWR	<2.5:1
Frequency Range \| Gain	Check the part number table
Cellular LTE Elements	No
WIFI Elements	No
UHF Elements	No
GPS DATA
Number of GPS Elements	No
MECHANICAL DATA
Colour	Black
Length	217 (mm) \| 8.54 (in)
Width	19 (mm) \| 0.75 (in)
Height	6.5 (mm) \| 0.26 (in)
Diameter	2.5 (mm) \| 0.10 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – Whip	min: 3 (m) \| 9.84 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (Whip)	RG174
TERMINATION DATA
Connector (VHF/UHF) Whip	BNC (m); FME (f); TNC (m)
MOUNTING DATA
Mounting Type Temp	Glass Mount; Hook/Loop or Adhesive
Mounting Methods	Glass Mount; Hook/Loop or Adhesive
TECHNOLOGY DATA
Technology	UHF; TETRA

Available selections

Colour	Black
Cable Length	Between 3m & 5m Between 5m & 10m
Connector (VHF/UHF)	BNC (m) FME (f) TNC (m)
Frequency Range	380-400MHz 380-430MHz 410-430MHz 420-465MHz 450-470MHz 458-515MHz

Models and configurations

SKU; Colour | Frequency Range | Gain | UHF

EF-442-3BL	Black \| 420 – 465MHz \| 2dBi \| Yes 3m BNC (m)
EF-442-3F	Black \| 420 – 465MHz \| 2dBi \| Yes 3m FME (f)
EF-442-5F	Black \| 420 – 465MHz \| 2dBi \| Yes 5m FME (f)
EF-460-3F	Black \| 450 – 470MHz \| 2dBi \| Yes 3m FME (f)
EF-460-3TL	Black \| 450 – 470MHz \| 2dBi \| Yes 3m TNC (m)
EF-460-5F	Black \| 450 – 470MHz \| 2dBi \| Yes 5m FME (f)
EF-486-3F	Black \| 458 – 515MHz \| 2dBi \| Yes 3m FME (f)
EF-486-5F	Black \| 458 – 515MHz \| 2dBi \| Yes 5m FME (f)
EF-S1-3BL	Black \| 380 – 400MHz \| 2dBi \| Yes 3m BNC (m)
EF-S1-3F	Black \| 380 – 400MHz \| 2dBi \| Yes 3m FME (f)
EF-S1-5F	Black \| 380 – 400MHz \| 2dBi \| Yes 5m FME (f)
EF-S2-3BL	Black \| 410 – 430MHz \| 2dBi \| Yes 3m BNC (m)
EF-S2-3F	Black \| 410 – 430MHz \| 2dBi \| Yes 3m FME (f)
EF-S2-5F	Black \| 410 – 430MHz \| 2dBi \| Yes 5m FME (f)
EF-TET-3F	Black \| 380 – 430MHz \| \| Yes 3m FME (f)

Configuration options

Option	Available values
Colour	Black
Cable Length	Between 3m & 5m, Between 5m & 10m
Connector Vhf Uhf	BNC (m), FME (f), TNC (m)
Frequency Range	380-400MHz, 380-430MHz, 410-430MHz, 420-465MHz, 450-470MHz, 458-515MHz

Data material

Flyer - UHF-400MHz-Antenna-Solutions.pdf (PDF)
Datasheet - EF-[UHF].pdf (PDF)
Installation Instructions - SW3-533 EF-[X] A5.pdf (PDF)
