Description
F-HP270-F is a high pass filter for UHF radios with a 270-1000MHz pass band. Frequencies inside the passband will pass through the filter with low insertion loss while out of band signals will be attenuated with a loss of >30dB.
Product

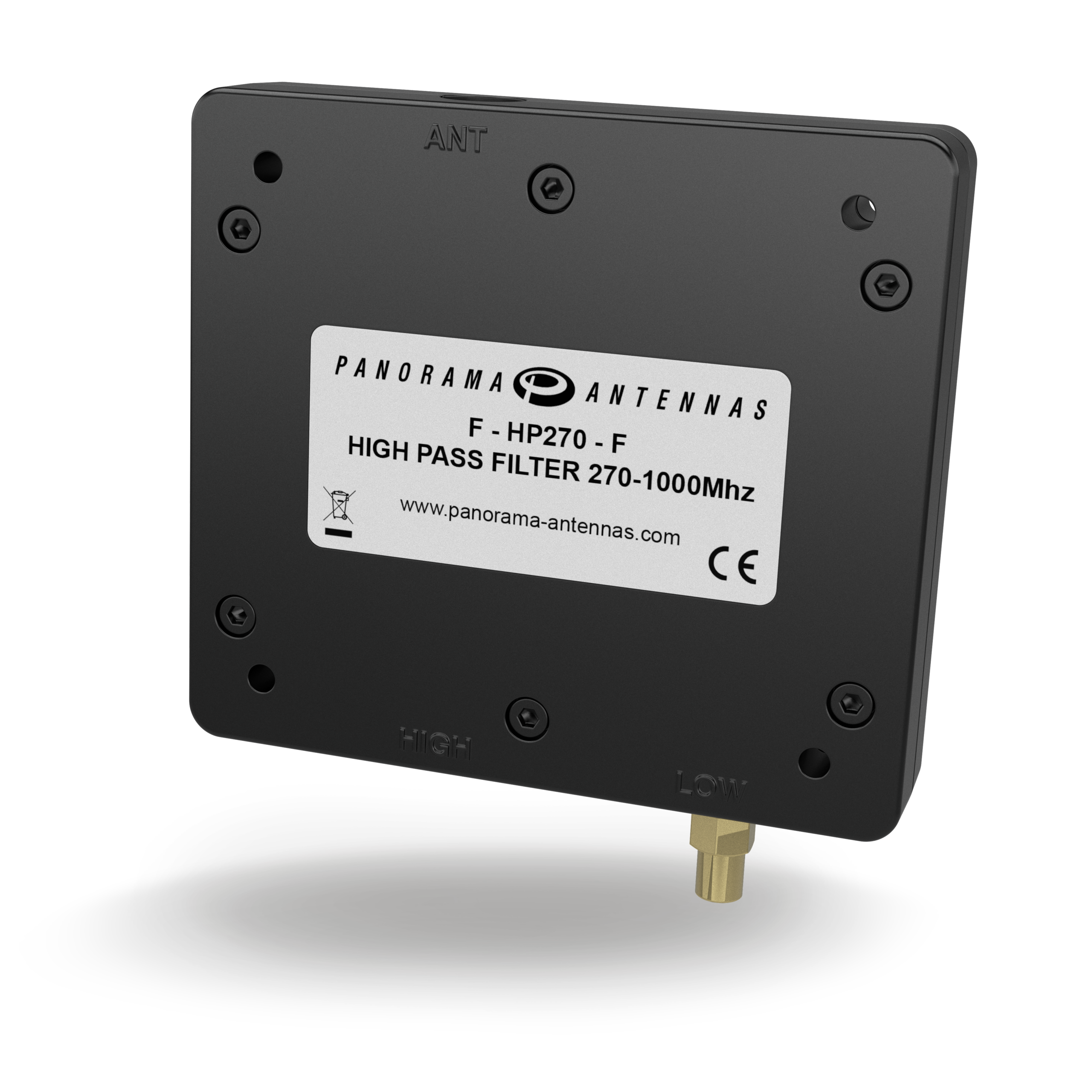

F-HP270-F | High Pass Filter 270-1000MHz
Model / SKU: F-HP270-F-[X]
F-HP270-F | High Pass Filter 270-1000MHz
F-HP270-F is a high pass filter for UHF radios with a 270-1000MHz pass
band. Frequencies inside the pass band will pass through the filter with
low insertion loss while out of band signals will be attenuated with a
loss of >30dB.
Designed for harmonic supression or applications where a UHF
radio is co-located with a VHFradio the F-HP270-F provides an excellent
solution to problematic out of band interference.
Product overview
F-HP270-F is a high pass filter for UHF radios with a 270-1000MHz pass band. Frequencies inside the pass band will pass through the filter with low insertion loss while out of band signals will be attenuated with a loss of >30dB.
Designed for harmonic supression or applications where a UHF radio is co-located with a VHFradio the F-HP270-F provides an excellent solution to problematic out of band interference.
Product Features
- 270-1000MHz pass band Low insertion loss >30dB out of band rejection
Benefits
- FME (m) on all ports for ease of installation Max input power 60W Compact size
Application
- Filter for UHF radios Co-existence scenarios Multiband Tetra or P25 Harmonic Suppression
Additional information
| Connector (VHF/UHF) | FME (m) |
|---|
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 60 |
| Typical VSWR | <1.5:1 |
| Frequency Range | Gain | 270 – 1000MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Length | 100 (mm) | 3.94 (in) |
| Width | 90 (mm) | 3.54 (in) |
| Height | 20 (mm) | 0.79 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (m) |
| TECHNOLOGY DATA | |
| Technology | UHF; LoRa; TETRA |
