Description
F-LP210-F is a low pass filter for VHF radios with a 50-210MHz pass band. Frequencies inside the pass band will pass through the filter with low insertion loss while out of band signals will be attenuated with a loss of >30dB.
Product

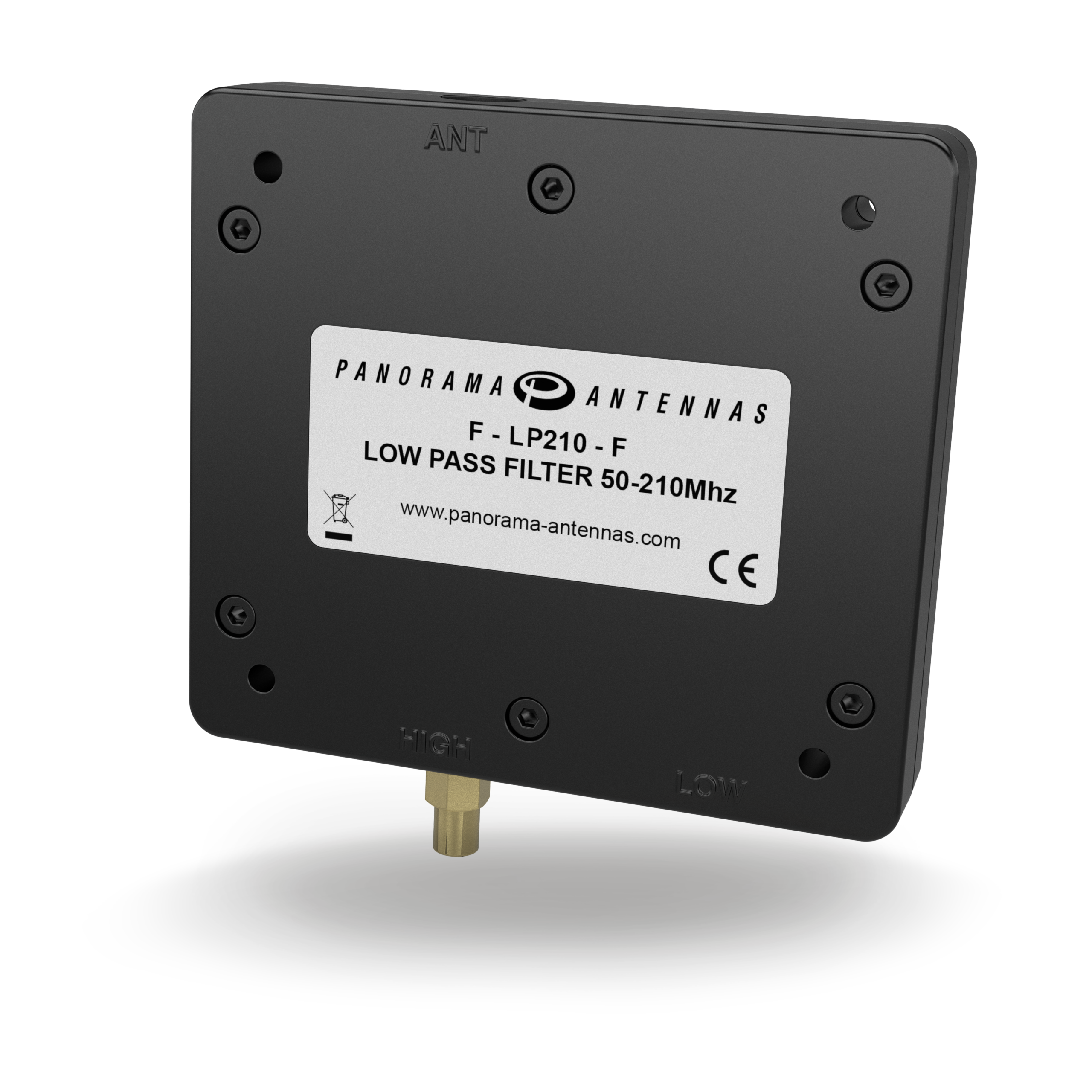

F-LP210-F | Low Pass Filter 50-210MHz
Model / SKU: F-LP210-F-[X] |
F-LP210-F | Low Pass Filter 50-210MHz
F-LP210-F is a low pass filter for VHF radios with a 50-210MHz pass band. Frequencies inside the pass band will pass through the filter with low insertion loss while out of band signals will be attenuated with a loss of >30dB.
Designed for harmonic supression or applications where a VHF radio is co-located with a UHF and/or 7/800MHz radio the F-LP210-F provides an excellent solution to problematic out of band interference.
Product overview
F-LP210-F is a low pass filter for VHF radios with a 50-210MHz pass band. Frequencies inside the pass band will pass through the filter with low insertion loss while out of band signals will be attenuated with a loss of >30dB.
Designed for harmonic supression or applications where a VHF radio is co-located with a UHF and/or 7/800MHz radio the F-LP210-F provides an excellent solution to problematic out of band interference.
Product Features
- 50-210MHz pass band Low insertion loss >30dB out of band rejection
Benefits
- FME (m) ports for easy installation Max input power 60 watts Compact size
Application
- Filter for VHF radios Co-existence scenarios Multiband TETRA or P25 Harmonic suppression
Additional information
| Colour | Black |
|---|---|
| Connector (VHF/UHF) | FME (m) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 60 |
| Typical VSWR | <1.5:1 |
| Frequency Range | Gain | 50 – 210MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 100 (mm) | 3.94 (in) |
| Width | 90 (mm) | 3.54 (in) |
| Height | 20 (mm) | 0.79 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (m) |
| TECHNOLOGY DATA | |
| Technology | VHF |
