Model / SKU: GPS25MS[-VAR]

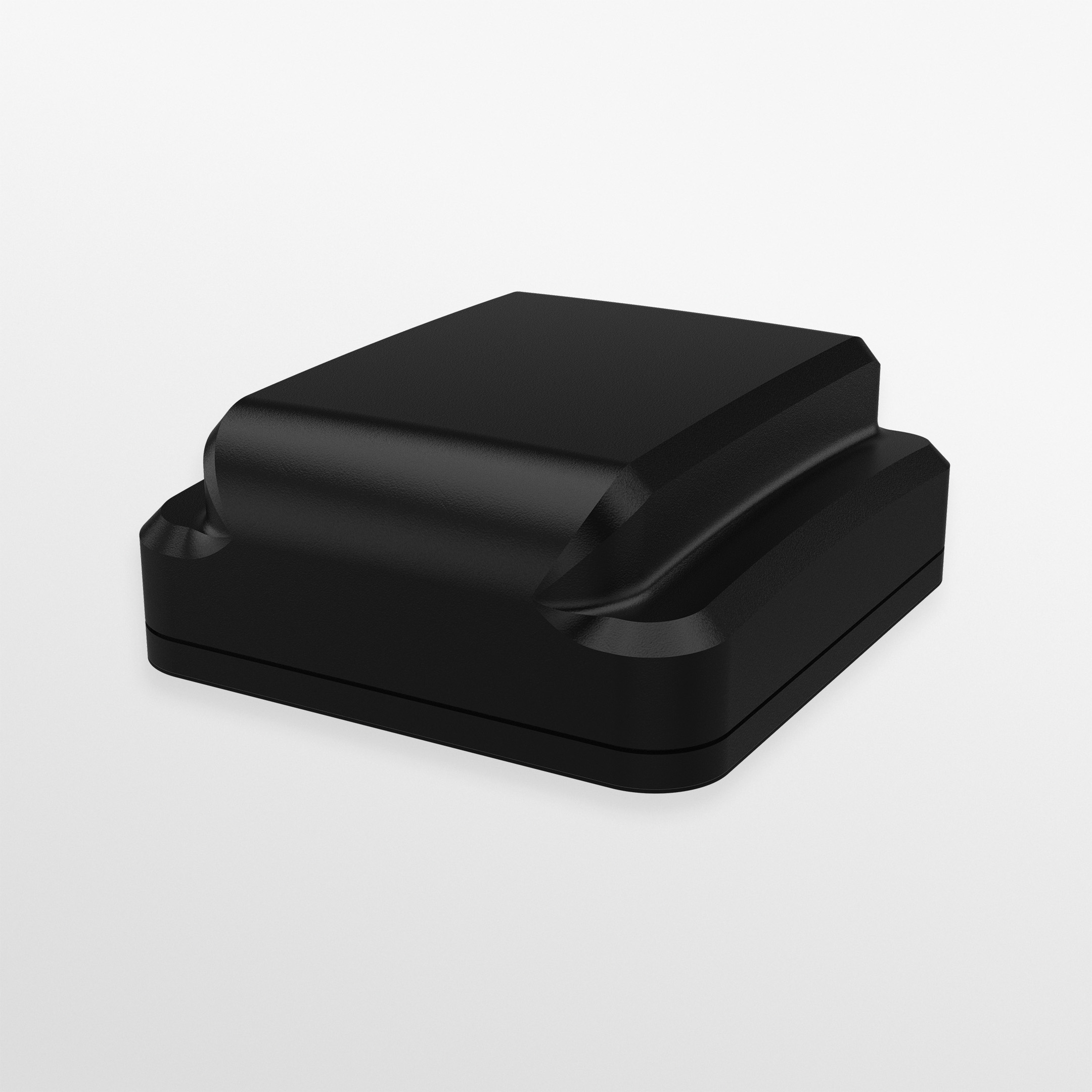

![GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25MS-VAR-1-Black-Main-View.jpg "GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna")

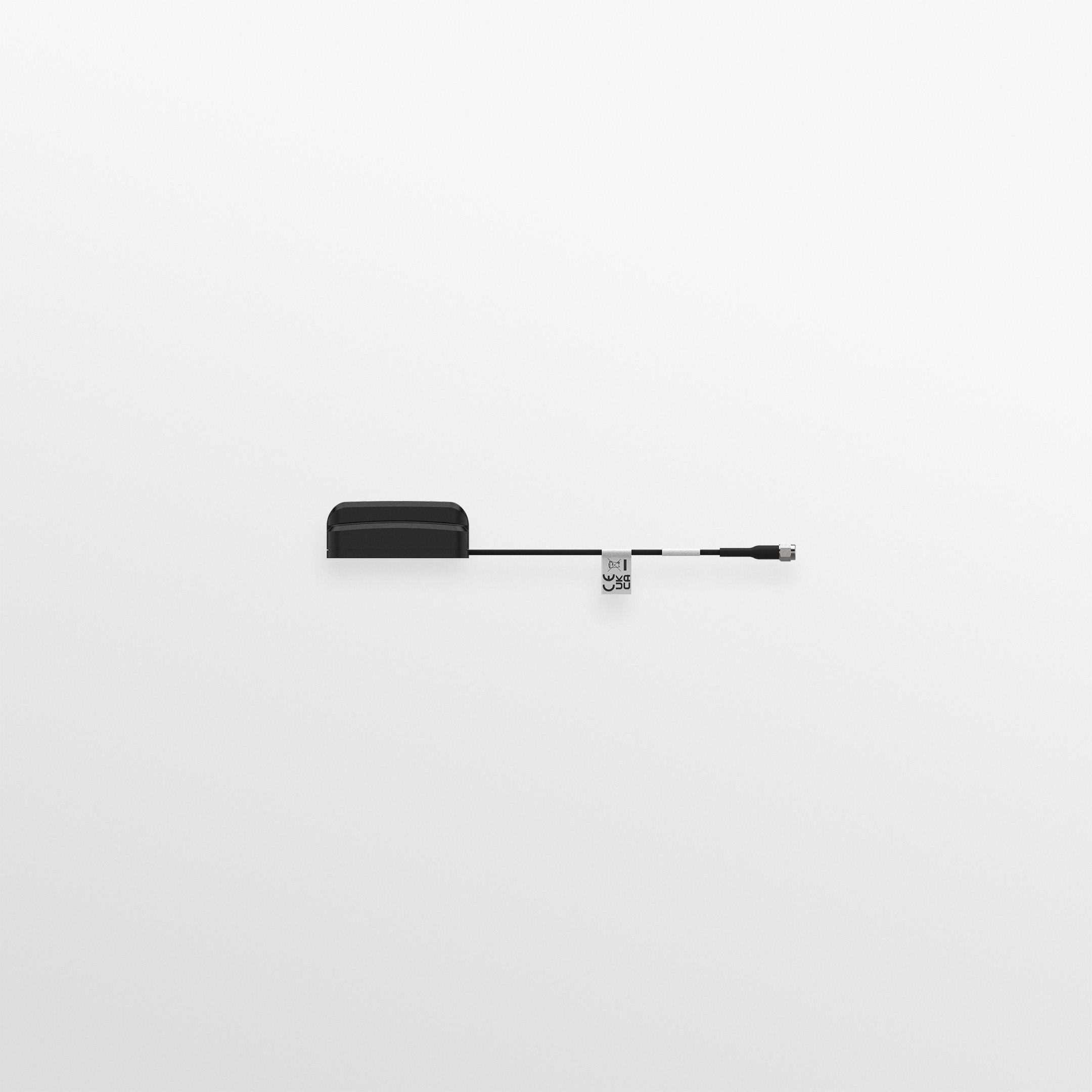

![GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25MS-VAR-3-Black-Side-View.jpg)

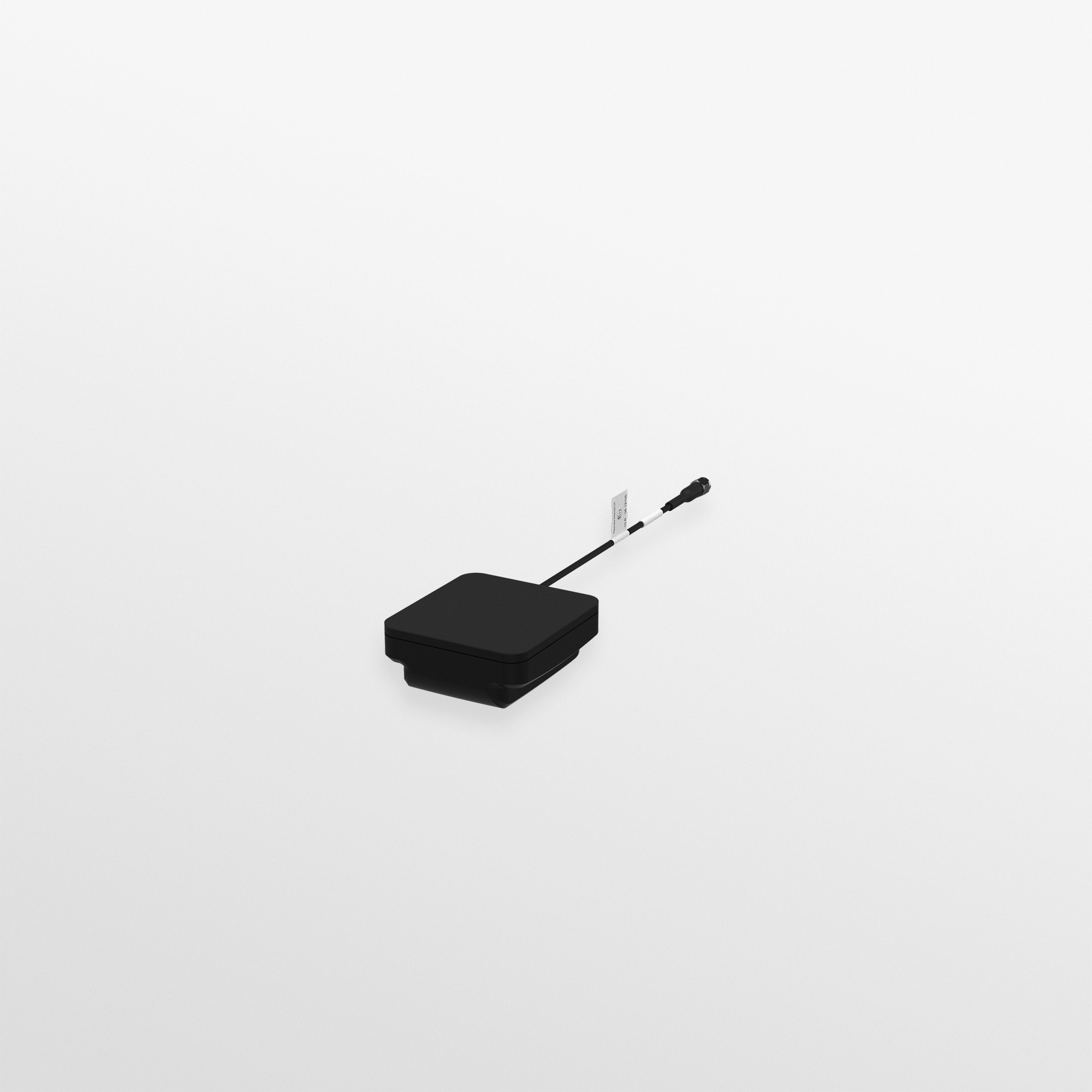

![GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25MS-VAR-4-Black-Underside-View.jpg)

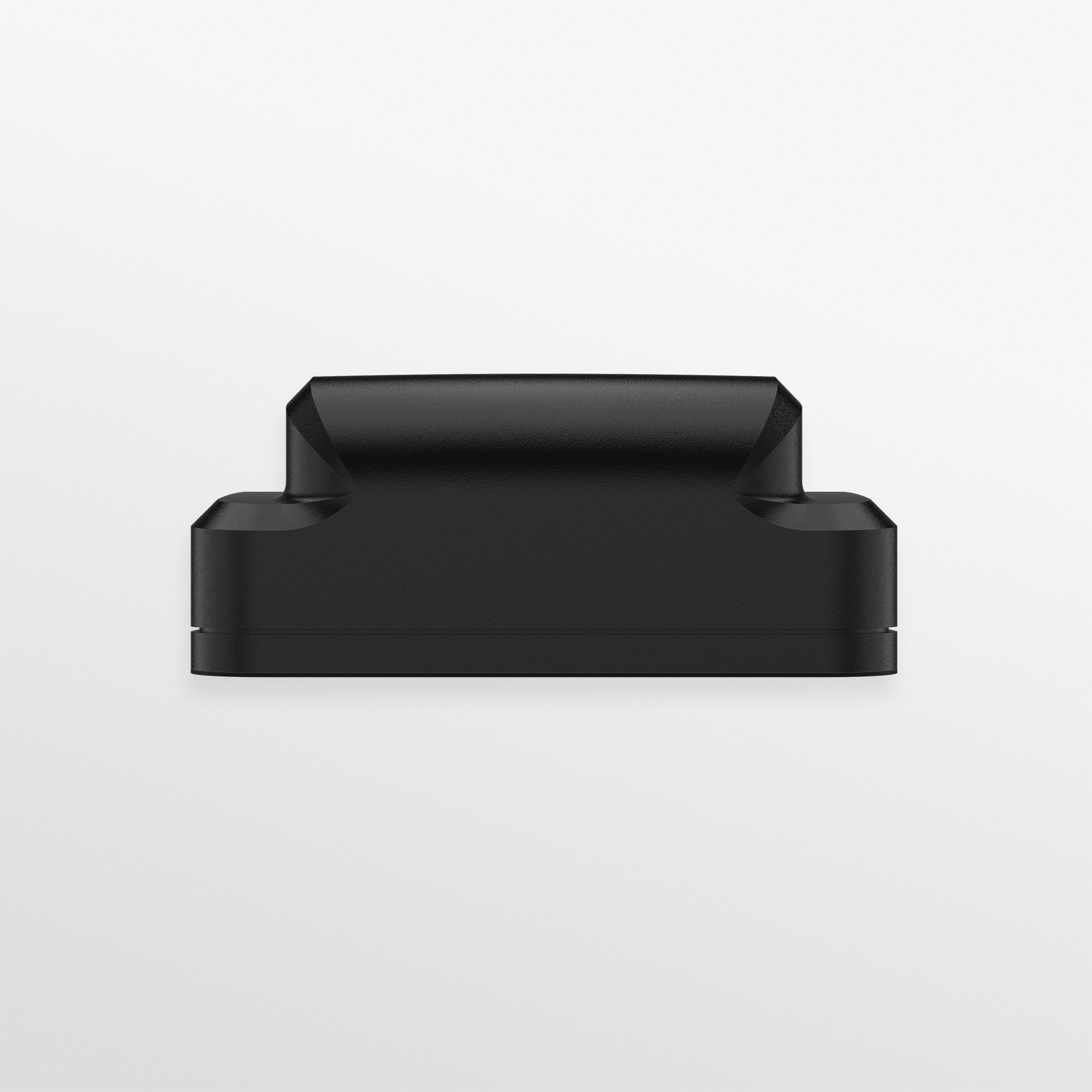

![GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25MS-VAR-2-Black-Front-View-1.jpg "GPS25MS[-VAR] | GPS/GNSS L1/L2/L5 Magnet Antenna")
The GPS25MS is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems requiring high accuracy for navigation, RTK and other precision applications.
The GPS25MS is fitted with a high quality magnet for temporary mounting on ferromagnetic surfaces and an adhesive pad for installing the antenna more permanently or where mounting to a non-magnetic surface is required.
For ease of installation, the antenna is supplied with integrated FR rated RG174 coaxial cable (Compliant with UN ECE R118) and is available with a variety of connectors.
The GPS25MS is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems.
The GPS25MS is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems requiring high accuracy for navigation, RTK and other precision applications.
The GPS25MS is fitted with a high quality magnet for temporary mounting on ferromagnetic surfaces and an adhesive pad for installing the antenna more permanently or where mounting to a non-magnetic surface is required.
For ease of installation, the antenna is supplied with integrated FR rated RG174 coaxial cable (Compliant with UN ECE R118) and is available with a variety of connectors.
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Between 5m & 10m |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Typical VSWR | <2.5:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1136-1300MHz/1559-1612MHz |
| LNA GAIN (dB) | 37 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 72 (mm) | 2.83 (in) |
| Width | 67 (mm) | 2.64 (in) |
| Height | 29 (mm) | 1.14 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | 6 (m) | 19.69 (ft) |
| Cable Type (GPS) | FR RG174 |
| TERMINATION DATA | |
| Connector (GPS) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic |
| APPROVALS DATA | |
| Cable Flammability | UN ECE R118 |
| IB Wave VEX File Available | FALSE |
| SAR TouchSafe | FALSE |
| TECHNOLOGY DATA | |
| Technology | GPS; GNSS |
