Model / SKU: GPS25P-[VAR]

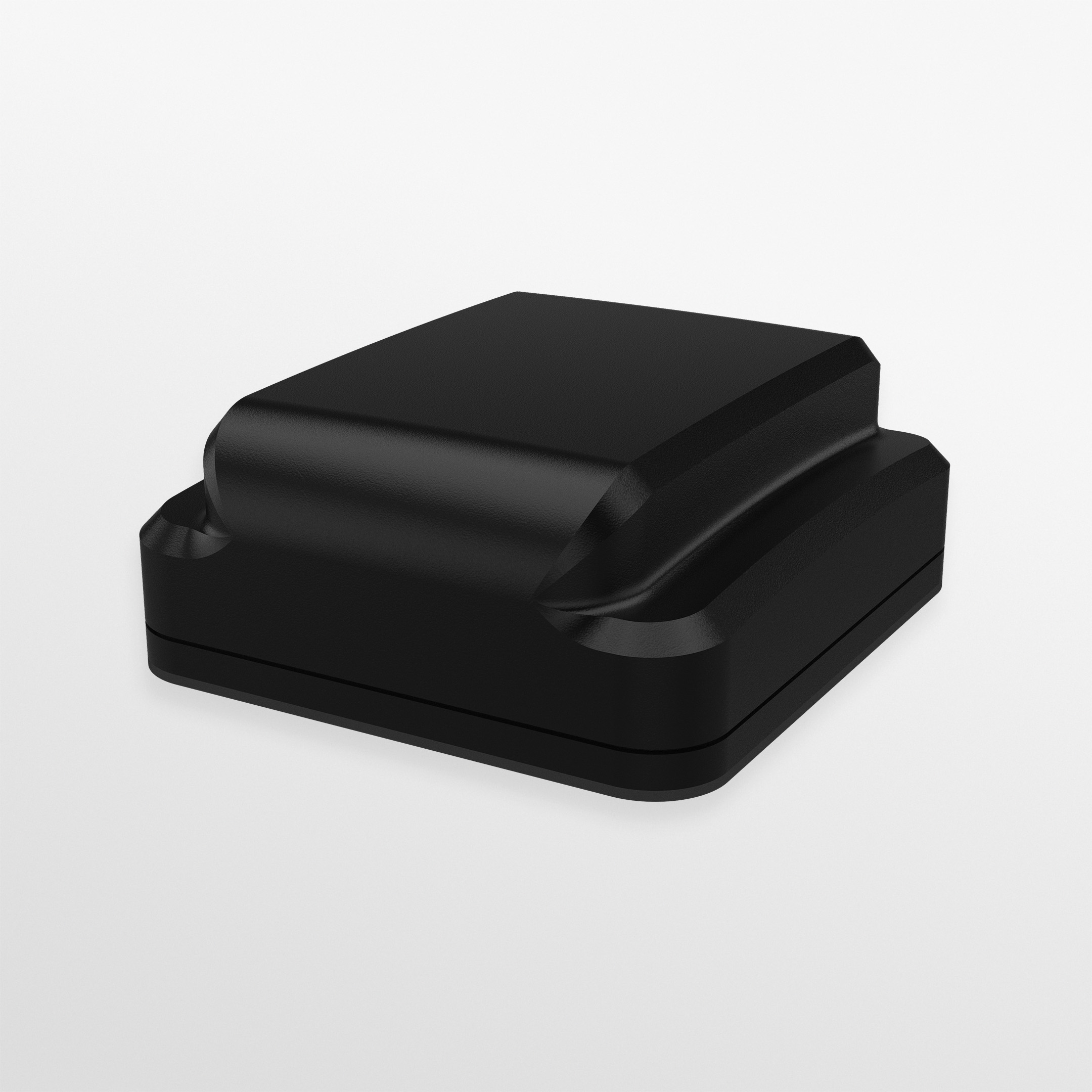

![GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25P-VAR-1-Black-Main-View.jpg "GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna")

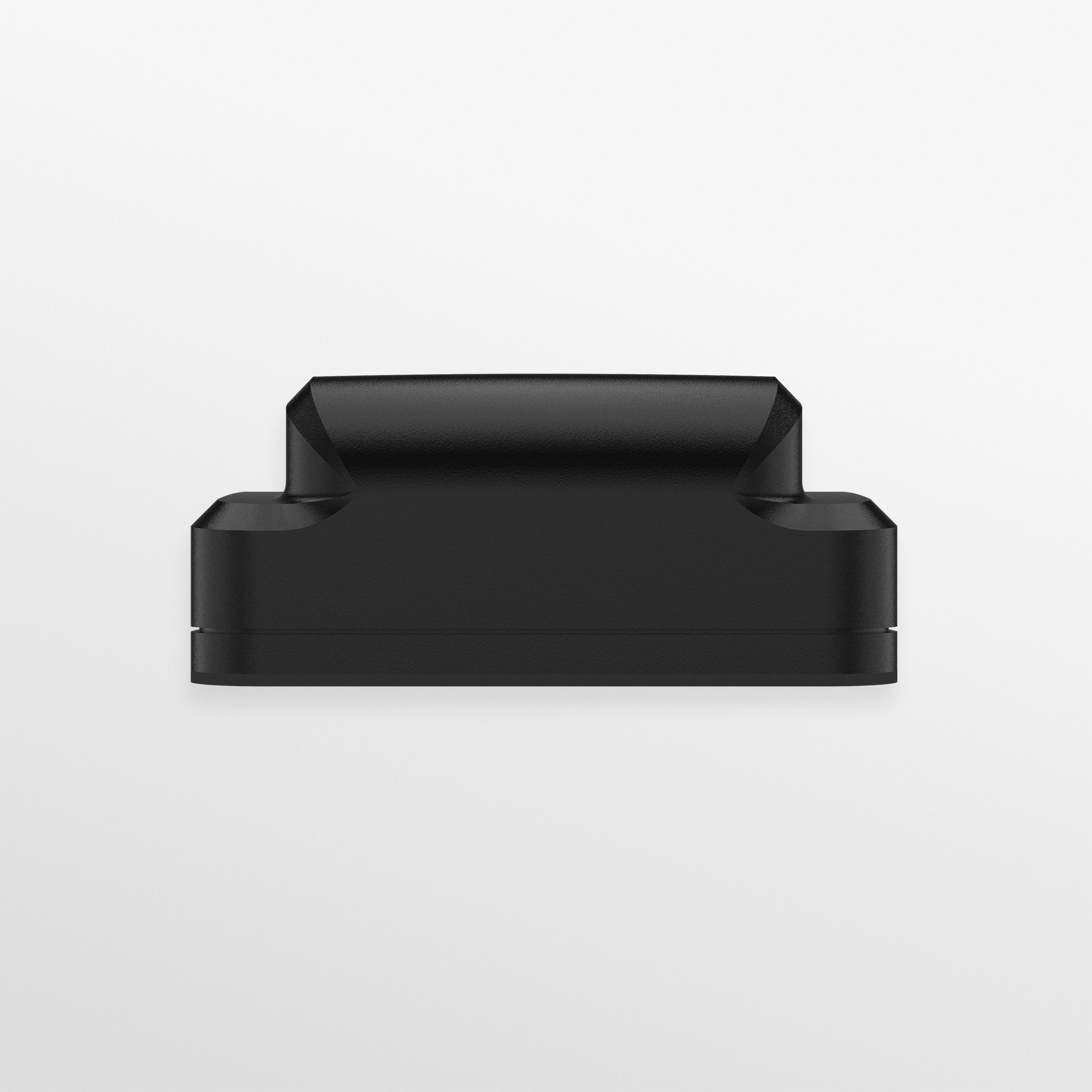

![GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25P-VAR-2-Black-Front-View.jpg "GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna")

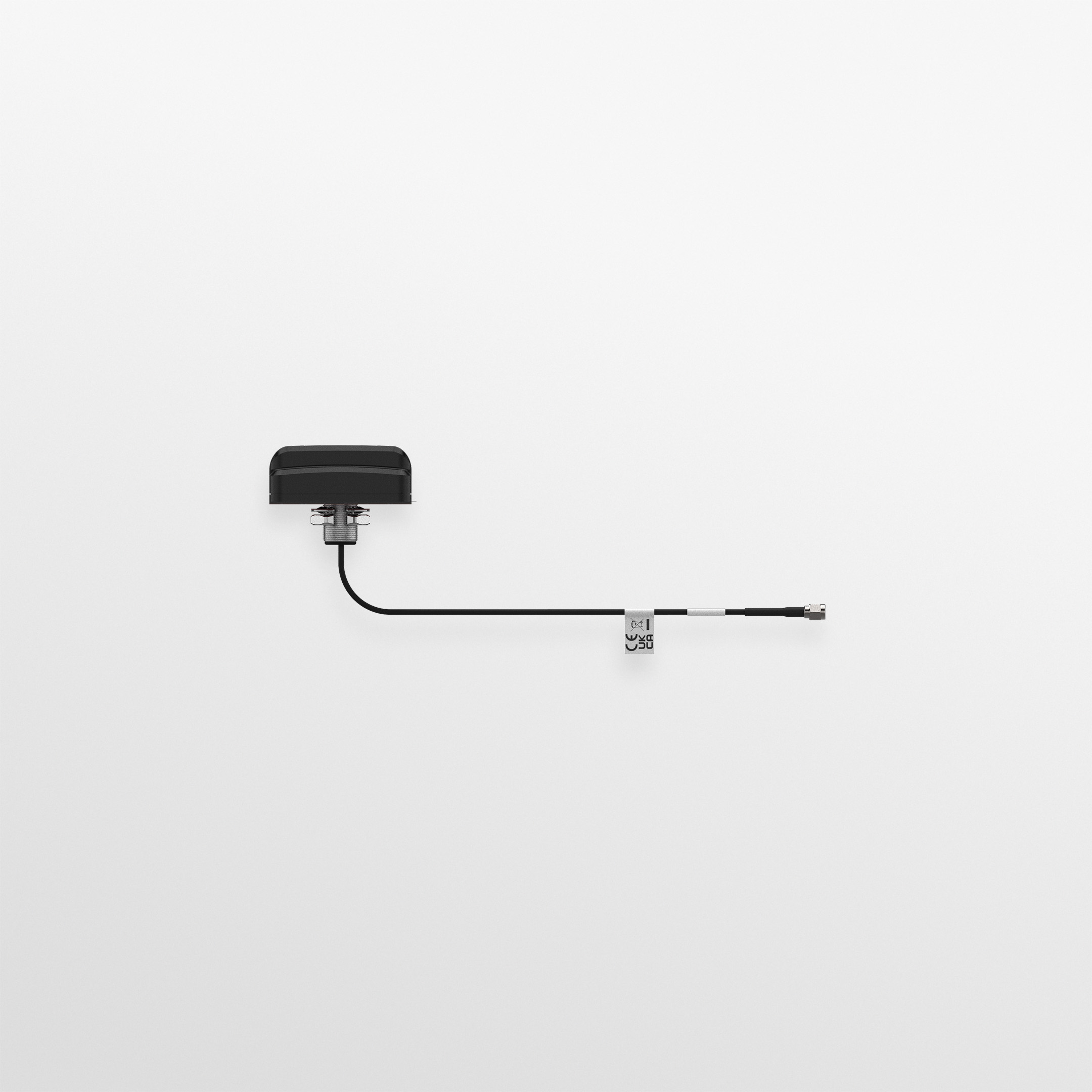

![GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25P-VAR-3-Black-Side-View.jpg "GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna")

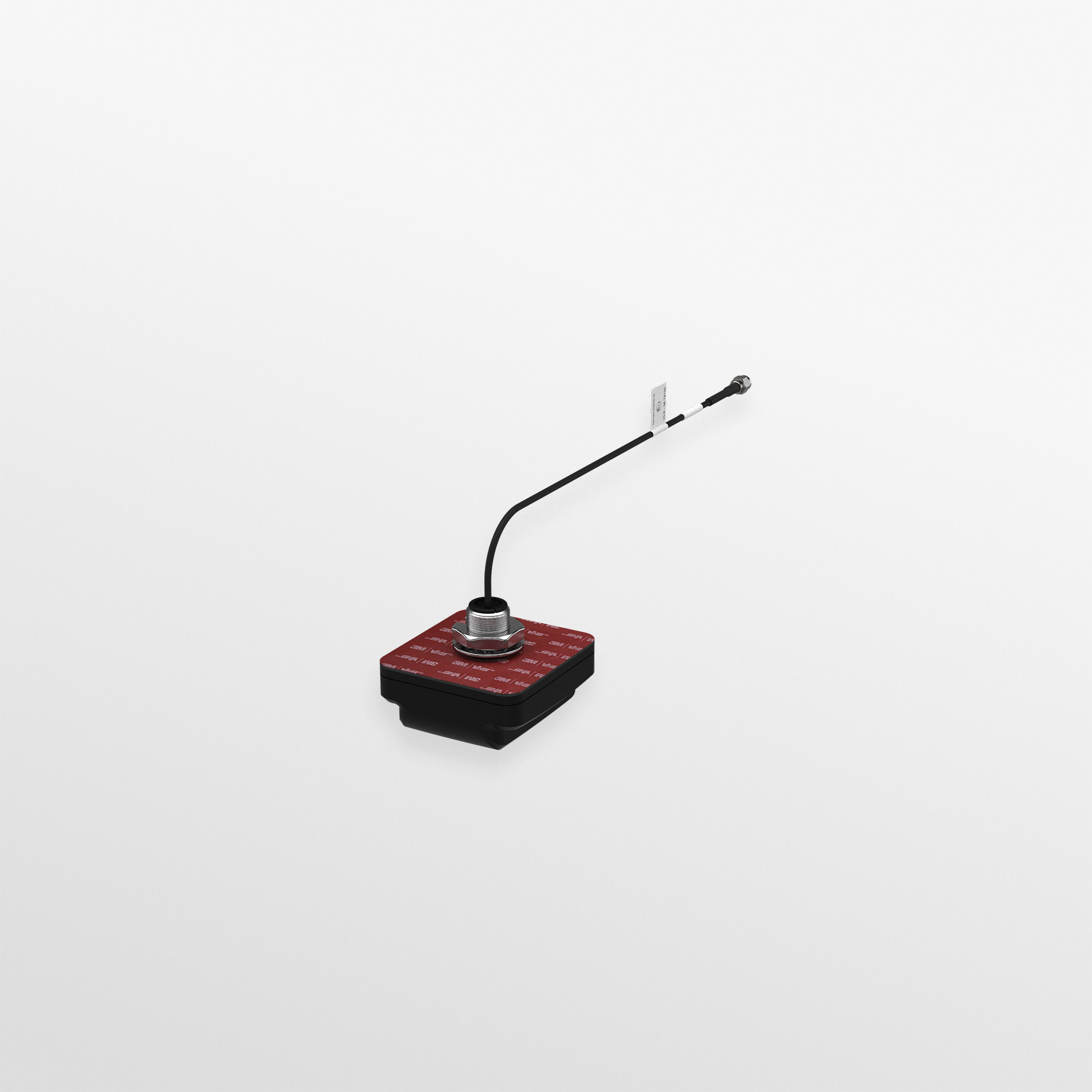

![GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPS25P-VAR-4-Black-Underside-View.jpg "GPS25P-[VAR] | GPS/GNSS L1/L2/L5 Panel Mount Antenna")
The GPS25P is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems requiring high accuracy for navigation, RTK and other precision applications. The GPS25P is designed for panel mounting on conductive or non-conductive panels up to 10mm (0.39”) thick using an M18 mounting bush. The supplied adhesive foam pad provides both anti-rotation and weather-proof sealing. For ease of installation, the antenna is supplied with integrated FR RG174 coaxial cable (Compliant with UN ECE R118) and is available with a variety of connectors.
The GPS25P is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems.
Technical Datasheet (official Panorama source)
The GPS25P is a high-performance L1/L2/L5 band GPS/GNSS antenna with ~37dB gain LNA and excellent filtering. The antenna is housed within a low profile, robust enclosure and is suitable for use with GPS, GLONASS, Galileo and BeiDou systems requiring high accuracy for navigation, RTK and other precision applications. The GPS25P is designed for panel mounting on conductive or non-conductive panels up to 10mm (0.39”) thick using an M18 mounting bush. The supplied adhesive foam pad provides both anti-rotation and weather-proof sealing. For ease of installation, the antenna is supplied with integrated FR RG174 coaxial cable (Compliant with UN ECE R118) and is available with a variety of connectors.
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Between 5m & 10m |
| Connector (GPS) | FAKRA C, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Typical VSWR | <2.5:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1136-1300MHz/1559-1612MHz |
| LNA GAIN (dB) | 37 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 72 (mm) | 2.83 (in) |
| Width | 67 (mm) | 2.64 (in) |
| Height | 28 (mm) | 1.10 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | 6 (m) | 19.69 (ft) |
| Cable Type (GPS) | FR RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FAKRA C; SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| Cable Flammability | UN ECE R118 |
| IB Wave VEX File Available | FALSE |
| SAR TouchSafe | FALSE |
| TECHNOLOGY DATA | |
| Technology | GPS; GNSS |
