Model / SKU: GPSC-7-27
The GPSC-7-27 range has been designed as a cost effective
solution for telematics/asset tracking applications requiring 2G/3G/4G
and GPS/GNSS.

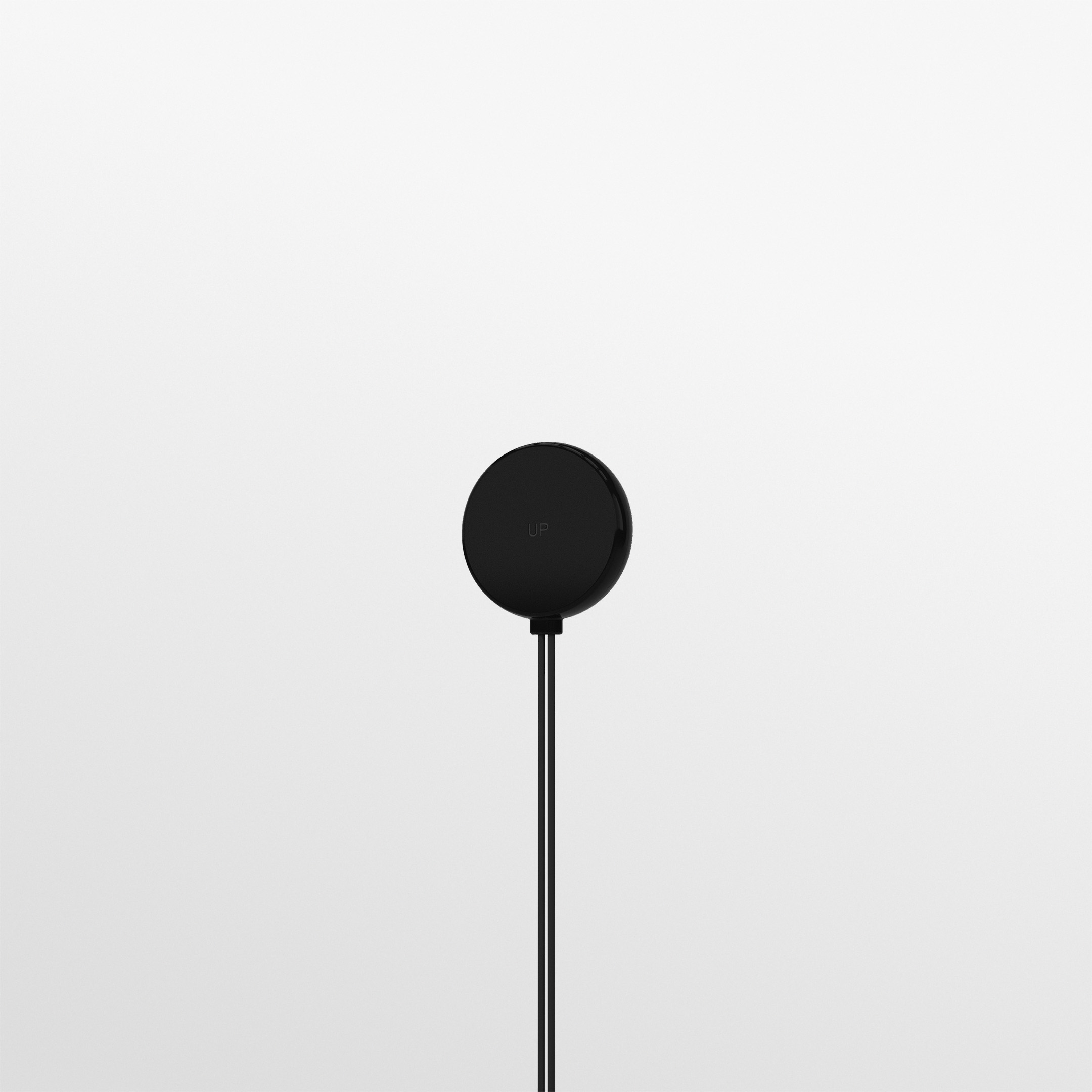

The compact, robust low-profile housing
contains an antenna element covering all current global cellular and LTE
bands in freq. range 698-960/1710-2700MHz along with a
GPS/GNSS/Galileo/Beidou antenna for applications that require a
positioning function.

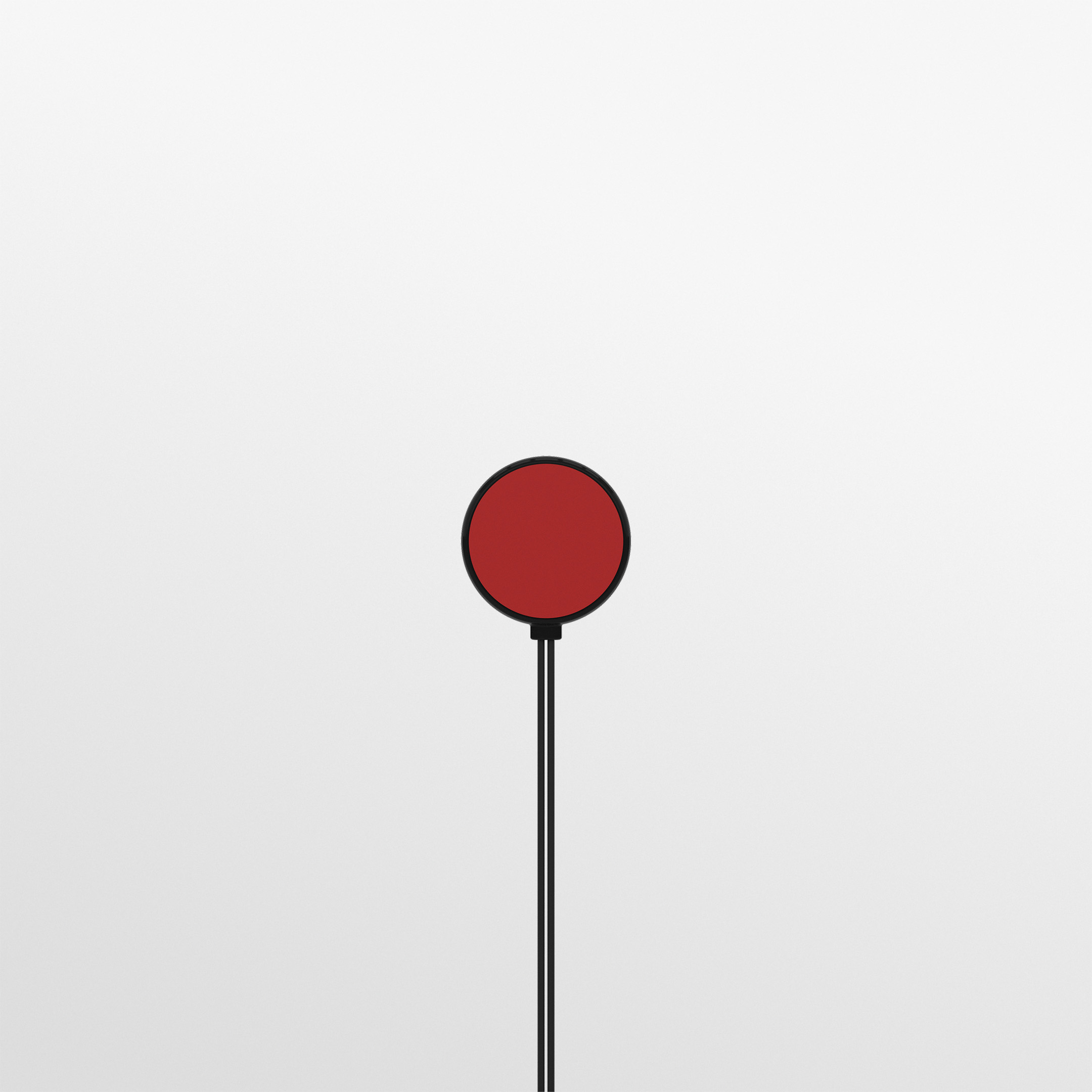

The antenna can be fitted on or
under a vehicle dashboard or on a windshield using the supplied acrylic
adhesive sealing pad. Supplied with integrated 3m (10′) cables and
eighter SMA plug or FAKRA connectors, the antenna will offer plug and
play connectivity with many different devices.
The GPSC-7-27 range has been designed as a cost effective solution for telematics/asset tracking applications requiring 2G/3G/4G and GPS/GNSS.
The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications that require a positioning function.
The GPSC-7-27 range has been designed as a cost effective solution for telematics/asset tracking applications requiring 2G/3G/4G and GPS/GNSS.
The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-2700MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications that require a positioning function.
The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10′) cables and eighter SMA plug or FAKRA connectors, the antenna will offer plug and play connectivity with many different devices.
| Colour | Black |
|---|---|
| 4G/5G | SiSo |
| GPS | 1 Module |
| Cable Length | Between 3m & 5m |
| Connector (LTE) | SMA (m) |
| Connector (GPS) | FAKRA C, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 5 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 2170MHz | 2dBi; 2500 – 2700MHz | 4dBi |
| Cellular LTE Elements | SiSo |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 74.5 (mm) | 2.93 (in) |
| Height | 15 (mm) | 0.59 (in) |
| Diameter | 69 (mm) | 2.72 (in) |
| Operating Temperature | -30°/ +70°C (-22.0°/ +158.0°F) |
| CABLE DATA | |
| Cable Length – LTE | 3 (m) | 9.84 (ft) |
| Cable length – GPS | 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | FR RG174 |
| Cable Type (GPS) | FR RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FAKRA C; SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Dash; Glass Mount |
| Mounting Methods | Dash; Glass Mount |
| APPROVALS DATA | |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; FirstNet; GNSS |
