GPSCO[F]-7-27-24-58 | Dashboard/Windshield 2G/3G/4G LTE + GPS/GNSS Antenna & WiFi

Model / SKU: GPSCO[F]-7-27-24-58

GPSCO[F]-7-27-24-58 | Dashboard/Windshield 2G/3G/4G LTE + GPS/GNSS Antenna & WiFi - Image 2

GPSCO[F]-7-27-24-58 | Dashboard/Windshield 2G/3G/4G LTE + GPS/GNSS Antenna & WiFi

The GPSCO-7-27-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications requiring 2G/3G/4G, WIFI, and GPS/GNSS.

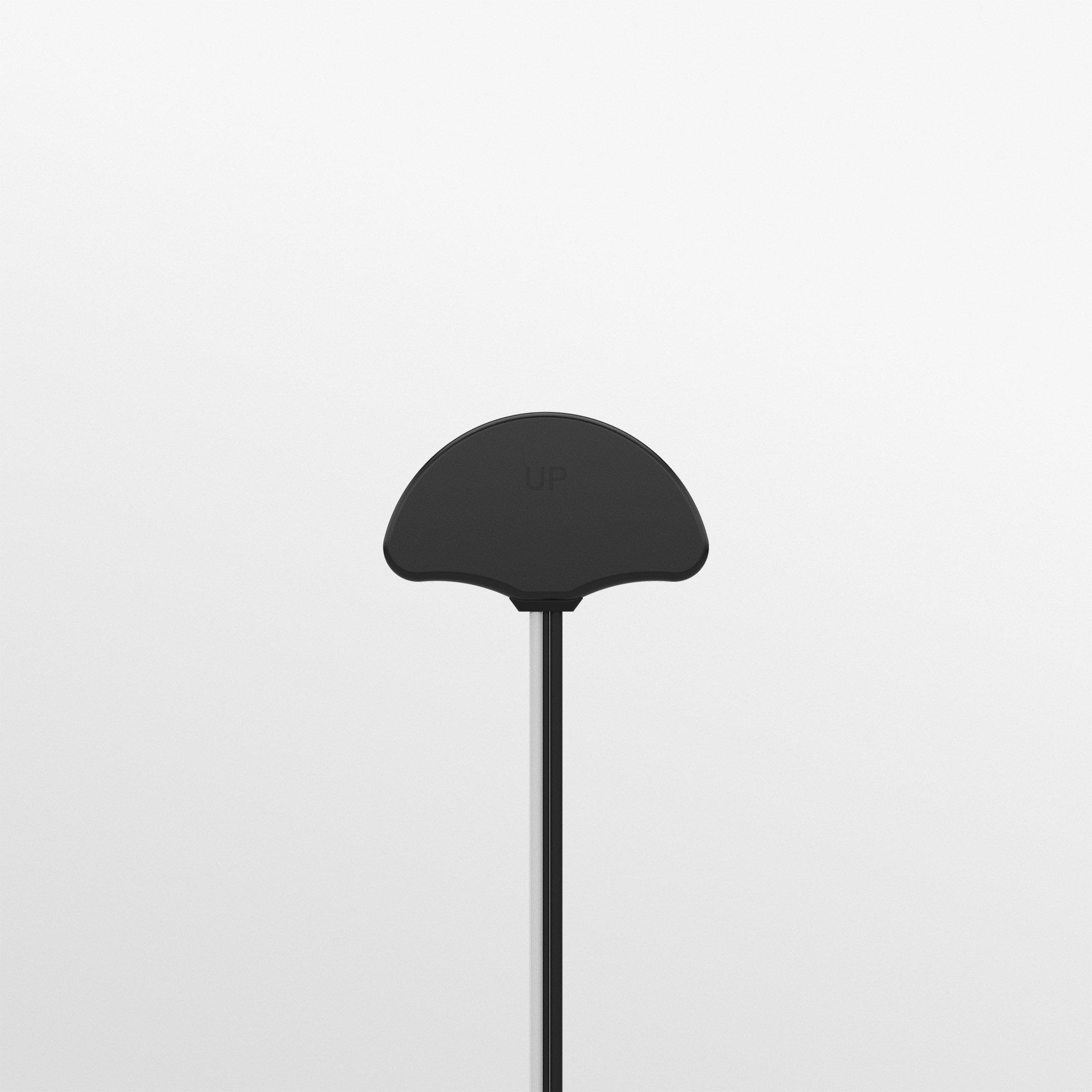

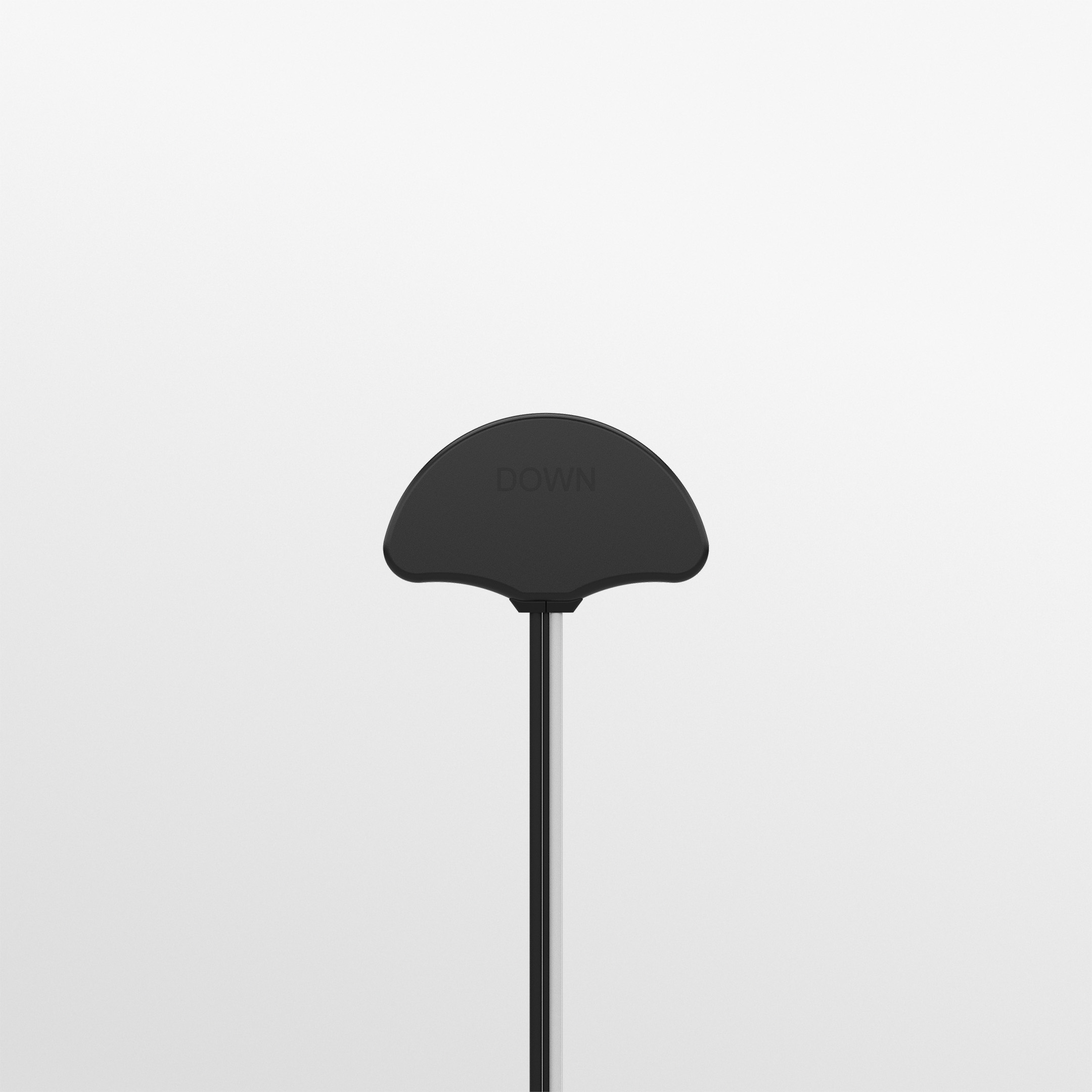

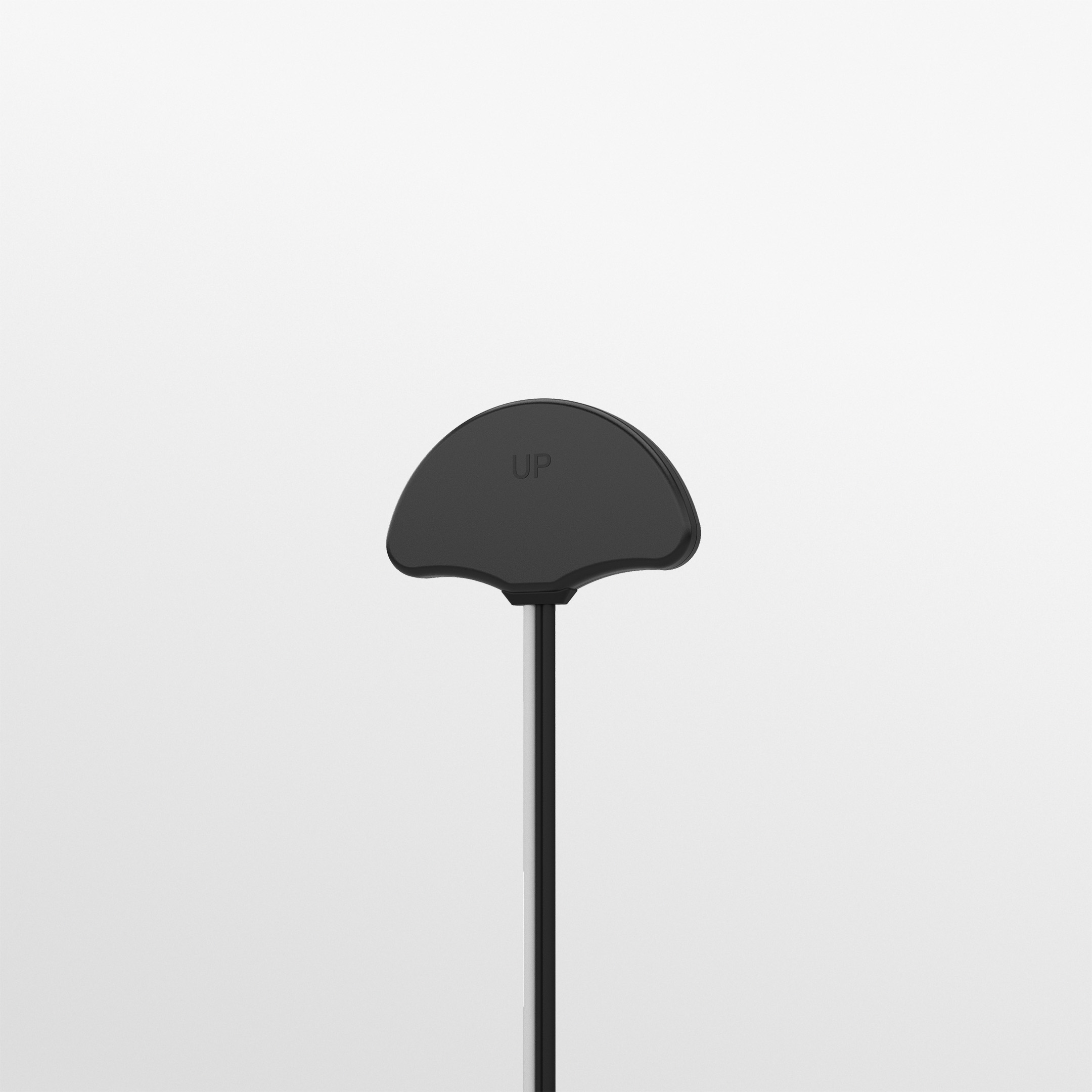

The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications that require a positioning function.

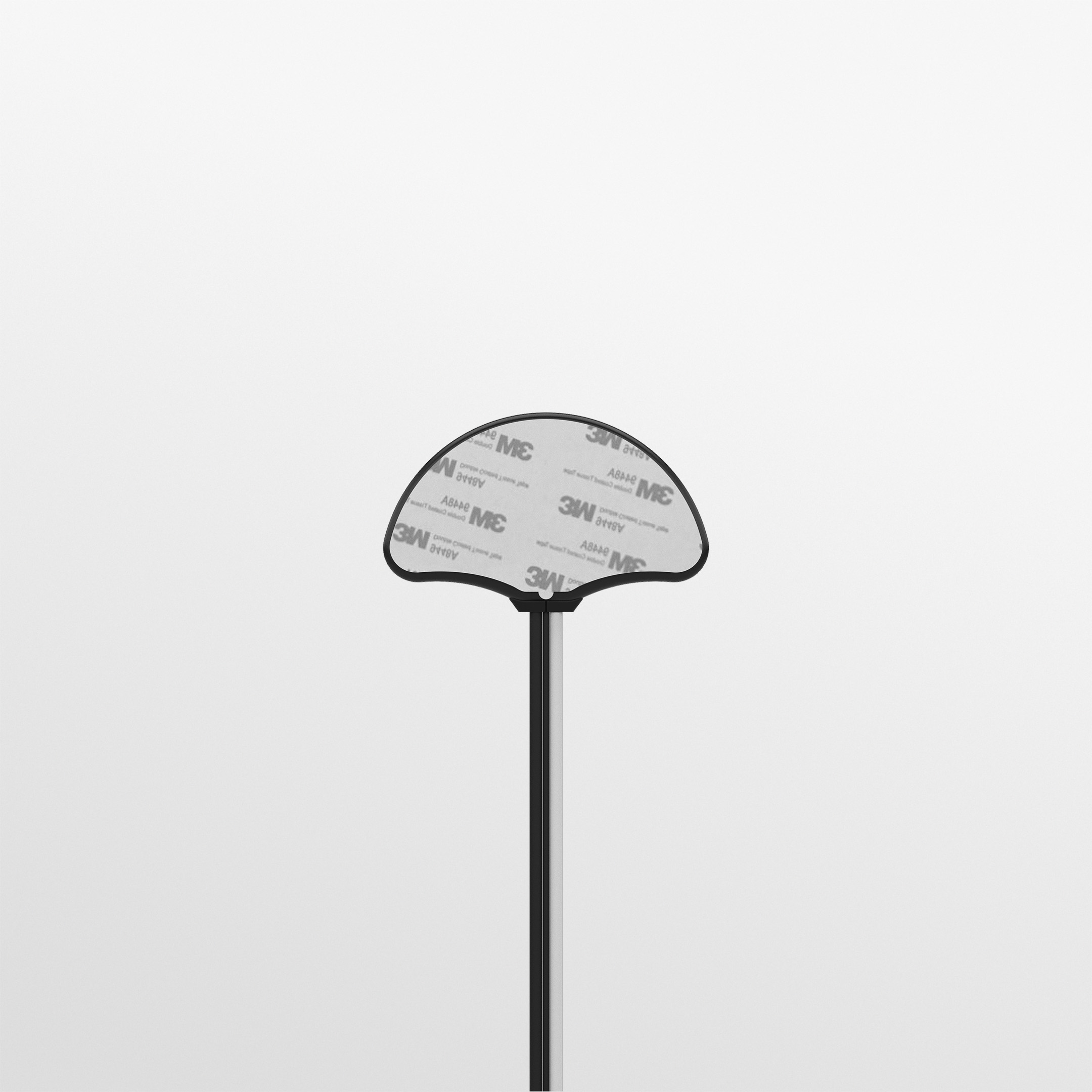

The antenna can be fitted on or under a vehicle dashboard or on a windshield using the supplied acrylic adhesive sealing pad. Supplied with integrated 3m (10′) cables that are compliant with UN ECE R118 and either SMA plug or FAKRA connectors, the antenna will offer plug-and-play connectivity with many different devices.

Description

The GPSCO-7-27-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications requiring 2G/3G/4G, WIFI, and GPS/GNSS.
The compact, robust low-profile housing contains an antenna element covering all current global cellular and LTE bands in freq. range 698-960/1710-3800MHz along with a GPS/GNSS/Galileo/Beidou antenna for applications that require a positioning function.

Product overview

The GPSCO-7-27-24-58 range has been designed as a cost effective solution for telematics/asset tracking applications requiring 2G/3G/4G, WIFI, and GPS/GNSS.

Product Features

Compact Design for Easy Installation Can be mounted on or under the vehicle’s dashboard 3-in-1 Cellular + GPS + WiFi antenna Covers all 2G/3G/4G LTE bands Omni-directional and Ground-plane independent Integrated GPS and WiFi included

Benefits

A Plug-and-Play Solution with no Additional Tuning Versatile Product for Multiple Applications Improves your Cellular Connectivity

Application

In-vehicle Connectivity Asset Tracking Solution

Additional information

Colour	Black
4G/5G	SiSo
GPS	1 Module
Cable Length	Between 3m & 5m
Connector (LTE)	FAKRA D, SMA (m)
Connector (WIFI)	FAKRA I, Reverse Polarity SMA
Connector (GPS)	FAKRA C, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	20
Frequency Range \| Gain	890 – 960MHz; 1710 – 2170MHz \| 4.5dBi; 2500 – 3800MHz \| 4.5dBi; 4900 – 6000MHz \| 7dBi
Cellular LTE Elements	SiSo
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1562-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	1 Module
MECHANICAL DATA
Colour	Black
Length	131 (mm) \| 5.16 (in)
Height	15 (mm) \| 0.59 (in)
Operating Temperature	-30°/ +70°C (-22.0°/ +158.0°F)
CABLE DATA
Cable Length – LTE	3 (m) \| 9.84 (ft)
Cable length – GPS	3 (m) \| 9.84 (ft)
Cable Length – WIFI	3 (m) \| 9.84 (ft)
Cable Type (LTE)	FR CS29
Cable Type (GPS)	LMR-100A-FR
Cable Type (WIFI)	FR CS32
TERMINATION DATA
Connector (WIFI)	Reverse Polarity SMA; FAKRA I
Connector (GPS)	SMA (m); FAKRA C
Connector (LTE)	SMA (m); FAKRA D
MOUNTING DATA
Mounting Type Temp	Glass Mount
Mounting Methods	Glass Mount
TECHNOLOGY DATA
Technology	GPS; 4G/5G; WIFI; 5G; 2G/3G; WIFI SISO; 2G/3G/4G; FirstNet; GNSS

Available selections

Colour	Black
4G/5G	SiSo
GPS	1 Module
Cable Length	Between 3m & 5m
Connector (LTE)	FAKRA D SMA (m)
Connector (WIFI)	FAKRA I Reverse Polarity SMA
Connector (GPS)	FAKRA C SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS | WIFI

GPSCO-7-27-24-58	Black \| SiSo \| 1 Module \| Yes
3m	3m \| 3m
SMA (m)	SMA (m) \| Reverse Polarity SMA
GPSCOF-7-27-24-58	Black \| SiSo \| 1 Module \| Yes
3m	3m \| 3m
FAKRA D	FAKRA C \| FAKRA I

Configuration options

Option	Available values
Colour	Black
4G 5G Mimo	SiSo
Gps	1 Module
Cable Length	Between 3m & 5m
Connector Lte	FAKRA D, SMA (m)
Connector Wifi	FAKRA I, Reverse Polarity SMA
Connector Gps	FAKRA C, SMA (m)
