Model / SKU: GPSD-6-60[-VAR]

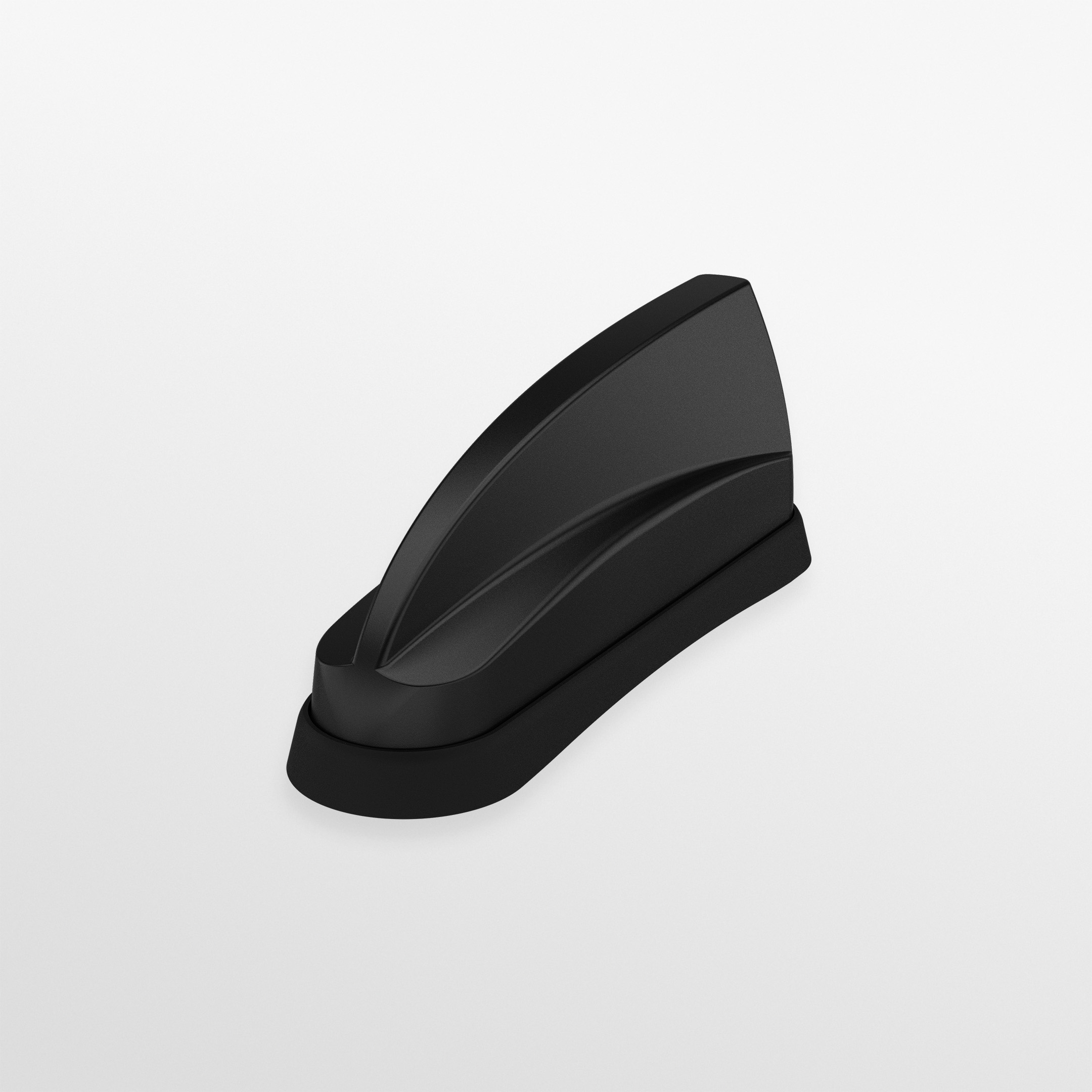

The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.
The GPSD ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family.
The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

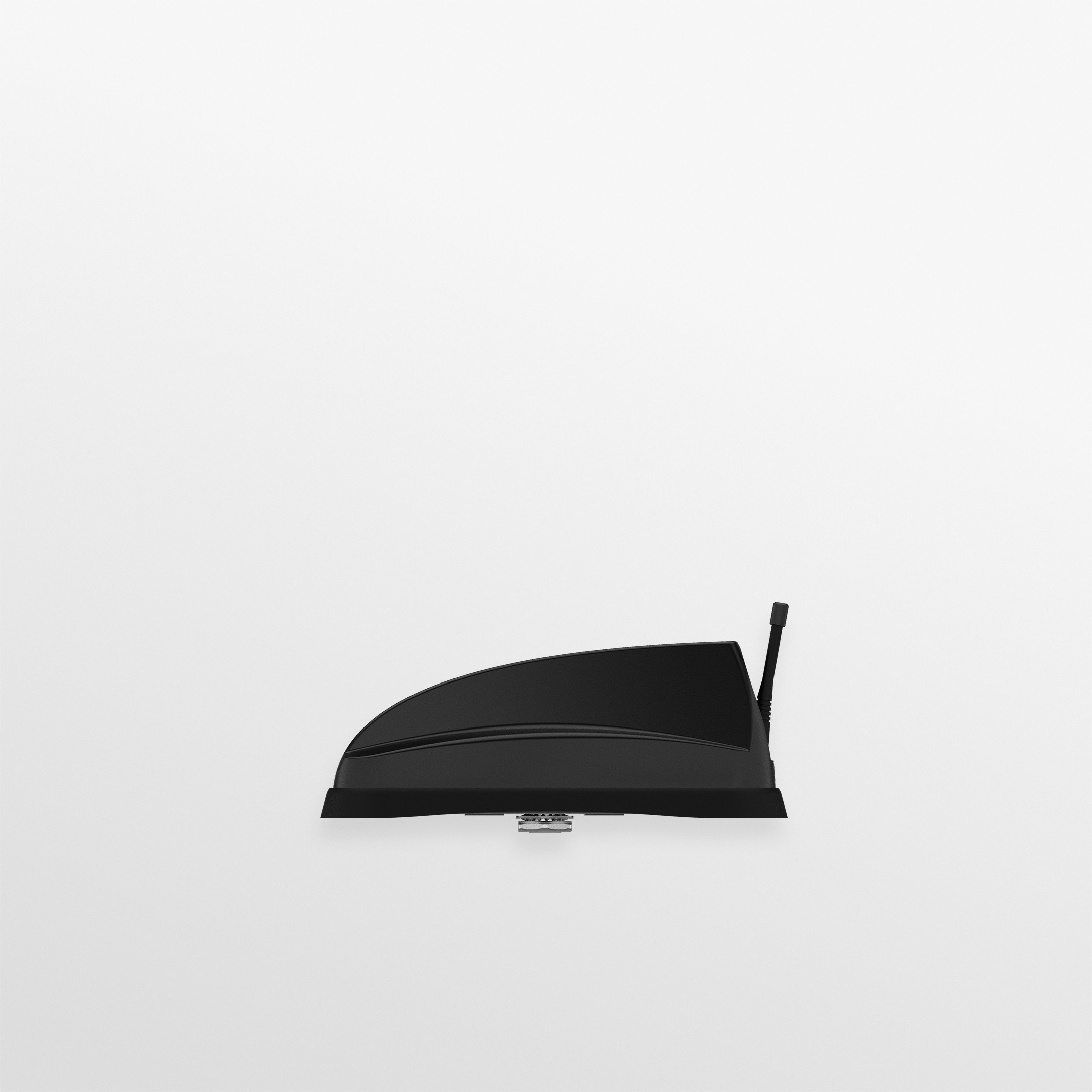

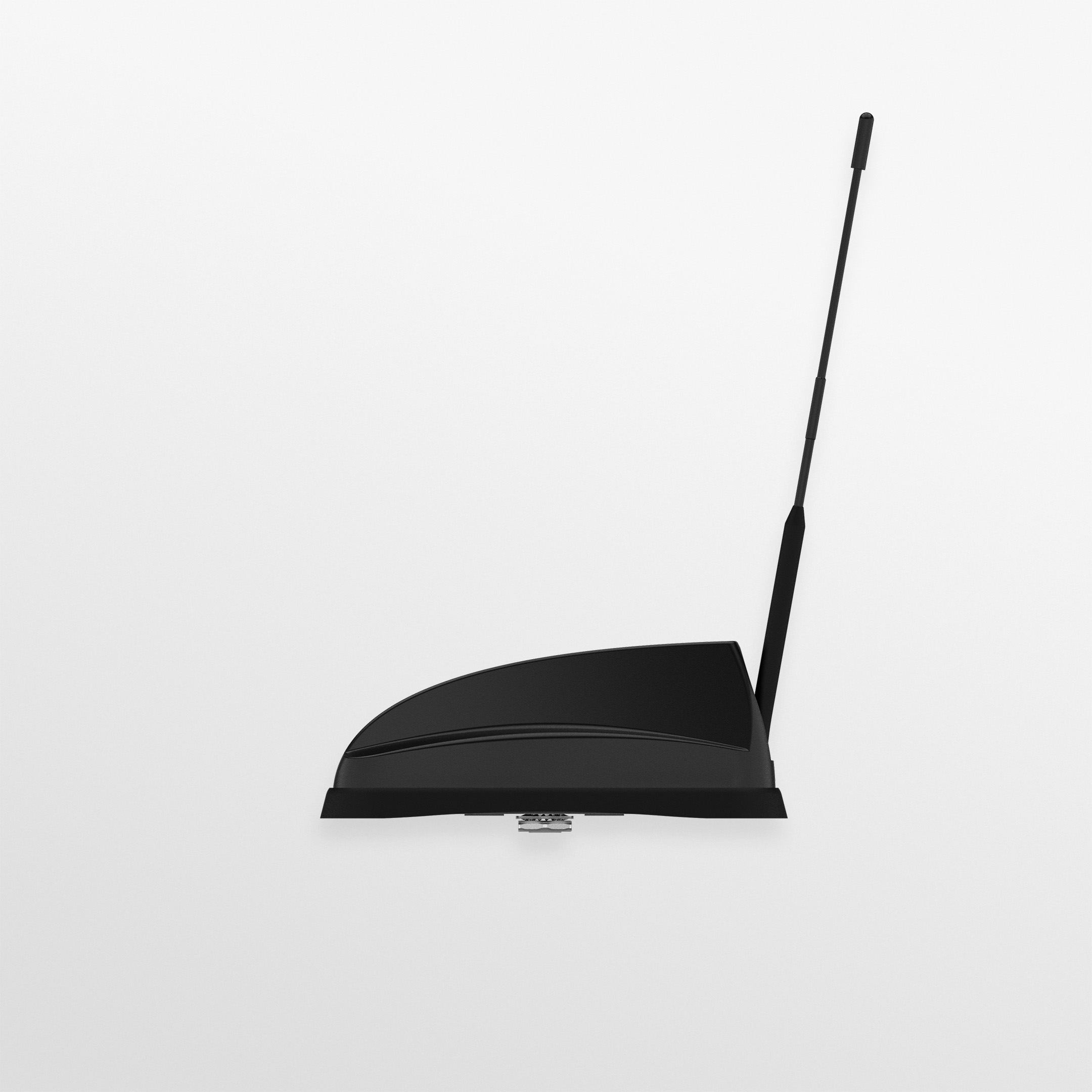

The shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integrated stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required.

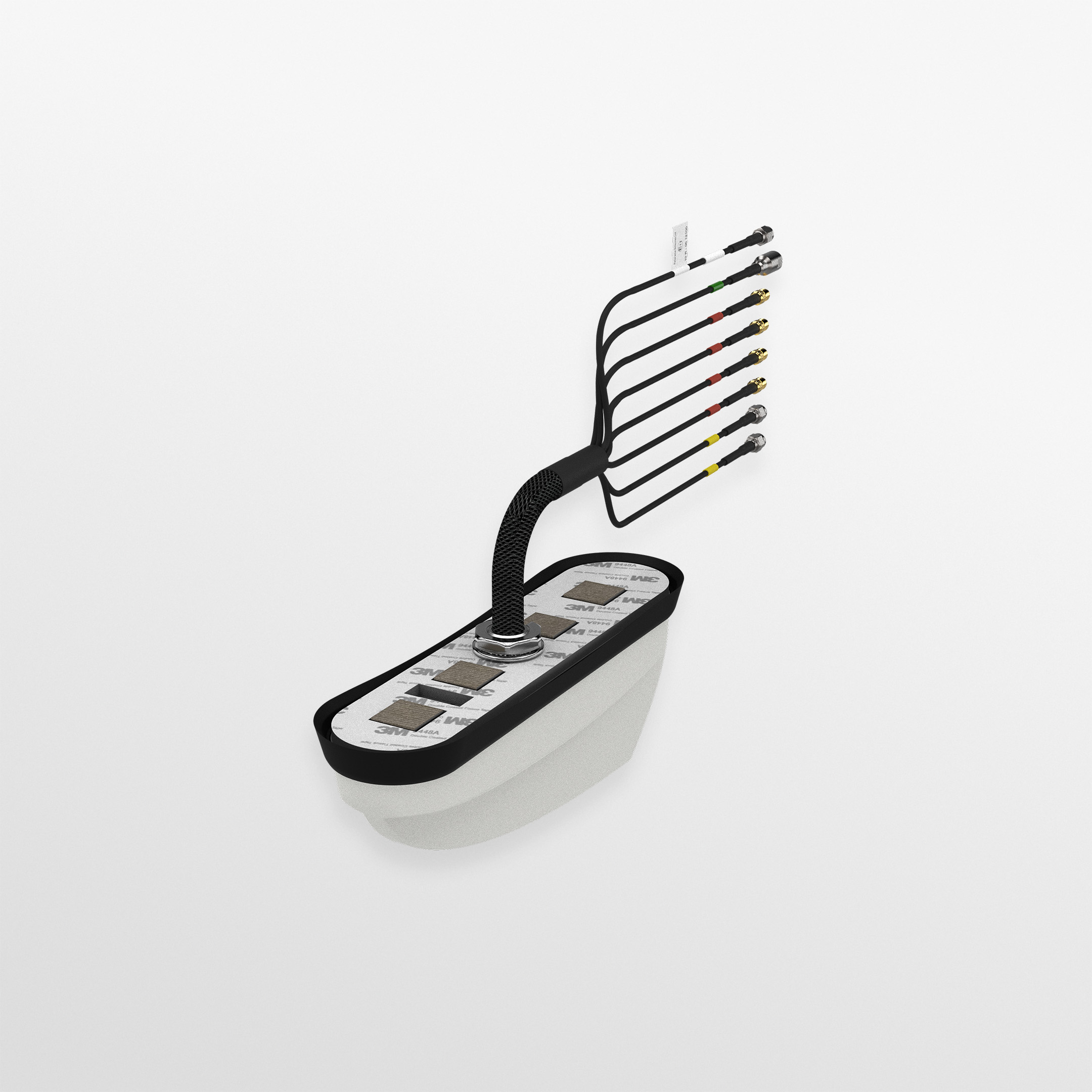

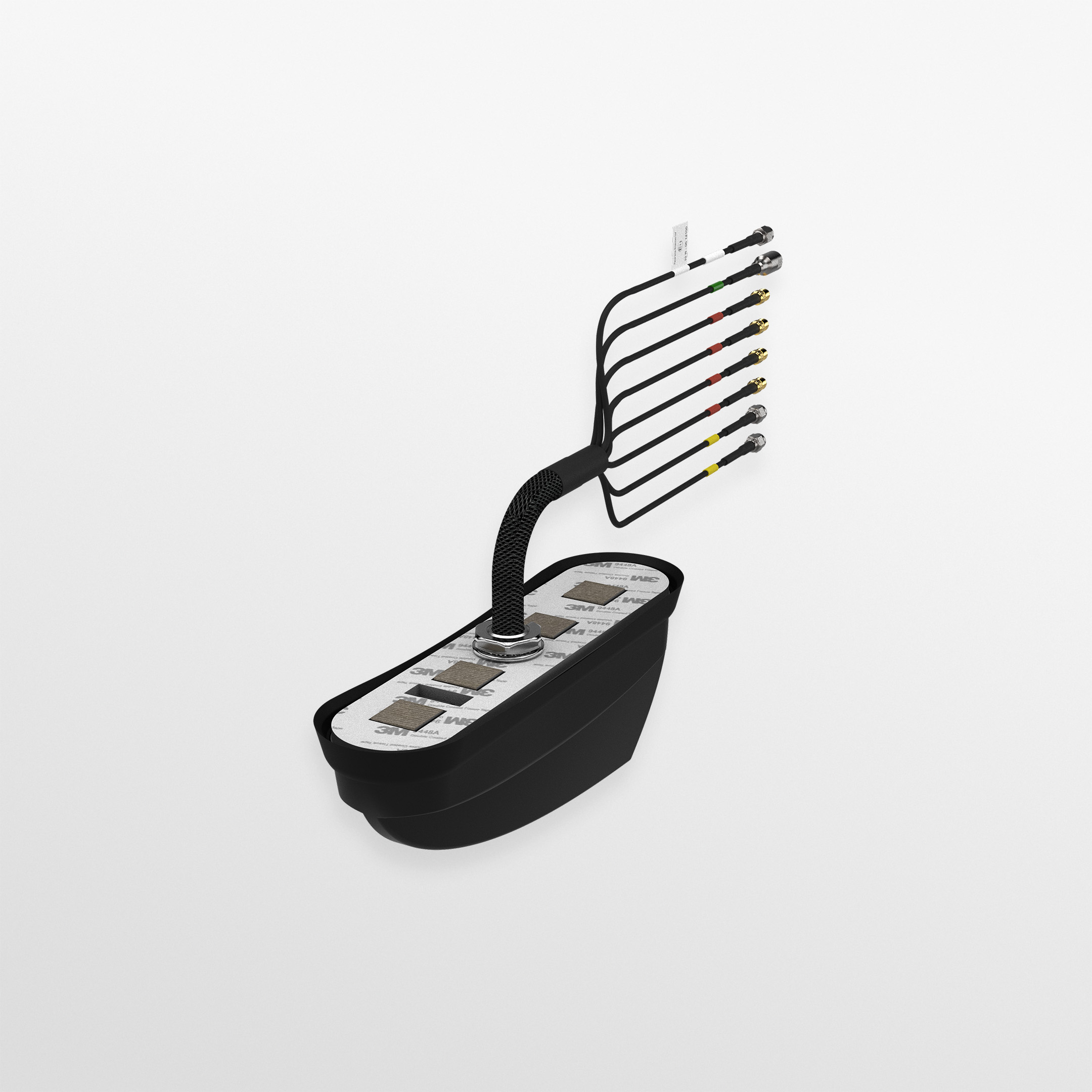

Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential.
The GPSD shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. The GPSD ‘Sharkee®’ range has become a byword for industry leading technology in discrete OEM style shark fin housing. The GPSD-6-60 brings 5G capability to the GPSD family. The antenna should be installed on a metal panel when a comms whip is used, but if whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance. The shark fin housing contains a 2×2 MiMo antenna function for 4G/5G (617- 960/1710-6000MHz) and the option of 2×2, 3×3, or 4×4 MiMo dual band WiFi, which supports WiFi 6. An active antenna for GPS/GLONASS/Galileo/ BeiDou is included, with 26dB gain LNA and advanced filtering for LTE Band 13/14 operation. In addition, there is an integrated stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas. A blanking cap is supplied for when this is not required. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No |
| Cable Length | Below 1m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, SMA (f) |
| Technology | 2G/3G, 2G/3G/4G, 4G/5G, 5G, Band 71 600MHz ready, FirstNet, GNSS, GPS, WIFI, WIFI MIMO |
| Connector (GPS) | FME (f) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Frequency Range | Gain | 617 – 960MHz | 5dBi; 1710 – 3800MHz | 8dBi; 4900 – 6000MHz | 9dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | No; 2 x 2 MIMO; 4 x 4 MIMO; 3 x 3 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 243 (mm) | 9.57 (in) |
| Width | 63 (mm) | 2.48 (in) |
| Height | 90 (mm) | 3.54 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |

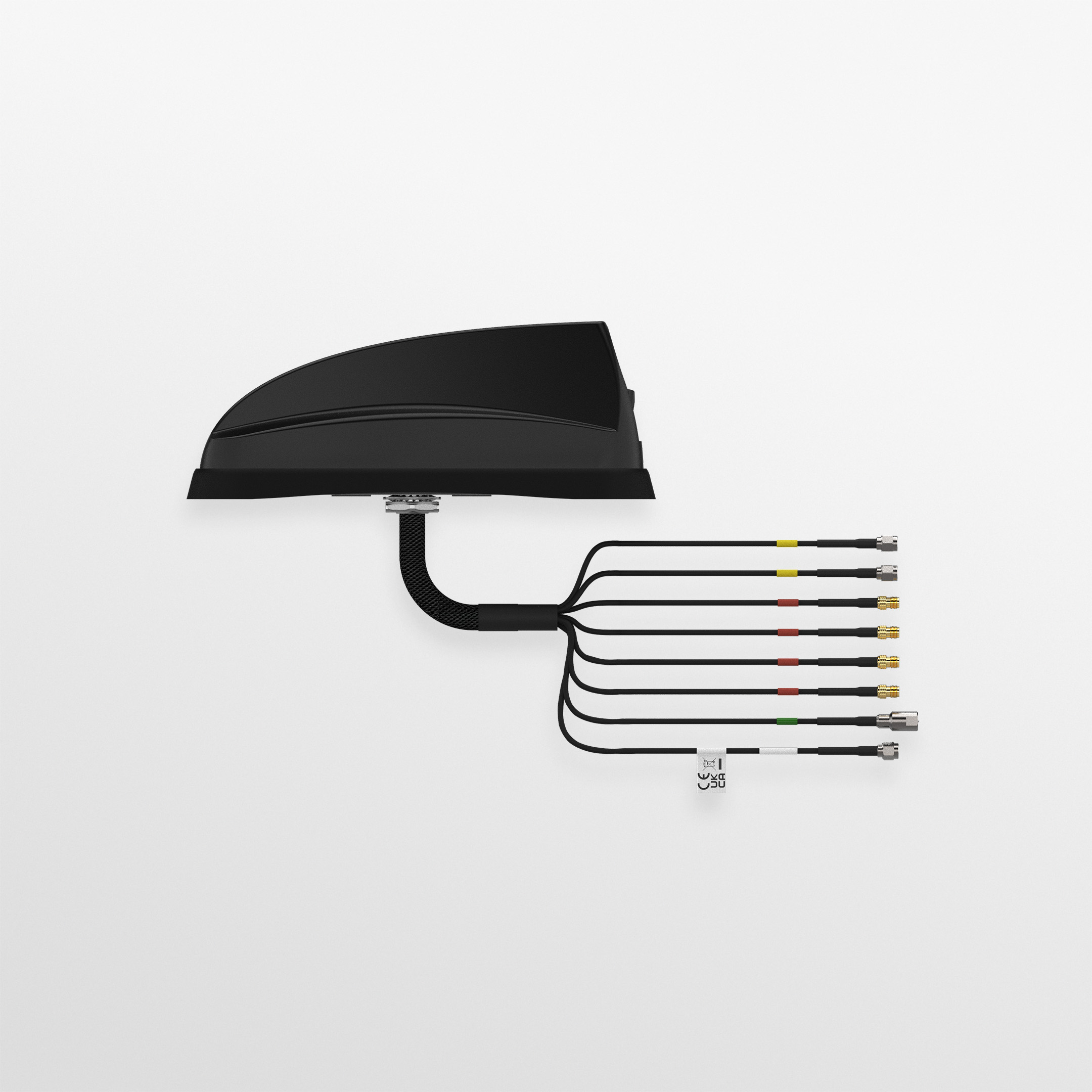

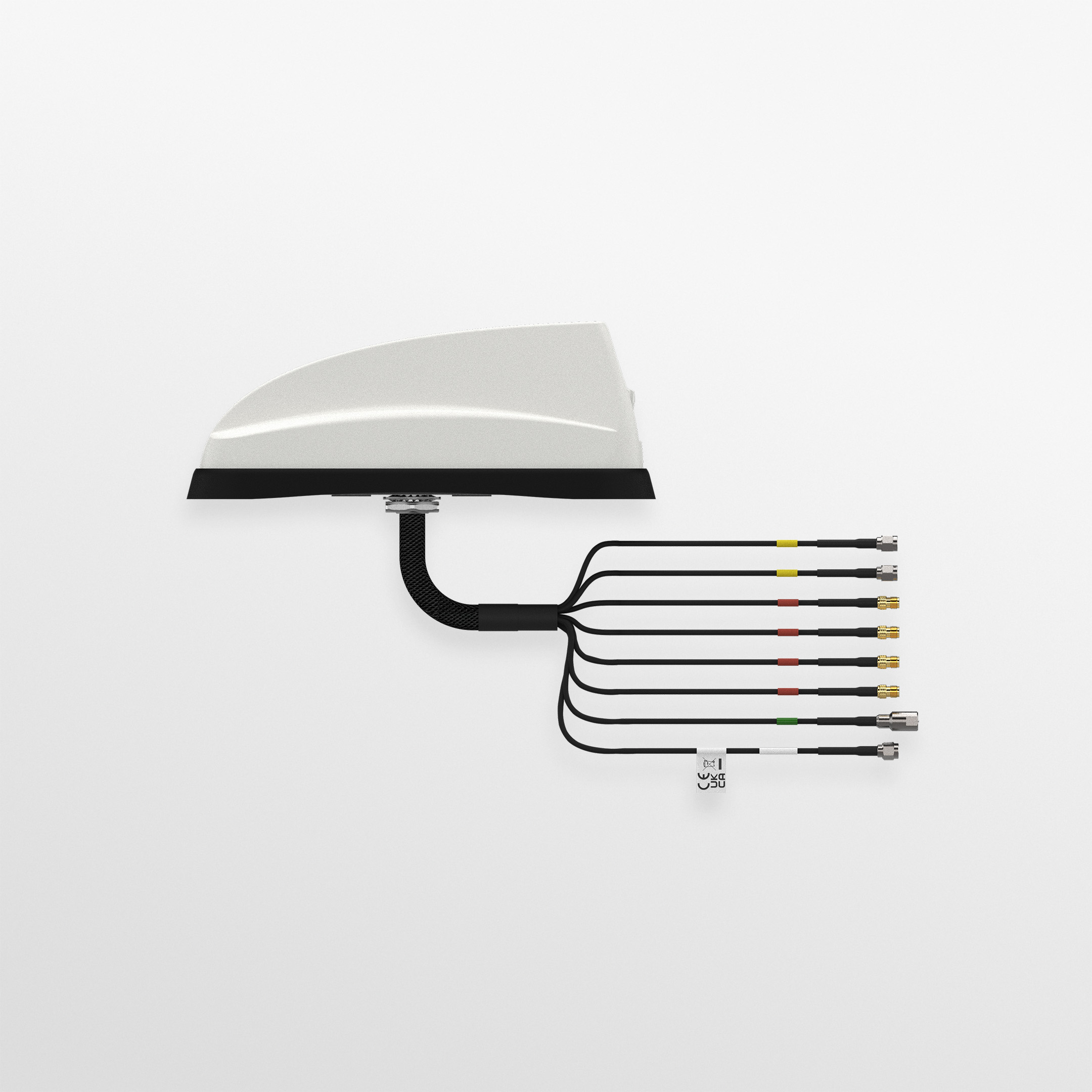

| Cable Length – LTE | 0.3 (m) | 0.98 (ft) |
| Cable length – GPS | 0.3 (m) | 0.98 (ft) |
| Cable Length – WIFI | 0.3 (m) | 0.98 (ft) |
| Cable Type (LTE) | FR RG174 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR RG174 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| Connector (GPS) | FME (f) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic; Panel |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS; WIFI MIMO; WIFI |
