Description

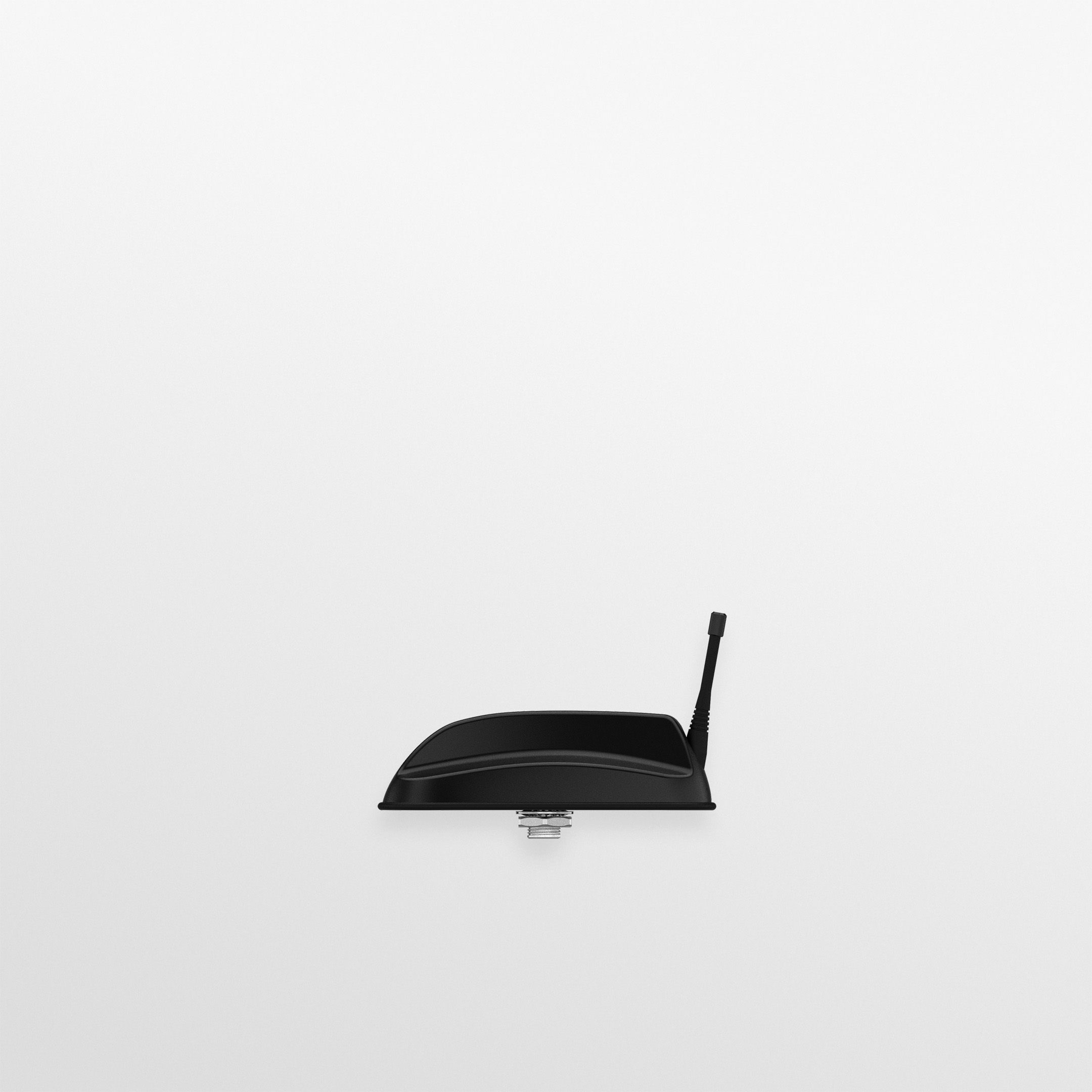

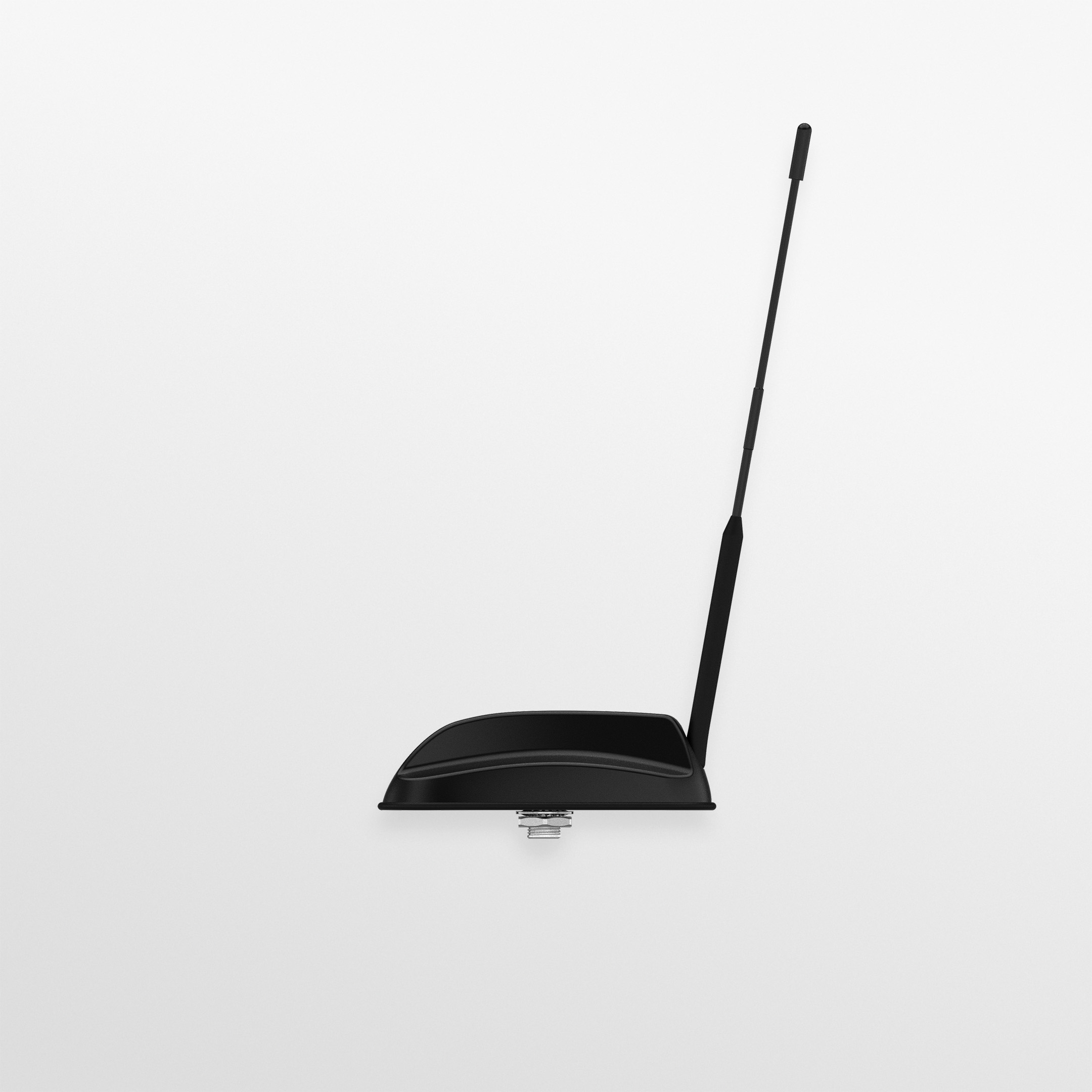

A one size fits all, shark fin style solution for MiMo Cellular, MiMo WiFi, and GPS applications requiring VHF or UHF capability. Compact OEM Style Shark Fin. Multiple Antenna Functions. The GPSD ‘MiMo Sharkee®’ has a compact OEM style shark fin housing that contains 2×2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas.
Technical Datasheet (official Panorama source)
Product overview
A one size fits all, shark fin style solution for MiMo Cellular, MiMo WiFi, and GPS applications requiring VHF or UHF capability. Compact OEM Style Shark Fin. Multiple Antenna Functions.

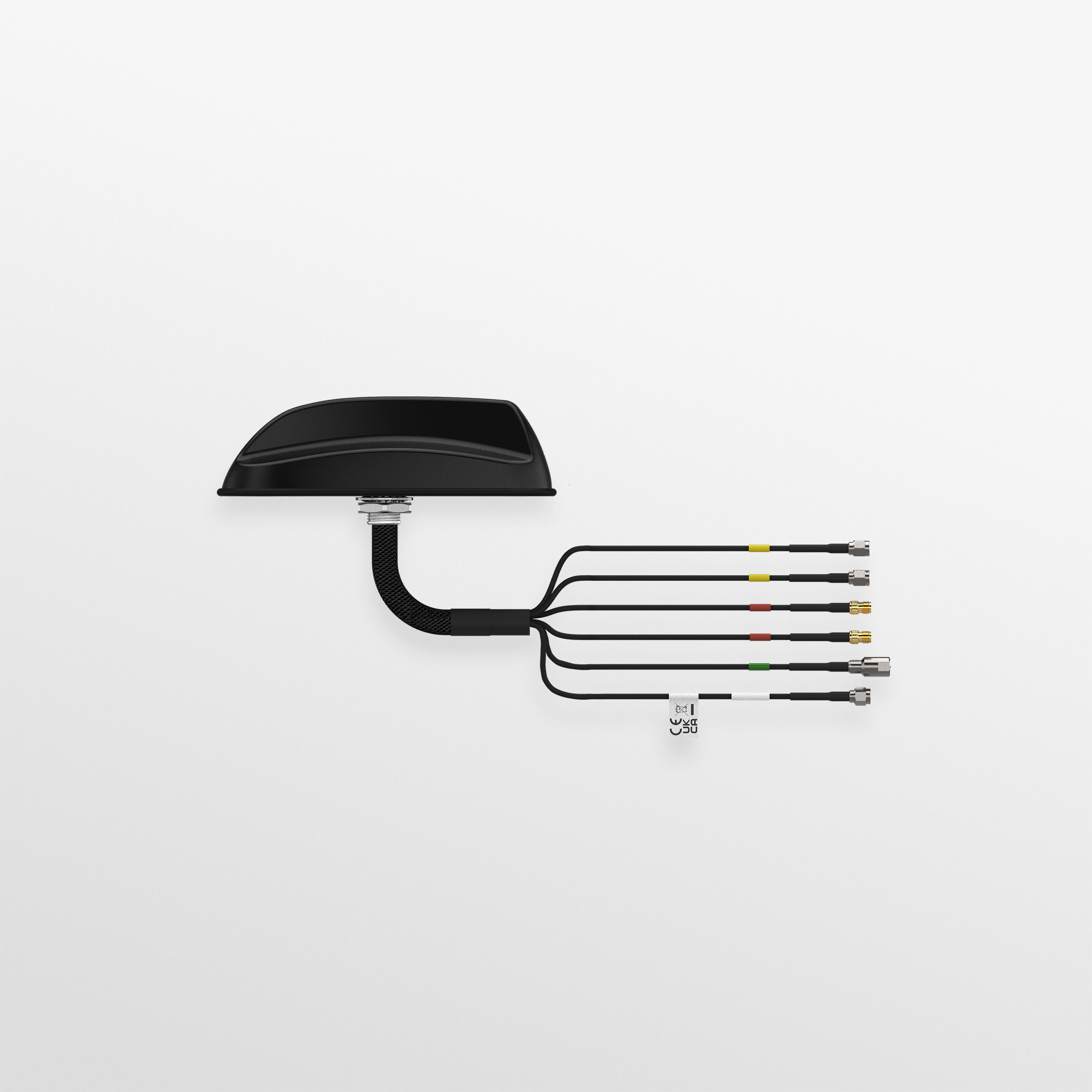

The GPSD ‘MiMo Sharkee®’ has a compact OEM style shark fin housing that contains 2×2 MiMo antenna function for 4G/3G/2G and an active antenna for GPS/GLONASS/Galileo/Beidou with 26dB gain LNA. In addition, there is an integral stud mount for an external antenna whip that can support a range of VHF, UHF, or 700/800MHz antennas.
A further version of GPSD is available that adds 2×2 MiMo antenna function for 2.4/5.8GHz WiFi.
The GPSD shark fin style design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost effective, efficient, and robust antenna is essential. Requiring only a single hole mounting, the GPSD reduces vehicle damage, installation time & cost, and visual impact whilst protecting a vehicle’s resale value.
Product Features
- The best selling version from our Sharkee® antenna series OEM automotive-style SharkFin housing Up to 6 separate antenna functions in a single housing Covers 2×2 MiMo 4G/5G LTE Up to 2×2 MiMo WiFi and GPS/GNSS inside the distinctive SharkFin housing Allows for a range of mobile radio whips Sleek semi-covert styling
Benefits
- Allows the user to combine all their antenna functions into a single housing Reduces installation time and cost by having a single antenna A popular choice by many fleets where roof space is a premium
Application
- Vehicle Communications Two-way radio In-vehicle connectivity
Available selections
| Colour | Black |
|---|
| 4G/5G | 2 x 2 MIMO |
|---|
| GPS | 1 Module |
|---|
| WIFI MIMO | 2 x 2 MIMO No |
|---|
| Cable Length | Below 1m |
|---|
| Connector (LTE) | SMA (m) |
|---|
| Connector (WIFI) | No Connector SMA (f) |
|---|
| Connector (GPS) | FME (f) |
|---|
Models and configurations
SKU; Colour | Cellular | GPS | WIFI
| GPSD-7-27 | - Black | 2 x 2 MIMO | 1 Module | No
|
|---|
| 0.3m | |
|---|
| SMA (m) | |
|---|
| GPSD-7-27-24-58 | - Black | 2 x 2 MIMO | 1 Module | 2 x 2 MIMO
|
|---|
| 0.3m | |
|---|
| SMA (m) | |
|---|
Accessories
| AFB | UHF 1/4 Wave Whip Antenna SEE MORE AFGB | UHF Gain Whip Antenna SEE MORE AFBQ | Flexible VHF 1/4 Wave Whip Antenna SEE MORE AFNT | Ultra flexible Whip Antenna SEE MORE AFM[W] | Robust UHF 1/4 Wave Whip Antenna SEE MORE SAB-224 | Magnetic Mount Solution for Trials and Drive-Testing SEE MORE |
|---|
Configuration options
| Option | Available values |
|---|
| Colour | Black |
|---|
| 4G 5G Mimo | 2 x 2 MIMO |
|---|
| Gps | 1 Module |
|---|
| Mimo Wifi | 2 x 2 MIMO, No |
|---|
| Cable Length | Below 1m |
|---|
| Connector Lte | SMA (m) |
|---|
| Connector Wifi | No Connector, SMA (f) |
|---|
| Connector Gps | FME (f) |
|---|
