GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna

Model / SKU: GPSD[X]4-7-49[X]

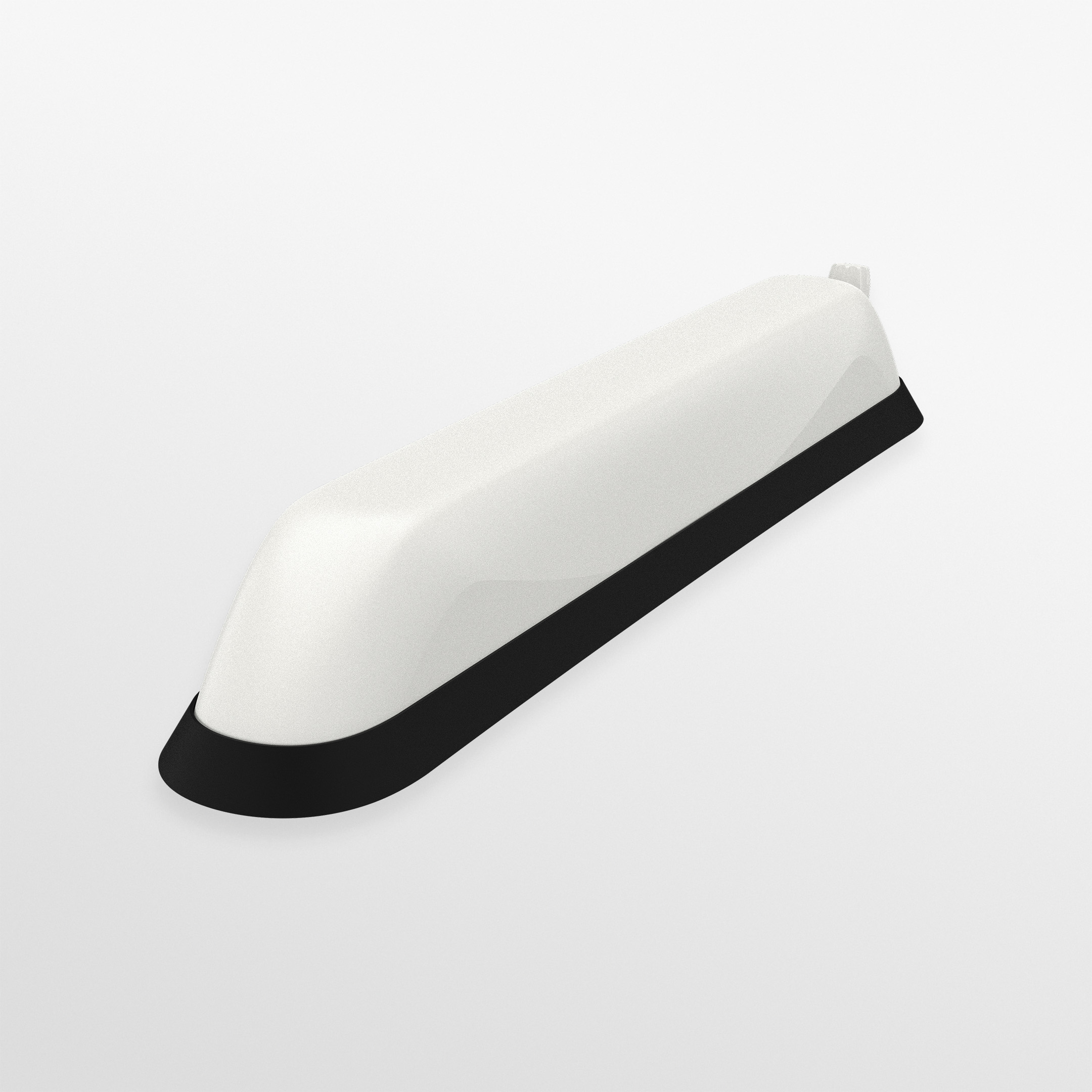

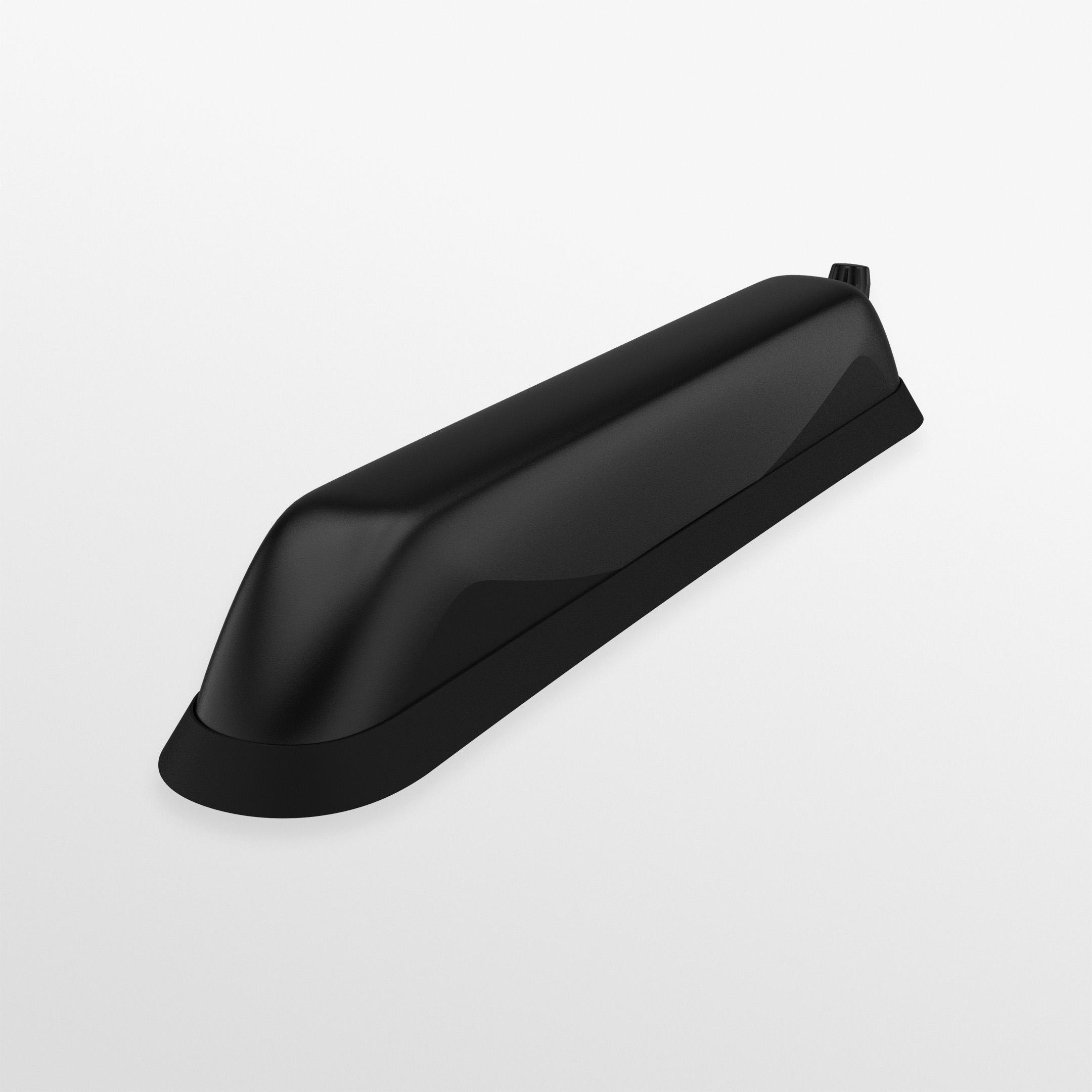

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna

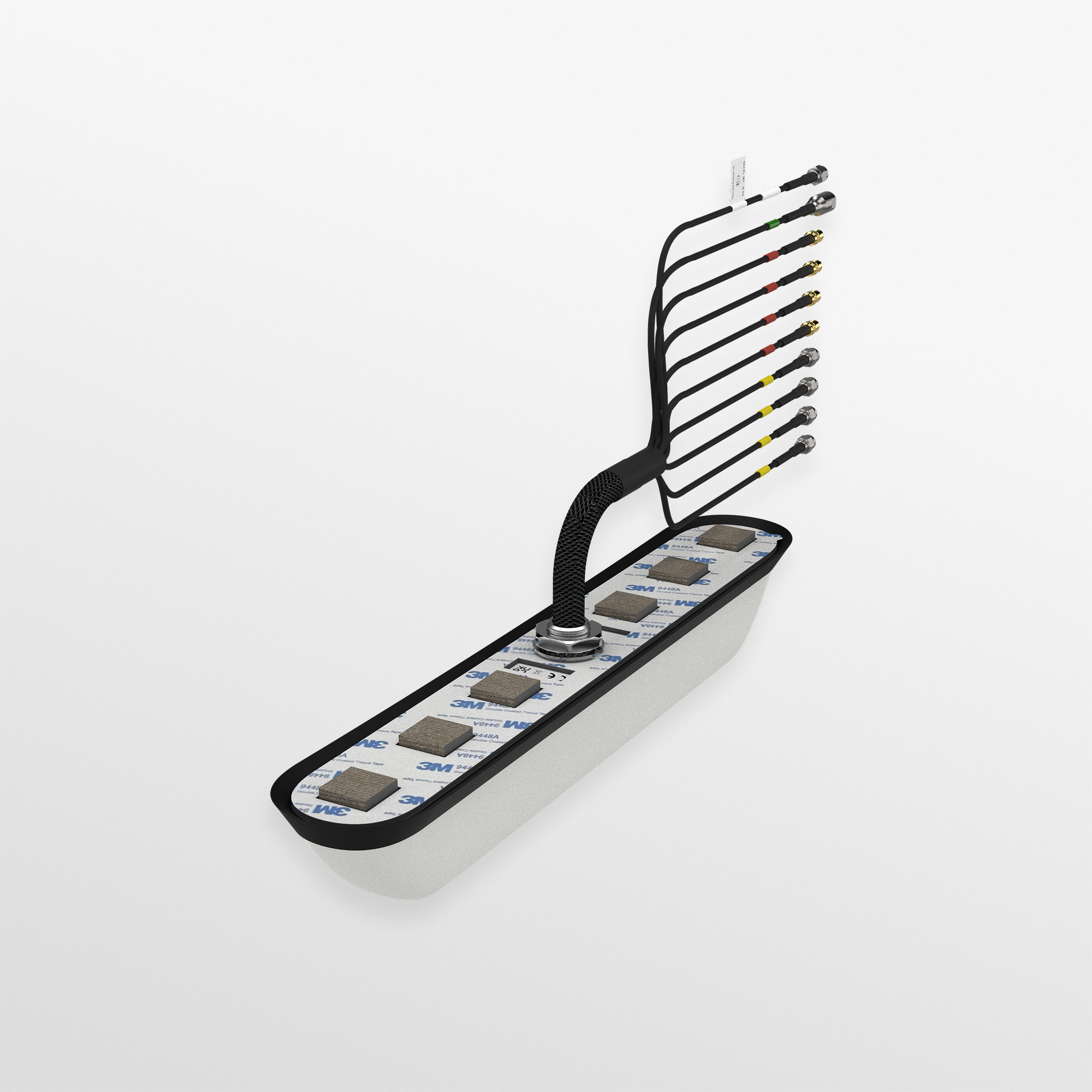

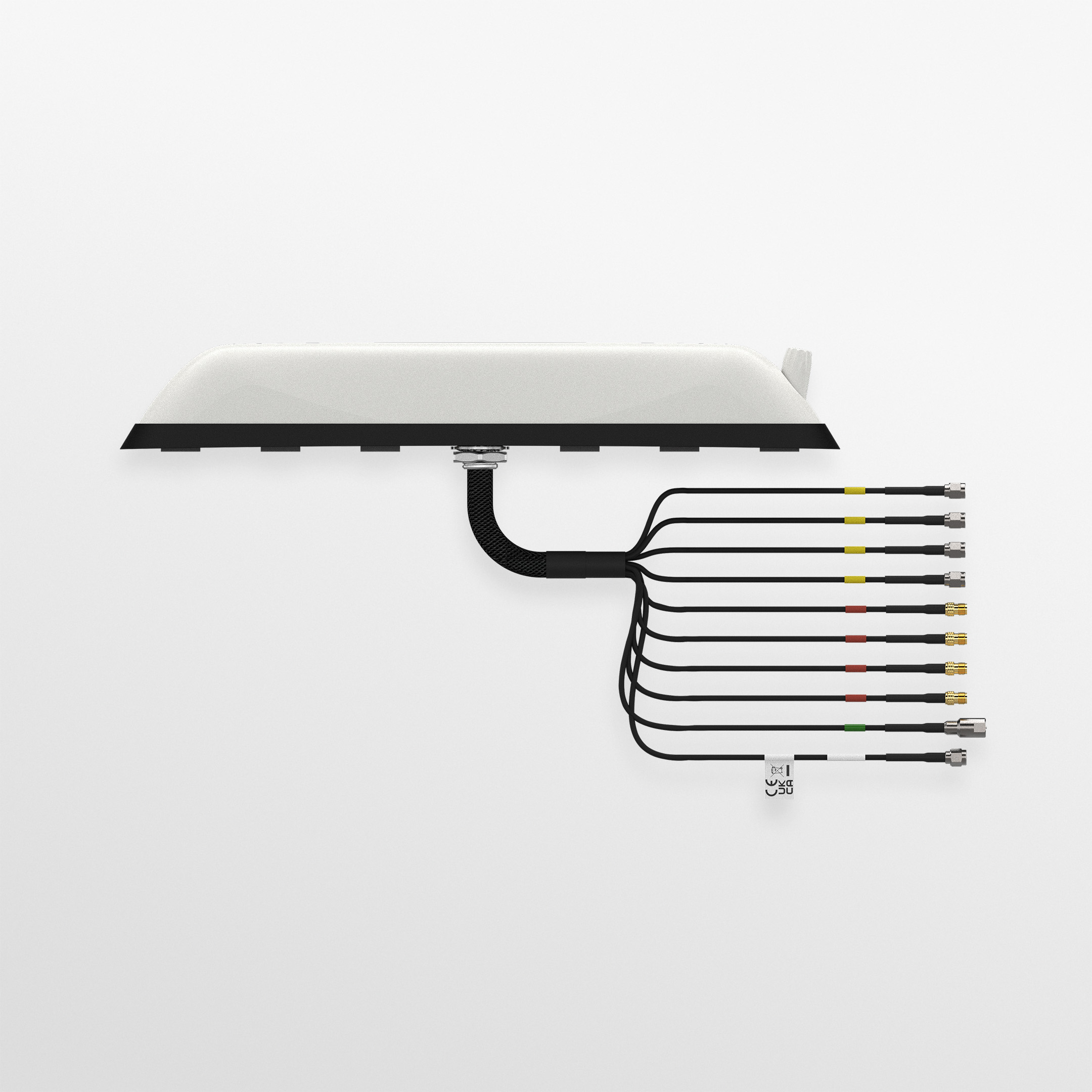

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 2

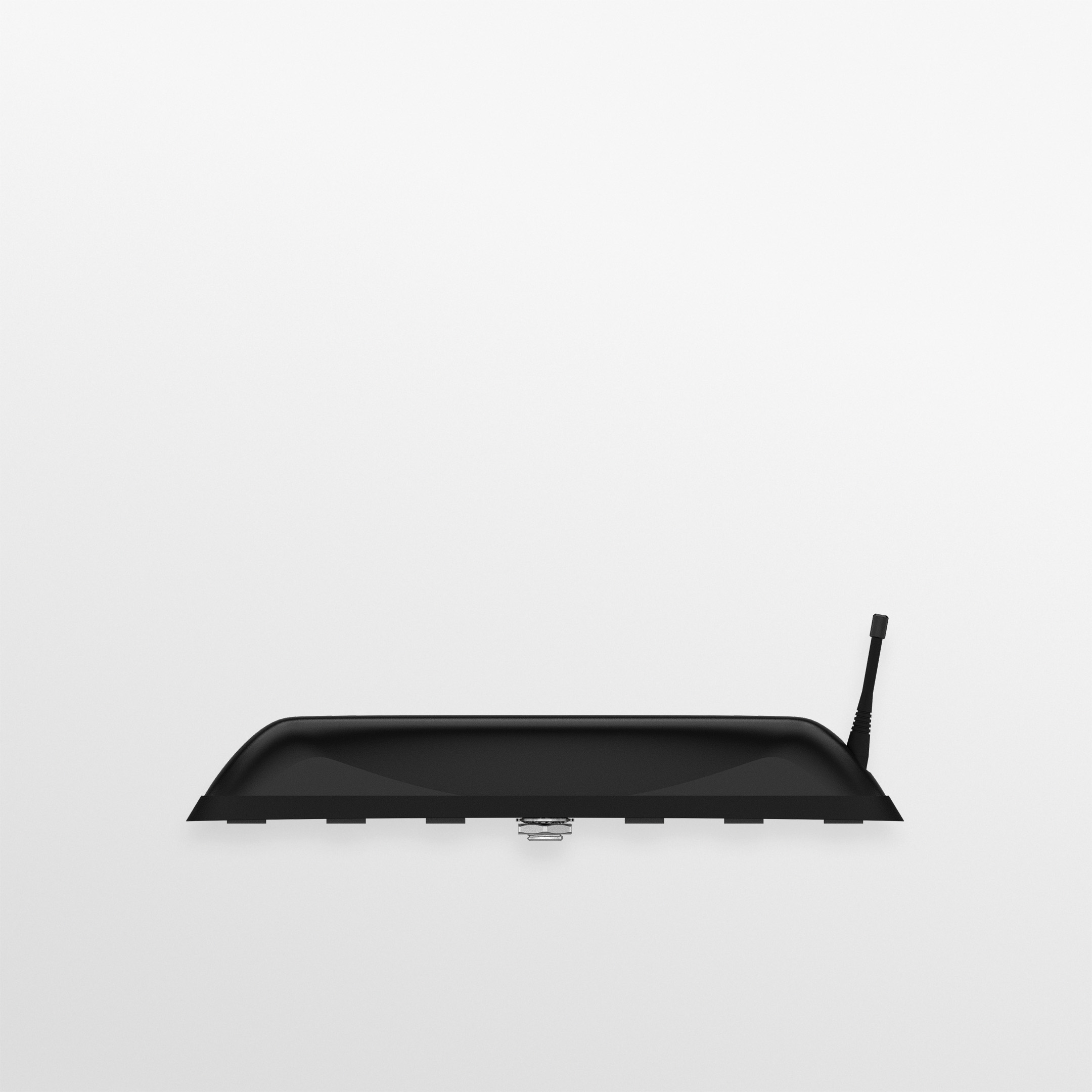

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 3

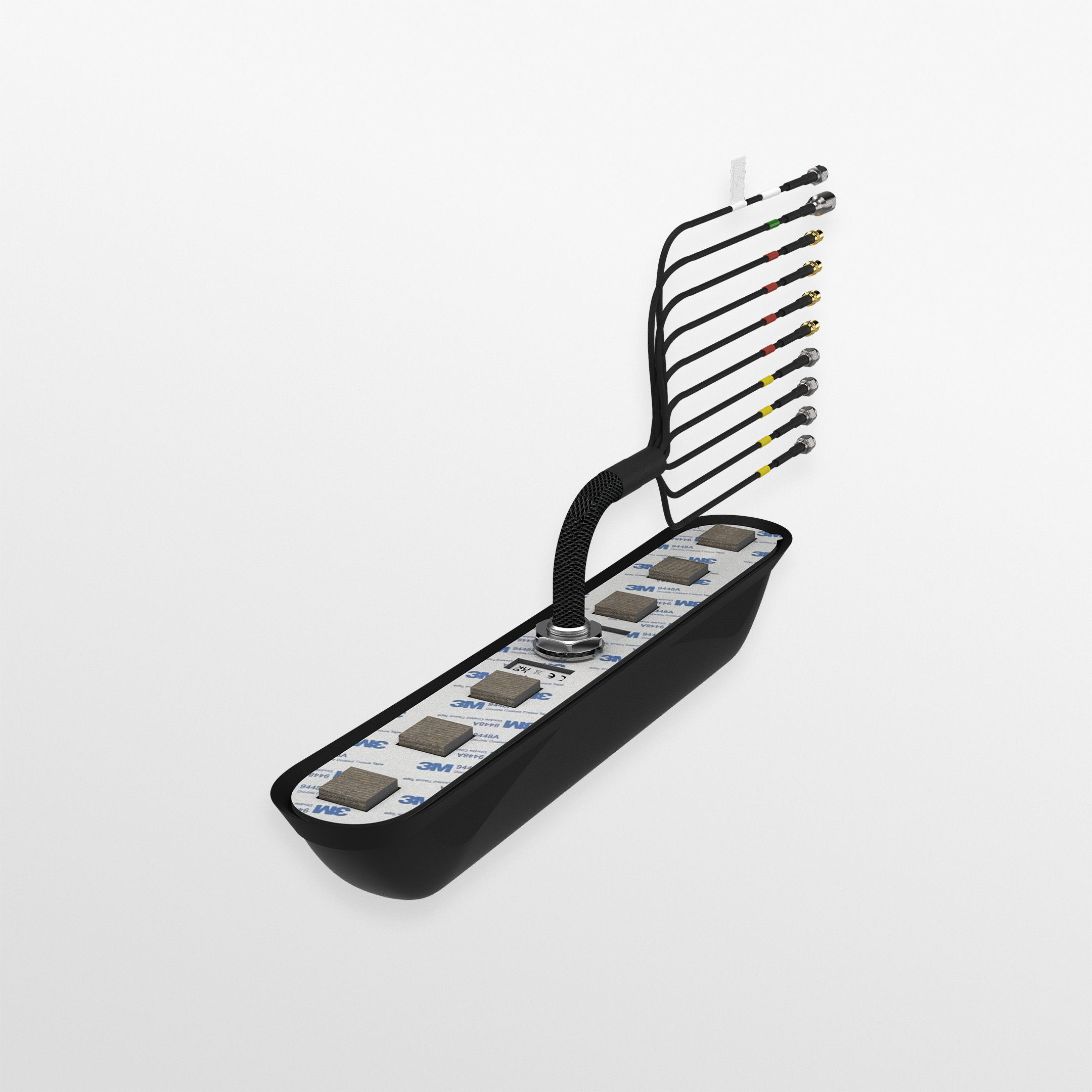

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 4
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 5

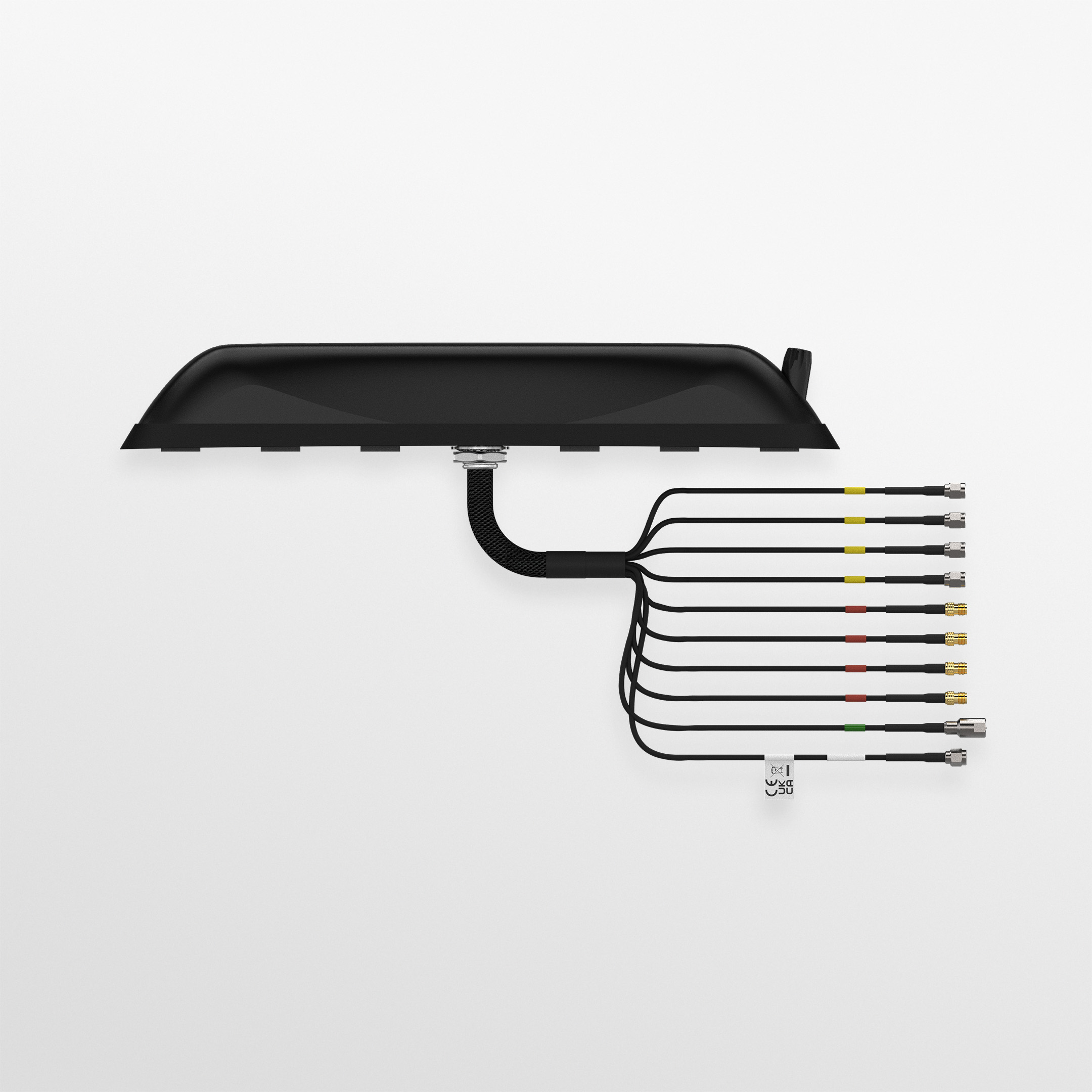

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 6
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 7
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 8
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 9
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 10
GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna - Image 11

GPSD[X]4-7-49[X] | 4×4 MiMo Reef Sharkee® Antenna

The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module.

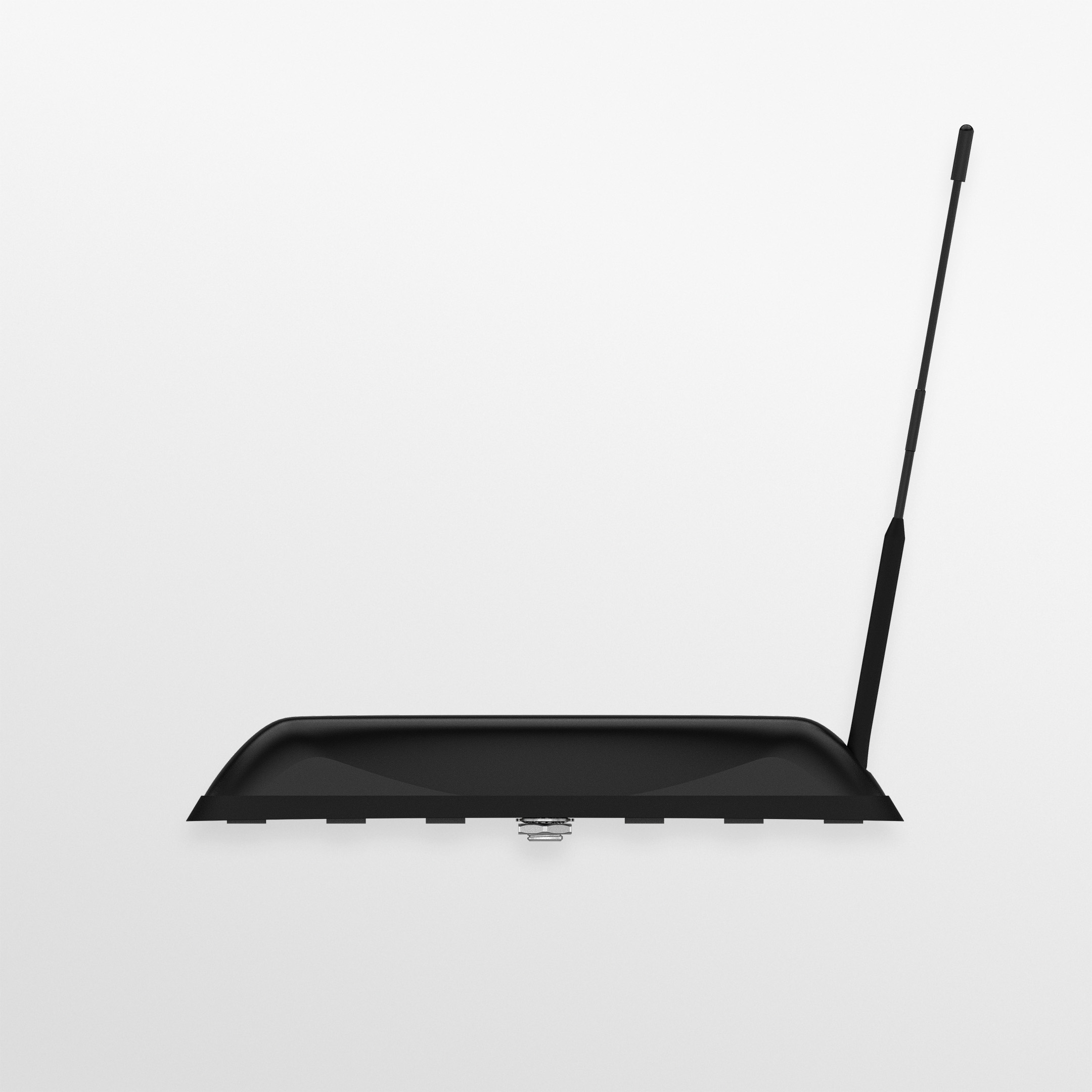

The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications.
The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane.

Description

The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module. The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands.

Product overview

The GPSD[X]4-7-49[X] MiMo Reef Sharkee® antenna is designed to be a discrete one size fits all solution for mobile applications. The robust low profile housing contains 4x 4G LTE / 5G NR elements covering 698-960/1427-4900MHz. Versions of the product also contain up to 4x optional WiFi elements supporting WiFi 6e 2.4/5.150-7.125GHz and optional L1 only or L1/L5 GPS/GNSS module.

The whip position allows the use of a single, dual or tri-band whip operating across the VHF, UHF and 7/800MHz bands. The sleek sharkfin design has low visual impact and at only 52mm (2″) high the antenna can comply with certain state laws regarding light-bar obscuration on police vehicles.

The product is supplied with low loss flame retardant pigtail cables approved to UN ECE R118 and a variety of extension cables are avaliable for different applications. The GPSD[X]4-7-49[X] can be installed on conductive or non-conductive panels but installations with a whip require a conductive ground plane.

Product Features

  • Sleek sharkfin design 4×4 MiMo 698-960/1427-4900MHz Up to 4×4 MiMo WiFi 6e (optional) GPS/GNSS L1/L5 or L1 only 30dB / 26dB LNA (optional) Whip position for single, dual or tri-band whips for secure comms

Benefits

  • IP69K Rated Single hole installation Sleek sharkfin design Low profile Preserve vehicle resale value Whip position

Application

  • Public Safety Mobility First Responders

Additional information

Colour

Black
4G/5G

4 x 4 MIMO, No
GPS

1 Module, No
WIFI MIMO

2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No
Cable Length

Below 1m, Between 5m & 10m
Connector (LTE)

SMA (m)
Connector (VHF/UHF)

FME (m), No Connector
Connector (WIFI)

Articulated SMA (f), No Connector, SMA (f), SMA (m), SMA Rev Pol
Connector (GPS)

No Connector, SMA (m)
ELECTRICAL DATA
PatternOmnidirectional
Typical VSWR<2.5:1
Frequency Range | Gain698 – 960MHz; 1427 – 4900MHz
Cellular LTE Elements4 x 4 MIMO; No
WIFI Elements2 x 2 MIMO; No; 4 x 4 MIMO; 3 x 3 MIMO
UHF ElementsNo
GPS DATA
GPS Frequency Range1559-1612MHz; 1164-1189MHz/1559-1612MHZ
LNA GAIN (dB)26dB; 30dB / 26dB
Number of GPS ElementsNo; 1 Module
MECHANICAL DATA
ColourBlack
Length365 (mm) | 14.37 (in)
Width60 (mm) | 2.36 (in)
Height52 (mm) | 2.05 (in)
Operating Temperature-40°/ +85°C (-40.0°/ +185.0°F)
CABLE DATA
Cable Length – Whip0.3 (m) | 0.98 (ft)
Cable Length – LTEmin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable length – GPSmin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Length – WIFImin: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft)
Cable Type (Whip)RG174
Cable Type (LTE)FR CS32; CS30
Cable Type (GPS)FR CS29; RG174; FR RG174
Cable Type (WIFI)FR CS32; CS30
Quantity of Cell Cable4
Quantity of GPS/GNSS Extension1
Quantity of WIFI Extensionmax: 4
TERMINATION DATA
Connector (WIFI)SMA Rev Pol; SMA (m); SMA (f); Articulated SMA (f)
Connector (GPS)SMA (m)
Connector (VHF/UHF) WhipFME (m)
Connector (LTE)SMA (m)
MOUNTING DATA
Mounting Type FixedPanel
Mounting MethodsPanel
APPROVALS DATA
IP RatingIP69K
Cable FlammabilityUN ECE R118
TECHNOLOGY DATA
Technology4G/5G; 5G; 2G/3G; 2G/3G/4G; CBRS; GPS; WIFI MIMO; WIFI; GNSS; WIFI 6E; ESN; FirstNet

Available selections

ColourBlack
4G/5G4 x 4 MIMO No
GPS1 Module No
WIFI MIMO2 x 2 MIMO 3 x 3 MIMO 4 x 4 MIMO No
Cable LengthBelow 1m Between 5m & 10m
Connector (LTE)SMA (m)
Connector (VHF/UHF)FME (m) No Connector
Connector (WIFI)Articulated SMA (f) No Connector SMA (f) SMA (m) SMA Rev Pol
Connector (GPS)No Connector SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS | WIFI

FI-IN2851
  • Black | 4 x 4 MIMO | No | No
  • 5m
  • SMA (m)
  • Cables Fitted
FIND4-7-49
  • Black | 4 x 4 MIMO | No | No
  • 0.3m
  • SMA (m)
GP-IN2850
  • Black | 4 x 4 MIMO | 1 Module | 2 x 2 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | SMA Rev Pol
Cables Fitted
  • Cables Fitted | Cables Fitted
GP-IN2855
  • Black | 4 x 4 MIMO | 1 Module | 4 x 4 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | SMA Rev Pol
Cables Fitted
  • Cables Fitted | Cables Fitted
GP-IN2882
  • Black | 4 x 4 MIMO | 1 Module | No
5m
  • 5m
SMA (m)
  • SMA (m)
Cables Fitted
  • Cables Fitted
GP-IN2883
  • Black | 4 x 4 MIMO | 1 Module | 3 x 3 MIMO
5m
  • 5m | 5m
SMA (m)
  • SMA (m) | SMA (m)
Cables Fitted
  • Cables Fitted | Cables Fitted
GPSD4-7-49
  • Black | 4 x 4 MIMO | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
GPSD4-7-49-D
  • Black | 4 x 4 MIMO | 1 Module | 2 x 2 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
GPSD4-7-49-Q
  • Black | 4 x 4 MIMO | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
GPSD4-7-49-T
  • Black | 4 x 4 MIMO | 1 Module | 3 x 3 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
GPSD54-7-49
  • Black | 4 x 4 MIMO | 1 Module | No
0.3m
  • 0.3m
SMA (m)
  • SMA (m)
GPSD54-7-49-D
  • Black | 4 x 4 MIMO | 1 Module | 2 x 2 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
GPSD54-7-49-Q
  • Black | 4 x 4 MIMO | 1 Module | 4 x 4 MIMO
0.3m
  • 0.3m | 0.3m
SMA (m)
  • SMA (m) | SMA (f)
GPSD54-7-49-T
  • Black | No | 1 Module | 3 x 3 MIMO
0.3m
  • 0.3m
SMA (m)
