Description
A one size fits all, shark fin style solution for MiMo UHF LTE, MiMo Cellular LTE, MiMo WiFi and GPS applications requiring VHF or UHF capability.
The GPSD[X]S4-7-38[-X24] series is multi-function antenna with 2×2 MiMo function for 4G and 3.6GHz 5G LTE, 2×2 UHF LTE function from 450-470MHz and incorporates up to two active GPS/GNSS antenna with 26dB gain LNAs. The GPSD version has a M6 stud (under a blanking cover) for an optional comms whip. In addition, versions are available which include 2×2, 3×3 or 4×4 MiMo dual band WiFi antennas.
Product overview
A one size fits all, shark fin style solution for MiMo UHF LTE, MiMo Cellular LTE, MiMo WiFi and GPS applications requiring VHF or UHF capability.
The GPSD[X]S4-7-38[-X24] series is multi-function antenna with 2×2 MiMo function for 4G and 3.6GHz 5G LTE, 2×2 UHF LTE function from 450-470MHz and incorporates up to two active GPS/GNSS antenna with 26dB gain LNAs. The GPSD version has a M6 stud (under a blanking cover) for an optional comms whip. In addition, versions are available which include 2×2, 3×3 or 4×4 MiMo dual band WiFi antennas.
Product Features
- Shark fin styling 1x or 2x GPS/GNSS, MiMo UHF 450-470MHz, MiMo 4G & 3.6GHz 5G cellular & optional 2×2, 3×3 or 4×4 MiMo Heavy duty design for optional VHF or UHF whip
Available selections
| Colour | Black |
|---|
| 4G/5G | 2 x 2 MIMO |
|---|
| GPS | 2 Modules |
|---|
| WIFI MIMO | 2 x 2 MIMO 4 x 4 MIMO No |
|---|
| Cable Length | Below 1m |
|---|
| Connector (LTE) | SMA (m) |
|---|
| Connector (WIFI) | No Connector SMA (f) |
|---|
| Connector (GPS) | FME (f) |
|---|
Models and configurations
SKU; Colour | UHF | UHF MIMO | Cellular | GPS | WIFI
| GPSD2S4-7-38 | - Black | Yes | Yes | 2 x 2 MIMO | 2 Modules | No
|
|---|
| No Cable | |
|---|
| No Connector | - No Connector | SMA (m) | FME (f)
|
|---|
| GPSD2S4-7-38-D24 | - Black | Yes | Yes | 2 x 2 MIMO | 2 Modules | 2 x 2 MIMO
|
|---|
| No Cable | - No Cable | 0.3m | 0.3m | 0.3m
|
|---|
| No Connector | - No Connector | SMA (m) | FME (f) | SMA (f)
|
|---|
| GPSD2S4-7-38-Q24 | - Black | Yes | Yes | 2 x 2 MIMO | 2 Modules | 4 x 4 MIMO
|
|---|
| No Cable | - No Cable | 0.3m | 0.3m | 0.3m
|
|---|
| No Connector | - No Connector | SMA (m) | FME (f) | SMA (f)
|
|---|
Configuration options
| Option | Available values |
|---|
| Colour | Black |
|---|
| 4G 5G Mimo | 2 x 2 MIMO |
|---|
| Gps | 2 Modules |
|---|
| Mimo Wifi | 2 x 2 MIMO, 4 x 4 MIMO, No |
|---|
| Cable Length | Below 1m |
|---|
| Connector Lte | SMA (m) |
|---|
| Connector Wifi | No Connector, SMA (f) |
|---|
| Connector Gps | FME (f) |
|---|

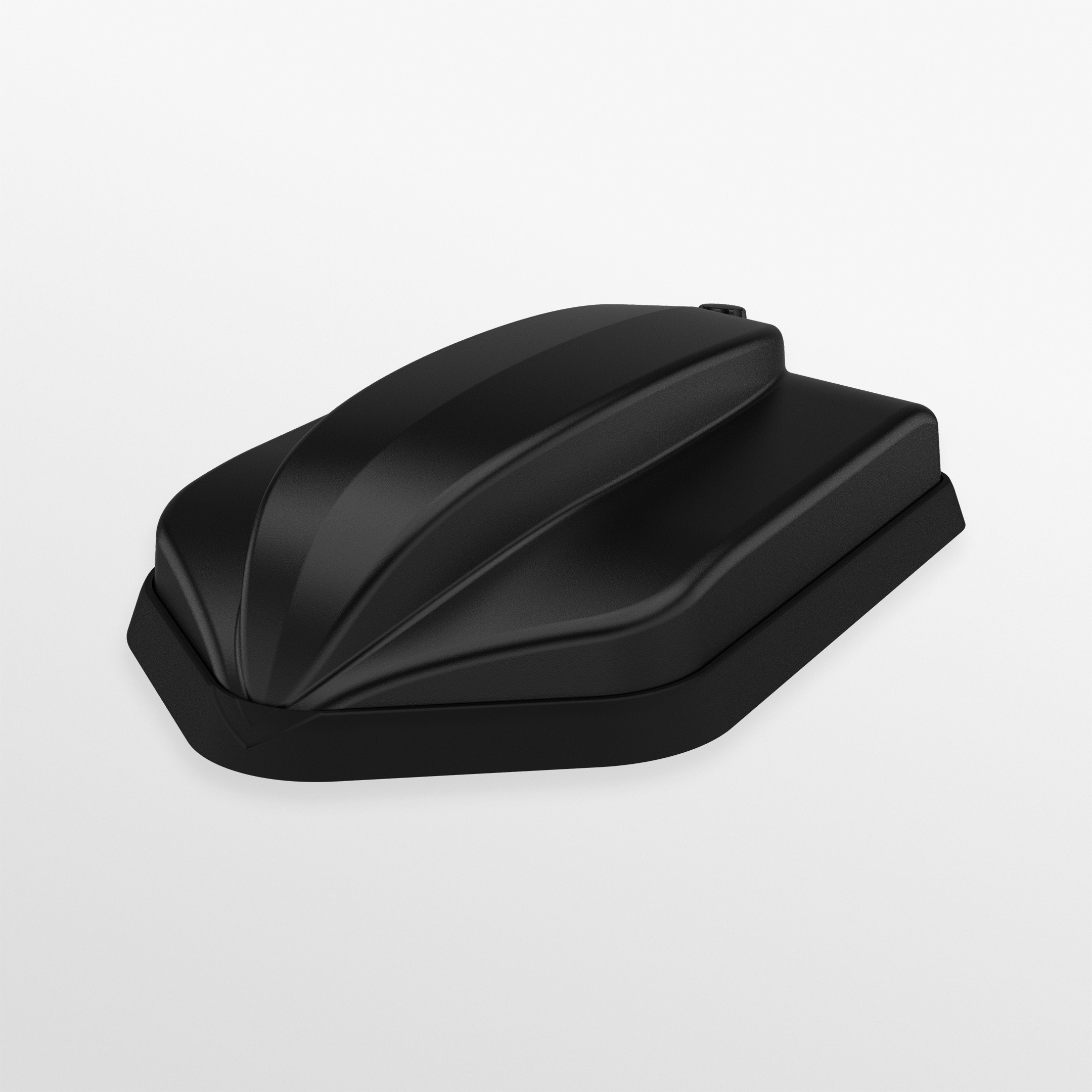

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-1-Black-Main-View.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")

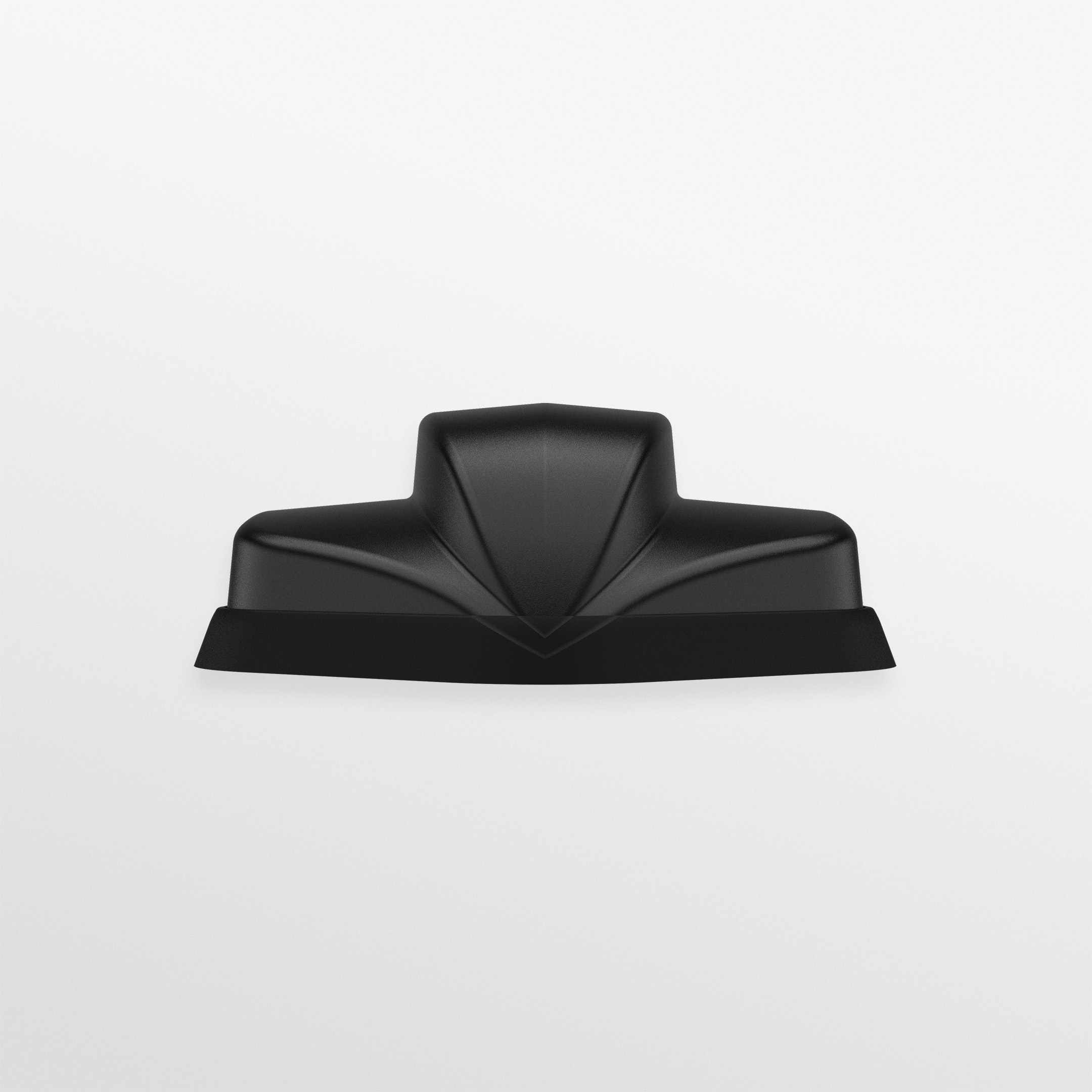

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-2-Black-Front-View.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")

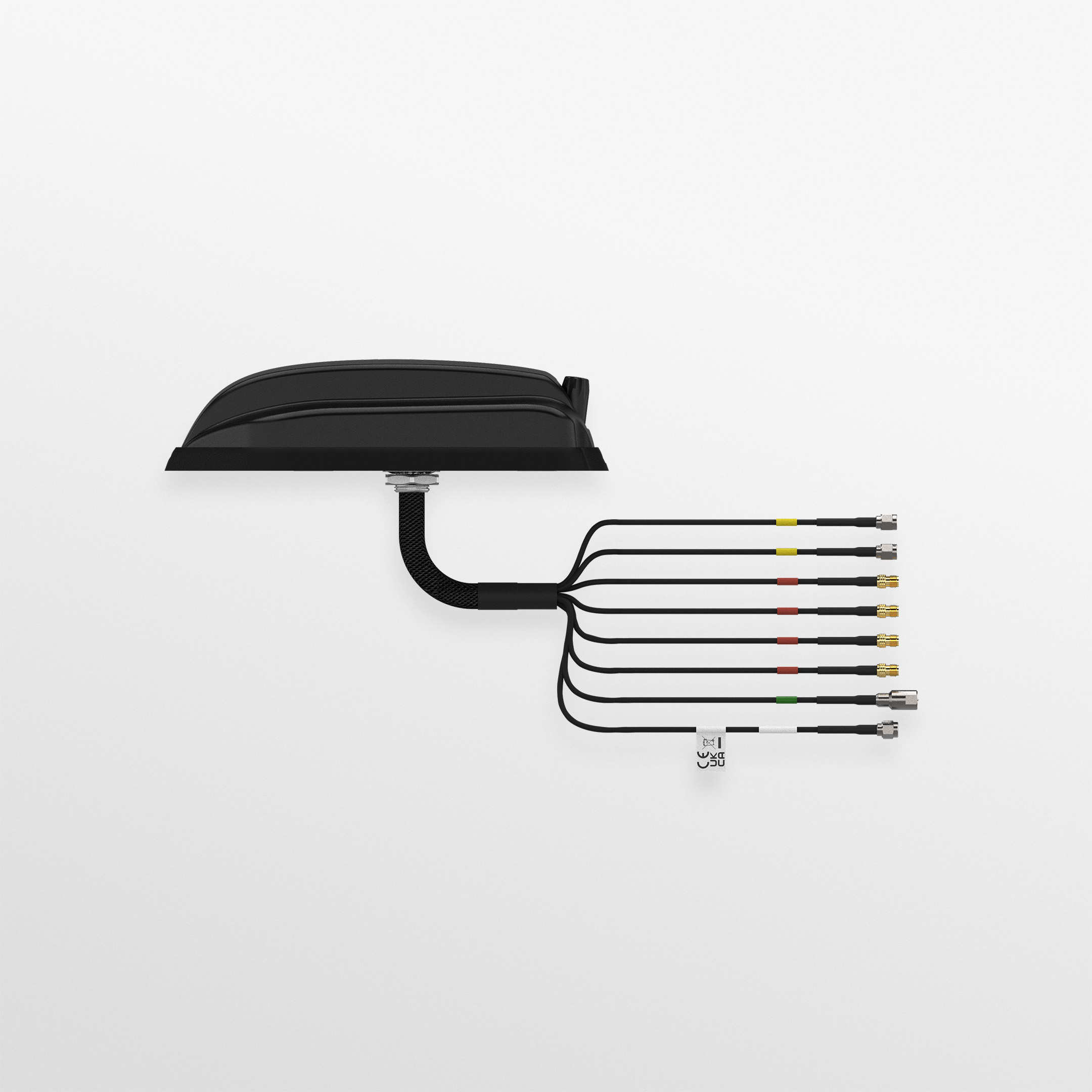

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-3-Black-Side-View.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")

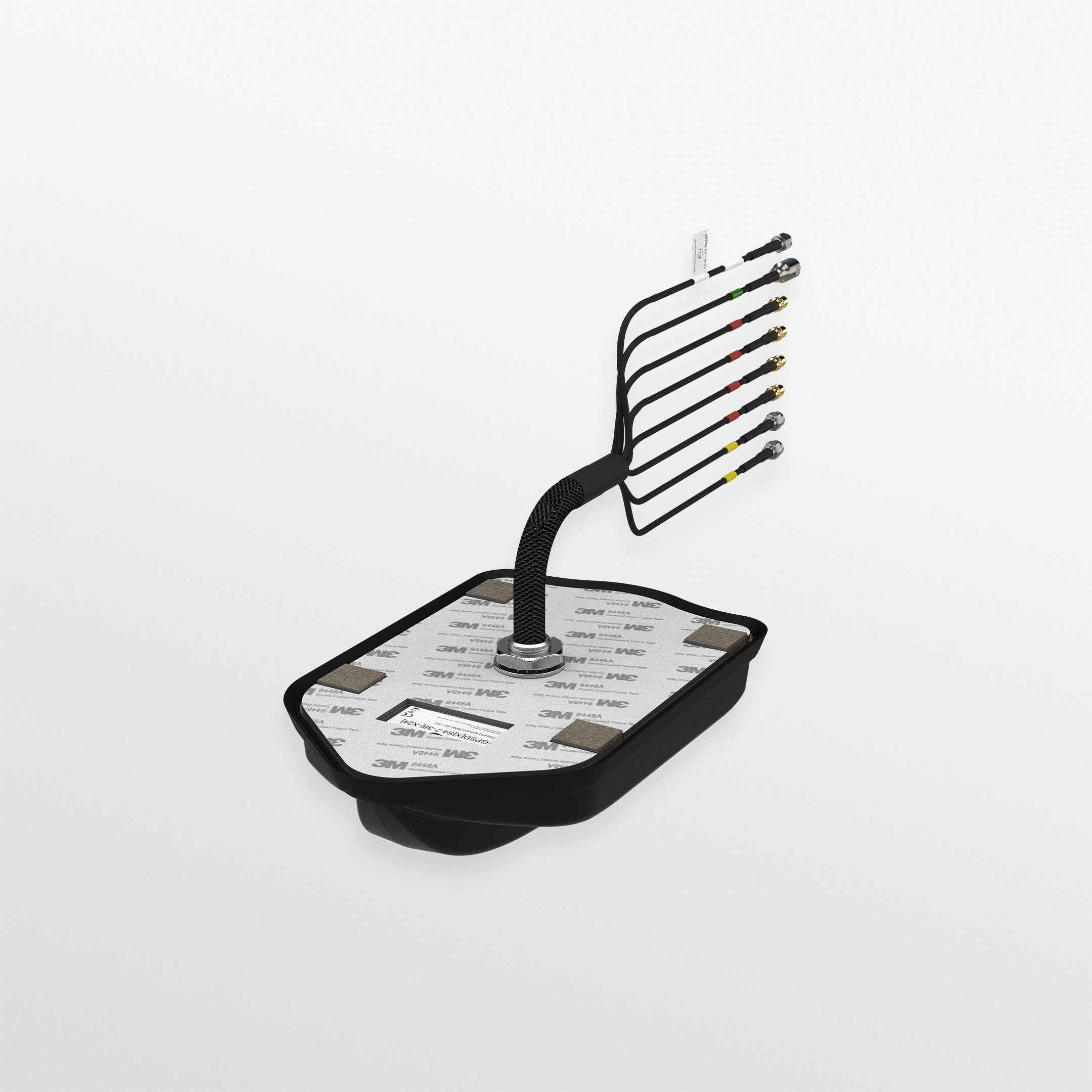

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-4-Black-Underside-1.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")

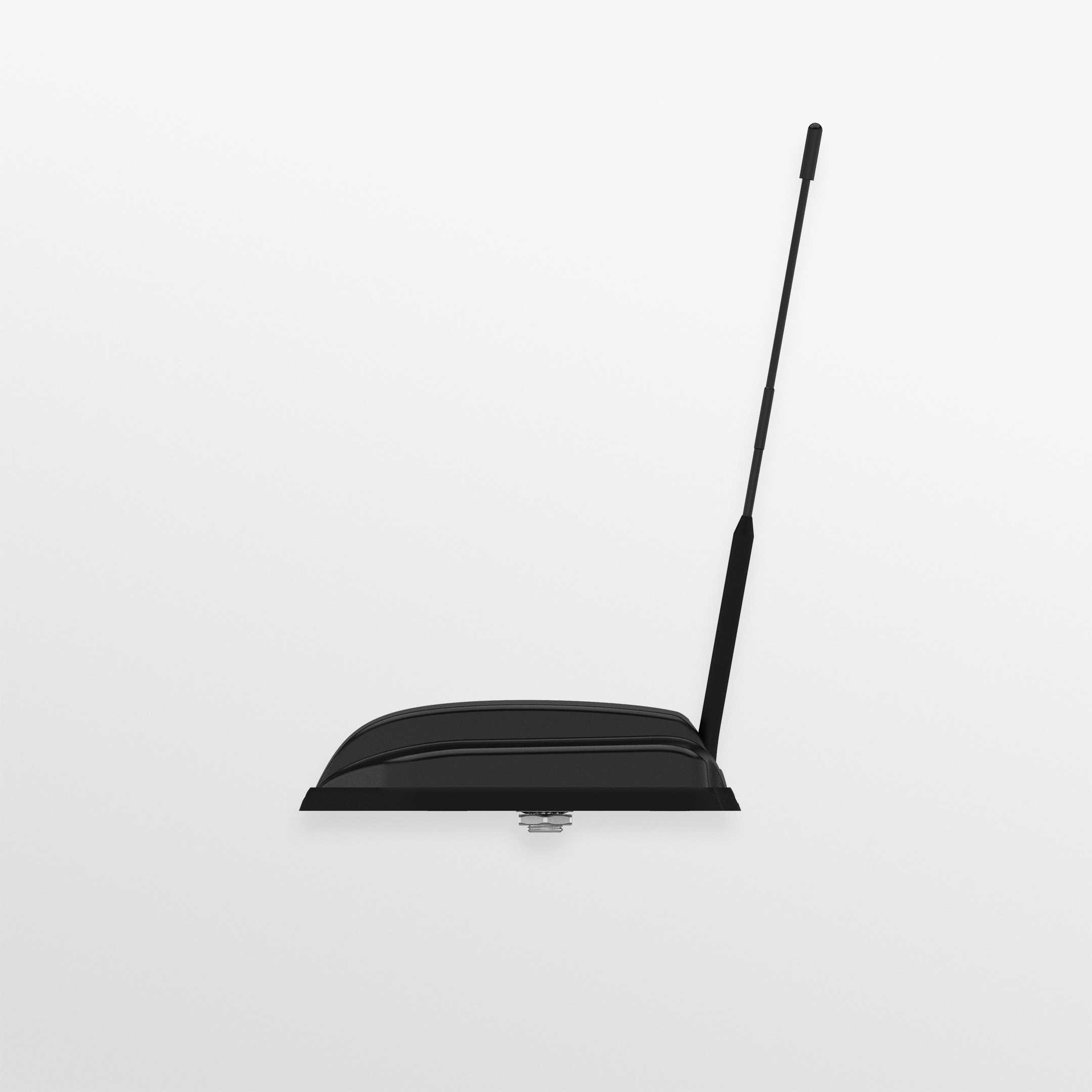

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-5-Black-With-ASFC.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")

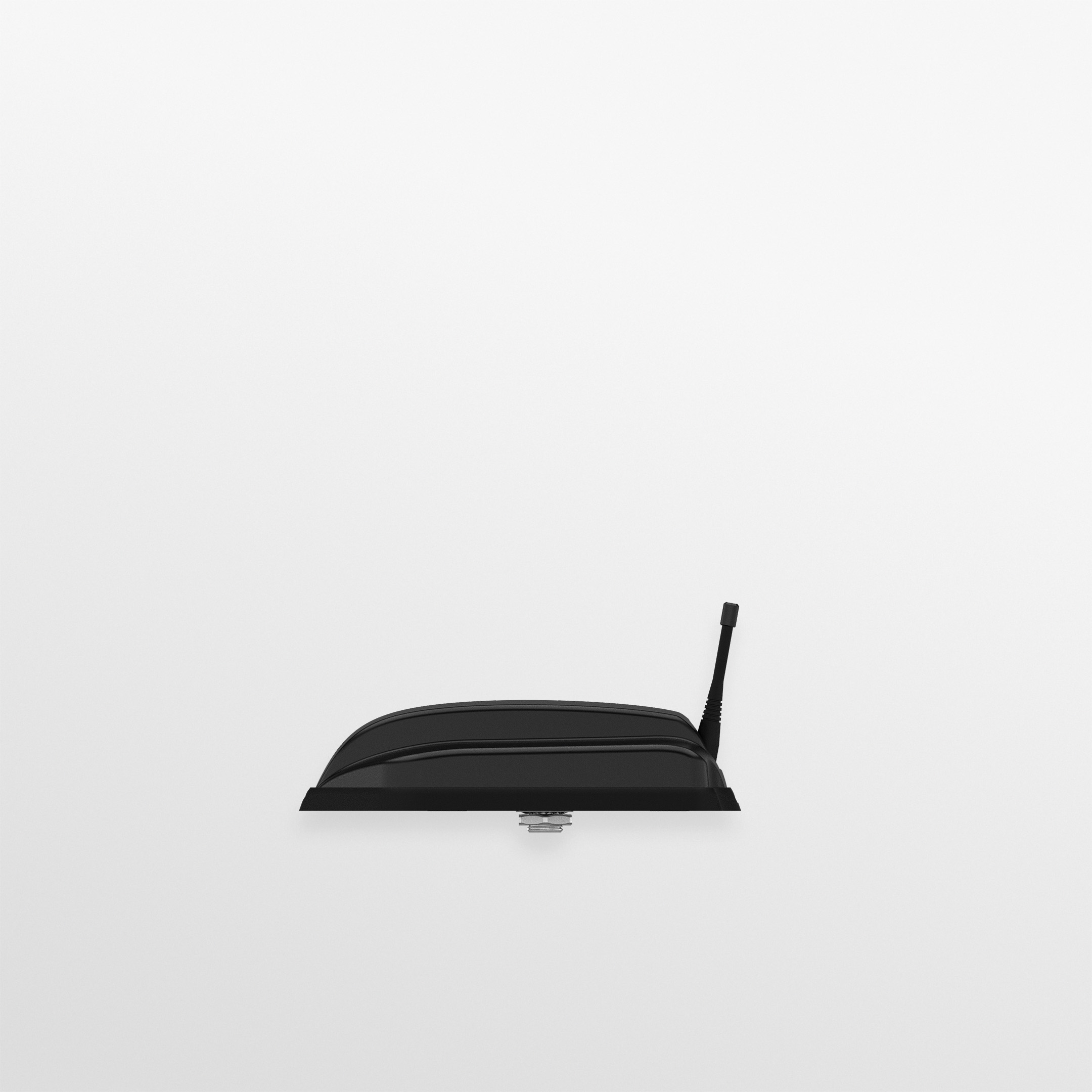

![GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSDXS4-7-38-X24-6-Black-With-AFM.jpg "GPSD[X]S4-7-38[-X24] | Sharkfin Antenna MiMo 4G / 5G")
