Model / SKU: GPSF-24-58[-VAR]

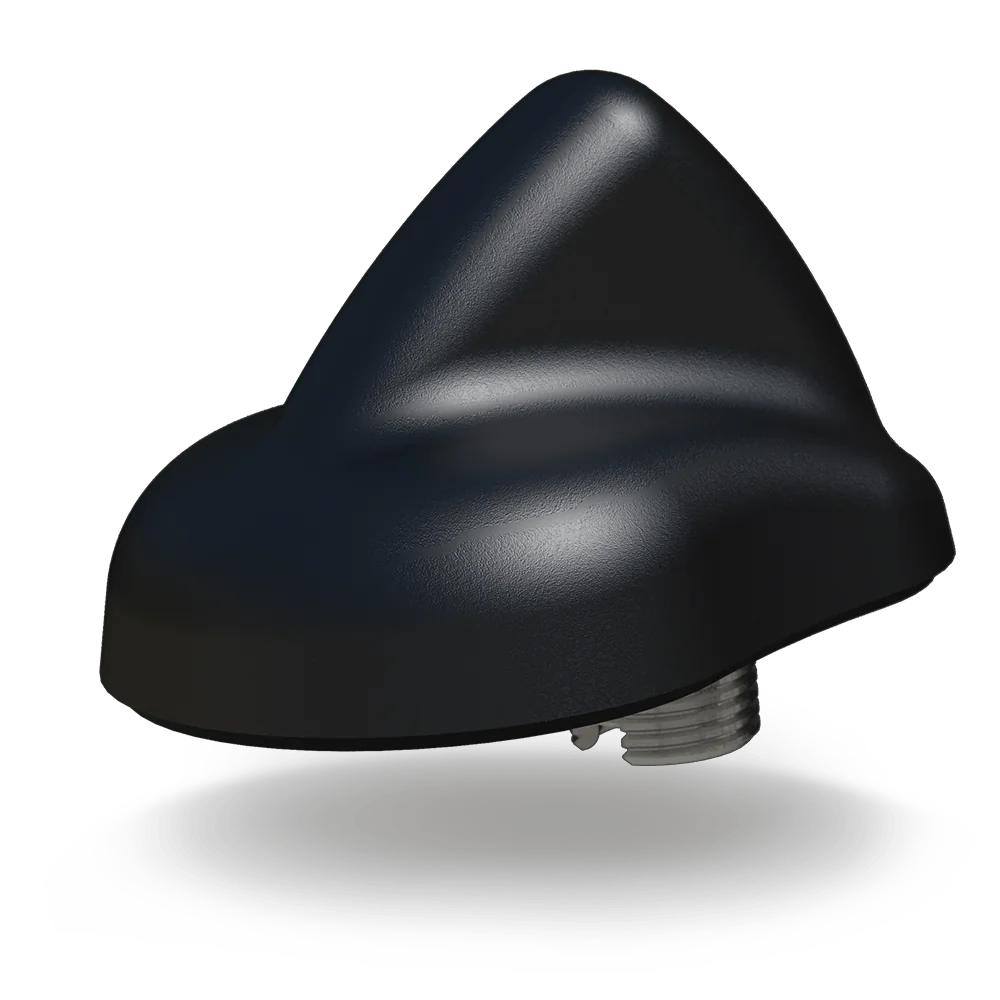

The GPSF-24-58 is a dual function, compact ‘fin’ style antenna for 2.4GHz /5GHz WiFi and incorporates an active GPS/GNSS antenna.
The FIN-24-58 is a compact ‘fin’ style antenna for 2.4GHz / 5GHz WiFi only.
The antenna only requires a single hole for mounting on the roof of a vehicle or an equipment enclosure. These rugged fin style antennas are an ideal choice for Public Safety and Fleet vehicles or use with on-site/remote equipment.
The GPSF-24-58 is a dual function, compact ‘fin’ style antenna for 2.4GHz /5GHz WiFi and incorporates an active GPS/GNSS antenna. The FIN-24-58 is a compact ‘fin’ style antenna for 2.4GHz / 5GHz WiFi only. The antenna only requires a single hole for mounting on the roof of a vehicle or an equipment enclosure. These rugged fin style antennas are an ideal choice for Public Safety and Fleet vehicles or use with on-site/remote equipment.
The GPSF-24-58 is a dual function, compact ‘fin’ style antenna for 2.4GHz /5GHz WiFi and incorporates an active GPS/GNSS antenna.
The FIN-24-58 is a compact ‘fin’ style antenna for 2.4GHz / 5GHz WiFi only.
The antenna only requires a single hole for mounting on the roof of a vehicle or an equipment enclosure. These rugged fin style antennas are an ideal choice for Public Safety and Fleet vehicles or use with on-site/remote equipment.
| Colour | Black |
|---|---|
| GPS | 1 Module, No |
| Cable Length | Below 1m, Between 1m & 3m |
| Connector (WIFI) | Reverse Polarity SMA, SMA (f) |
| Connector (GPS) | FME (f), No Connector |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 25 |
| Frequency Range | Gain | 5MHz | 2dBi |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | No; 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 68 (mm) | 2.68 (in) |
| Width | 48 (mm) | 1.89 (in) |
| Height | 40 (mm) | 1.57 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | 0.3 (m) | 0.98 (ft) |
| Cable Length – WIFI | min: 0.3 (m) | 0.98 (ft); max: 1 (m) | 3.28 (ft) |
| Cable Type (GPS) | RG174 |
| Cable Type (WIFI) | CS30 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f); Reverse Polarity SMA |
| Connector (GPS) | FME (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| TECHNOLOGY DATA | |
| Technology | WIFI; WIFI SISO; GPS; GNSS |
