Model / SKU: GPSK

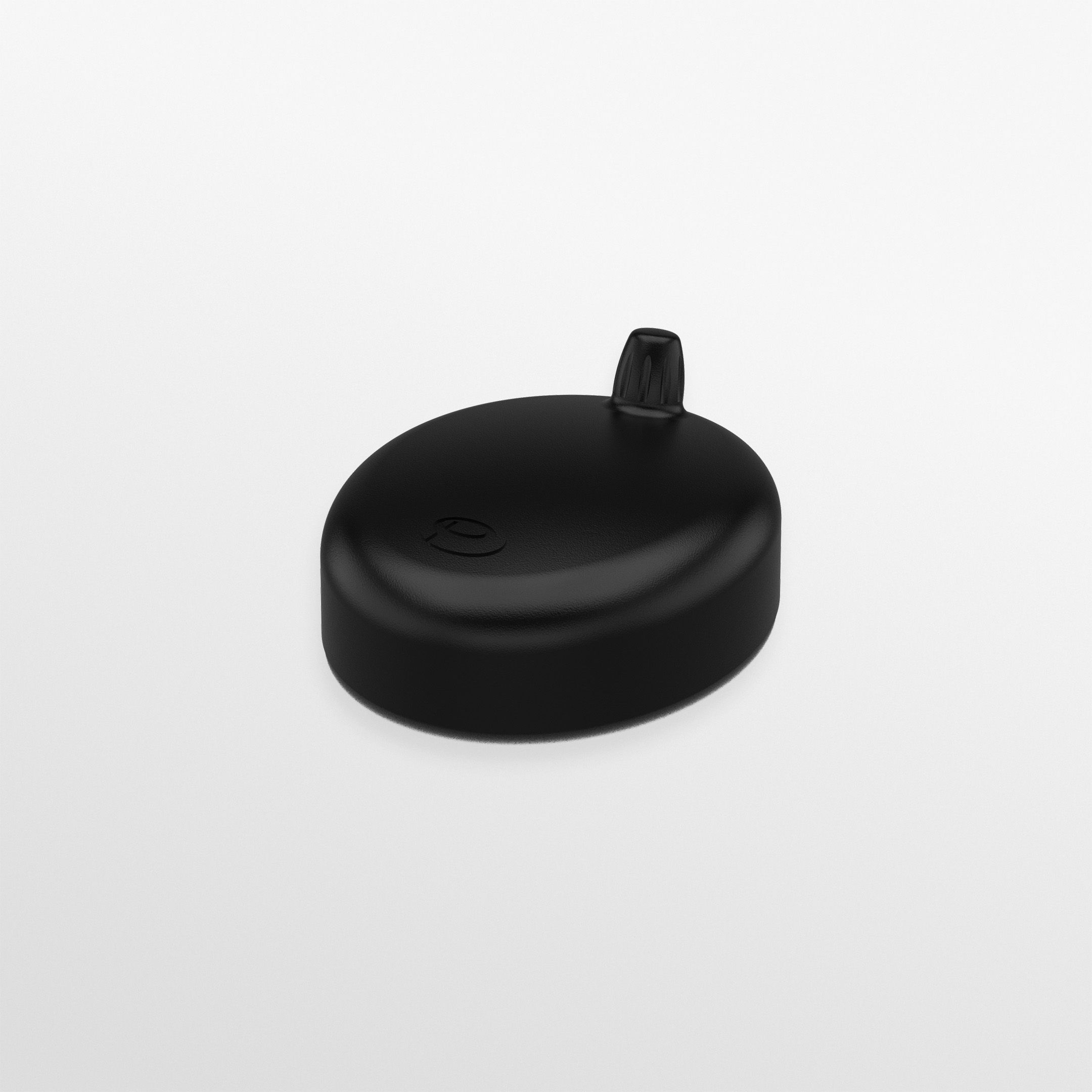

The GPSK antenna base provides a dual function antenna solution incorporates an active GNSS antenna module with 26dB gain LNA, which supports GPS L1, GLONASS G1, BeiDou and Galileo E1 services.

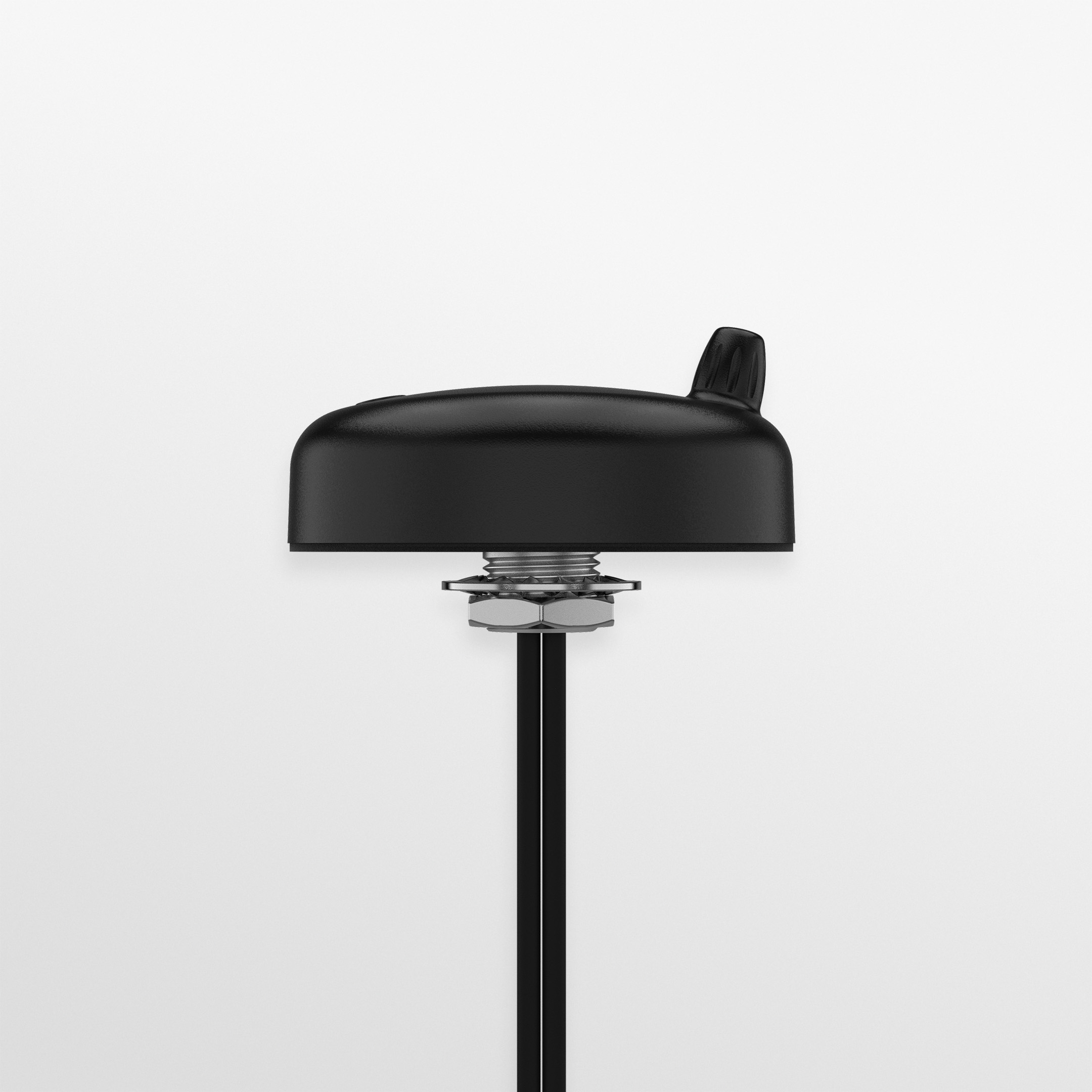

The base can be fitted with a range of VHF or UHF whips depending on the installation requirement and can be mounted on panels up to 6mm thick in a single 15mm hole. An extender kit is available as an option for use when fitting to a thick mounting panel.
The dual function of the GPSK makes it a popular choice for Public Safety, Transportation and Utility Vehicle applications.
The GPSK can be supplied as a complete “plug and play” kit to suit popular VHF and UHF radio terminals.
The GPSK antenna base provides a dual function antenna solution incorporates an active GNSS antenna module with 26dB gain LNA, which supports GPS L1, GLONASS G1, BeiDou and Galileo E1 services. The base can be fitted with a range of VHF or UHF whips depending on the installation requirement and can be mounted on panels up to 6mm thick in a single 15mm hole. An extender kit is available as an option for use when fitting to a thick mounting panel.
The GPSK antenna base provides a dual function antenna solution incorporates an active GNSS antenna module with 26dB gain LNA, which supports GPS L1, GLONASS G1, BeiDou and Galileo E1 services.
The base can be fitted with a range of VHF or UHF whips depending on the installation requirement and can be mounted on panels up to 6mm thick in a single 15mm hole. An extender kit is available as an option for use when fitting to a thick mounting panel.
The dual function of the GPSK makes it a popular choice for Public Safety, Transportation and Utility Vehicle applications.
The GPSK can be supplied as a complete “plug and play” kit to suit popular VHF and UHF radio terminals.
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Below 1m |
| Connector (VHF/UHF) | FME (m) |
| Connector (GPS) | FME (f) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 60 |
| Typical VSWR | <2.5:1 |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 60 (mm) | 2.36 (in) |
| Width | 50 (mm) | 1.97 (in) |
| Height | 18.5 (mm) | 0.73 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 0.3 (m) | 0.98 (ft) |
| Cable length – GPS | 0.3 (m) | 0.98 (ft) |
| Cable Type (Whip) | RG174 |
| Cable Type (GPS) | RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FME (f) |
| Connector (VHF/UHF) Whip | FME (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | GPS; GNSS |
