GPSK-[UHF] | GPS/GNSS Combination Antenna

Model / SKU: GPSK-[UHF]

GPSK-[UHF] | GPS/GNSS Combination Antenna

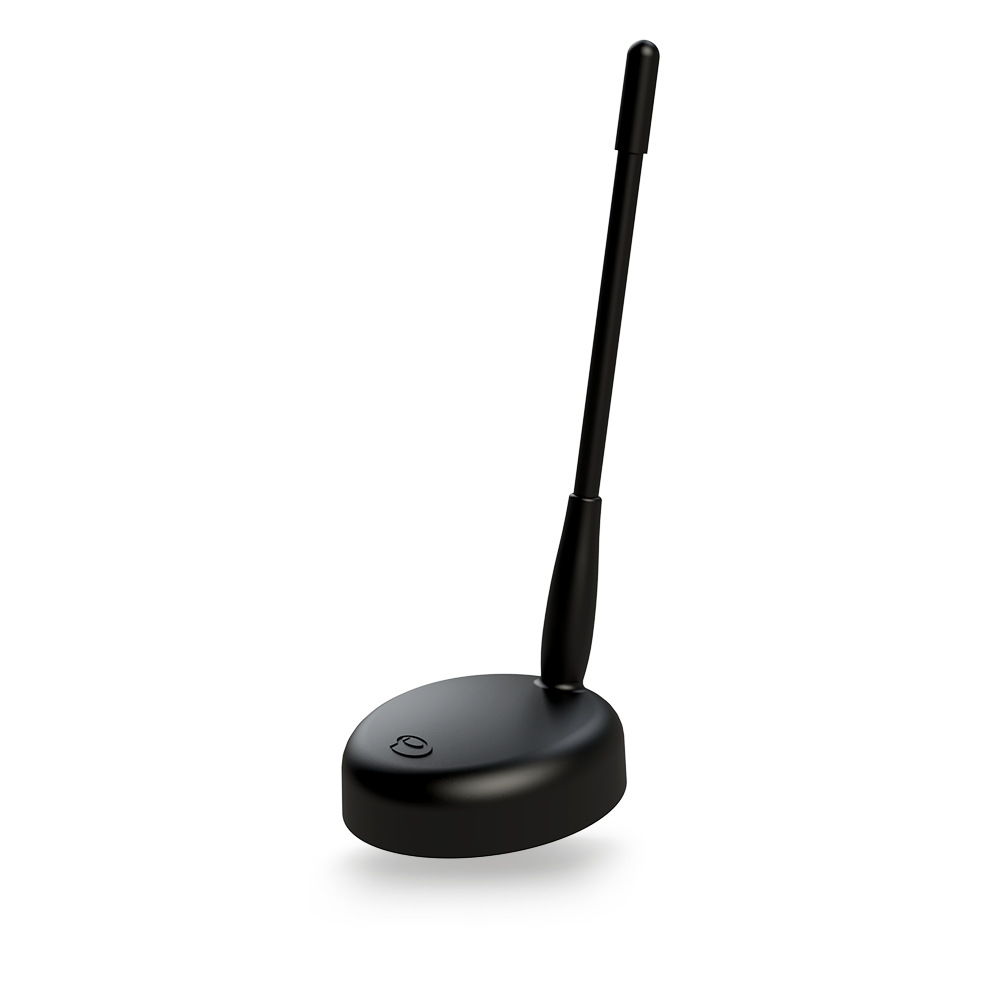

The GPSK-TET antenna range is a dual function, high performance TETRA antenna with an active GPS/GNSS module in the base.

The TETRA whip covers 380MHz to 430Mhz, with 2dBi gain.

The GPSK base can be installed on a roof up to 6mm thick using only a single 15mm hole. An extender kit is available for thicker roofs.

The dual function of the Panorama GPSK range makes the antenna a popular choice for public safety, transportation and other public service & utility vehicles around the world.

This antenna can be provided with suitable extension coaxial cables as a ‘plug & play’ kit for all TETRA terminals.

Product overview

The GPSK-TET antenna range is a dual function, high performance TETRA antenna with an active GPS/GNSS module in the base.

The TETRA whip covers 380MHz to 430Mhz, with 2dBi gain.

The GPSK base can be installed on a roof up to 6mm thick using only a single 15mm hole. An extender kit is available for thicker roofs.

The dual function of the Panorama GPSK range makes the antenna a popular choice for public safety, transportation and other public service & utility vehicles around the world.

This antenna can be provided with suitable extension coaxial cables as a ‘plug & play’ kit for all TETRA terminals.

Product Features

High performance combination antenna Active GPS/GNSS 30dB gain LNA Flexible quarterwave whip for UHF frequencies Single hole fixing

Benefits

Single hole fixing Wide UHF bandwidth IP65 rating

Application

TETRA and PMR mobile applications Public safety and first responders Utility and security vehicles

Additional information

Colour	Black
GPS	1 Module
Cable Length	Below 1m, Between 5m & 10m
Connector (VHF/UHF)	BNC (m), FME (m), TNC (m)
Connector (GPS)	FME (f), FME (m), SMA (m), SMC (f)
Frequency Range	380-430MHz

ELECTRICAL DATA
Pattern	Omnidirectional
Max Input Power(W)	25
Typical VSWR	<2.5:1
Frequency Range \| Gain	380 – 430MHz \| 2dBi
Cellular LTE Elements	No
WIFI Elements	No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	30; 30dB
Number of GPS Elements	1 Module
MECHANICAL DATA
Colour	Black
Length	60 (mm) \| 2.36 (in)
Width	50 (mm) \| 1.97 (in)
Height	172.5 (mm) \| 6.79 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – Whip	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.3 (m) \| 0.98 (ft); max: 6 (m) \| 19.69 (ft)
Cable Type (Whip)	RG174; CS23
Cable Type (GPS)	RG174
Quantity of GPS/GNSS Extension	1
TERMINATION DATA
Connector (GPS)	FME (f); SMA (m); FME (m); SMC (f)
Connector (VHF/UHF) Whip	FME (m); TNC (m); BNC (m)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Methods	Panel
APPROVALS DATA
IP Rating	IP65
TECHNOLOGY DATA
Technology	UHF; GPS; GNSS; TETRA

Available selections

Colour	Black
GPS	1 Module
Cable Length	Below 1m Between 5m & 10m
Connector (VHF/UHF)	BNC (m) FME (m) TNC (m)
Connector (GPS)	SMC (f) FME (f) FME (m) SMA (m)
Frequency Range	380-430MHz

Models and configurations

SKU; Colour | UHF | GPS

GPSK-TET	Colour: Black UHF: Yes 0.3m FME (m) GPS: 1 Module 0.3m FME (f)
GPSK-TET-EAD	Colour: Black UHF: Yes 5m TNC (m) Cables Loose GPS: 1 Module 6m SMA (m) Cables Loose
GPSK-TET-MOT	Colour: Black UHF: Yes 5m BNC (m) Cables Loose GPS: 1 Module No Cable FME (m) Cables Loose
GPSK-TET-MOT-SP	Colour: Black UHF: Yes 5m BNC (m) Cables Loose GPS: 1 Module 6m SMA (m) Cables Loose
GPSK-TET-SEP	Colour: Black UHF: Yes 5m BNC (m) Cables Loose GPS: 1 Module 6m SMC (f) Cables Loose

Configuration options

Option	Available values
Colour	Black
Gps	1 Module
Cable Length	Below 1m, Between 5m & 10m
Connector Vhf Uhf	BNC (m), FME (m), TNC (m)
Connector Gps	SMC (f), FME (f), FME (m), SMA (m)
Frequency Range	380-430MHz
