Description
The GPSKM-[UHF] antenna range is a dual function, high performance TETRA antenna with an active GPS/GNSS module in the magnetic base. The 1/4 wave whip can be tuned to cover covers various frequencies from 380-520MHz.
Product
GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna
Model / SKU: GPSKM-[UHF]

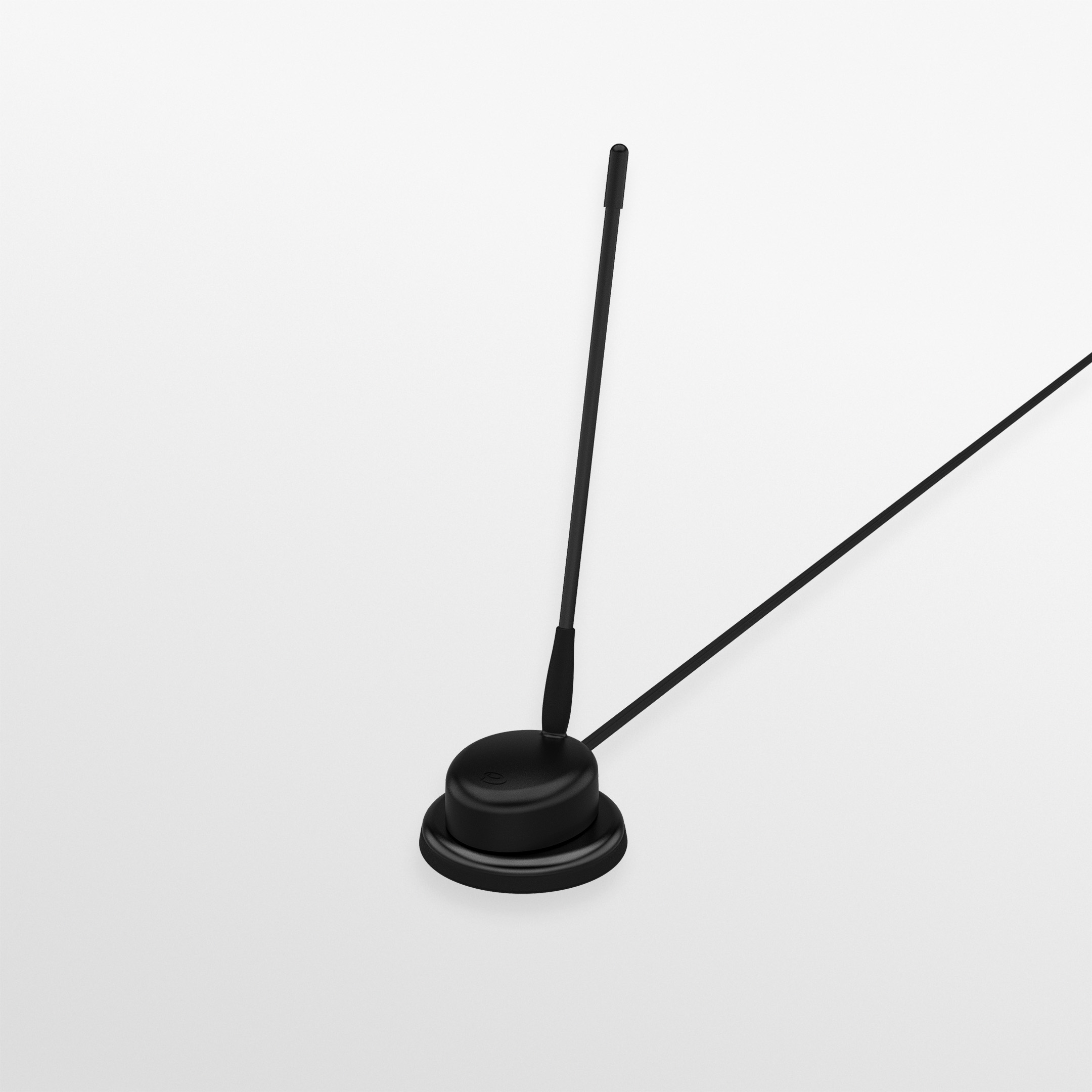

![GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSKM-UHF-1-Black-Main-View.jpg "GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna")

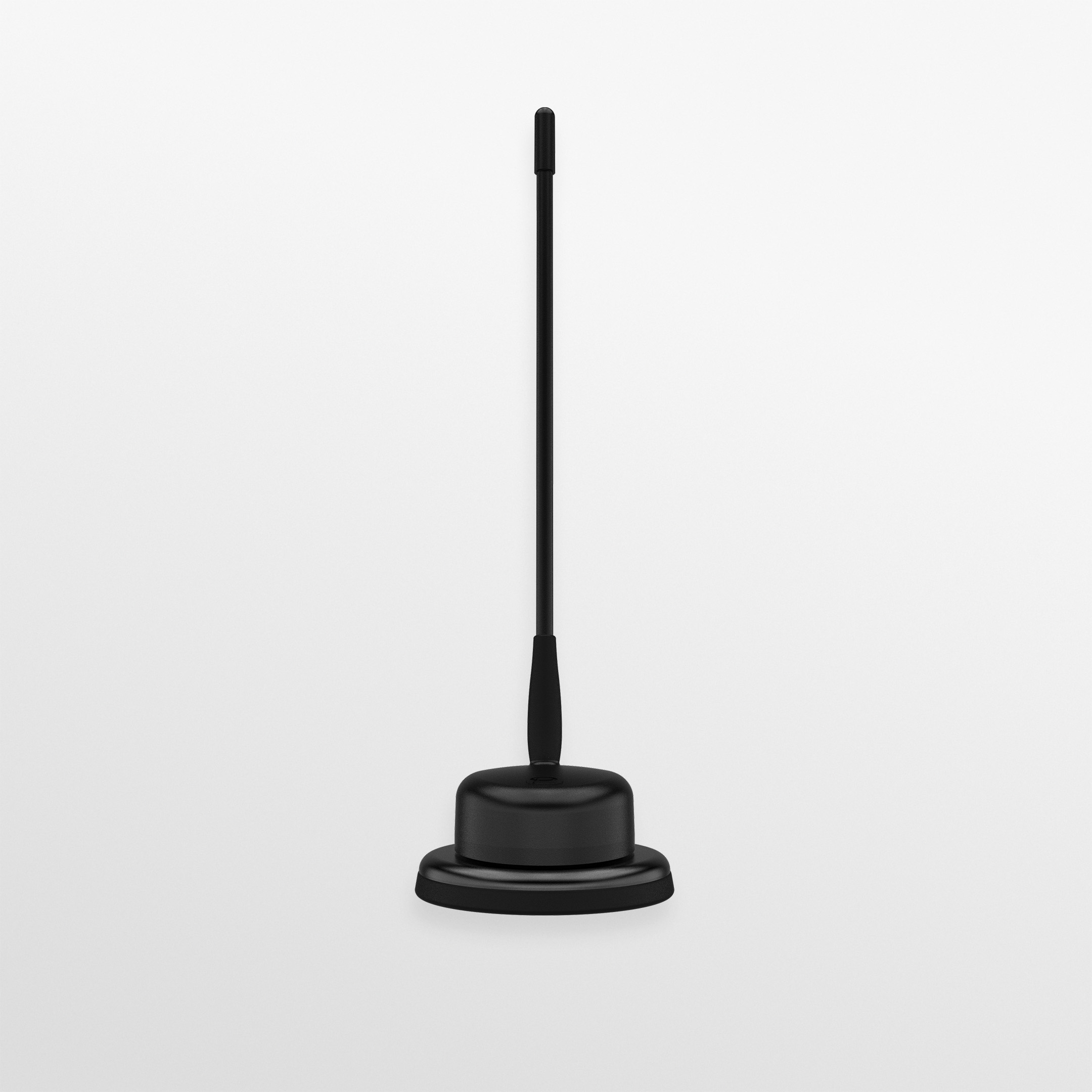

![GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSKM-UHF-2-Black-Front-View.jpg "GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna")

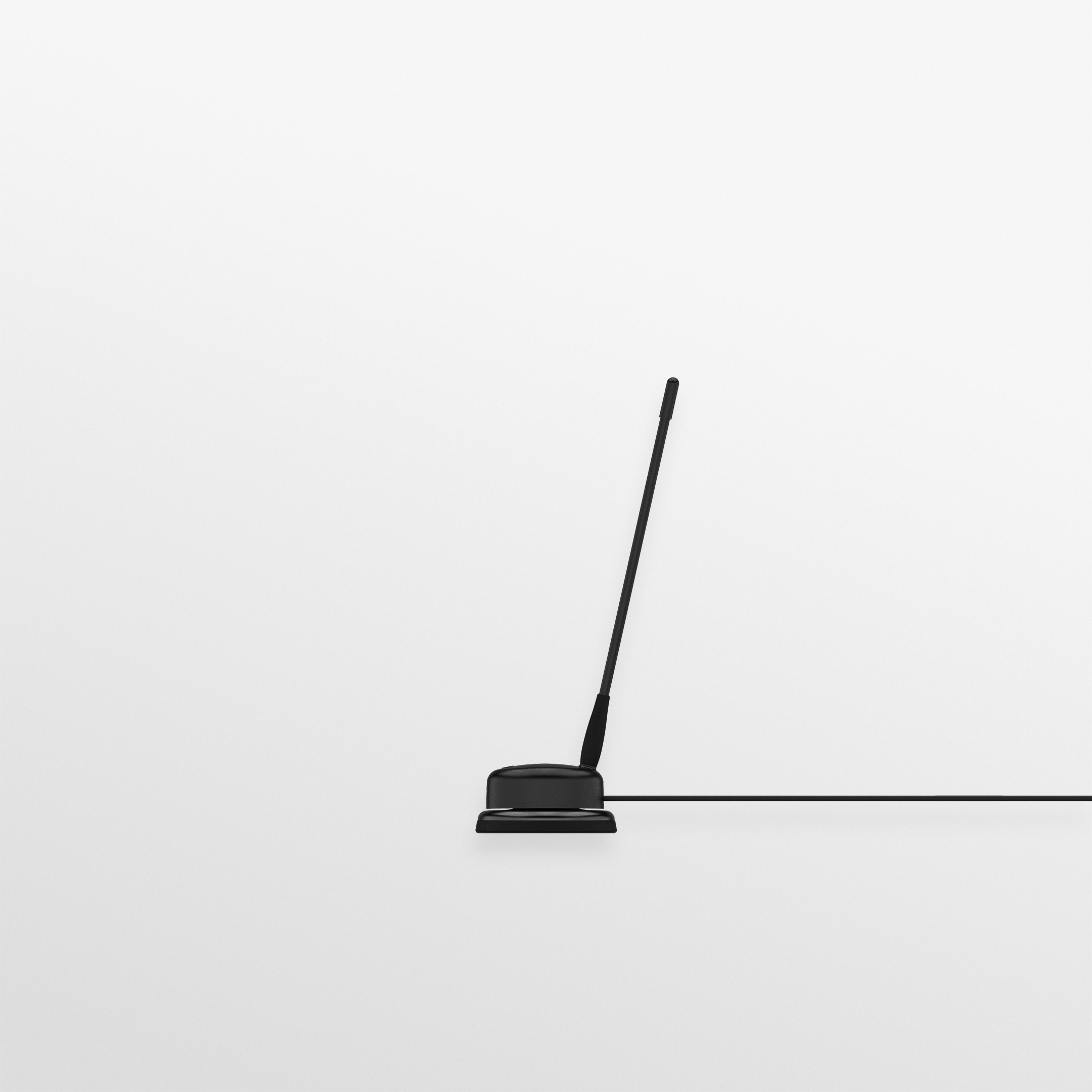

![GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/GPSKM-UHF-3-Black-Side-View.jpg "GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna")
GPSKM-[UHF] | GPS/GNSS Magnetic Combination Antenna
The GPSKM-[UHF] antenna range is a dual function, high performance TETRA antenna with an active GPS/GNSS module in the magnetic base.
The 1/4 wave whip can be tuned to cover covers various frequencies from 380-520MHz.
A strong magnet ensures the antenna stays in position while leaving no evidence that it was ever there, when removed.
The dual function of the Panorama GPSKM range makes the antenna a popular choice for public safety, transportation and other public service & utility vehicles around the world where drilling holes is not possible or desirable.
This antenna can be provided with suitable cable lengths and connectors as a ‘plug & play’ kit for almost all TETRA terminals.
Product overview
The GPSKM-[UHF] antenna range is a dual function, high performance TETRA antenna with an active GPS/GNSS module in the magnetic base.
The 1/4 wave whip can be tuned to cover covers various frequencies from 380-520MHz.
A strong magnet ensures the antenna stays in position while leaving no evidence that it was ever there, when removed.
The dual function of the Panorama GPSKM range makes the antenna a popular choice for public safety, transportation and other public service & utility vehicles around the world where drilling holes is not possible or desirable.
This antenna can be provided with suitable cable lengths and connectors as a ‘plug & play’ kit for almost all TETRA terminals.
Product Features
- High performance combination antenna Active GPS/GNSS 30dB gain LNA Flexible quarterwave whip for UHF frequencies Magnetic mounting Integrated twin cable
Benefits
- Easy magnetic installation Supplied with integrated cable Range of cable lengths and connectors for different TETRA terminals available
Application
- Public safety PMR Utilities TETRA
Additional information
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Between 3m & 5m |
| Connector (VHF/UHF) | BNC (m), TNC (m) |
| Connector (GPS) | FME (m), SMA (m) |
| Frequency Range | 380-430MHz |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 25 |
| Typical VSWR | <2.5:1 |
| Frequency Range | Gain | 380 – 430MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1559-1612MHz |
| LNA GAIN (dB) | 30dB |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 188 (mm) | 7.40 (in) |
| Diameter | 71.5 (mm) | 2.81 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 3 (m) | 9.84 (ft) |
| Cable length – GPS | 3 (m) | 9.84 (ft) |
| Cable Type (Whip) | RG174 |
| Cable Type (GPS) | RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FME (m) |
| Connector (VHF/UHF) Whip | BNC (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic |
| TECHNOLOGY DATA | |
| Technology | UHF; GPS; GNSS; TETRA |
