Model / SKU: GPSP-[VAR]

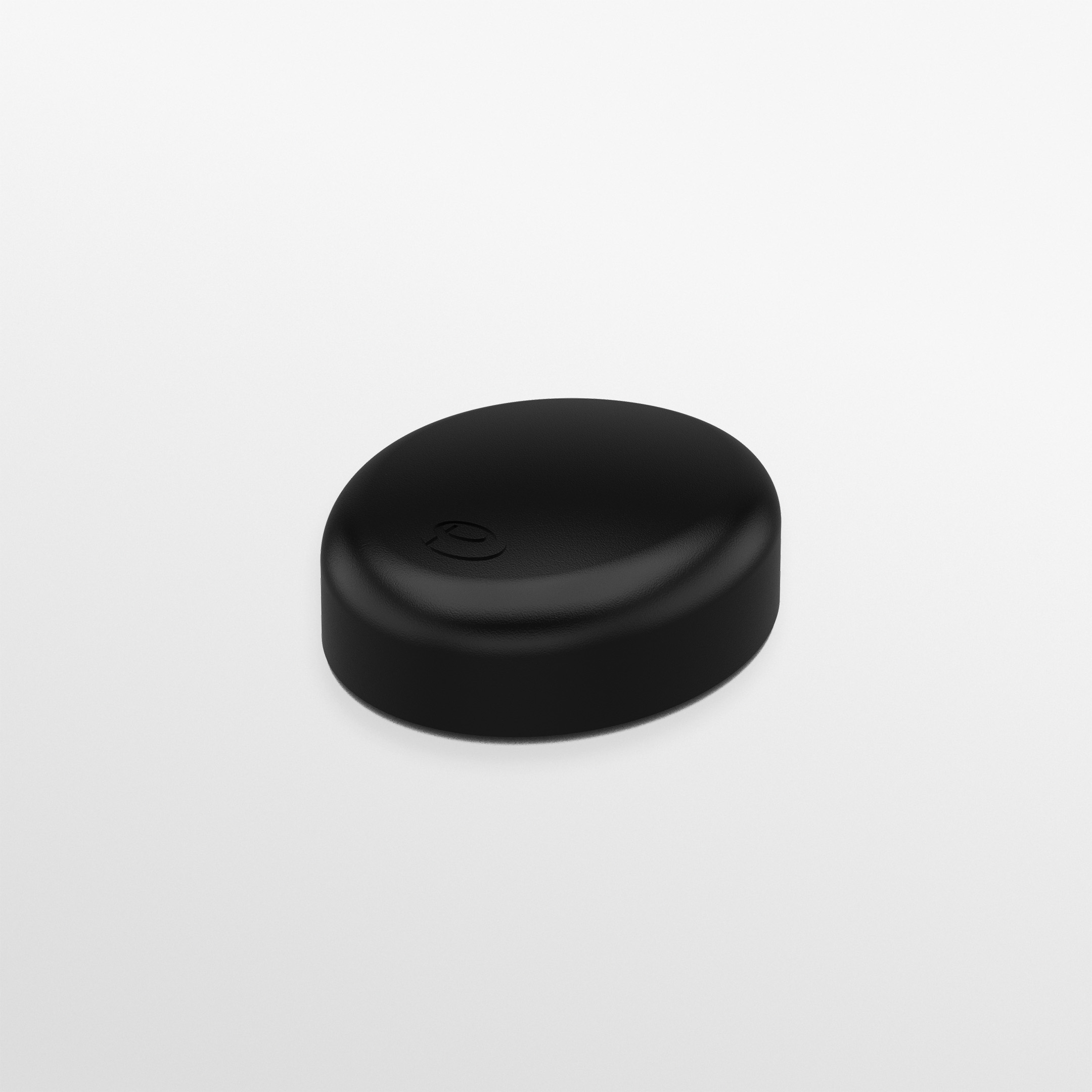

Efficient panel mount antenna | Active GPS Element.
The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA.

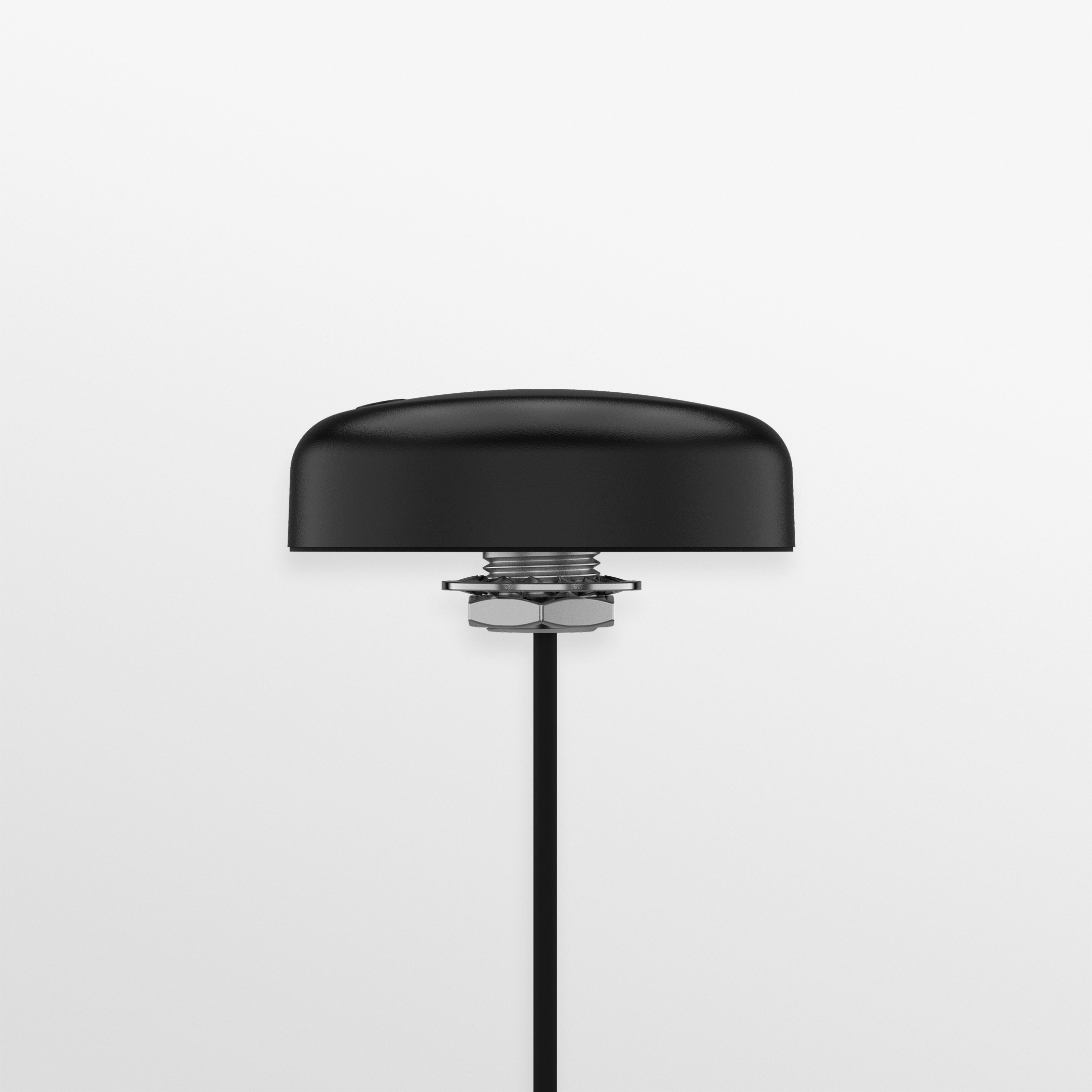

With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
Efficient panel mount antenna | Active GPS Element. The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA. With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
Technical Datasheet (official Panorama source)
Efficient panel mount antenna | Active GPS Element.
The GPSP antenna is a robust and efficient panel mount antenna range incorporating a sophisticated active antenna with 30dB LNA.
With the ability to mount on a roof up to 6mm thick using only a single 14mm hole this antenna can be provided as a ‘plug & play’ kit for most GPS receivers.
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (GPS) | FME (f), SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 60 (mm) | 2.36 (in) |
| Width | 50 (mm) | 1.97 (in) |
| Height | 18.5 (mm) | 0.73 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 6 (m) | 19.69 (ft) |
| Cable Type (GPS) | RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FME (f); SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | GPS |
