Model / SKU: GPSSV

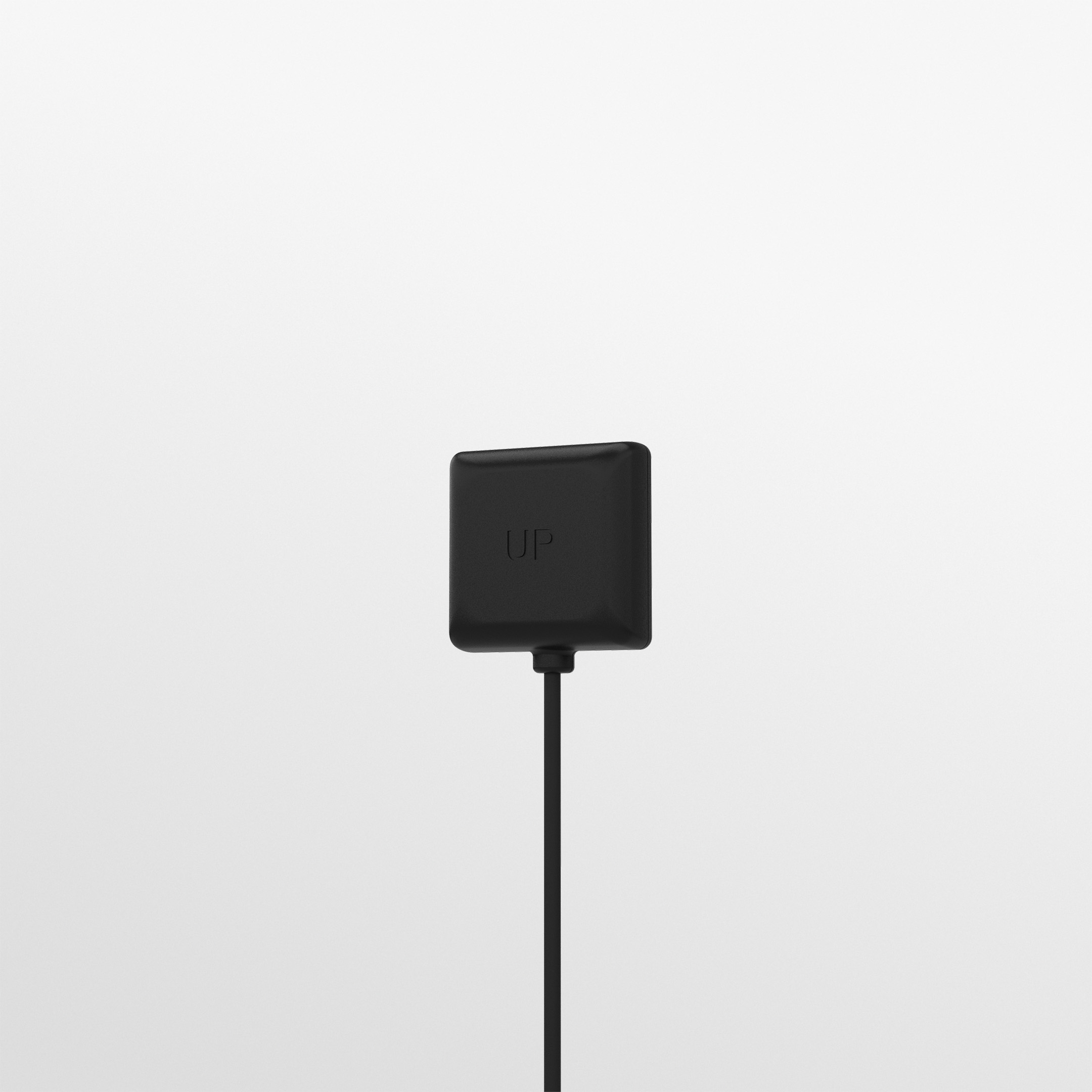

The GPSSV range offers excellent GPS/GNSS performance in a simple, compact package
The antenna is supplied with an adhesive pad for a secure installation and hook/loop pads for temporary fixing. A variety of cable lengths and connector types are available to suit most applications.
The GPSSV range offers excellent GPS/GNSS performance in a simple, compact package. The antenna is supplied with an adhesive pad for a secure installation and hook/loop pads for temporary fixing. A variety of cable lengths and connector types are available to suit most applications.
The GPSSV range offers excellent GPS/GNSS performance in a simple, compact package
The antenna is supplied with an adhesive pad for a secure installation and hook/loop pads for temporary fixing. A variety of cable lengths and connector types are available to suit most applications.
| Colour | Black |
|---|---|
| GPS | 1 Module |
| Cable Length | Between 3m & 5m |
| Connector (GPS) | FME (f), SMA (m), SMC (f) |
| ELECTRICAL DATA | |
|---|---|
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 30 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 34.6 (mm) | 1.36 (in) |
| Width | 34.6 (mm) | 1.36 (in) |
| Height | 13.2 (mm) | 0.52 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable length – GPS | 3 (m) | 9.84 (ft) |
| Cable Type (GPS) | RG174 |
| TERMINATION DATA | |
| Connector (GPS) | FME (f); SMA (m); SMC (f) |
| MOUNTING DATA | |
| Mounting Type Temp | Hook/Loop or Adhesive |
| Mounting Methods | Hook/Loop or Adhesive |
| TECHNOLOGY DATA | |
| Technology | GPS |
