GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna

Model / SKU: GPS[X]D4[X]-6-60[-X]

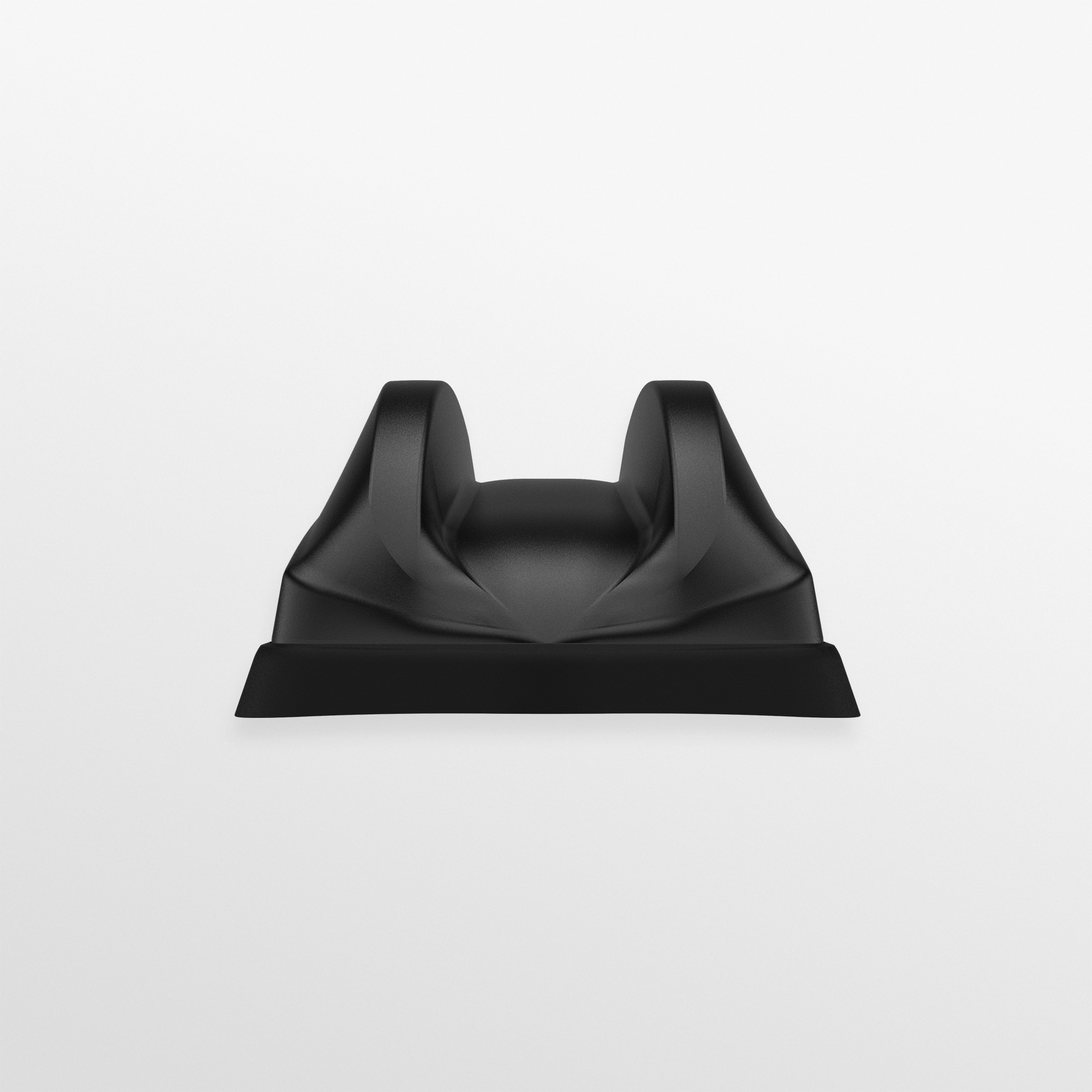

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 2

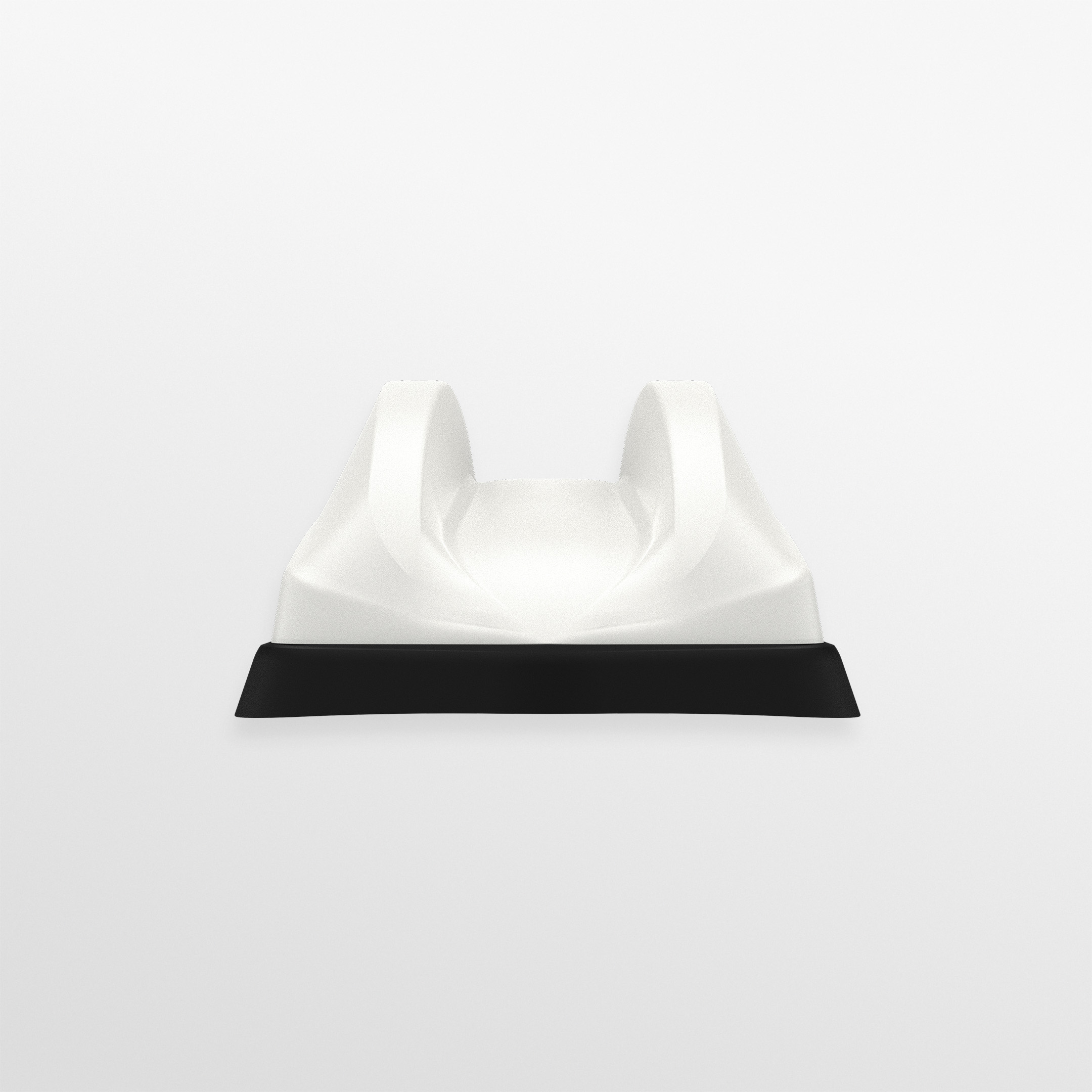

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 3

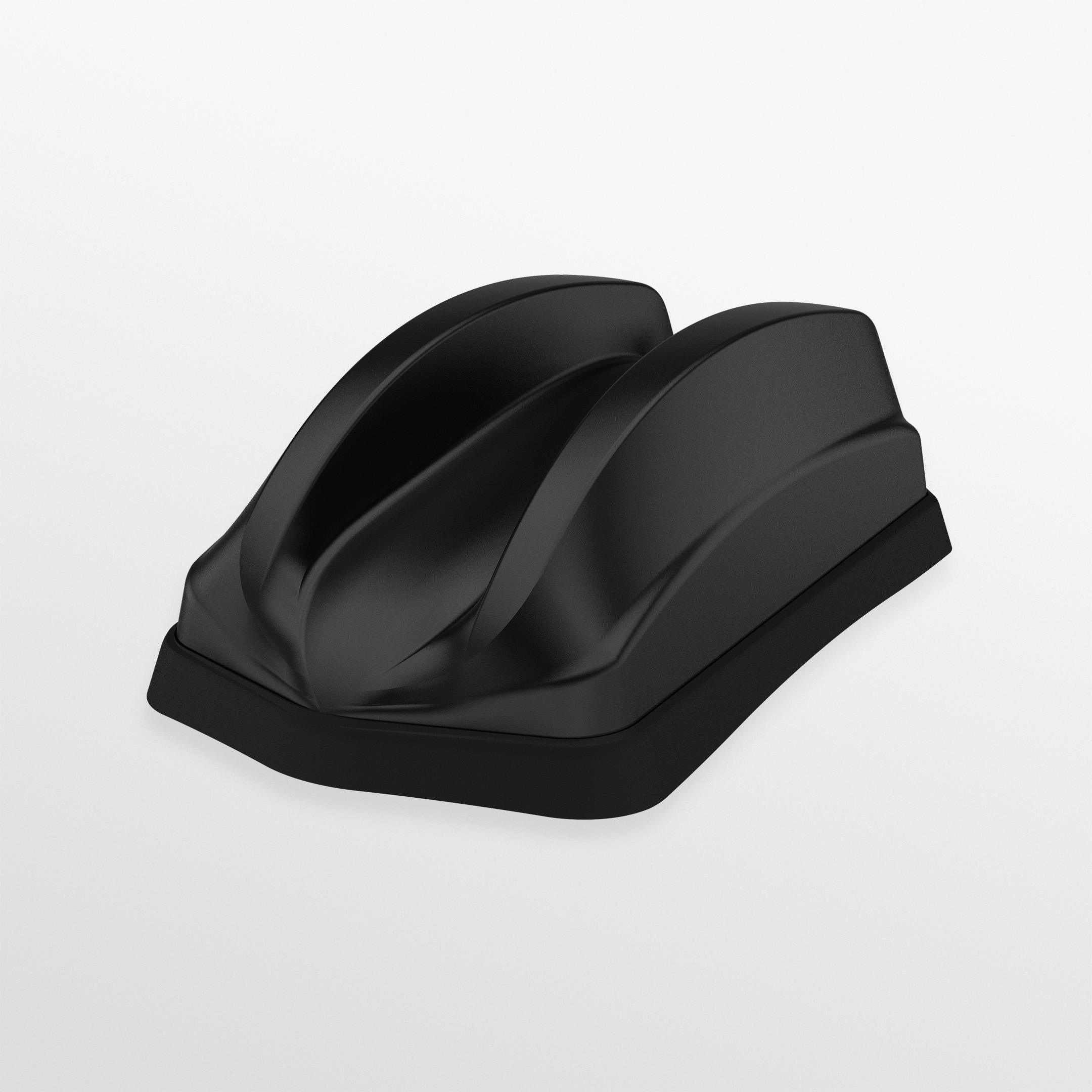

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 4

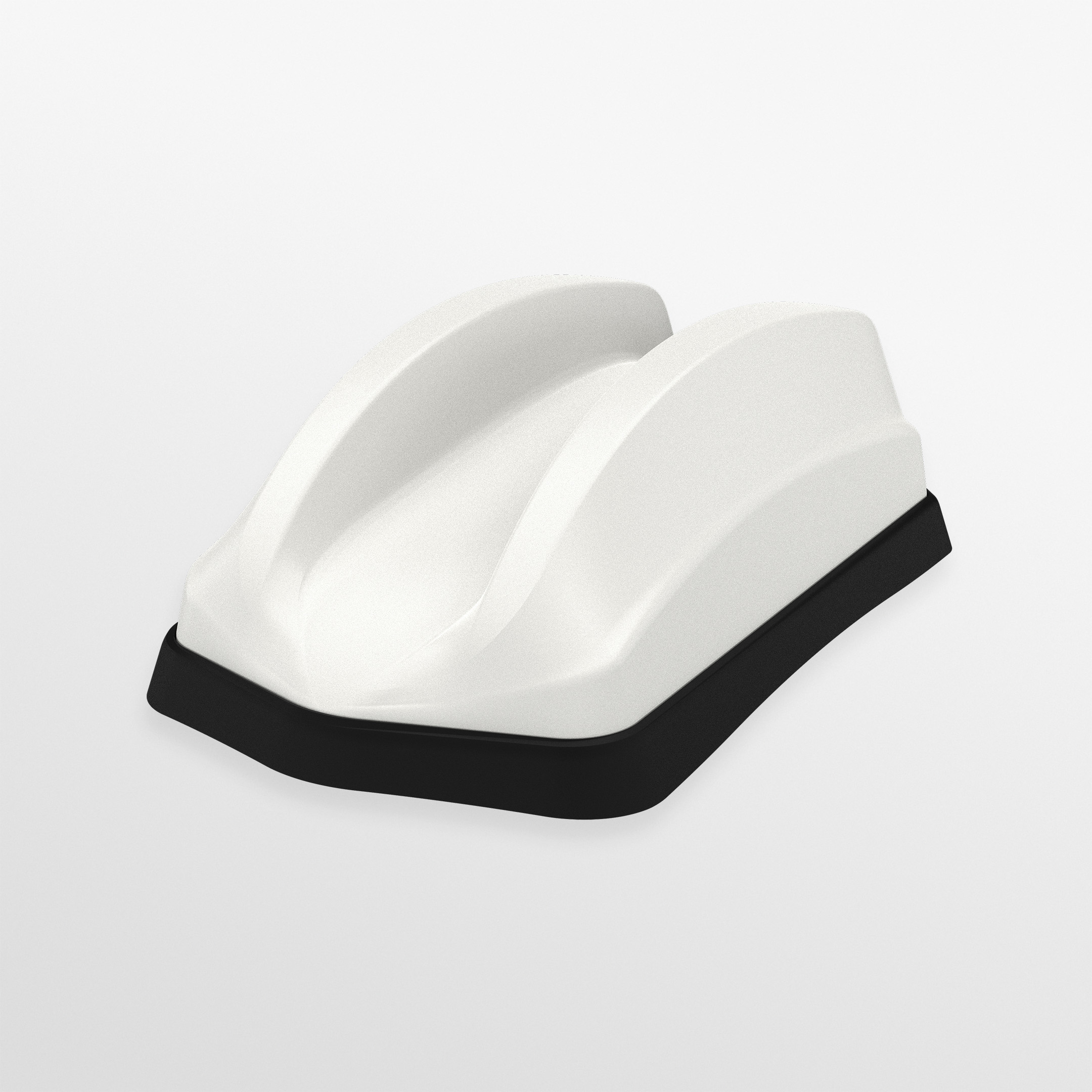

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 5

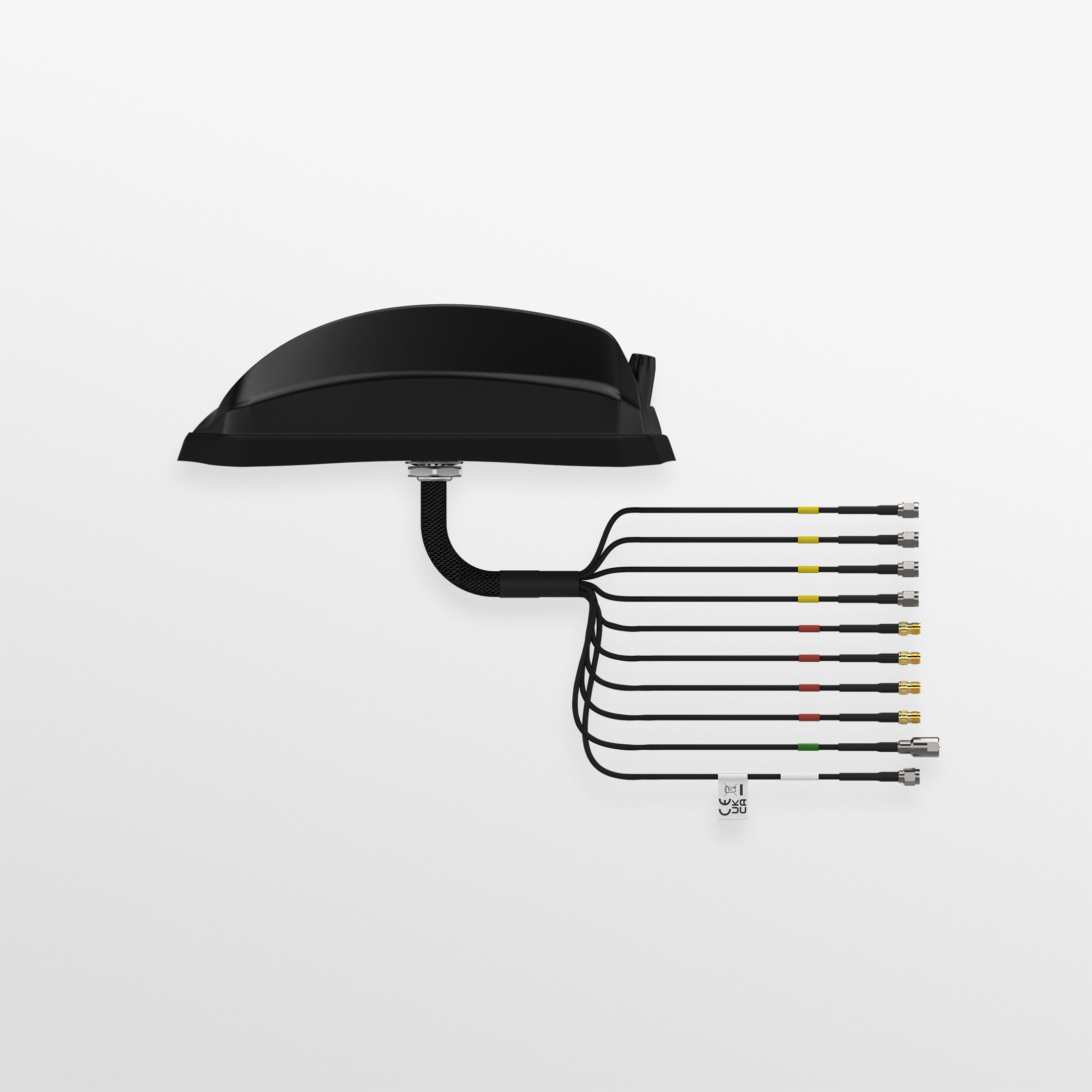

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 6

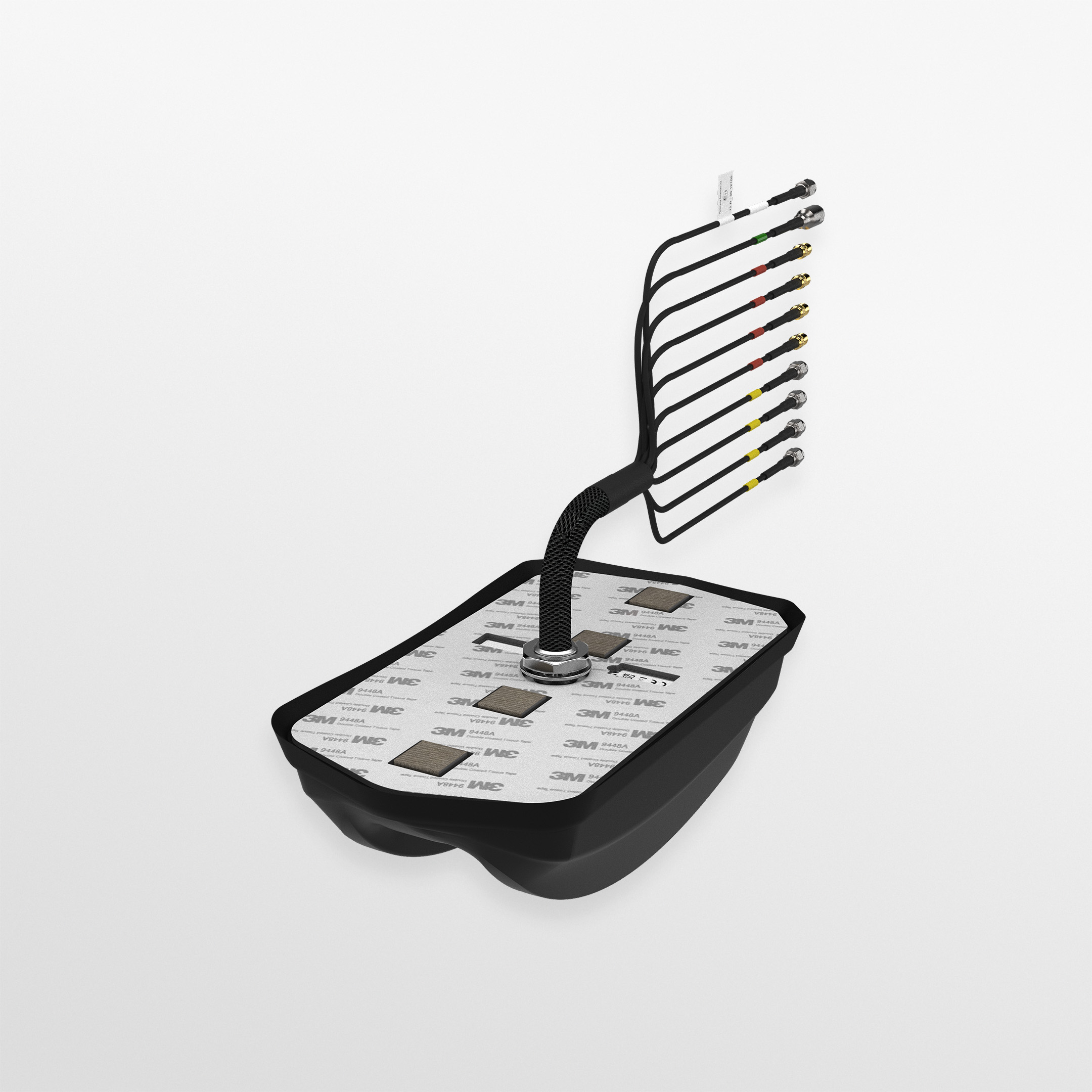

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 7

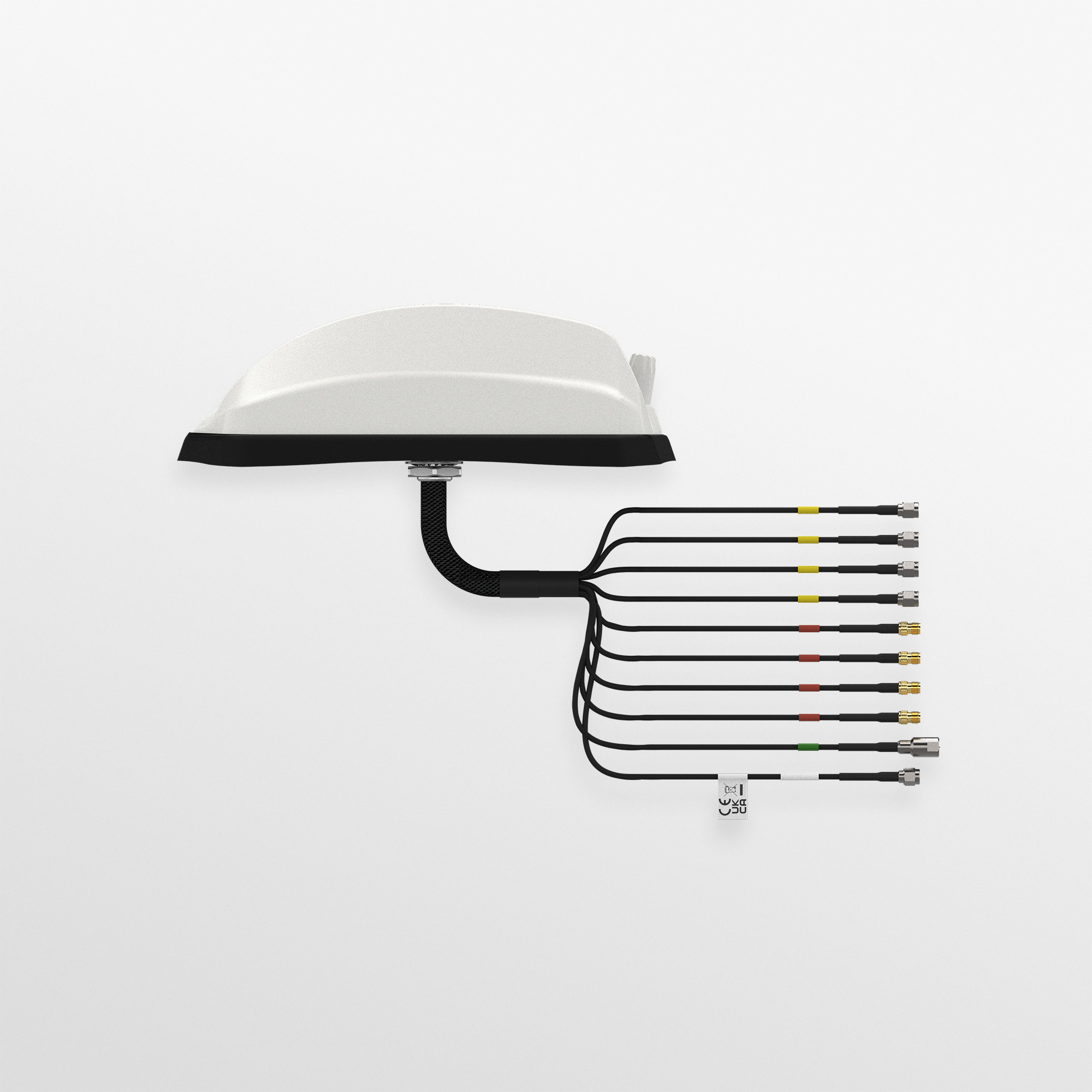

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 8

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna - Image 9

GPS[X]D4[X]-6-60 | Dual Sharkee® | 4×4 MiMo 4G/5G Sharkfin Antenna

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

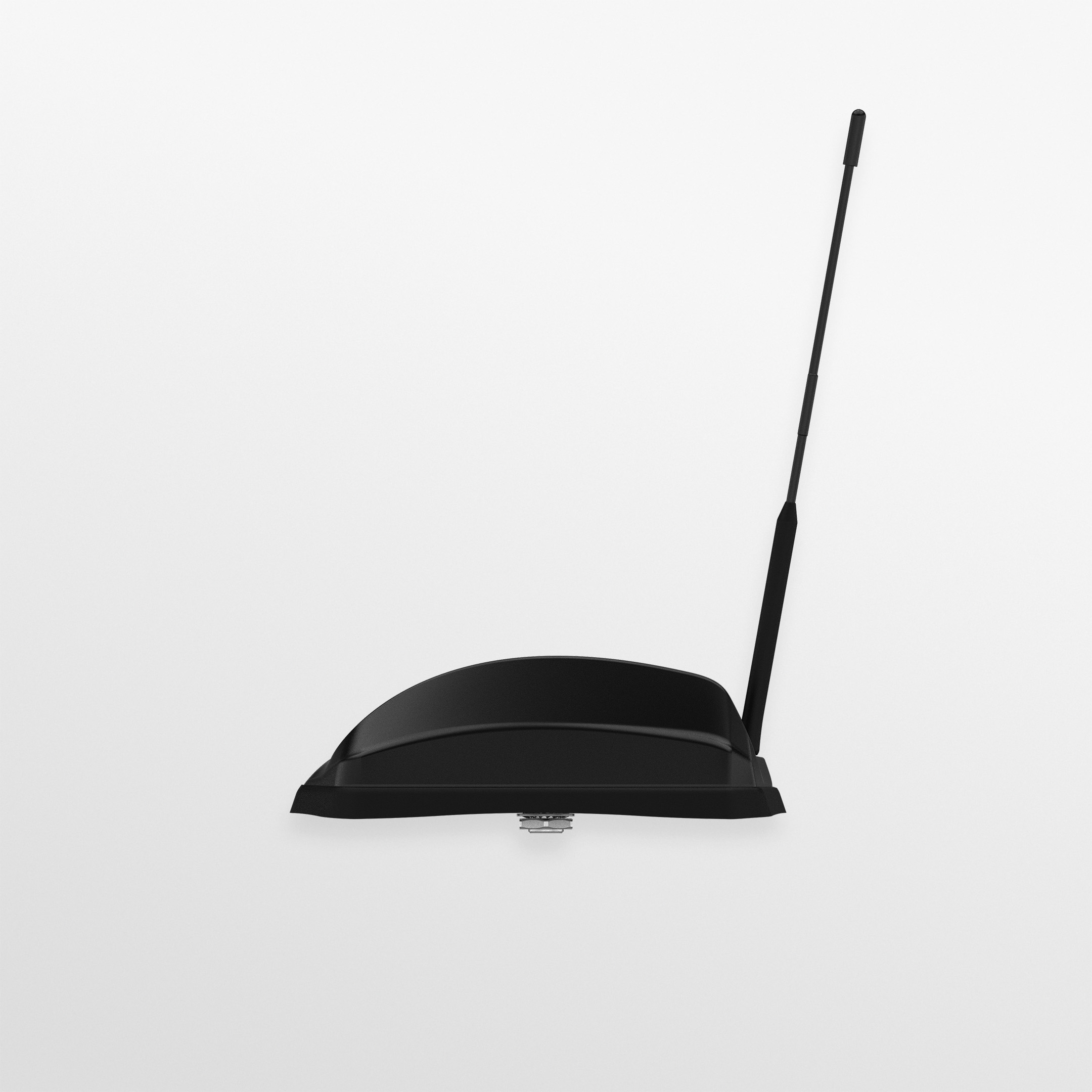

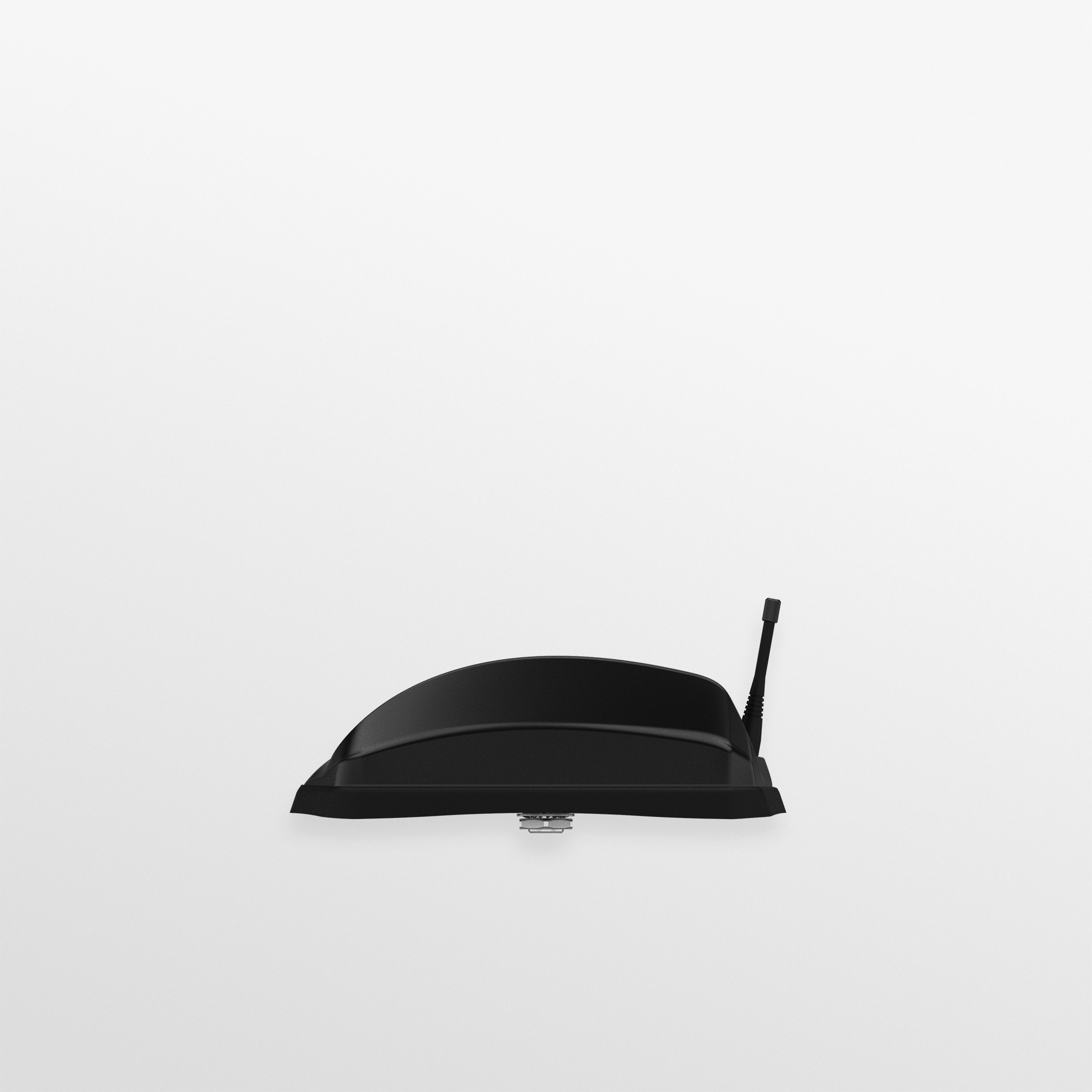

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

The shark fin design provides multiple antenna functions while remaining discreet and is suitable for public safety (overt/covert), industrial and transport applications where a cost-effective, efficient and robust antenna is essential. Requiring only a single hole mounting, the antenna reduces vehicle damage, installation time, cost and visual impact whilst protecting a vehicle’s resale value.

Description

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing. The housing contains a 4×4 MiMo antenna function for 4G/5G (617-960/1427-6000MHz), up to 6×6 MiMo dual-band WiFi, which supports WiFi 6e. It can include up to 4x active antennas for GPS/GLONASS/Galileo/BeiDou each with 26dB gain LNA and advanced filtering for LTE Band13/14 operation.

Product overview

The GPS[X]D4[X]-6-60[-X] is an advanced 4G/5G, GPS/GNSS and WiFi antenna with a sharkfin style housing.

In addition, there is an integral stud mount for an external antenna whip. A blanking cap is supplied for when this whip position is not required.

The antenna should be installed on a metal panel when a comms whip is used, but if a whip is not required, then it may be fitted on a non-metallic panel and still offer similar performance.

Product Features

Distinctive Automotive SharkFin design Up to a 15-in-1 Combination Antenna Solution Covers all 4G/5G LTE bands, WiFi 6e and GPS/GNSS bands 4×4 MiMo 600-6000MHz LTE antenna elements Offers up to 6×6 MiMo WiFi 6e, and up to 4x GPS/GNSS Allows for external VHF, UHF or combination whip for voice radio connectivity

Benefits

Can come as a complete antenna kit with extension cables for a plug-and-play solution for any 5G veh IP69K certified and UN ECE 118 certified Provides the user with an overt/covert all-in-one antenna solution

Application

Public safety Mass transit Utilities & Industrial

Additional information

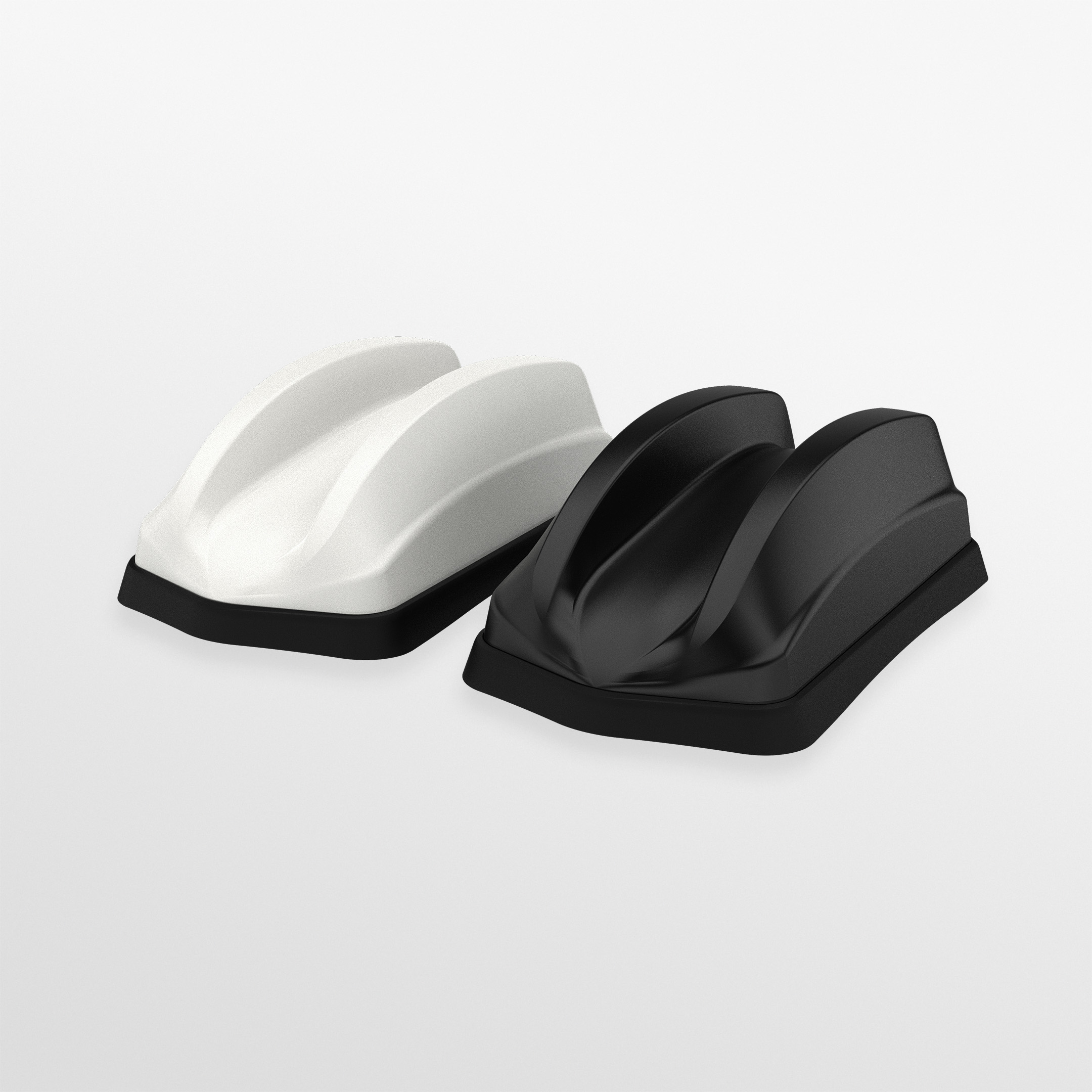

Colour	Black, White
4G/5G	4 x 4 MIMO
GPS	1 Module, 2 Modules, No
WIFI MIMO	2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No
Cable Length	Below 1m
Connector (LTE)	SMA (m)
Connector (VHF/UHF)	FME (m), No Connector
Connector (WIFI)	No Connector, Reverse Polarity SMA, SMA (f)
Connector (GPS)	FME (f), No Connector, SMA (m)

ELECTRICAL DATA
Pattern	Omnidirectional
Cellular LTE Elements	4 x 4 MIMO
WIFI Elements	4 x 4 MIMO; 3 x 3 MIMO; 2 x 2 MIMO; No
UHF Elements	No
GPS DATA
GPS Frequency Range	1559-1612MHz
LNA GAIN (dB)	26
Number of GPS Elements	No; 1 Module; 2 Modules
MECHANICAL DATA
Colour	Black; White
Length	253 (mm) \| 9.96 (in)
Width	142 (mm) \| 5.59 (in)
Height	82 (mm) \| 3.23 (in)
Operating Temperature	-40°/ +80°C (-40.0°/ +176.0°F)

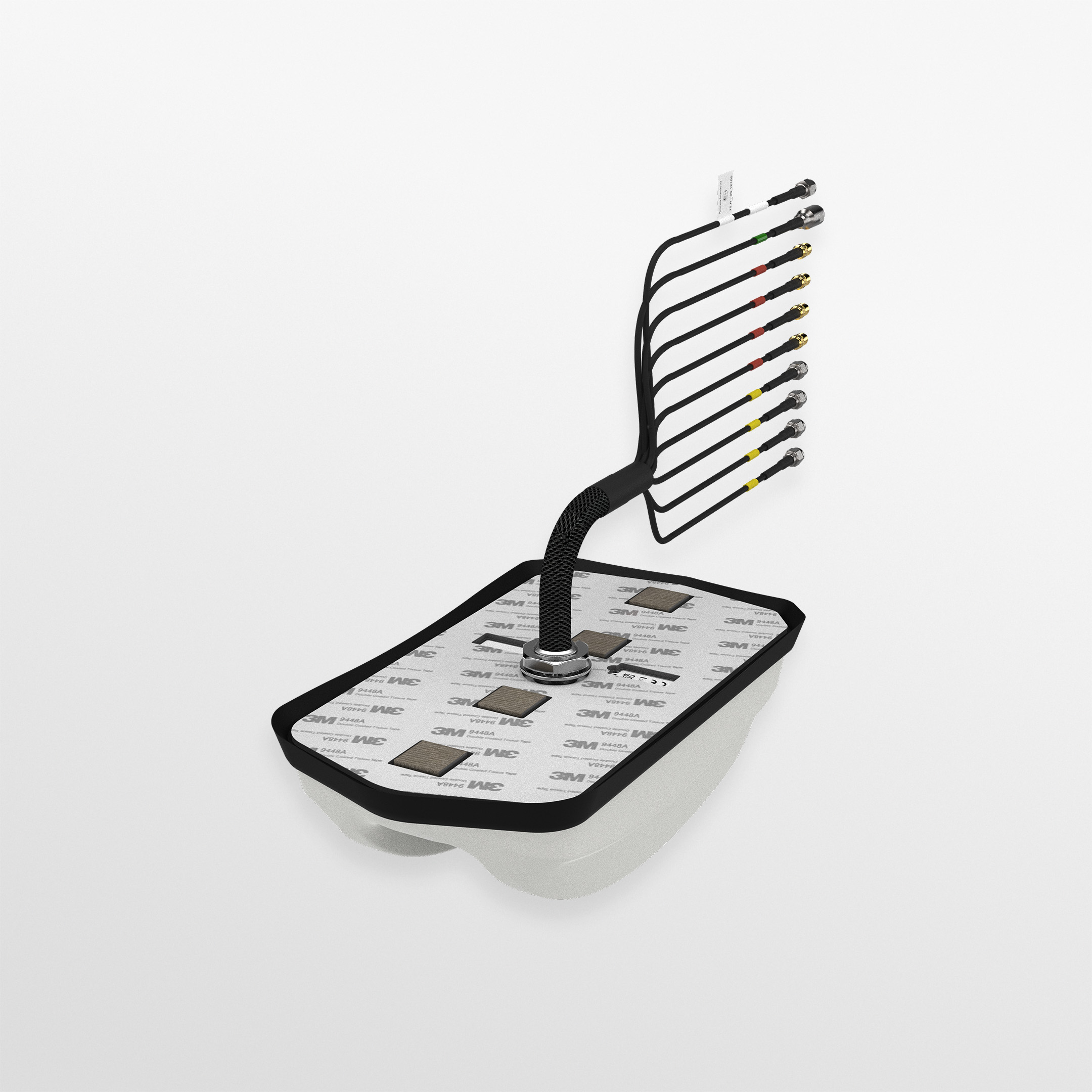

CABLE DATA
Cable Length – Whip	0.3 (m) \| 0.98 (ft)
Cable Length – LTE	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable length – GPS	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Length – WIFI	min: 0.3 (m) \| 0.98 (ft); max: 5 (m) \| 16.4 (ft)
Cable Type (LTE)	FR RG174; CS32
Cable Type (GPS)	FR CS29; FR RG174
Cable Type (WIFI)	FR CS32; FR RG174
Quantity of Cell Cable	4
Quantity of GPS/GNSS Extension	1
Quantity of WIFI Extension	max: 4
TERMINATION DATA
Connector (WIFI)	Reverse Polarity SMA; SMA (f)
Connector (GPS)	SMA (m); FME (f)
Connector (VHF/UHF) Whip	FME (m)
Connector (LTE)	SMA (m)
MOUNTING DATA
Mounting Type Fixed	Panel
Mounting Type Temp	Magnetic
Mounting Methods	Magnetic; Panel
APPROVALS DATA
IP Rating	IP69K
Cable Flammability	EN45545-2 HL3; UN ECE R118; EN6722
TECHNOLOGY DATA
Technology	4G/5G; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GPS; WIFI MIMO; WIFI; GNSS

Available selections

Colour	Black White
4G/5G	4 x 4 MIMO
GPS	1 Module 2 Modules No
WIFI MIMO	2 x 2 MIMO 3 x 3 MIMO 4 x 4 MIMO No
Cable Length	Below 1m
Connector (LTE)	SMA (m)
Connector (VHF/UHF)	FME (m) No Connector
Connector (WIFI)	No Connector Reverse Polarity SMA SMA (f)
Connector (GPS)	FME (f) No Connector SMA (m)

Models and configurations

SKU; Colour | Cellular | GPS | WIFI

FI-IN2682	Black \| 4 x 4 MIMO \| No \| No 5m SMA (m) Cables Fitted
FI-IN2682-LC	Black \| 4 x 4 MIMO \| No \| No 5m SMA (m) Cables Loose
FI-IN2682-W	White \| 4 x 4 MIMO \| No \| No 5m SMA (m) Cables Fitted
FI-IN2682-W-LC	White \| 4 x 4 MIMO \| No \| No 5m SMA (m) Cables Loose
FIND4-6-60	Black \| 4 x 4 MIMO \| No \| No 0.3m SMA (m)
FIND4W-6-60	White \| 4 x 4 MIMO \| No \| No 0.3m SMA (m)
GP-IN2670	Black \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2670-LC	Black \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2670-W	White \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2670-W-LC	White \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2679	Black \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2679-LC	Black \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2679-W	White \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2679-W-LC	White \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2680	Black \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2680-LC	Black \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2680-W	White \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Fitted	Cables Fitted \| Cables Fitted
GP-IN2680-W-LC	White \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
5m	5m \| 5m
SMA (m)	SMA (m) \| Reverse Polarity SMA
Cables Loose	Cables Loose \| Cables Loose
GP-IN2712	Black \| 4 x 4 MIMO \| 1 Module \| No
5m	5m
SMA (m)	SMA (m)
Cables Fitted	Cables Fitted
GP-IN2712-LC	Black \| 4 x 4 MIMO \| 1 Module \| No
5m	5m
SMA (m)	SMA (m)
Cables Loose	Cables Loose
GP-IN2712-W	White \| 4 x 4 MIMO \| 1 Module \| No
5m	5m
SMA (m)	SMA (m)
Cables Fitted	Cables Fitted
GP-IN2712-W-LC	White \| 4 x 4 MIMO \| 1 Module \| No
5m	5m
SMA (m)	SMA (m)
Cables Loose	Cables Loose
GPS2D4-6-60	Black \| 4 x 4 MIMO \| 2 Modules \| No
0.3m	0.3m
SMA (m)	FME (f)
GPS2D4-6-60-D	Black \| 4 x 4 MIMO \| 2 Modules \| 2 x 2 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPS2D4-6-60-Q	Black \| 4 x 4 MIMO \| 2 Modules \| 4 x 4 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPS2D4-6-60-T	Black \| 4 x 4 MIMO \| 2 Modules \| 3 x 3 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPS2D4W-6-60	White \| 4 x 4 MIMO \| 2 Modules \| No
0.3m	0.3m
SMA (m)	FME (f)
GPS2D4W-6-60-D	White \| 4 x 4 MIMO \| 2 Modules \| 2 x 2 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPS2D4W-6-60-Q	White \| 4 x 4 MIMO \| 2 Modules \| 4 x 4 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPS2D4W-6-60-T	White \| 4 x 4 MIMO \| 2 Modules \| 3 x 3 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4-6-60	Black \| 4 x 4 MIMO \| 1 Module \| No
0.3m	0.3m
SMA (m)	FME (f)
GPSD4-6-60-D	Black \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4-6-60-Q	Black \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4-6-60-T	Black \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4W-6-60	White \| 4 x 4 MIMO \| 1 Module \| No
0.3m	0.3m
SMA (m)	FME (f)
GPSD4W-6-60-D	White \| 4 x 4 MIMO \| 1 Module \| 2 x 2 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4W-6-60-Q	White \| 4 x 4 MIMO \| 1 Module \| 4 x 4 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)
GPSD4W-6-60-T	White \| 4 x 4 MIMO \| 1 Module \| 3 x 3 MIMO
0.3m	0.3m \| 0.3m
SMA (m)	FME (f) \| SMA (f)

Accessories

SAB-324-2-[VAR] \| Dual Sharkee® mounting adaptor kit for Ford Explorer / Interceptor SEE MORE SAB-333 \| Magnetic Mount Solution for GPSD4 Dual Sharkee® SEE MORE SAB-312 \| Ribbed Roof mounting kit for GPSD4 Dual Sharkee SEE MORE

Configuration options

Option	Available values
Colour	Black, White
4G 5G Mimo	4 x 4 MIMO
Gps	1 Module, 2 Modules, No
Mimo Wifi	2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, No
Cable Length	Below 1m
Connector Lte	SMA (m)
Connector Vhf Uhf	FME (m), No Connector
Connector Wifi	No Connector, Reverse Polarity SMA, SMA (f)
Connector Gps	FME (f), No Connector, SMA (m)
