Model / SKU: HM-[VAR]
The HM range of antennas are ground plane independent and can,
therefore, be mounted on any surface. The antenna is ideal for
motorcycles, ambulances, fire trucks and other vehicles with
non-conductive panels but can also be used on any other vehicles or at
fixed sites.

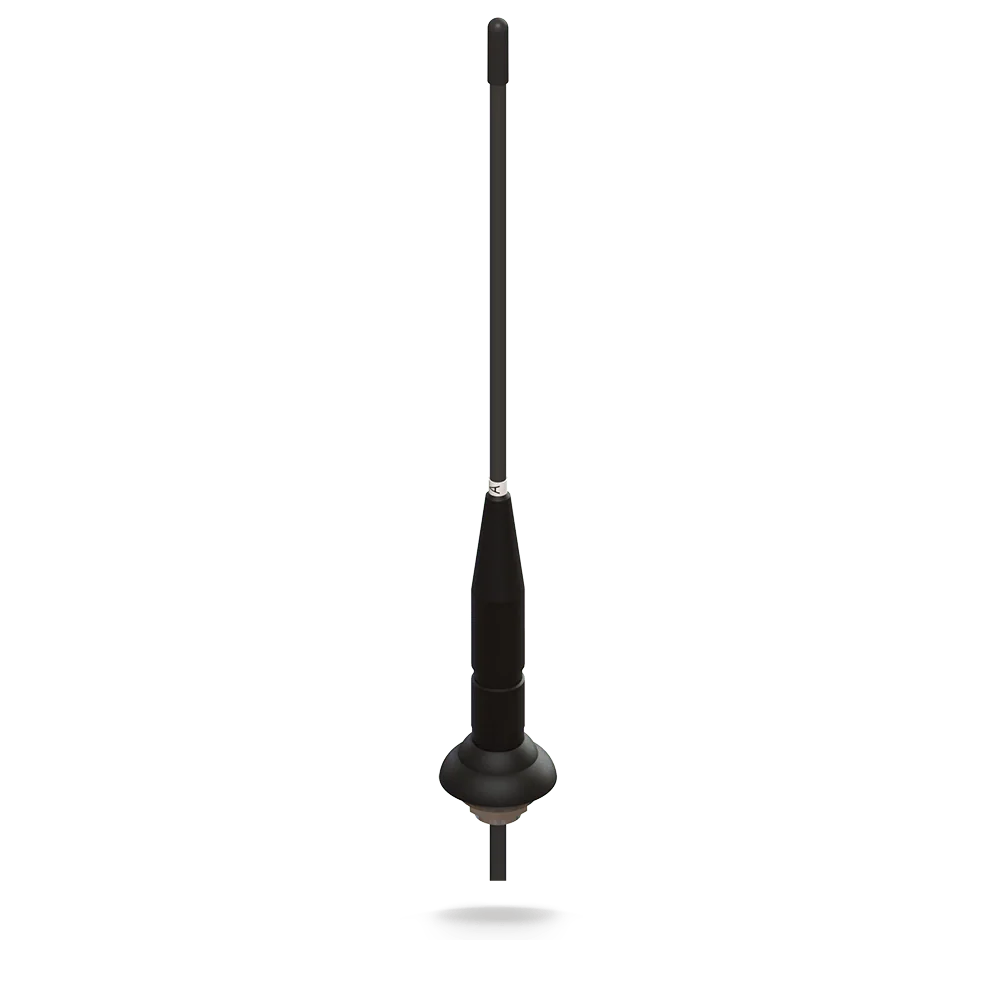

The HM antenna range has a rugged design with a flexible nylon whip.
The base is moulded in rigid nylon and mounted by way of an M14 mounting
bush.
The HM mount (ML10) includes integrated low loss cable which comes in various lengths and with various terminations.
The HM range of antennas are ground plane independent and can, therefore, be mounted on any surface. The antenna is ideal for motorcycles, ambulances, fire trucks and other vehicles with non-conductive panels but can also be used on any other vehicles or at fixed sites.
The HM range of antennas are ground plane independent and can, therefore, be mounted on any surface. The antenna is ideal for motorcycles, ambulances, fire trucks and other vehicles with non-conductive panels but can also be used on any other vehicles or at fixed sites.
The HM antenna range has a rugged design with a flexible nylon whip. The base is moulded in rigid nylon and mounted by way of an M14 mounting bush. The HM mount (ML10) includes integrated low loss cable which comes in various lengths and with various terminations.
| Colour | Black |
|---|---|
| Cable Length | Between 5m & 10m |
| Connector (VHF/UHF) | TNC (f) |
| Frequency Range | 380-400MHz, 380-430MHz, 410-430MHz, 433MHz, 450-470MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 10 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | max: 420 (mm) | 16.54 (in) |
| Diameter | 35 (mm) | 1.38 (in) |
| Operating Temperature | -30°/ +80°C (-22.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 5 (m) | 16.40 (ft) |
| Cable Type (Whip) | CS23 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | TNC (f) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| TECHNOLOGY DATA | |
| Technology | UHF; 433MHz; TETRA |
