Model / SKU: HPDPD[VAR]-550

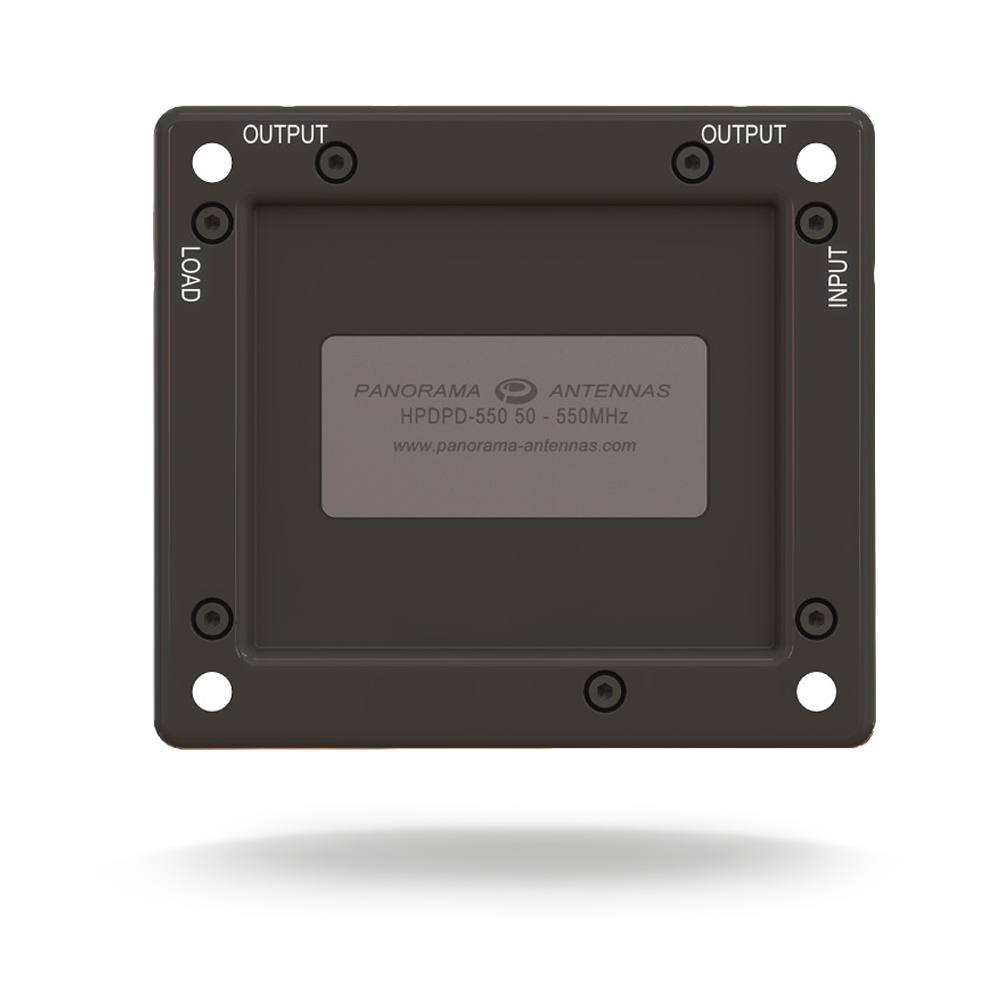

![HPDPD[VAR]-550 | VHF UHF Power Divider](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/PIC_HPDPDVAR-550.png "HPDPD[VAR]-550 | VHF UHF Power Divider")
The HPDPD-550 series is a range of power dividers designed to split
the power from a radio to distribute it to two separate antennas.
Designed to support Panorama Antennas’ covert VCD (VHF) and BMP (UHF)
bumper / fender mount antennas the HPDPD-550 range comes in three
variants for up to 15W, 60W and 150W input power respectively.
Covering a frequency range from 50-550MHz the HPDPD efficiently distributes power to two antennas with very low losses allowing users to distribute covert antennas at opposite ends of a vehicle to ensure maximal coverage
The HPDPD-550 series is a range of power dividers designed to split the power from a radio to distribute it to two separate antennas. Designed to support Panorama Antennas’ covert VCD (VHF) and BMP (UHF) bumper / fender mount antennas the HPDPD-550 range comes in three variants for up to 15W, 60W and 150W input power respectively.
The HPDPD-550 series is a range of power dividers designed to split the power from a radio to distribute it to two separate antennas. Designed to support Panorama Antennas’ covert VCD (VHF) and BMP (UHF) bumper / fender mount antennas the HPDPD-550 range comes in three variants for up to 15W, 60W and 150W input power respectively.
Covering a frequency range from 50-550MHz the HPDPD efficiently distributes power to two antennas with very low losses allowing users to distribute covert antennas at opposite ends of a vehicle to ensure maximal coverage
| Colour | Black |
|---|---|
| Connector (VHF/UHF) | FME (m) |
| ELECTRICAL DATA | |
|---|---|
| Max Input Power(W) | 150 |
| Frequency Range | Gain | 50 – 550MHz |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 16 (mm) | 0.63 (in) |
| Width | 108 (mm) | 4.25 (in) |
| Height | 121 (mm) | 4.76 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (m) |
| TECHNOLOGY DATA | |
| Technology | VHF; UHF; TETRA |
