Description
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications. The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
Product overview
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.
The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.
Product Features
- Compact low profile MiMo LTE antenna 1x or 2×2 MiMo dual-band WiFi Optional GNSS version available High performance in a distinctive design Covers all 2G/3G/4G/5G LTE cellular band Dual-band 2.4/5GHz WiFi Weatherproof IP66 Certified design Single hole mount with a small footprint
Benefits
- Provides MiMo LTE & WiFi capability in a compact antenna Easy to install with integrated cables Can perform on or off a conductive surface
Application
- Static M2M & loT devices Remote monitoring Smart metering Vending machines
Available selections
| Colour | Black |
|---|
| 4G/5G | 2 x 2 MIMO |
|---|
| GPS | 1 Module No |
|---|
| WIFI MIMO | 2 x 2 MIMO No |
|---|
| Cable Length | Between 3m & 5m |
|---|
| Connector (LTE) | FAKRA D SMA (m) |
|---|
| Connector (WIFI) | FAKRA I SMA Rev Pol |
|---|
| Connector (GPS) | FAKRA C No Connector SMA (m) |
|---|
Models and configurations
SKU; Colour | Cellular | GPS | WIFI
| LGAM-7-27-24-58 | - Black | 2 x 2 MIMO | 1 Module | 2 x 2 MIMO
|
|---|
| 3m | |
|---|
| SMA (m) | |
|---|
| LGAM-7-27-S24-58 | - Black | 2 x 2 MIMO | 1 Module | Yes
|
|---|
| 3m | |
|---|
| SMA (m) | |
|---|
| LGAMFR-7-27-24-58 | - Black | 2 x 2 MIMO | 1 Module | 2 x 2 MIMO
|
|---|
| 3m | |
|---|
| FAKRA D | |
|---|
| LGAMFR-7-27-S24-58 | - Black | 2 x 2 MIMO | 1 Module | Yes
|
|---|
| 3m | |
|---|
| FAKRA D | |
|---|
| LPAM-7-27-24-58 | - Black | 2 x 2 MIMO | No | 2 x 2 MIMO
|
|---|
| 3m | |
|---|
| SMA (m) | |
|---|
| LPAM-7-27-S24-58 | - Black | 2 x 2 MIMO | No | Yes
|
|---|
| 3m | |
|---|
| SMA (m) | |
|---|
| LPAMFR-7-27-S24-58 | - Black | 2 x 2 MIMO | No | Yes
|
|---|
| 3m | |
|---|
| FAKRA D | |
|---|
Configuration options
| Option | Available values |
|---|
| Colour | Black |
|---|
| 4G 5G Mimo | 2 x 2 MIMO |
|---|
| Gps | 1 Module, No |
|---|
| Mimo Wifi | 2 x 2 MIMO, No |
|---|
| Cable Length | Between 3m & 5m |
|---|
| Connector Lte | FAKRA D, SMA (m) |
|---|
| Connector Wifi | FAKRA I, SMA Rev Pol |
|---|
| Connector Gps | FAKRA C, No Connector, SMA (m) |
|---|

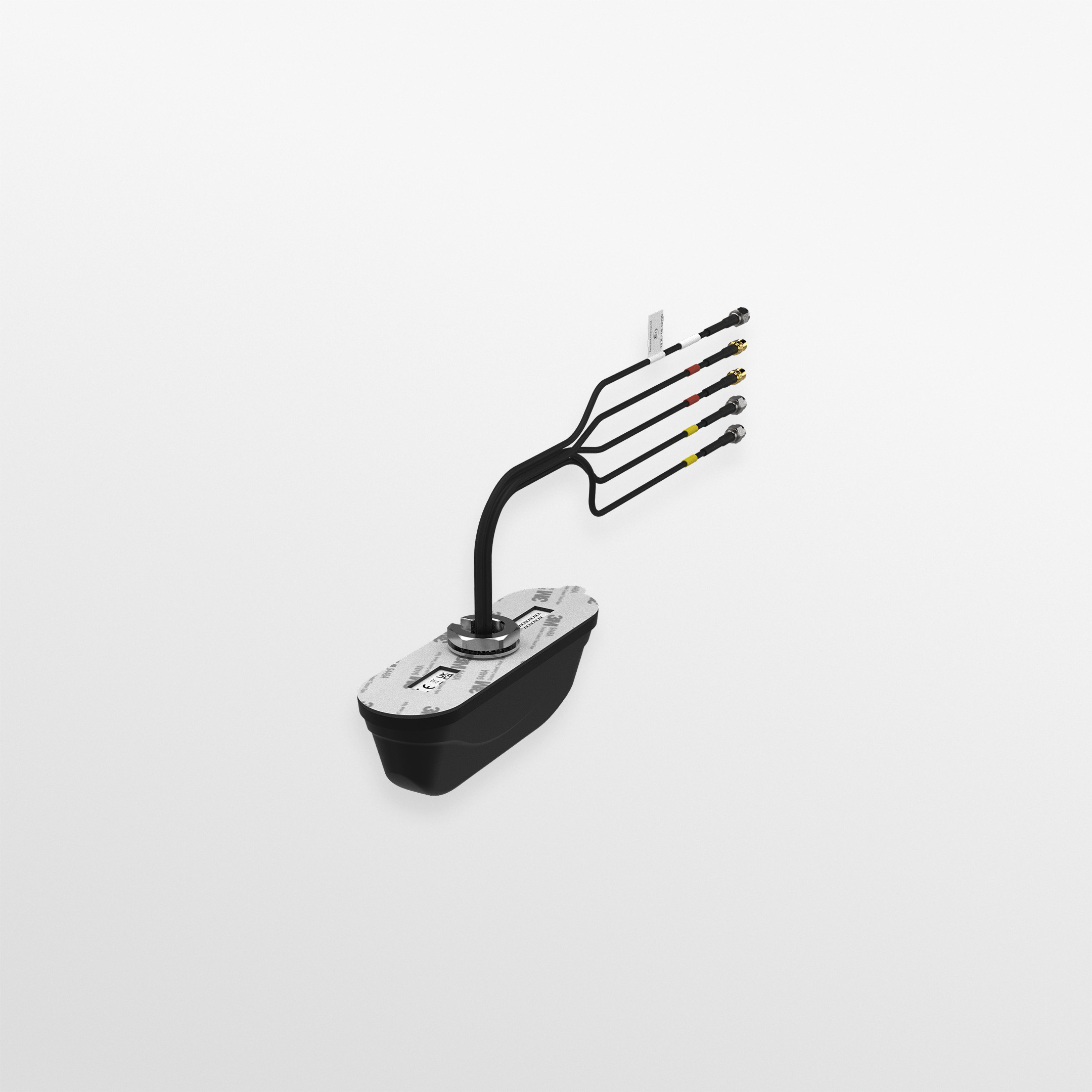

![L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAM-7-27-X24-58-4-Black-Underside-View.jpg "L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna")

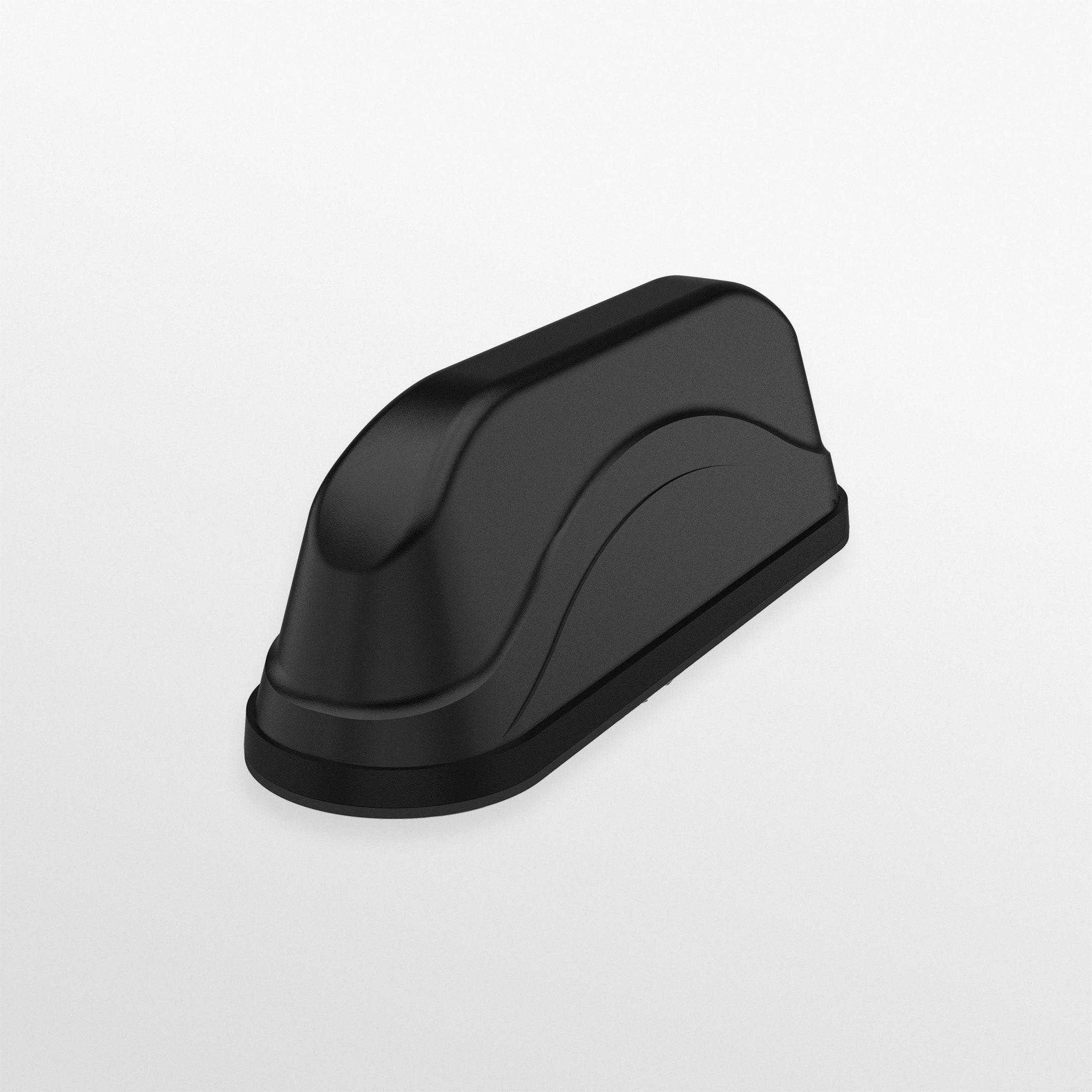

![L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAM-7-27-X24-58-1-Black-Main-View.jpg "L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna")

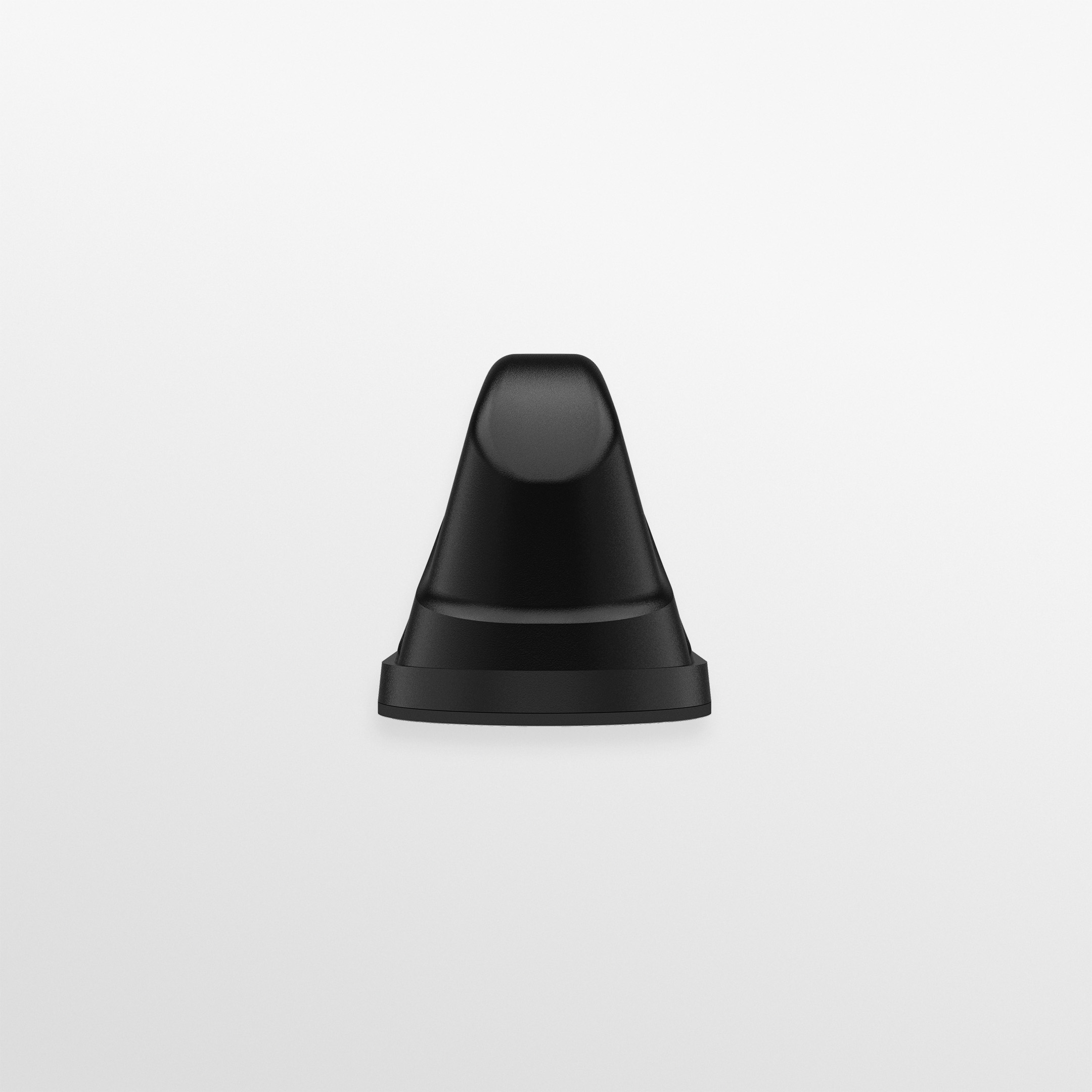

![L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAM-7-27-X24-58-2-Black-Front-View.jpg "L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna")

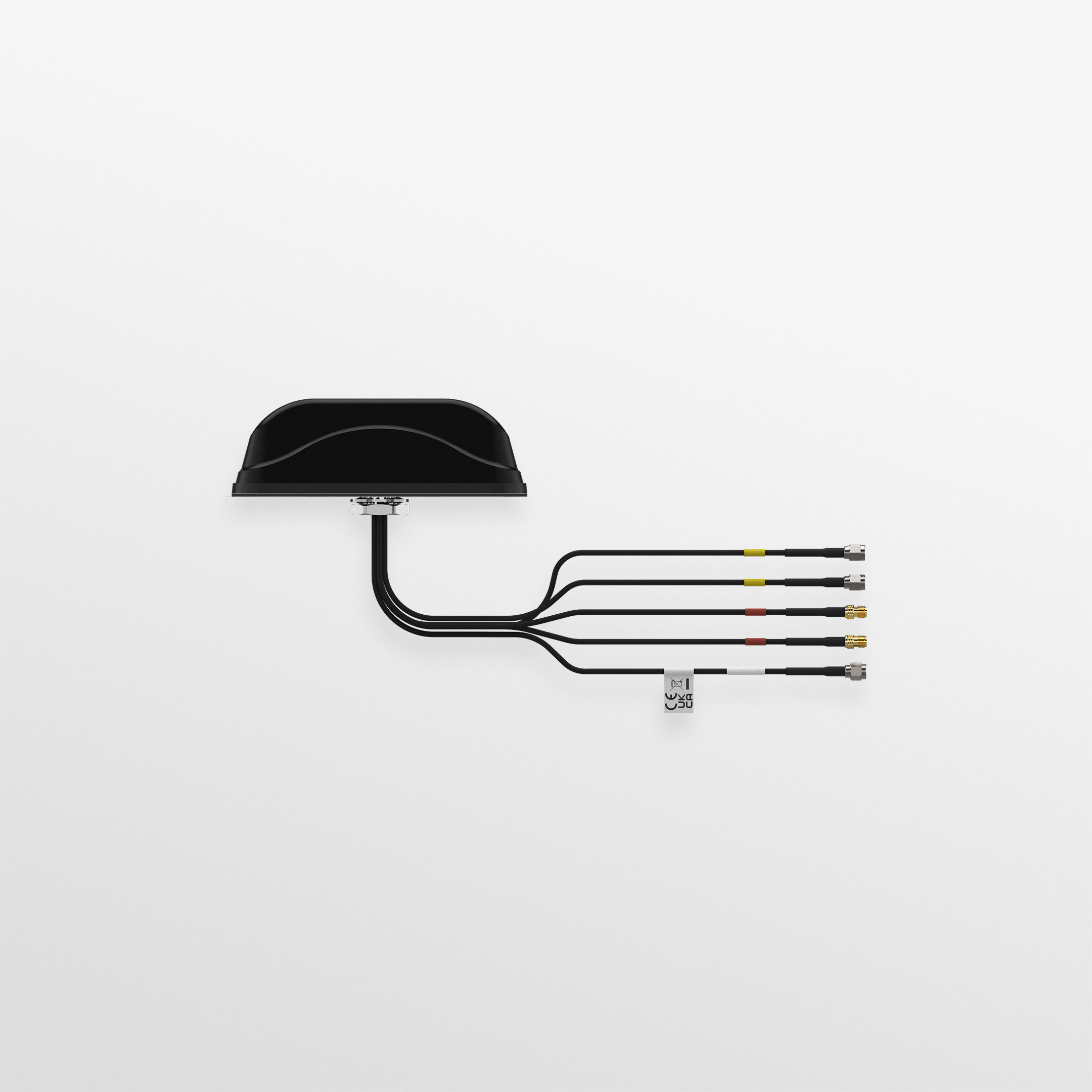

![L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAM-7-27-X24-58-3-Black-Side-View.jpg "L[G]AM-7-27-[X]24-58 | Multifunction MiMo Antenna")
