Model / SKU: L[G]AMM-7-27-[X]24-58
![L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAMM-7-27-X24-58-1-Black-Main-view.jpg "L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna")

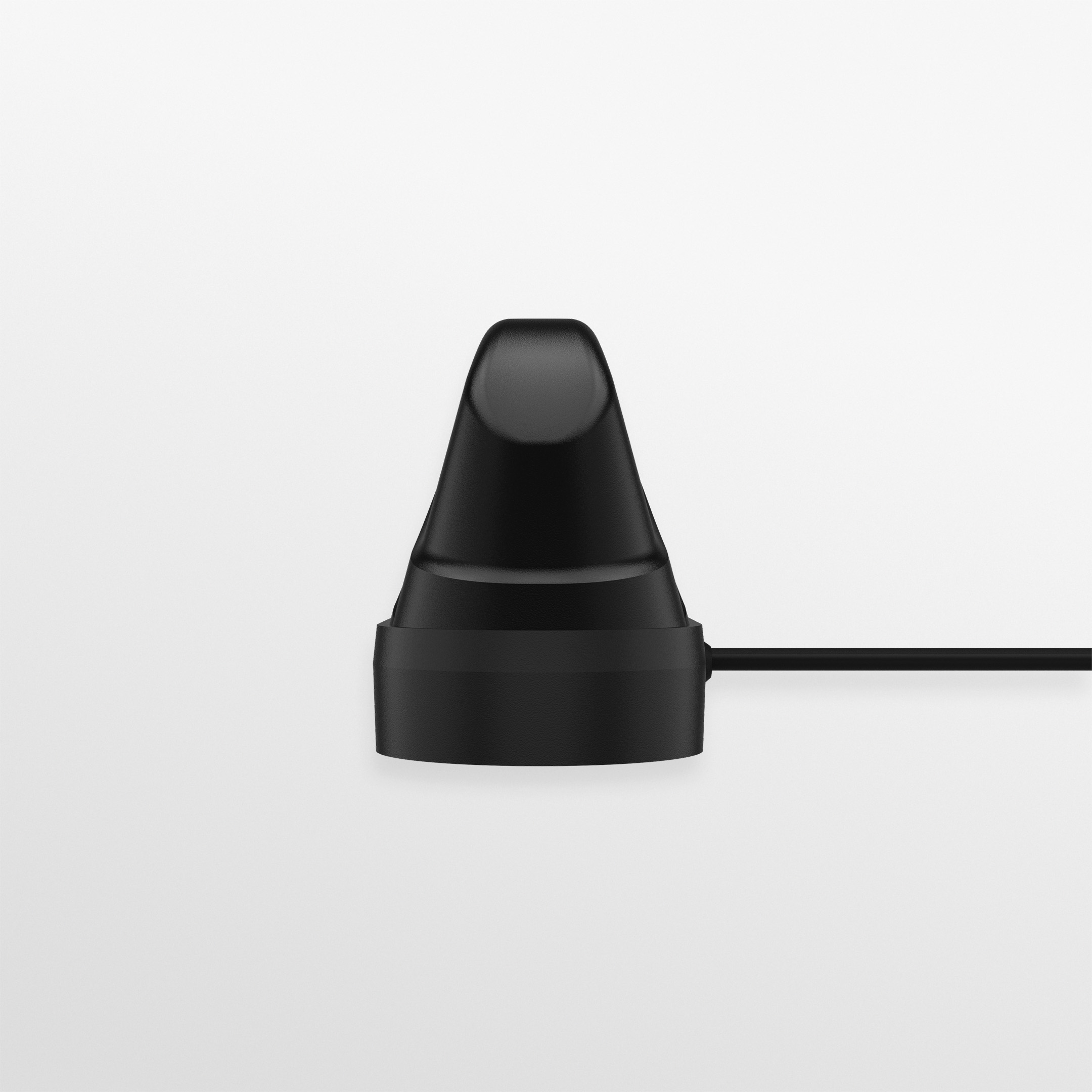

![L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAMM-7-27-X24-58-2-Black-Front-view.jpg "L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna")

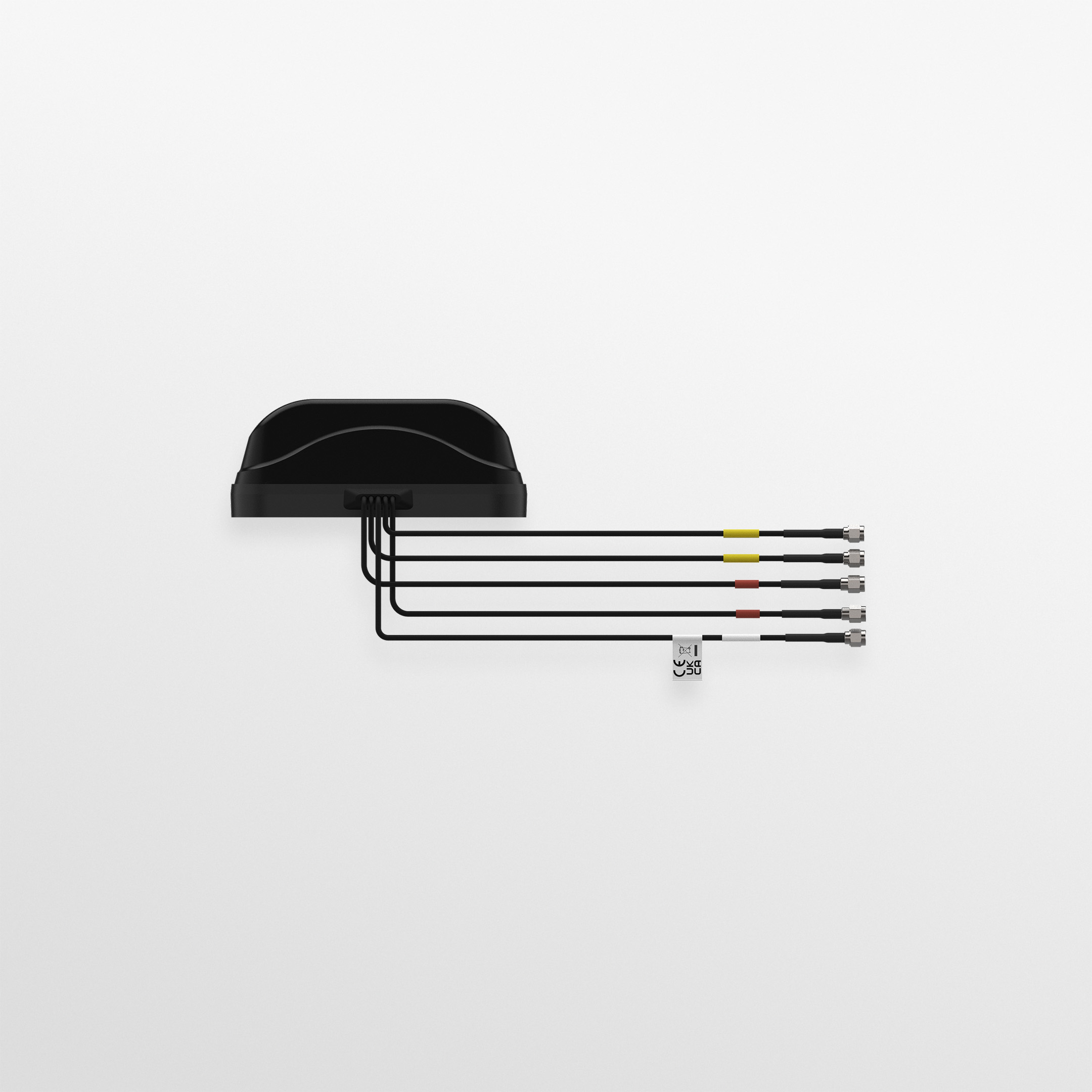

![L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGAMM-7-27-X24-58-3-Black-Side-view.jpg "L[G]AMM-7-27-[X]24-58 | Multifunction Magnetic MiMo Antenna")
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential.
It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired.
The L[G]AM consists of 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The antenna is designed to be mounted magnetically.
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired.
This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential.
It is ideal for vending machines, payment terminals and other M2M applications where installation without drilling a hole is desired.
The L[G]AM consists of 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface. The antenna is designed to be mounted magnetically.
| Colour | Black |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, No |
| Cable Length | Between 1m & 3m, Between 3m & 5m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | SMA Rev Pol |
| Connector (GPS) | No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 25 |
| Frequency Range | Gain | 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | 2 x 2 MIMO; No |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 150 (mm) | 5.91 (in) |
| Width | 44 (mm) | 1.73 (in) |
| Height | 60 (mm) | 2.36 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft) |
| Cable length – GPS | min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft) |
| Cable Length – WIFI | min: 1 (m) | 3.28 (ft); max: 3 (m) | 9.84 (ft) |
| Cable Type (LTE) | RG174 |
| Cable Type (GPS) | RG174 |
| Cable Type (WIFI) | RG174 |
| TERMINATION DATA | |
| Connector (WIFI) | SMA Rev Pol |
| Connector (GPS) | SMA (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Magnetic |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; GNSS; WIFI SISO |
