Model / SKU: L[G]M[H]M-6-60
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-Black-and-White.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 2](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-1-Black-Main-View.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 3](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-2-White-Main-View-1.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 4](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-3-Black-Front-View-1.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 5](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-4-White-Front-View-1.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 6](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-5-Black-Side-View.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 7](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-6-White-Side-View-1.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")

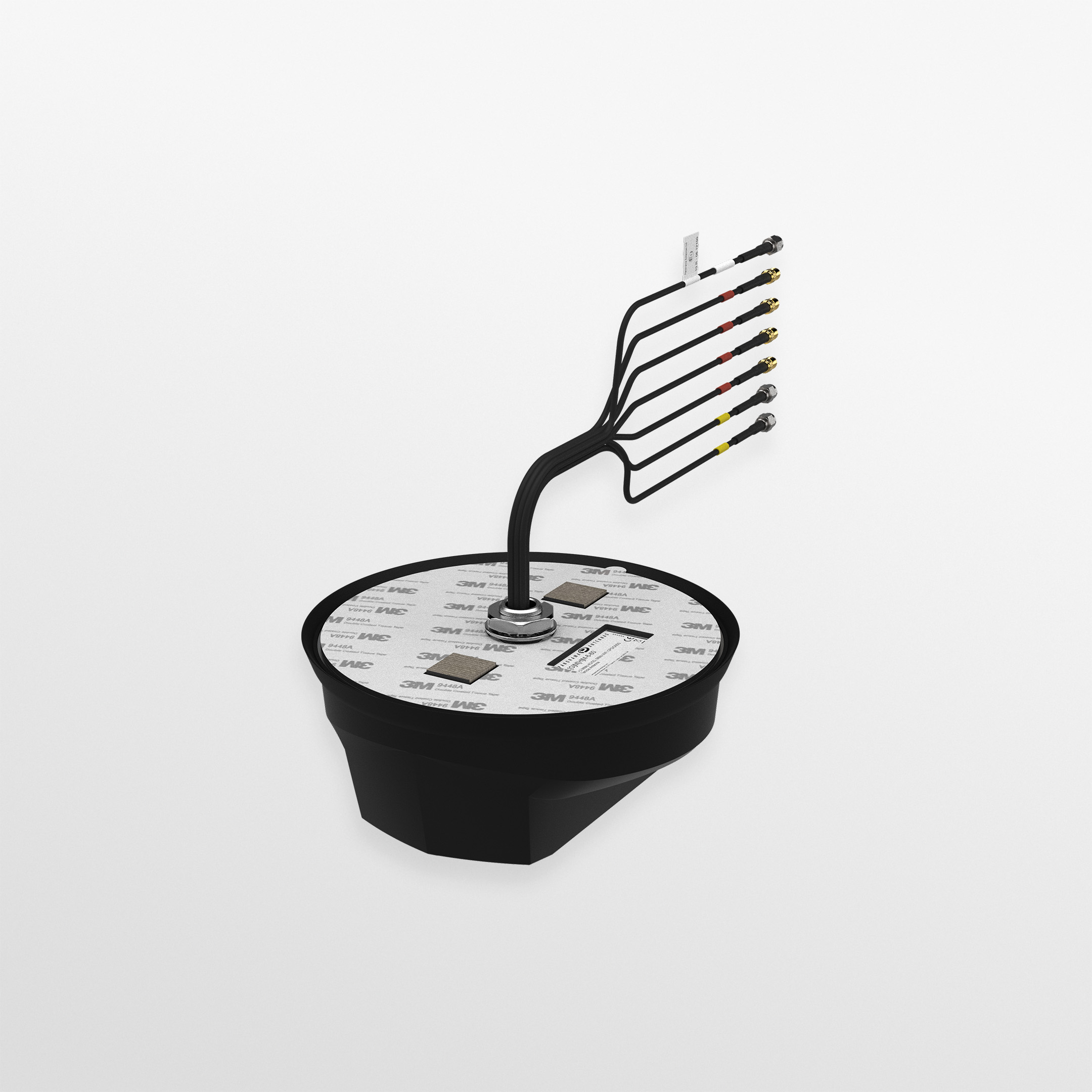

![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 8](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-7-Black-Underside-View.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
![L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna - Image 9](https://wirelesssolutions.net.au/wp-content/uploads/2026/10/LGMHM-6-60-8-White-Underside-view-2.jpg "L[G]M[H]M-6-60 Great White® | 2×2 MiMo 4G/5G, Optional MiMo WiFi+Optional GPS/GNSS Vehicle Antenna")
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.

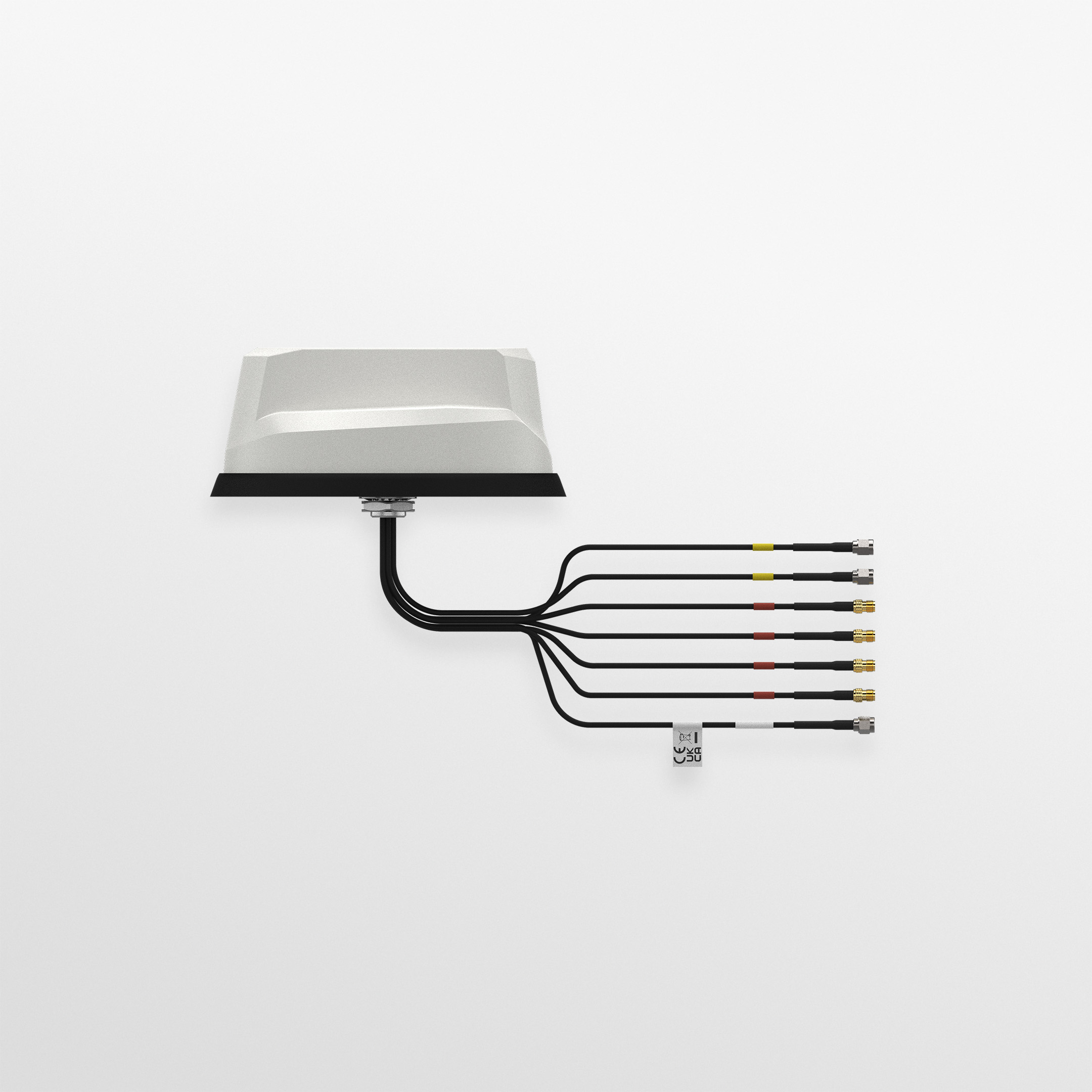

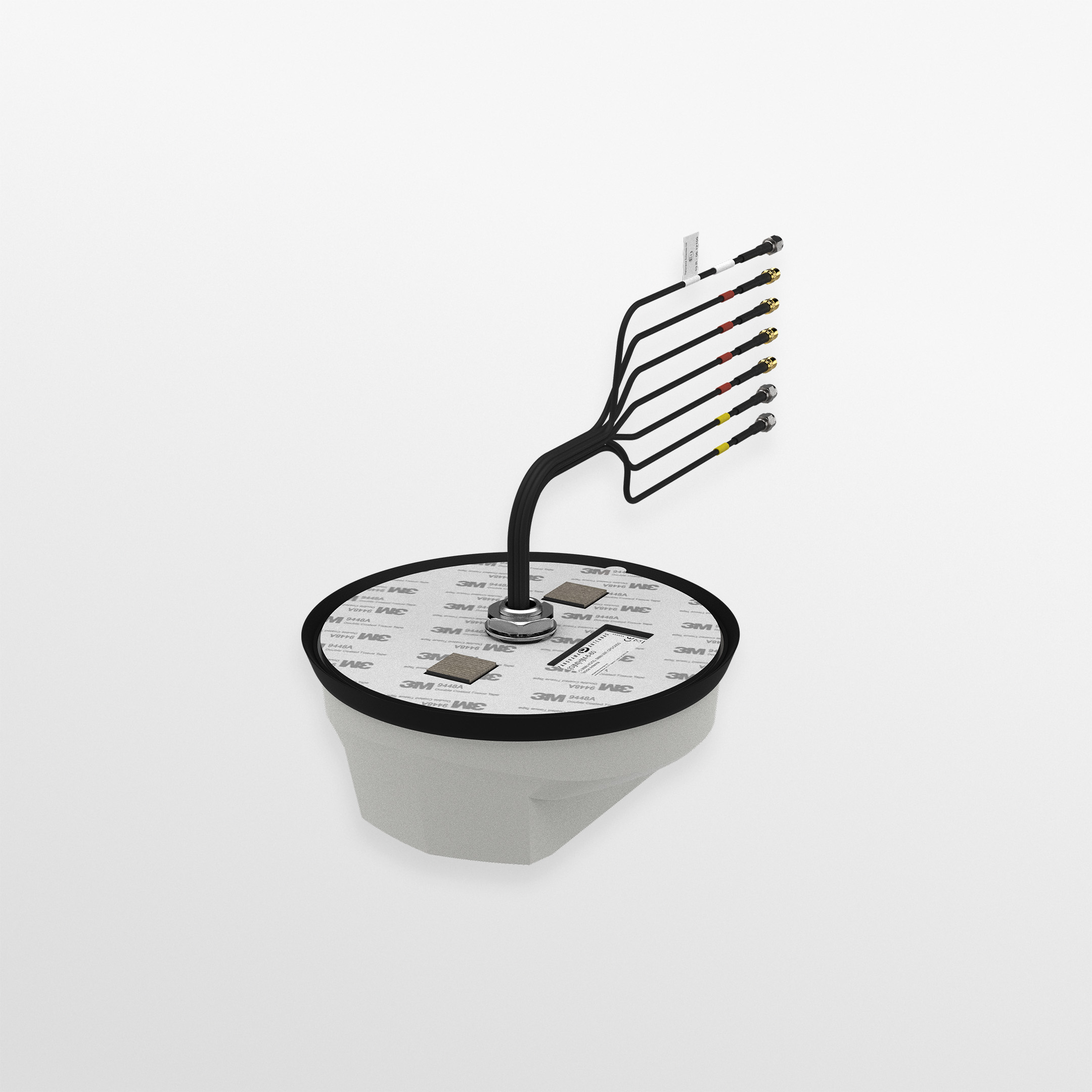

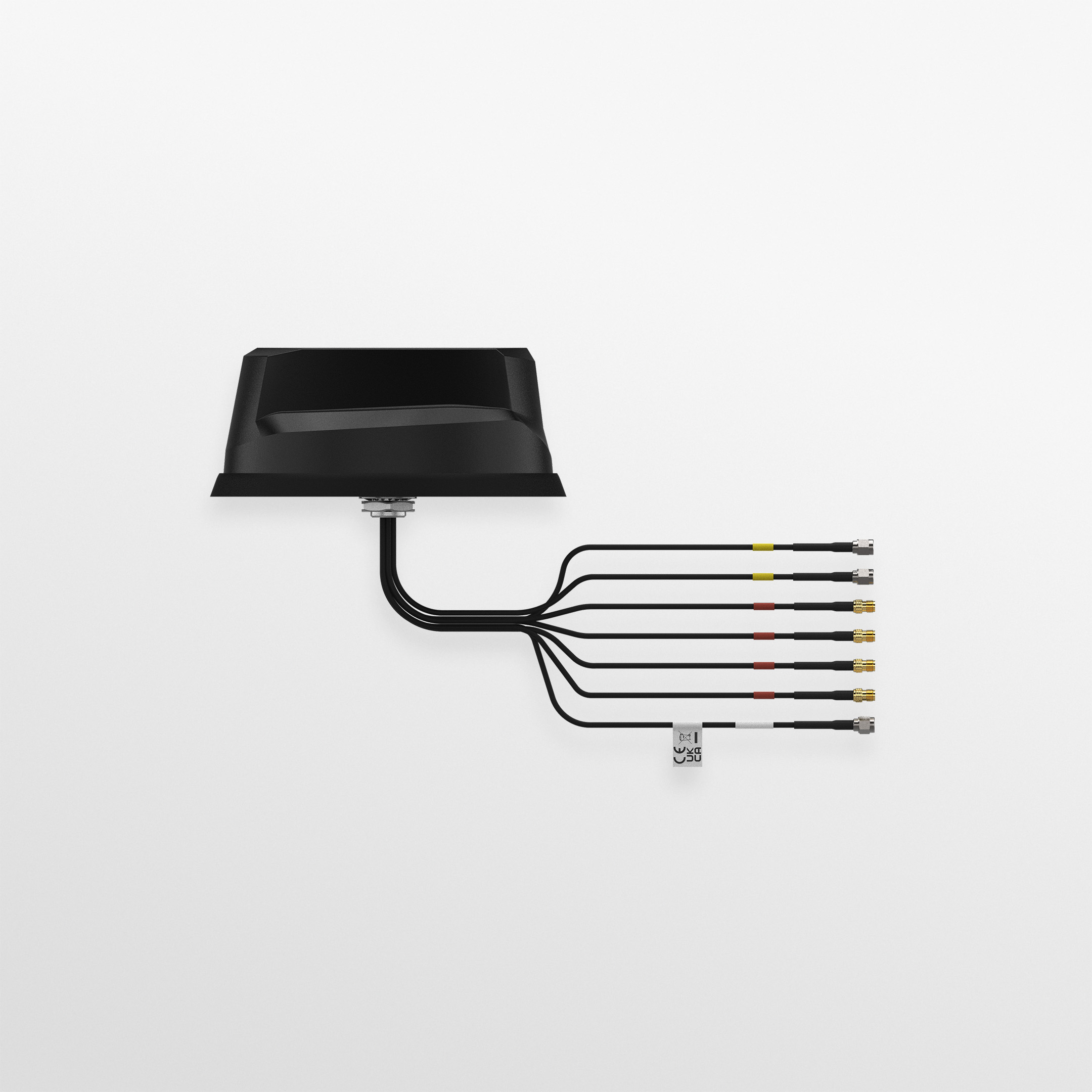

The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.

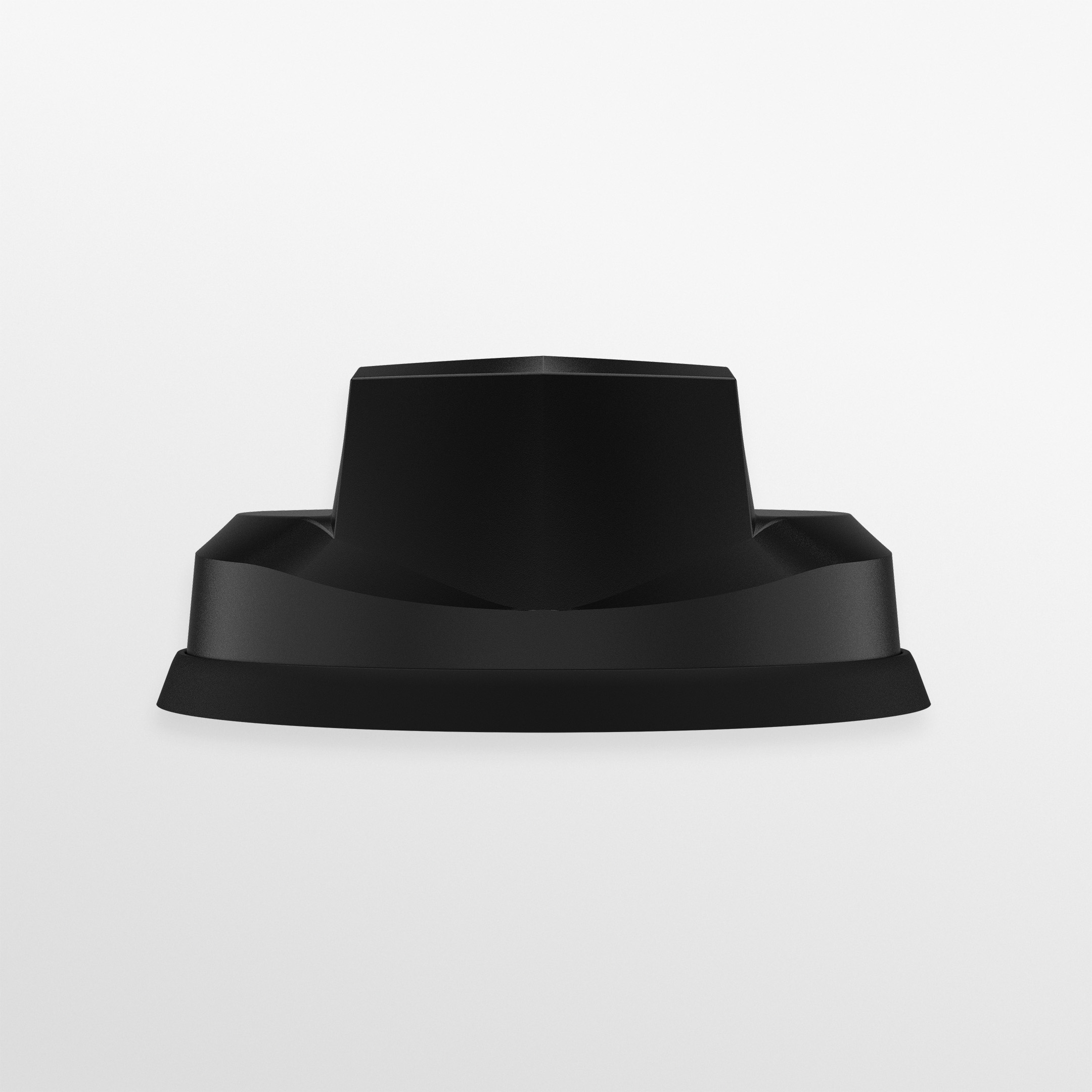

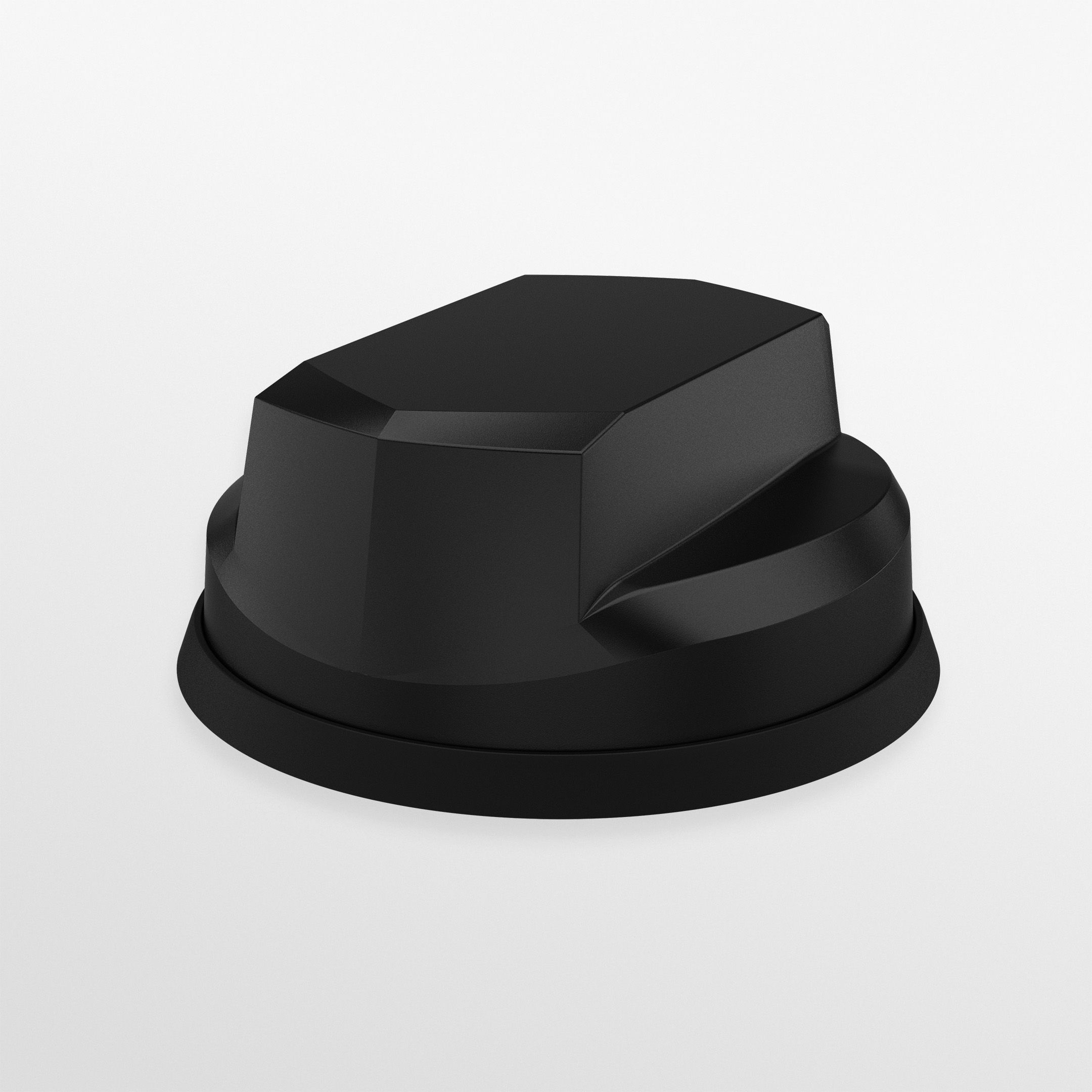

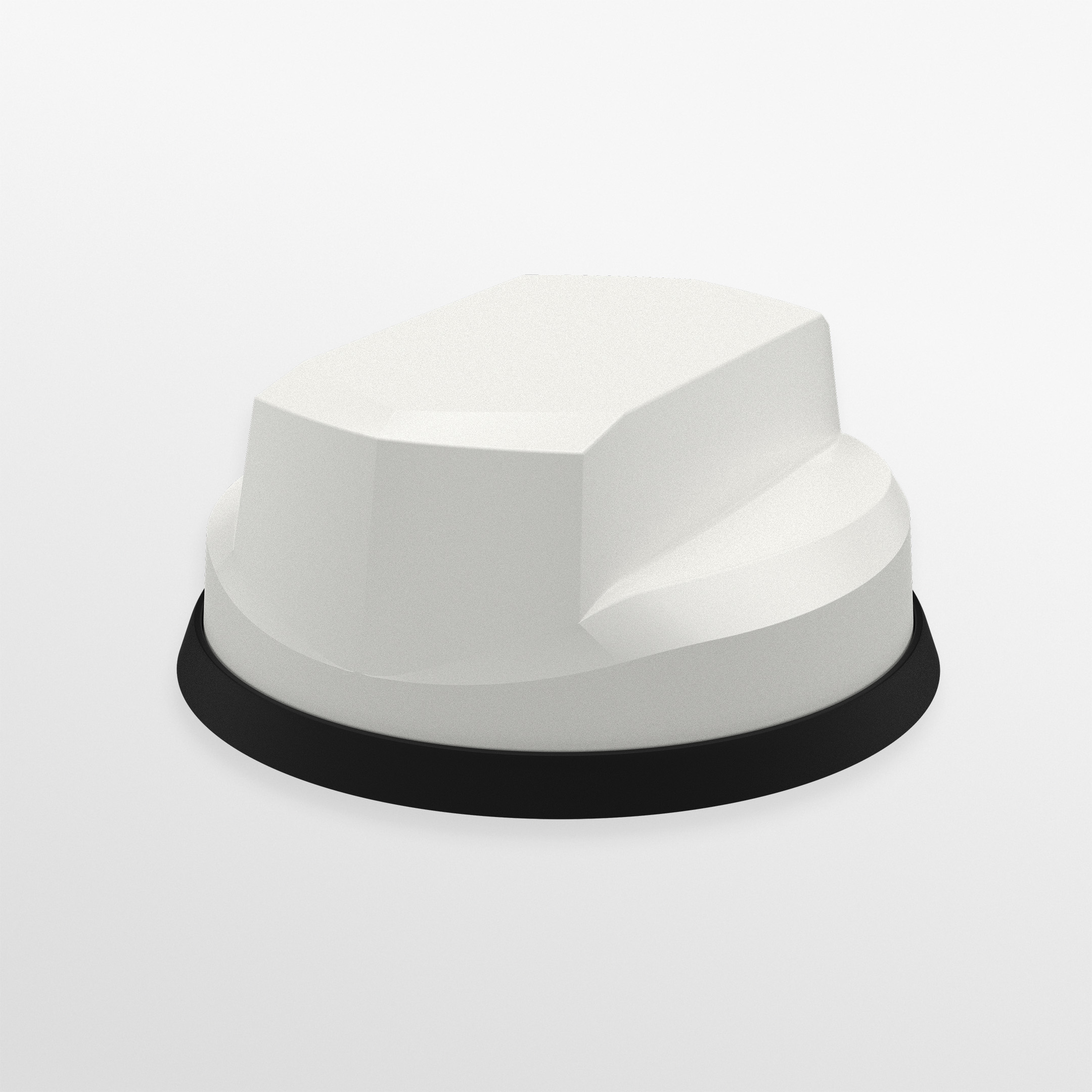

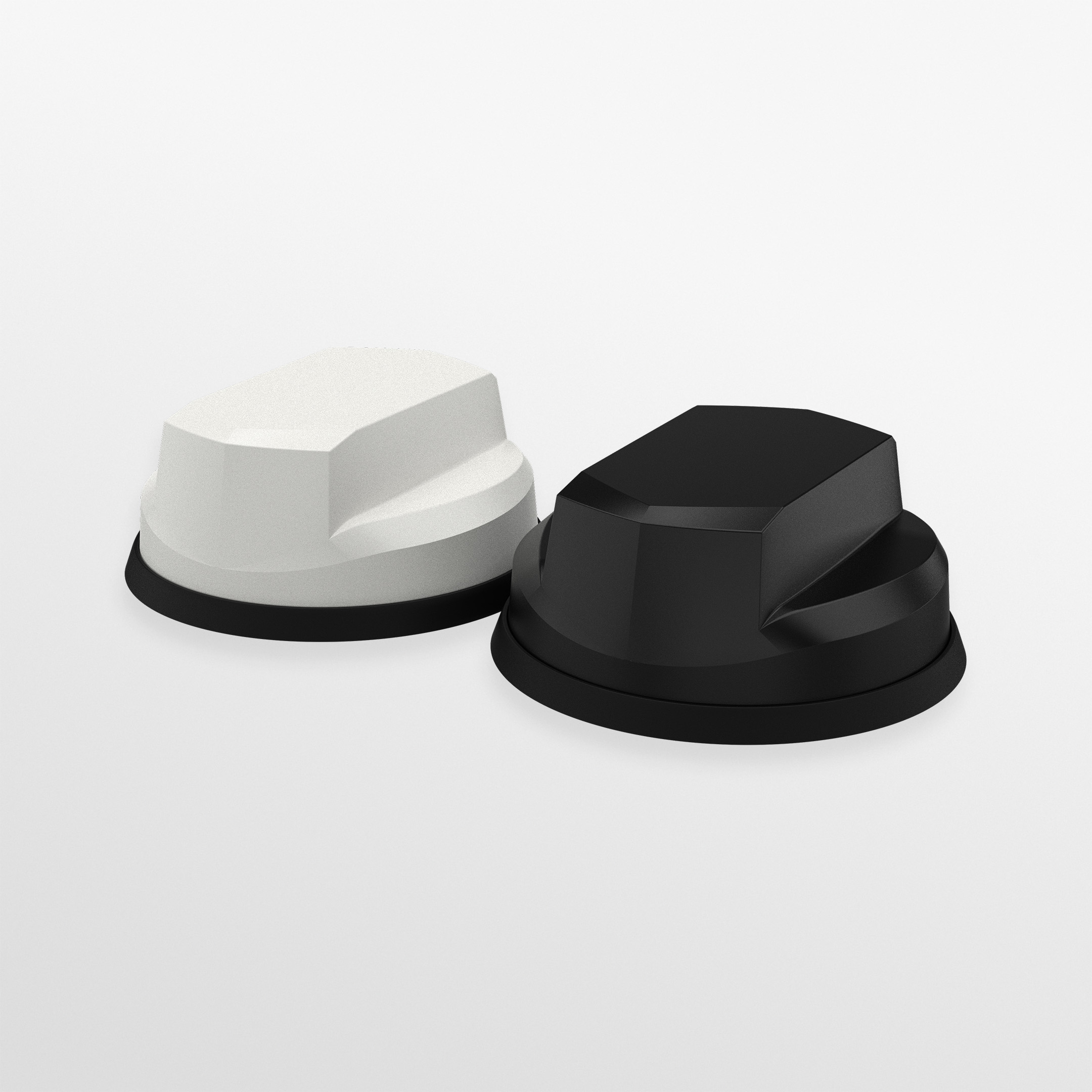

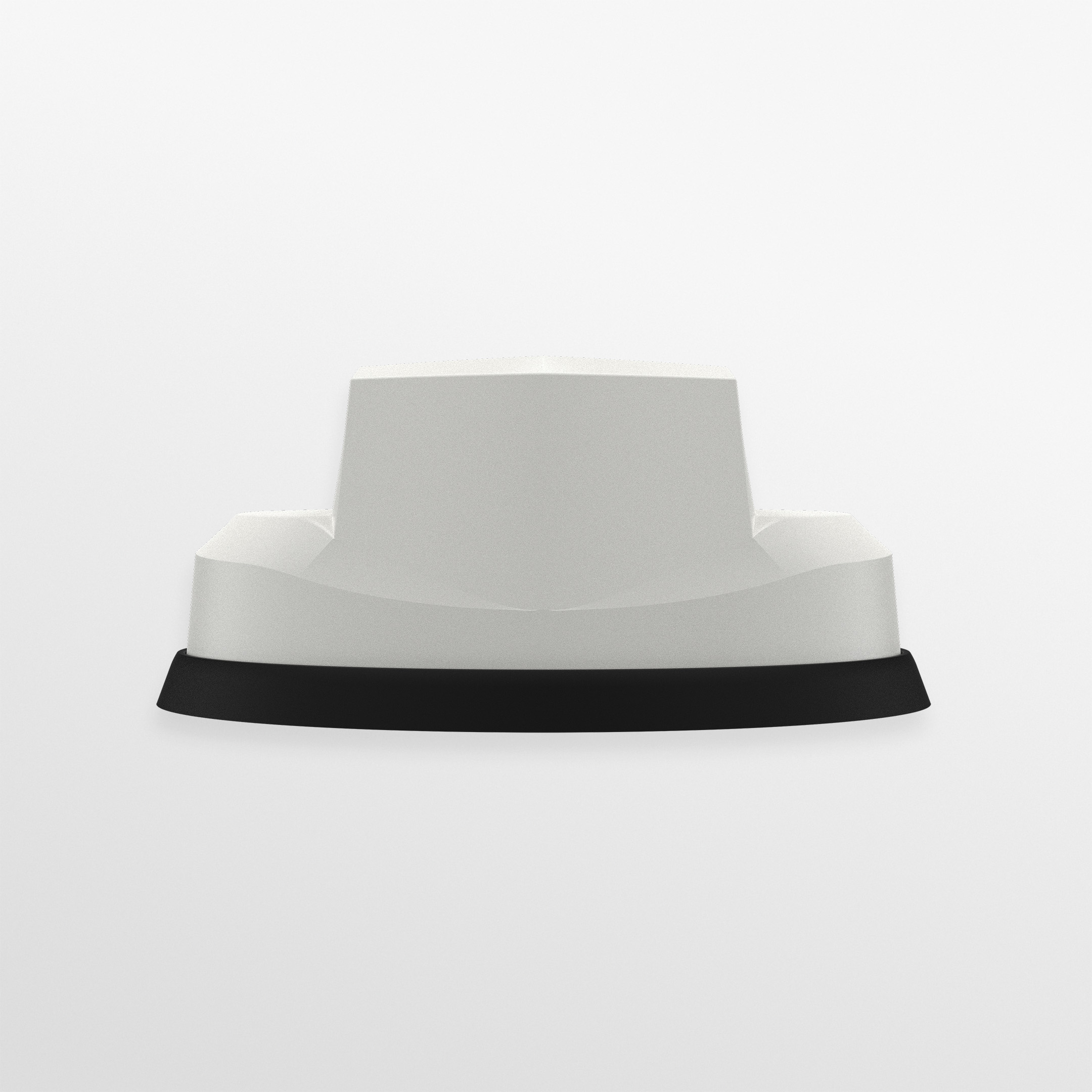

The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.
The L[G]M[X]M[X]-6-60[-24-58] range has been designed to provide 2×2 4G/5G MiMo performance from 617-960/1427-6000MHz in a robust low profile package.
The flexible platform allows the main elements to be combined with a number of other functions including GPS/GNSS and up to 6×6 MiMo WiFi 2.4/4.9-7.2GHz.
The antenna is designed to be panel mounted and can be fitted on a conductive or non-conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UN ECE R118.03 and EN45545-2) and a halogen-free flame retardant radome the antenna is suitable for many environments and applications.
The LGM variants have an integrated GPS/GNSS module supporting GPS, Glonass, Galileo and Compass with 26dB LNA gain. This GPS module features advanced filtering for LTE B13/14 designed to minimise potential in-band interference.
The antenna is available with a black or white radome which meets IK10 for vandal resistance and IP69K for ingress protection.
| Colour | Black, White |
|---|---|
| 4G/5G | 2 x 2 MIMO |
| GPS | 1 Module, No |
| WIFI MIMO | 2 x 2 MIMO, 3 x 3 MIMO, 4 x 4 MIMO, 6 x 6 MIMO, No |
| Cable Length | Below 1m, Between 5m & 10m |
| Connector (LTE) | SMA (m) |
| Connector (WIFI) | No Connector, Reverse Polarity SMA, SMA (f) |
| Connector (GPS) | FME (f), No Connector, SMA (m) |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | 617 – 960MHz | 5dBi; 1710 – 3800MHz | 9dBi; 4900 – 6000MHz | 10dBi |
| Cellular LTE Elements | 2 x 2 MIMO |
| WIFI Elements | 6 x 6 MIMO; No; 2 x 2 MIMO; 4 x 4 MIMO; 3 x 3 MIMO |
| UHF Elements | No |
| GPS DATA | |
| GPS Frequency Range | 1562-1612MHz |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module; No |
| MECHANICAL DATA | |
| Colour | Black; White |
| Height | 75 (mm) | 2.95 (in) |
| Diameter | 180 (mm) | 7.09 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – LTE | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable length – GPS | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Length – WIFI | min: 0.3 (m) | 0.98 (ft); max: 5 (m) | 16.4 (ft) |
| Cable Type (LTE) | FR RG174 |
| Cable Type (GPS) | FR RG174 |
| Cable Type (WIFI) | FR RG174 |
| Quantity of Cell Cable | 2 |
| Quantity of GPS/GNSS Extension | 1 |
| Quantity of WIFI Extension | max: 6 |
| TERMINATION DATA | |
| Connector (WIFI) | Reverse Polarity SMA; SMA (f) |
| Connector (GPS) | SMA (m); FME (f) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Type Temp | Magnetic |
| Mounting Methods | Panel; Magnetic |
| APPROVALS DATA | |
| IP Rating | IP69K |
| Cable Flammability | EN45545-2 HL3; UN ECE R118; EN6722 |
| TECHNOLOGY DATA | |
| Technology | GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3G/4G; Band 71 600MHz ready; FirstNet; GNSS |
