Description
The Panorama low profile UHF antenna range has been designed for use in hostile environments. The antenna housing is designed to withstand high impacts while retaining the integrity and is IP65 rated.
Product

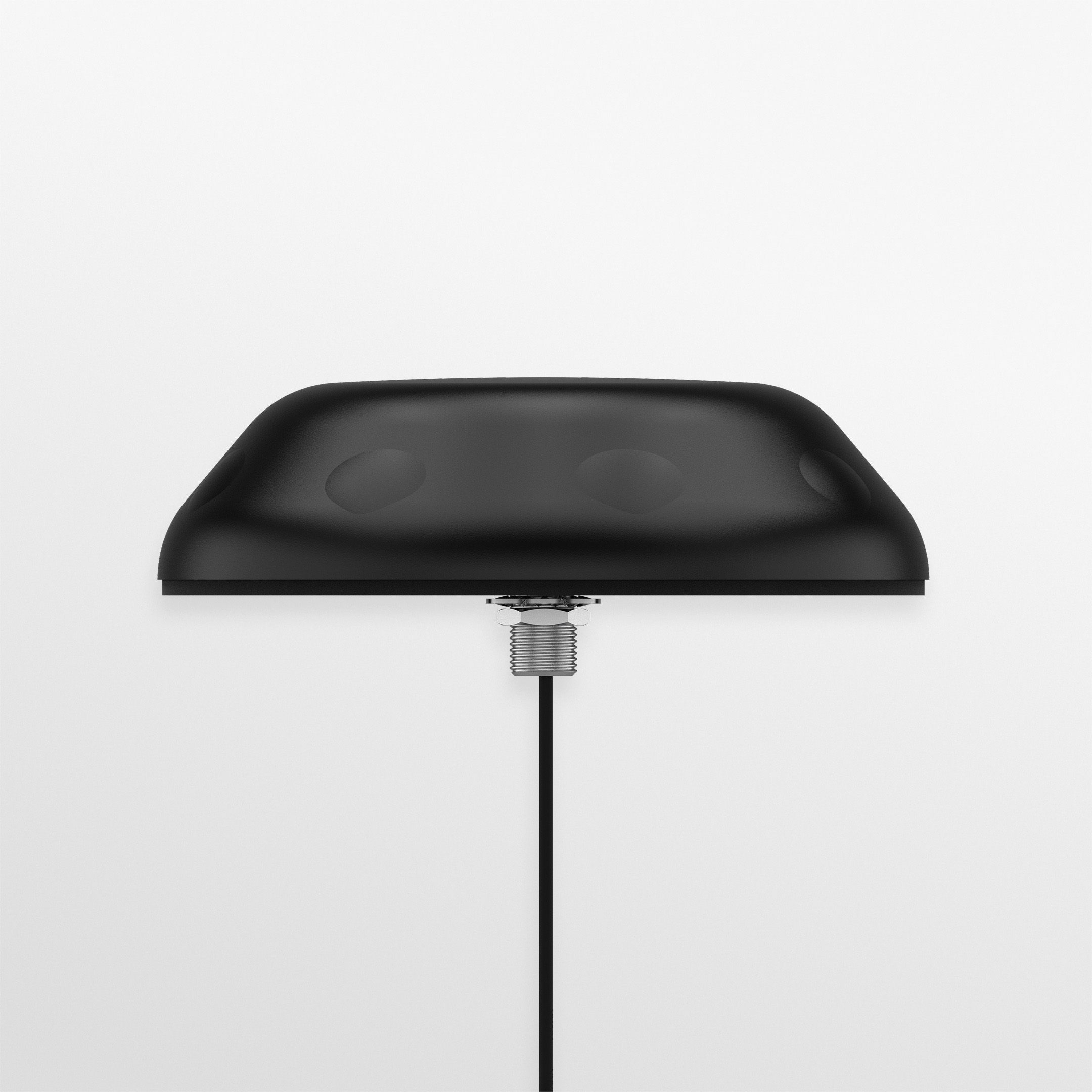

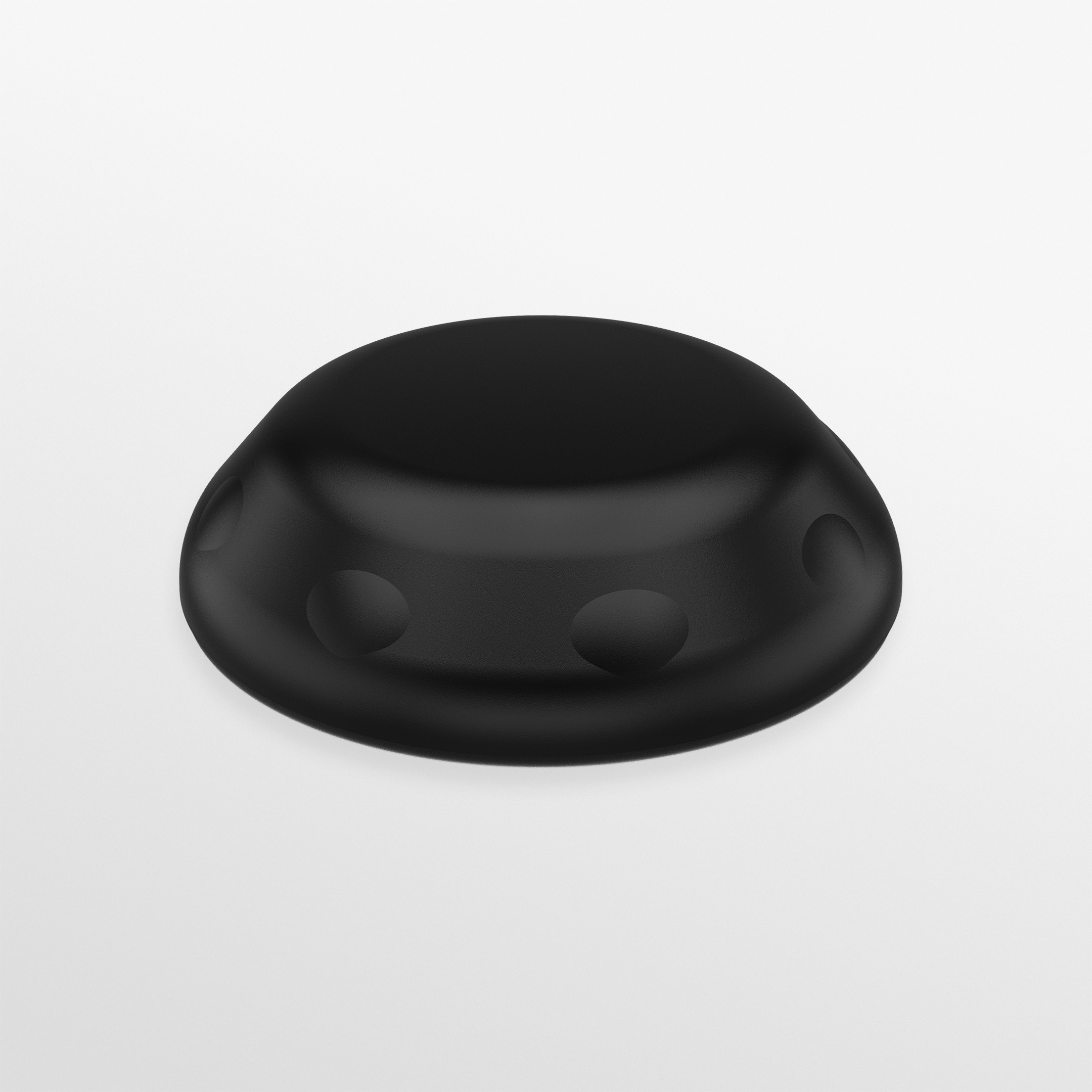

LP Series | Low Profile Antenna
Model / SKU: LP Series
LP Series | Low Profile Antenna
The Panorama low profile UHF antenna range has been designed for use in hostile environments.
The antenna housing is designed to withstand high impacts while retaining the integrity and is IP65 rated.
The antenna does not require a metallic ground plane *
* NOTE: the default tuning is for installation on a non-metallic surface. Performance may vary if the product is mounted on a conductive ground plane. On request, Panorama can supply the product tuned for operation on a specified size ground plane.
Product overview
The Panorama low profile UHF antenna range has been designed for use in hostile environments.
The antenna housing is designed to withstand high impacts while retaining the integrity and is IP65 rated.
The antenna does not require a metallic ground plane *
* NOTE: the default tuning is for installation on a non-metallic surface. Performance may vary if the product is mounted on a conductive ground plane. On request, Panorama can supply the product tuned for operation on a specified size ground plane.
Product Features
- Rugged Design for Reliable Service Low Profile Housing Available in Pre-tuned UHF Bands No Ground Plane Required
Additional information
| Colour | Black |
|---|---|
| Cable Length | Below 1m |
| Connector (VHF/UHF) | FME (m) |
| Frequency Range | 380-400MHz, 410-430MHz, 430-450MHz, 450-470MHz |
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Max Input Power(W) | 20 |
| Frequency Range | Gain | Check the part number table |
| Cellular LTE Elements | No |
| WIFI Elements | No |
| UHF Elements | No |
| GPS DATA | |
| Number of GPS Elements | No |
| MECHANICAL DATA | |
| Colour | Black |
| Height | 42 (mm) | 1.65 (in) |
| Diameter | 160 (mm) | 6.30 (in) |
| Operating Temperature | -40°/ +80°C (-40.0°/ +176.0°F) |
| CABLE DATA | |
| Cable Length – Whip | 0.5 (m) | 1.64 (ft) |
| Cable Type (Whip) | C35 |
| TERMINATION DATA | |
| Connector (VHF/UHF) Whip | FME (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP65 |
| TECHNOLOGY DATA | |
| Technology | UHF |
Data material
- Datasheet - LP-[VAR].pdf (PDF)
